aquaBUBBLER ABR24 Installation Manual

Classic Refill aquaBUBBLER Installation Guide
[Version 1: Oct 2024] Get the latest version: https://bit.ly/CR_installation
Page 1: Preinstallation Preparation
I M P O R T A N T
1. Unit must be installed by a Certified Plumber
2. Installation must be in accordance with
Max water pressure 1000 kPa, Max temp 40°C
3. Where installed in frost-prone areas, unit must be fitted with an Anti-Freeze Valve.
Nonadherence to any of the above, or failure to follow the steps detailed in this guide, will VOID ALL WARRANTIES

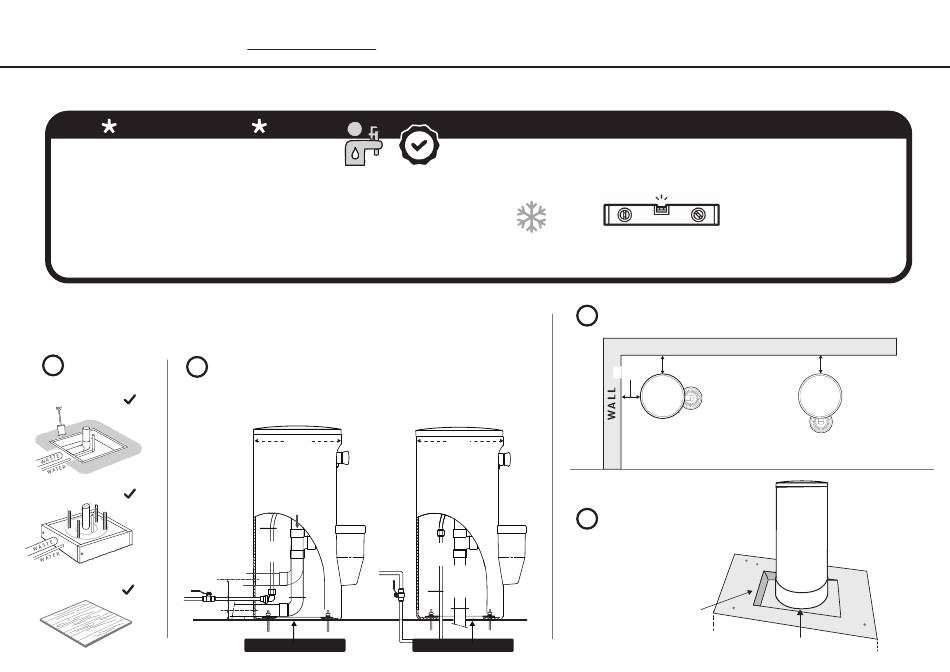

CONSIDERATIONS BEFORE INSTALLATION
1
2 Determine Plumbing Connection
Install onto :
Ground Work
Concrete Pad
Waste
Water Outlet
Max 160mm
from ground
Timber Floor
30
AS/NZS 3500.1 & AS/NZS 3500.2
Above Ground
Below Ground
315
Waste
Water
Outlet
15
Refill
Water
Water
Pod
Inlet
Inlet
15
40
Install on flat & level Surface Install on flat & level Surface
4. Unit must have ≥150mm clearance from ALL walls
5. Unit must be installed on a flat & level surface
3
Determine Unit Orientation
IMPORTANT:
≥ 150mm
315
4
Check that ground is level
Refill
If ground is NOT LEVEL,
Pod
recess a level area
Waste
Water
Outlet 40
Ensure all edges
40
are beveled to
avoid trip hazard
180
Ensure unit is at least 150mm from ALL walls
≥ 150mm
Refill Pod
Refill Pod
as suggested:
LEVEL installation surface
Product Code: ABR24
≥ 150mm
