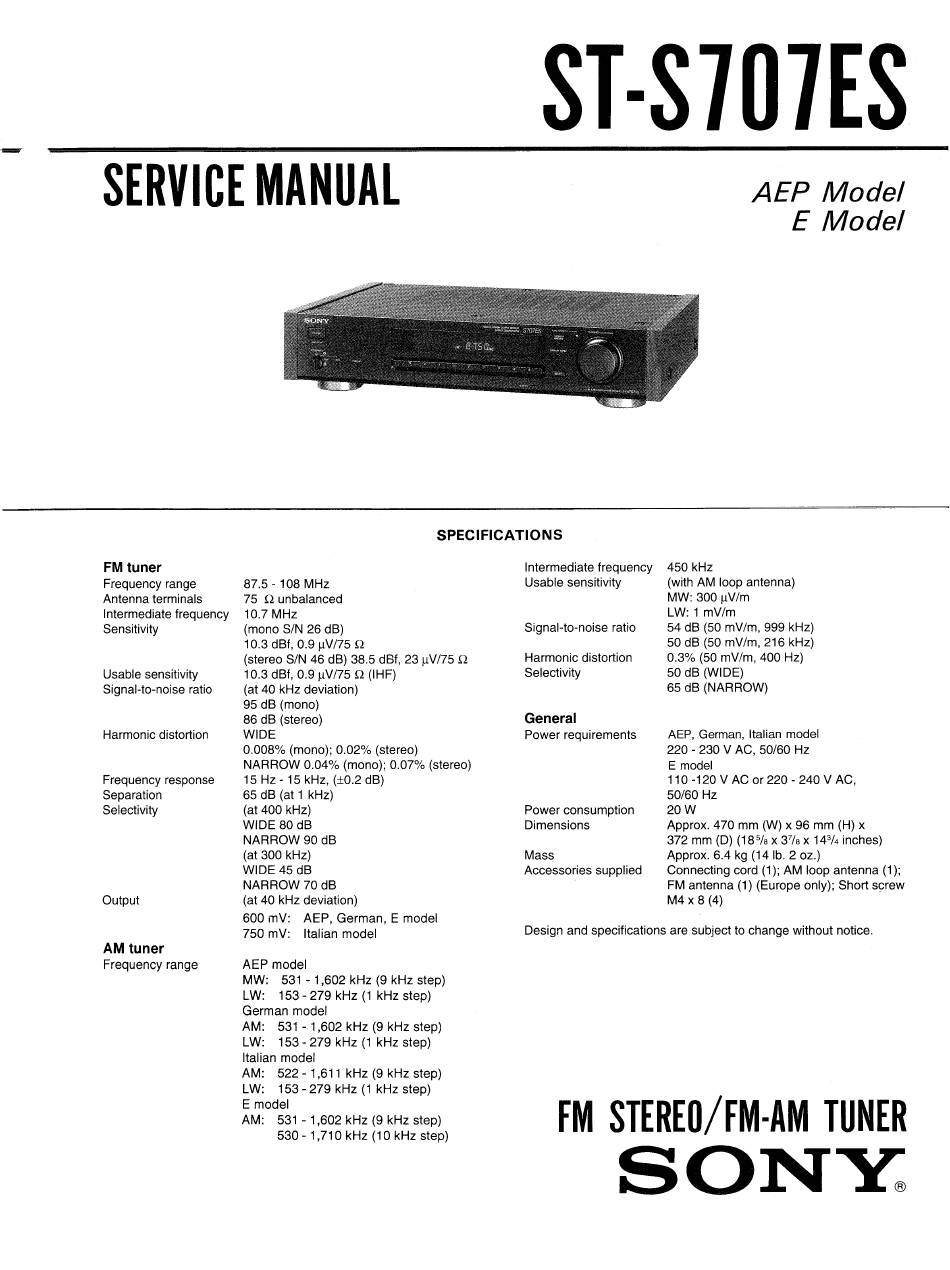

Sony ST-S707ES Service Manual

ST-S7O7ES
AEP Model
E Model
SERVICE MANUAL
SPECIFICATIONS
Intermediate frequency 450 kHz
Usable sensitivity (with AM loop antenna)
MW: 300 uV/m
LW: 1 mV/m
54 dB (50 mV/m, 999 kHz)
50 dB (50 mV/m, 216 kHz)
0.3% (50 mV/m, 400 Hz)
FM tuner
Frequency range 87.5 - 108 MHz
Antenna terminals 75 Q unbalanced
Intermediate frequency 10.7 MHz
Sensitivity (mono S/N 26 dB)
10.3 dBf, 0.9 nV/75 QO
(stereo S/N 46 dB) 38.5 dBf, 23 uV/75 O
Signal-to-noise ratio
Harmonic distortion
Usable sensitivity 10.3 dBf, 0.9 nV/75 Q (IHF) Selectivity 50 dB (WIDE)
Signal-to-noise ratio (at 40 kHz deviation) 65 dB (NARROW)
95 dB (mono)
86 dB (stereo) General
Harmonic distortion WIDE Power requirements AEP, German, Italian model
0.008% (mono); 0.02% (stereo) 220 - 230 V AC, 50/60 Hz
NARROW 0.04% (mono); 0.07% (stereo) E model
Frequency response 15 Hz - 15 kHz, (+0.2 dB) 110 -120 V AC or 220 - 240 V AC,
Separation 65 dB (at 1 kHz) 50/60 Hz
Selectivity (at 400 kHz) Power consumption 20 W
WIDE 80 dB Dimensions Approx. 470 mm (W) x 96 mm (H) x
NARROW 90 dB 372 mm (D) (185/s x 37/a x 14°/4 inches)
(at 300 kHz) Mass Approx. 6.4 kg (14 Ib. 2 oz.)
WIDE 45 dB Accessories supplied Connecting cord (1); AM loop antenna (1);
NARROW 70 dB FM antenna (1) (Europe only); Short screw
Output (at 40 kHz deviation) M4 x 8 (4)
600 mV: AEP, German, E model
750 mV: Italian mode! Design and specifications are subject to change without notice.
AM tuner
Frequency range AEP model
MW: 531 - 1,602 kHz (9 kHz step)
LW: 153-279 kHz (1 kHz step)
German model
AM: 531 - 1,602 kHz (9 kHz step)
LW: 153-279 kHz (1 kHz step)
Italian model
AM: 522 - 1,611 kHz (9 kHz step)
LW: 153-279 kHz (1 kHz step)
E model
AM: 531 - 1,602 kHz (9 kHz step
530 - 1,710 kHz (10 kHz step)
—
FM STEREO/FM-AM TUNER
SONY.
