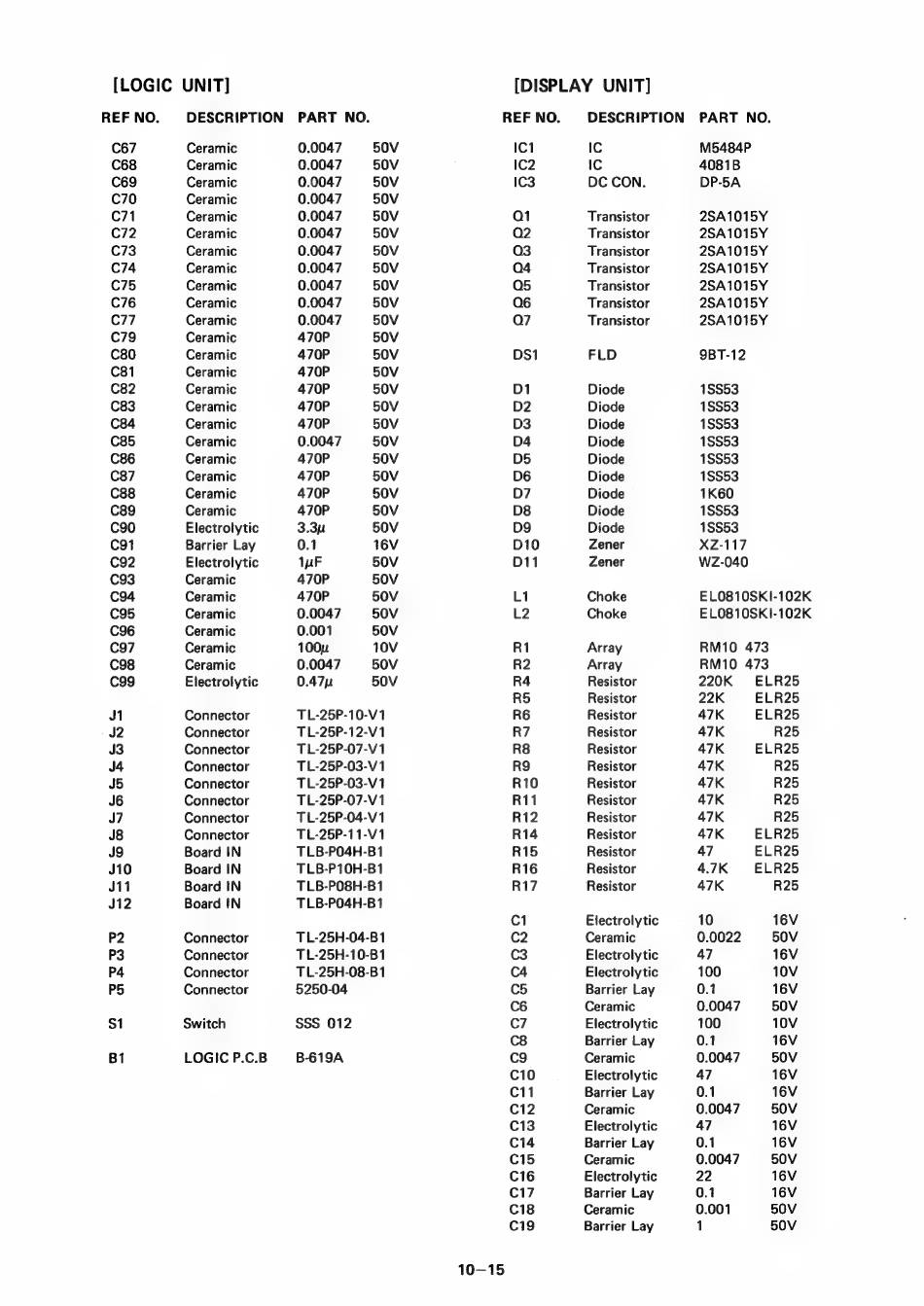

Icom IC-R7O Maintenance Manual page 78

[LOGIC UNIT] [DISPLAY UNIT]
REF NO. DESCRIPTION PART NO. REF NO. DESCRIPTION PART NO.
C67 Ceramic 0.0047 50V IC1 Ic M5484P
C68 Ceramic 0.0047 50V IC2 Ic 4081B
C69 Ceramic 0.0047 50V IC3 DC CON. DP-5A
C70 Ceramic 0.0047 50V
C71 Ceramic 0.0047 50V Q1 Transistor 2SA1015Y
C72 Ceramic 0.0047 50V Q2 Transistor 2SA1015Y
C73 Ceramic 0.0047 50V Q3 Transistor 2SA1015Y
C74 Ceramic 0.0047 50V Q4 Transistor 2SA1015Y
C75 Ceramic 0.0047 50V Q5 Transistor 2SA1015Y
C76 Ceramic 0.0047 50V Q6 Transistor 2SA1015Y
C77 Ceramic 0.0047 50V Q7 Transistor 2SA1015Y
C79 Ceramic 470P 50V
C80 Ceramic 470P 50V DS1 FLD 9BT-12
C81 Ceramic 470P 50V
C82 Ceramic 470P 50V D1 Diode 18853
C83 Ceramic 470P 50V D2 Diode 1SS53
C84 Ceramic 470P 50V D3 Diode 1S$53
C85 Ceramic 0.0047 50V D4 Diode 18853
C86 Ceramic 470P 50V D5 Diode 1SS53
C87 Ceramic 470P 50V D6 Diode 1S$53
C88 Ceramic 470P 50V D7 Diode 1K60
C89 Ceramic 470P 50V D8 Diode 1SS53
c90 Electrolytic 3.3u 50V D9 Diode 18S53
C91 Barrier Lay 0.1 16V Di0 Zener XZ-117
C92 Electrolytic 1pF 50V D11 Zener W2Z-040
C93 Ceramic 470P 50V
c94 Ceramic 470P 50V L1 Choke ELO810SKI-102K
C95 Ceramic 0.0047 50V L2 Choke EL0810SKI-102K
C96 Ceramic 0.001 50V
C97 Ceramic 100u 10V R1 Array RM10 473
C98 Ceramic 0.0047 50V R2 Array RM10 473
c99 Electrolytic 0.47u 50V R4 Resistor 220K ELR25
R5 Resistor 22K ELR25
J1 Connector TL-25P-10-V1 R6 Resistor 47K ELR25
J2 Connector TL-25P-12-V1 R7 Resistor 47K R25
J3 Connector TL-25P-07-V1 R8 Resistor 47K ELR25
J4 Connector TL-25P-03-V 1 R9 Resistor 47K R25
J5 Connector TL-25P-03-V1 R10 Resistor 47K R25
J6 Connector TL-25P-07-V1 R11 Resistor 47K R25
J7 Connector TL-25P-04-V 1 R12 Resistor 47K R25
J8 Connector TL-25P-11-V1 R14 Resistor 47K ELR25
JQ Board IN TLB-PO4H-B1 R15 Resistor 47 ELR25
J10 Board IN TLB-P10H-B1 R16 Resistor 4.7K ELR25
J11 Board IN TLB-PO8H-B1 R17 Resistor 47K R25
J12 Board IN TLB-PO4H-B1
C1 Electrolytic 10 16V
P2 Connector TL-25H-04-B1 C2 Ceramic 0.0022 50V
P3 Connector TL-25H-10-B1 C3 Electrolytic 47 16V
P4 Connector TL-25H-08-B1 C4 Electrolytic 100 10V
P5 Connector 5250-04 C5 Barrier Lay 0.1 16V
C6 Ceramic 0.0047 50V
S1 Switch SSS 012 C7 Electrolytic 100 10V
C8 Barrier Lay 0.1 16V
B1 LOGIC P.C.B B-619A cg Ceramic 0.0047 50V
C10 Electrolytic 47 16V
C11 Barrier Lay 0.1 16V
C12 Ceramic 0.0047 50V
C13 Electrolytic 47 16V
C14 Barrier Lay 0.1 16V
C15 Ceramic 0.0047 50V
C16 Electrolytic 22 16V
C17 Barrier Lay 0.1 16V
C18 Ceramic 0.001 50V
C19 Barrier Lay 1 50V
