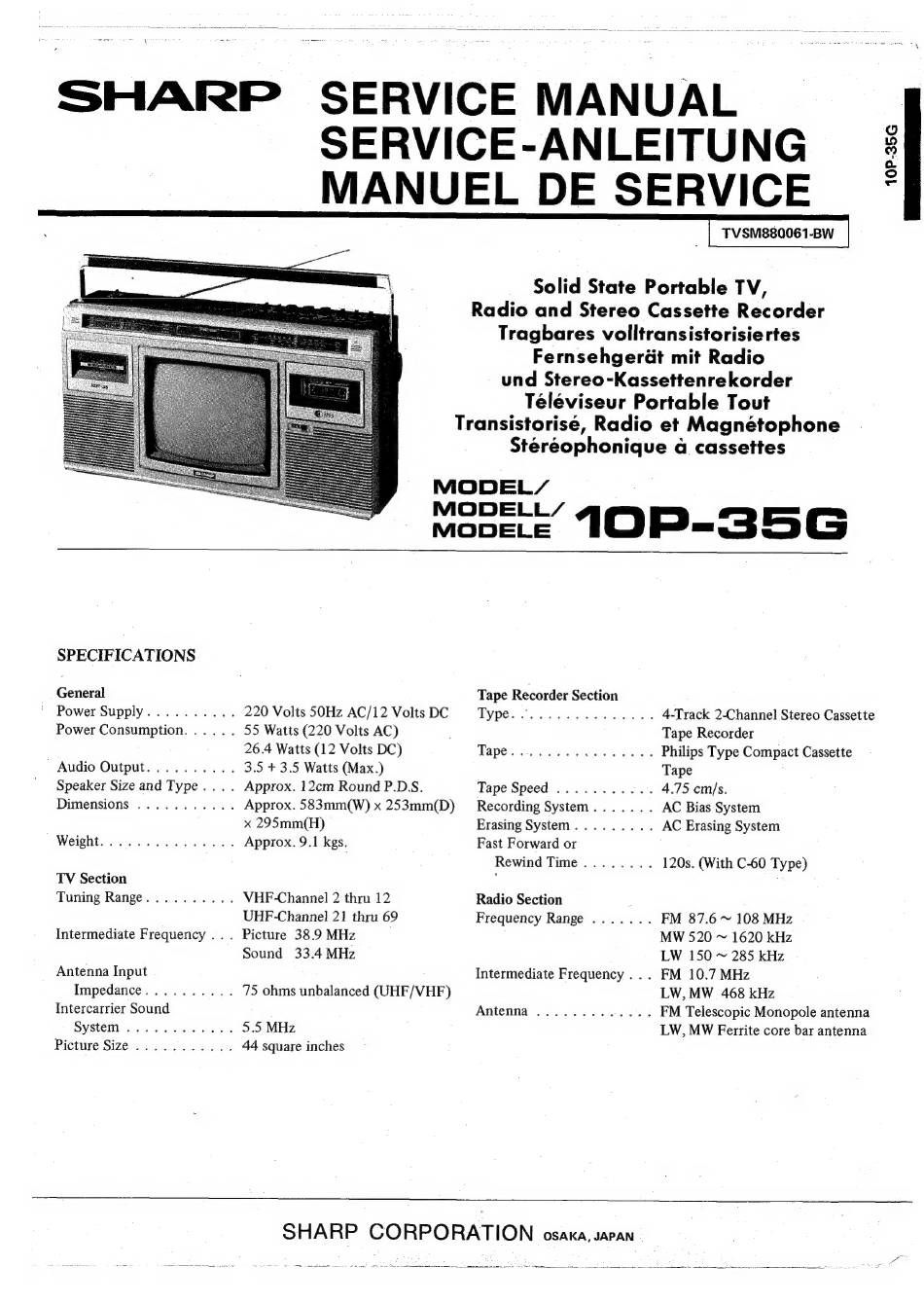

Sharp 10P-35G Service Manual

pooae wii. t Bp se sites wpodice
MANUEL DE SERVICE
Trvnccooan_
Solid State Portable TV,
Radio and Stereo Cassette Recorder
Tragbares volltransistorisiertes
Fernsehgerdt mit Radio
und Stereo-Kassettenrekorder
Téléviseur Portable Tout
Transistorisé, Radio et Magnetophone
Steréophonique a cassettes
10P-35G
MODEL/
MODELL/
MODELE
SPECIFICATIONS
General
Power Supply..........
Power Consumption... ...
- Audio Output..........
Speaker Size and Type....
Dimensions
TV Section
Tuning Range..........
Intermediate Frequency . . .
Antenna Input
. Impedance..........
Intercarrier Sound
System
Picture Size
220 Volts 50Hz AC/12 Volts DC
55 Watts (220 Volts AC)
26.4 Watts (12 Volts DC)
3.5 + 3.5 Watts (Max.)
Approx. 12cm Round P.DS.
Approx. 583mm(W) x 253mm(D)
x 295mm(H)
Approx. 9.1 kgs.
VHF-Channel 2 thru 12
UHF-Channel 21 thru 69
Picture 38.9 MHz
Sound 33.4 MHz
75 ohms unbalanced (UHF/VHF)
5.5 MHz
44 square inches
Tape Recorder Section
Tape Speed
Recording System
Erasing System
Fast Forward or
Rewind Time
Radio Section
Frequency Range
Intermediate Frequency . . .
Antenna
4-Track 2-Channel Stereo Cassette
Tape Recorder
Philips Type Compact Cassette
Tape
4.75 cm/s.
AC Bias System
AC Erasing System
120s. (With C-60 Type)
FM 87.6 ~ 108 MHz
MW 520 ~ 1620 kHz
LW 150 ~ 285 kHz
FM 10.7 MHz
LW, MW 468 kHz
FM Telescopic Monopole antenna
LW, MW Ferrite core bar antenna
SHARP CORPO RATION OSAKA, JAPAN
10P-35
