TC-WR87ES/WR775

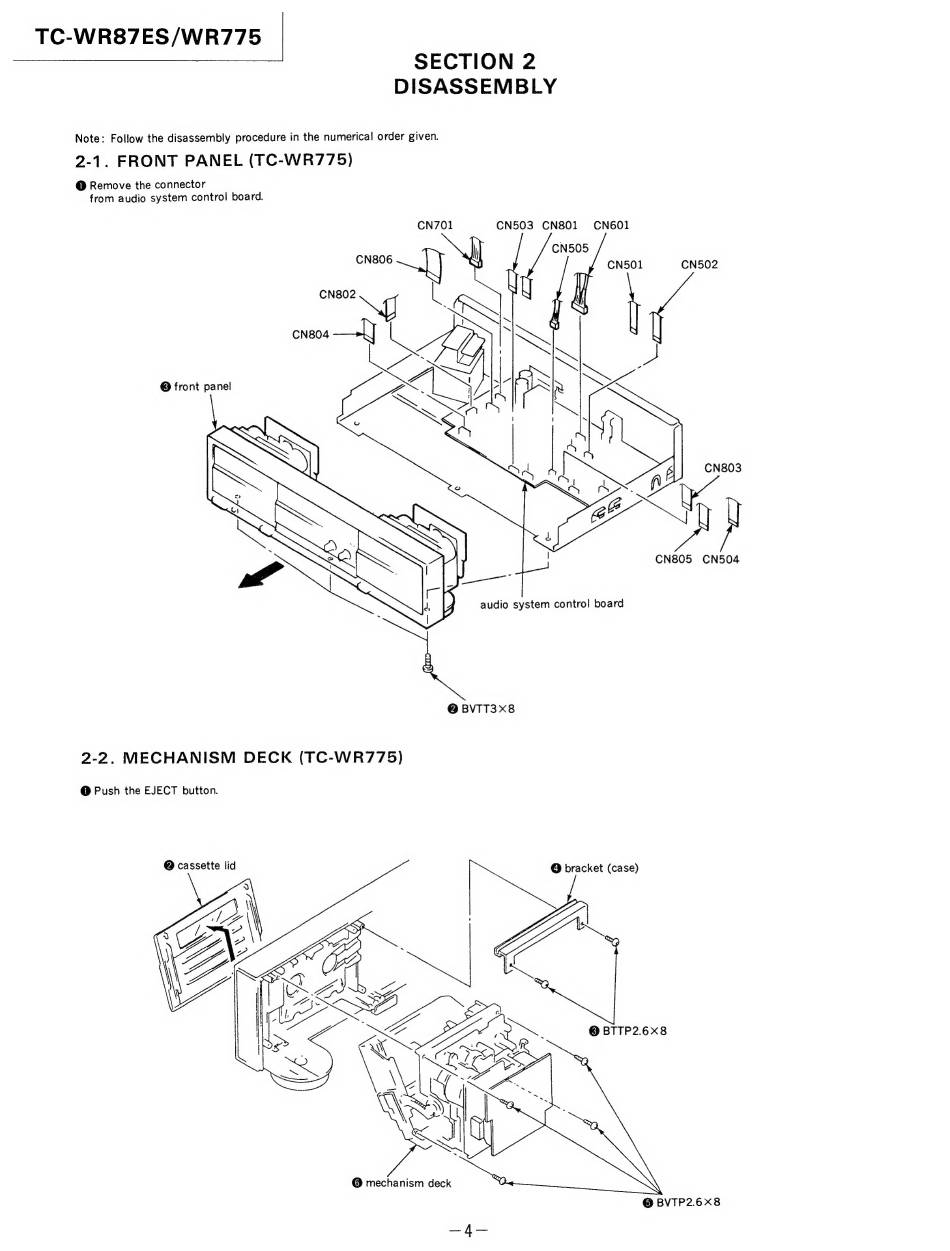

SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2-1.
FRONT
PANEL
(TC-WR775)
@ Remove the connector
from audio system control board.
CN701
CN503
CN801
CN601
CN505
CN806
2
oS
CN501
CN502
@ front panel
@ BVTT3xX8
2-2. MECHANISM
DECK (TC-WR775)
@ Push the EJECT button.
@ cassette lid
@ bracket (case)
@ BITP2.6x8
@ mechanism deck
@ BVTP2.6x8
—4—
