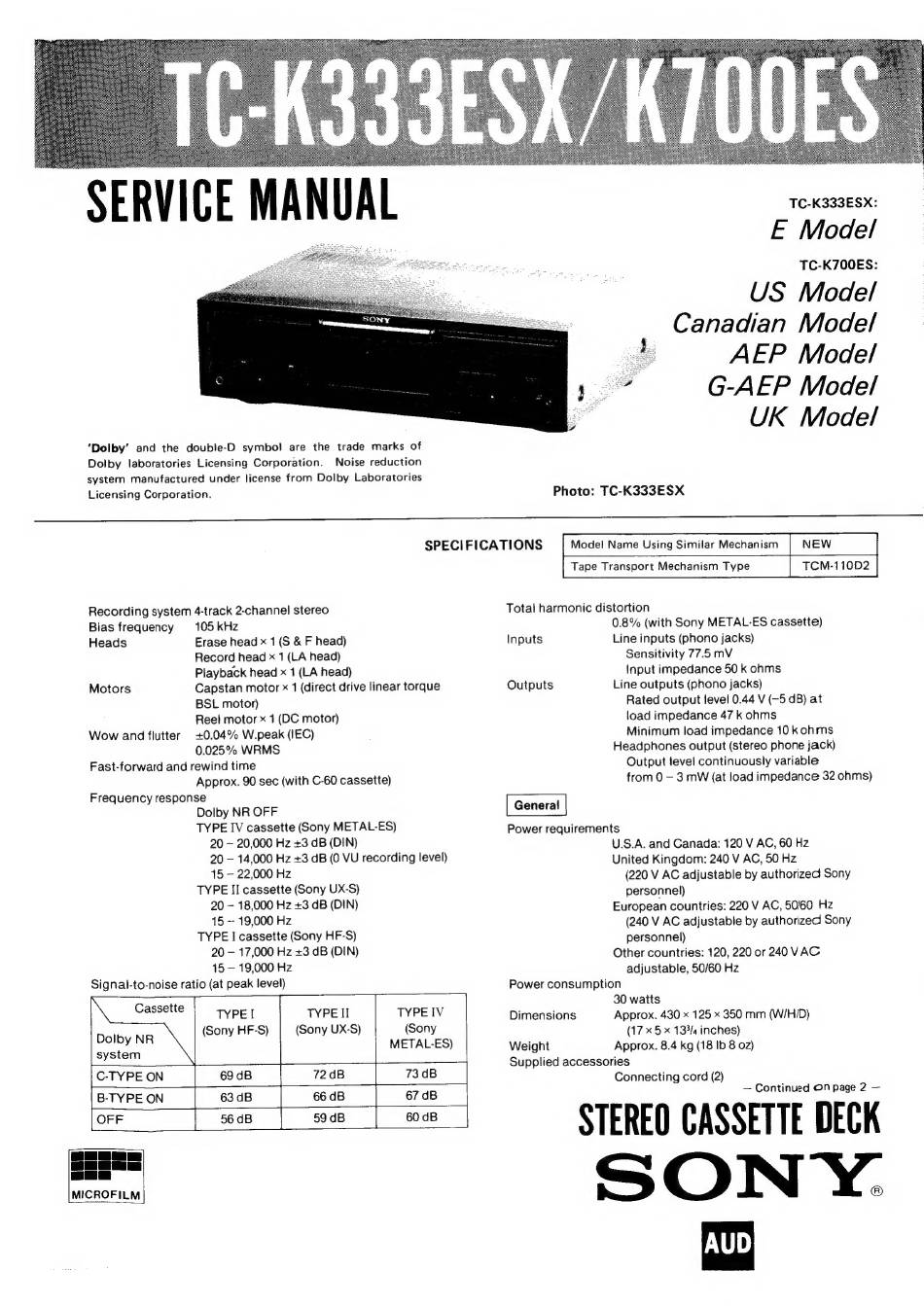

Sony TC-K333ESX Service Manual

'Dolby' and the double-D symbo! are the trade marks of
Dolby laboratories Licensing Corporation. Noise reduction
system manufactured under license from Dolby Laboratories
Licensing Corporation.
TC-K333ESX:
E Model
TC-K700ES:
US Model
Canadian Model
we AEP Model
si G-AEP Model
UK Model
Photo: TC-K333ESX
SPECIFICATIONS Model Name Using Similar Mechanism NEW
Recording system 4-track 2-channel stereo
Bias frequency 105 kHz
Heads Erase head x 1 (S & F head)
Record head x 1 (LA head)
Playback head x 1 (LA head)
Motors
Capstan motor x 1 (direct drive linear torque
BSL motor)
Reel motor x 1 (DC motor)
Wow and flutter +0.04% W.peak (IEC)
0.025% WRMS
Fast-forward and rewind time
Approx. 90 sec (with C-60 cassette)
Frequency response
Dolby NR OFF
TYPE IV cassette (Sony METAL-ES)
20 — 20,000 Hz +3 dB (DIN)
20 — 14,000 Hz +3 dB (0 VU recording level)
15 — 22,000 Hz
TYPE II cassette (Sony UX-S)
20 — 18,000 Hz +3 dB (DIN)
15 -- 19,000 Hz
TYPE I cassette (Sony HF-S)
20 — 17,000 Hz +3 dB (DIN)
15 — 19,000 Hz
Signal-to-noise ratio (at peak level)
Gassete: |: ape
L rypet
TYPE IV
(Sony HF-S) (Sony UX-S) (Sony
Dolby NR
METAL-ES)
system
C-TYPE ON 69 dB a 72 dB 73dB
B-TYPE ON 63 dB 66 dB 67 dB
OFF 56dB | 50dB 60 dB
fT TTT 4
Tt yt ty
ae =
MICROFILM
Tape Transport Mechanism Type TCM-110D2
Total harmonic distortion
0.8% (with Sony METAL-ES cassette)
Inputs Line inputs (phono jacks)
Sensitivity 77.5 mV
Input impedance 50 k ohms
Outputs Line outputs (phono jacks)
Rated output level 0.44 V (-5 dB) at
load impedance 47 k ohms
Minimum load impedance 10 kohms
Headphones output (stereo phone jack)
Output level continuously variable
from 0 — 3 mW (at load impedance 32 ohms)
Power requirements
U.S.A. and Canada: 120 V AC, 60 Hz
United Kingdom: 240 V AC, 50 Hz
(220 V AC adjustable by authorized Sony
personnel)
European countries: 220 V AC, 50/60 Hz
(240 V AC adjustable by authorized Sony
personnel)
Other countries: 120, 220 or 240 VAC
adjustable, 50/60 Hz
Power consumption
30 watts
Dimensions Approx. 430 x 125 x 350 mm (W/HID)
(17 x 5 x 133/4 inches)
Weight Approx. 8.4 kg (18 Ib 8 02)
Supplied accessories
Connecting cord (2)
— Continued On page 2 —
STEREO CASSETTE DECK
SON Y.
