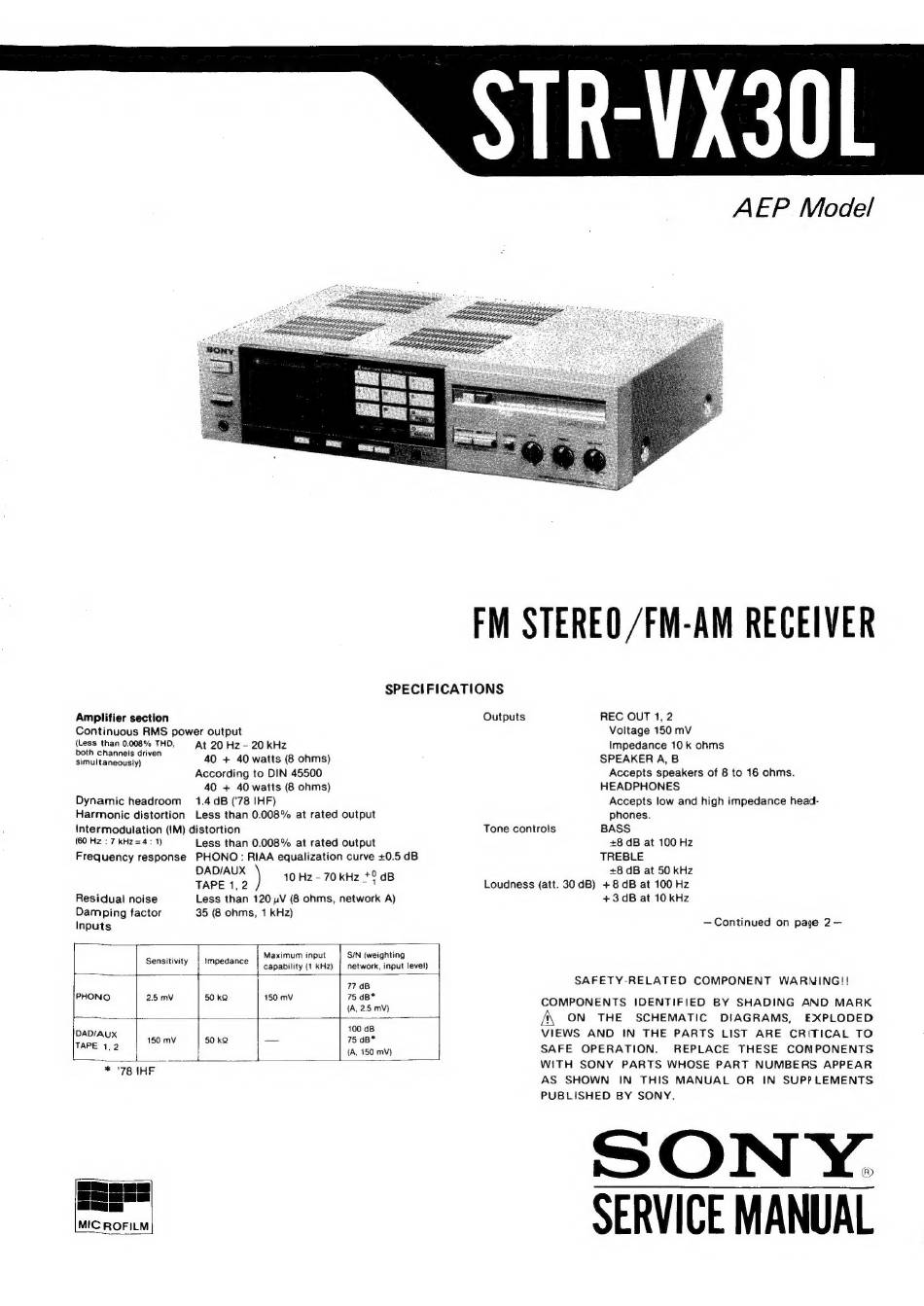

Sony STR-VX30L Service Manual

AEP Model
FM STEREO /FM-AM RECEIVER
SPECIFICATIONS
Amplifier section Outputs REC OUT 4, 2
Continuous RMS power output Voltage 150 mV
ioroacian At 20 Hz - 20 kHz Impedance 10 k ohms
simultaneously) 40 + 40 watts (8 ohms) SPEAKER A, B
According to DIN 45500 Accepts speakers of 8 to 16 ohms.
40 + 40 watts (8 ohms) HEADPHONES
Dynamic headroom 1.4 dB ('78 IHF) Accepts low and high impedance head-
Harmonic distortion Less than 0.008% at rated output phones.
intermodulation (IM) distortion Tone controls BASS
(60 Hz : 7 kKHz=4 : 1) Less than 0.008% at rated output +8 dB at 100 Hz
Frequency response PHONO: RIAA equalization curve +0.5 dB TREBLE
DAD/AUX +8 dB at 50 kHz
TAPE 1, 2 ) aa Loudness (att. 30 dB) +8 dB at 100 Hz
Residual noise Less than 120 pV (8 ohms, network A) +3 dB at 10 kHz
Damping factor 35 (8 ohms, 1 kHz) "
Inputs — Continued on page 2 —
canny | ioscan | utimamiogs, | Smowoanion
77 4B SAFETY-RELATED COMPONENT WARNING!!
aes nme PES rae ae COMPONENTS IDENTIFIED BY SHADING AND MARK
— /A\ ON THE SCHEMATIC DIAGRAMS, EXPLODED
a orn _ a VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
TAPE 1,2 (A, 150 mV) SAFE OPERATION. REPLACE THESE COMPONENTS
* 78 IHF
pa .
WITH SONY PARTS
WHOSE PART NUMBERS
APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
®
BE a ee roll SERVICE MANUAL
