Summary of Contents for GVM GVM-SD80D

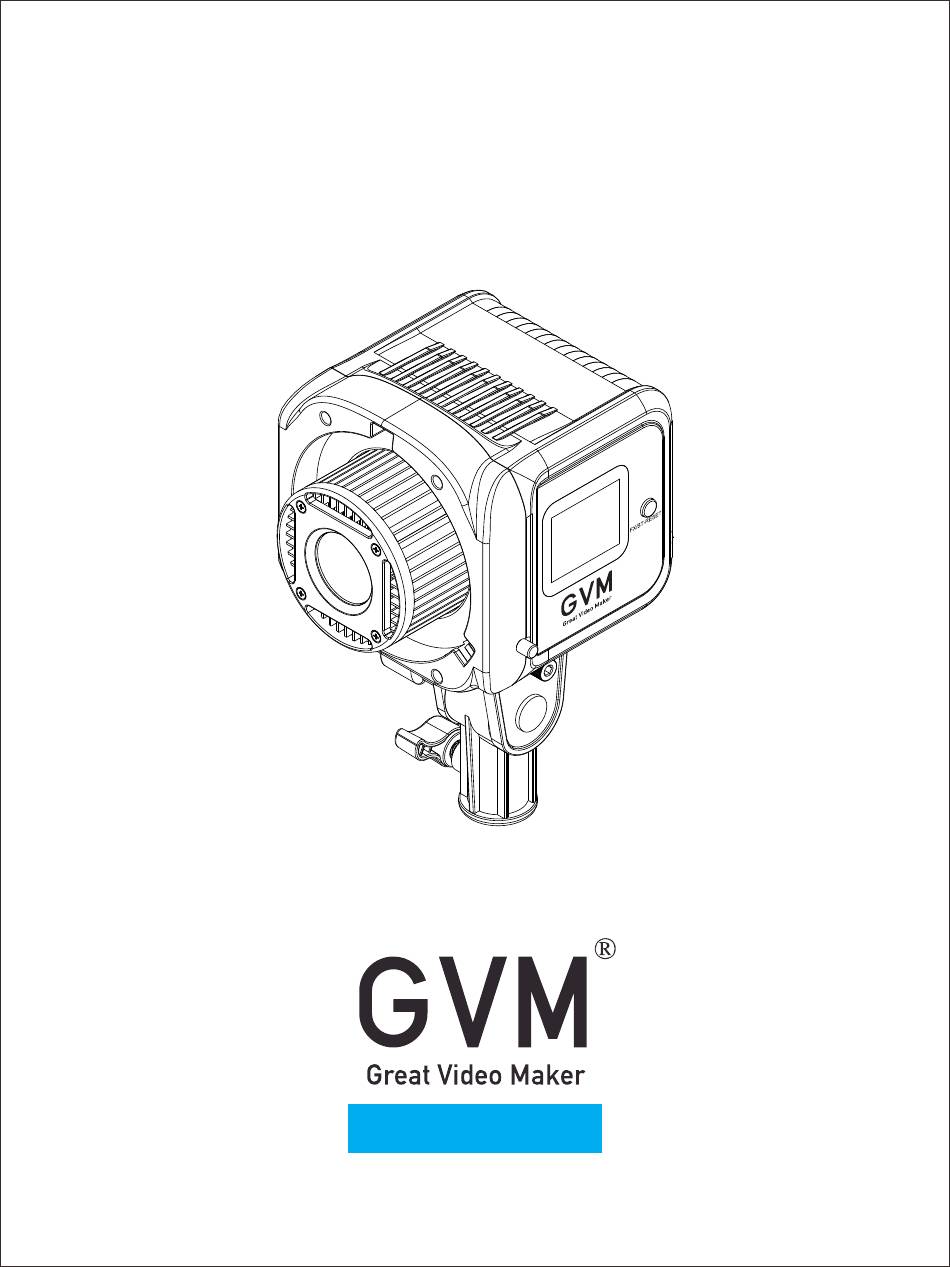

- Page 1 GVM-SD80D...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product introduction -------------------------------------------------------- Page 3 Disclaimers ------------------------------------------------------------------- Page 3 Product parameter ----------------------------------------------------------- Page 4 Precautions ------------------------------------------------------------------- Page 4 Product structure analysis --------------------------------------------------- Page 5 Installation method ------------------------------------------------------- Page 6~8 Description of product control keys ---------------------------------------- Page 9 Function introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing our “GVM-SD80D". This product is specially designed for senior photographers. The product usage scenarios are suitable for live broadcast/outdoor/studio photography, etc., and can also be used for YouTube video shooting. The main features of the product are: 1．Stepless adjustable Lighting Effects, Brightness/CCT can be controlled at will. -
Page 6: Product Parameter
PRODUCT PARAMETER ◆ Brand : GVM ◆ Product Name : Photography Lights ◆ Product Model : GVM-SD80D ◆ Product Type : Photography Fill Light ◆ Functions/Features : LCD Screen, High Display COB Lamp Beads, APP Control, MESH Networking ◆ Light Adjustment Method : Stepless Adjustment ◆... -
Page 7: Product Structure Analysis
PRODUCT STRUCTURE ANALYSIS Bowens Mount Composite button LCD display COB lamp bead Bayonet Fixture handle for light stand Light stand interface Compound knob Battery compartment Power input port Switch ON/OFF Angle fixed handle... -
Page 8: Installation Method
INSTALLATION METHOD Rotate the lamp holder fixing handle clockwise to install and fix the lamp on the bracket, and turn it counterclockwise to unload. Loosen the angle fixing handle, adjust the angle of the spotlight you need, and then tighten the angle fixing handle. - Page 9 Insert the Bowens Mount of the standard cover into the Bowens Mount of the lamp correspondingly, and then turn it slightly clockwise to install the standard cover on the light. Push the Bowens Mount removal buckle to the upper right and turn the standard cover counter clockwise to remove the standard cover.
- Page 10 Outdoor using can be powered by a suitable battery. (Battery needed to buy separately)
-
Page 11: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS Power input interface Switch: Turn the switch to the position, the video light uses the DC input power supply; INT/SELECTOR Turn the switch to the position, and DC IN the video light uses battery power. Composite Knob: INT/SELECTOR: 1. -
Page 12: Function Introduction & Instruction For Use
FUNCTION INSTRUCTION & INSTRUCTION FOR USE ① LCD Display: Displays the current brightness, light mode, light parameters, and scene number of the light. Light effect scene display Brightness percentage display Mobile APP operation status (disappears after 5 seconds of no operation when connected to CCT: the APP) -
Page 13: App Control
④ Adjust Scene Light Effect (SC): ●The scene mode has 8 scenes: 1 - Lightning, 2 - CCT Loop, 3 - Candle, 4 - Bad Bulb, 5 - TV, 6 - Paparazzi, 7 - Explosion, 8 - Pulsing ●Short press the compound button to switch the light mode to light effect mode → long press the compound knob for 2 seconds and release it to switch the light effect brightness and light effect rate adjustment items →... -
Page 14: Add Device
Add device Figure 2 1 ． Before adding a device, please make sure that you have turned on the Bluetooth and network data functions of your mobile phone, and reset the Bluetooth of the lighting device; 2 ． On the "My Devices" page, click the "Add Device" button to search for nearby Bluetooth lighting devices that have been turned on, and select the device to be connected for network connection. -
Page 15: Quick Troubleshooting
QUICK TROUBLESHOOTING Check the product Troubleshooting Phenomenon 1.Whether the connection Make sure the adapter is well between the lamp and the connected with the power plug. power supply is normal. The switch indicator does 2.When using a lithium battery not light up. to supply power, make sure Use the product after recharging that the battery does not have... -
Page 16: Use And Preservation
USE AND PRESERVATION Do not put the light in a highly humid, strong electromagnetic field, direct sunlight, high-temperature environment. If the light is not use for a long time, please disconnect the power. Clean: Before cleaning,please unplug the power plug. And use wet cloth rather than any detergent or soluble liquid, avoiding damaging the surface layer. -
Page 17: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... -
Page 18: How To Obtain Warranty Service
8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty. - Page 19 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154, USA...
