Summary of Contents for Aquasana SmartFlow AQ-SFRO2

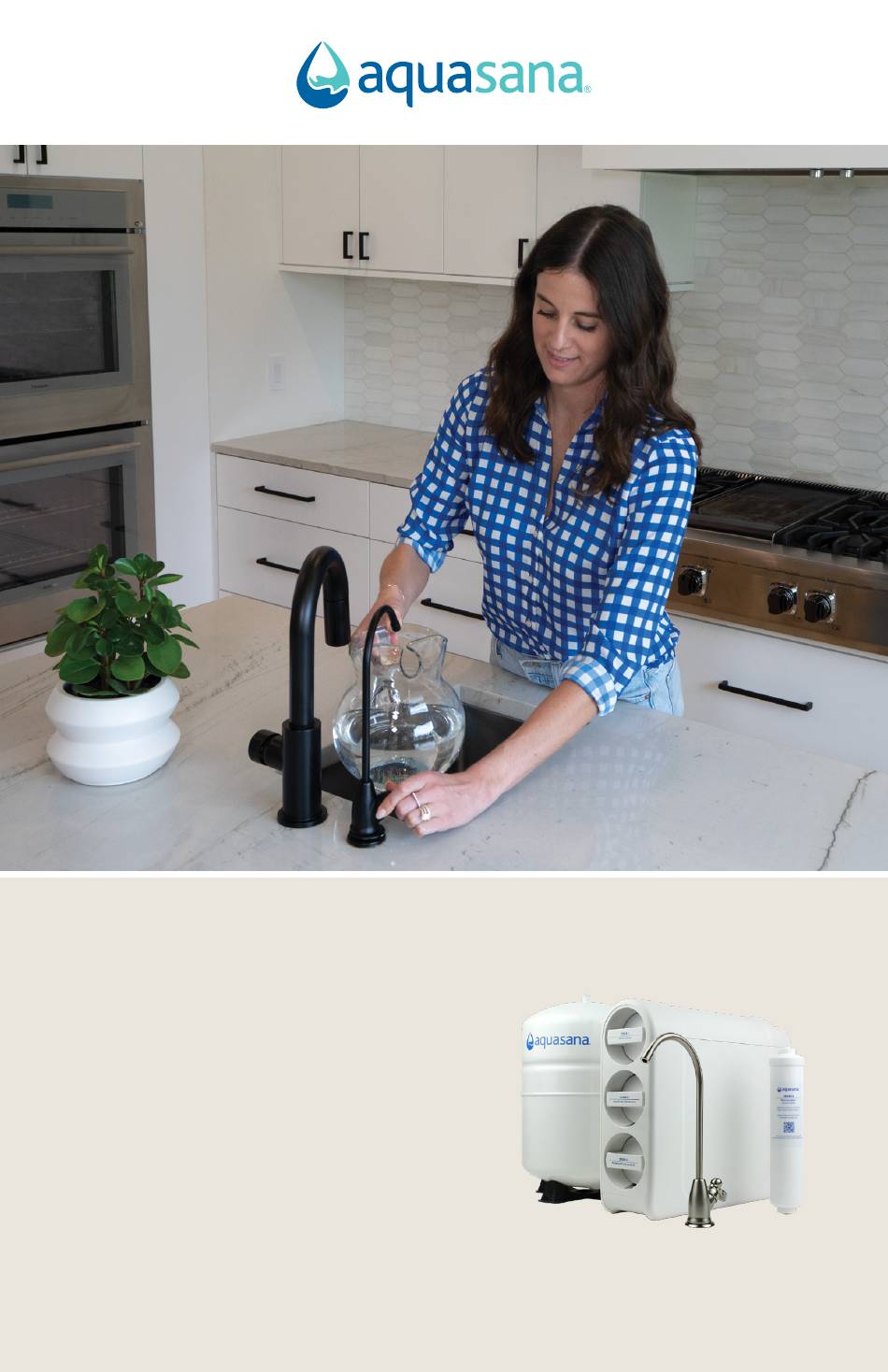

- Page 1 AQ-SFRO2 Under Sink Water Filter SmartFlow ® Reverse Osmosis Owner’s Manual...
-
Page 2: Table Of Contents
Meet clean, healthy water. Your new SmartFlow Reverse Osmosis uses ® both Claryum and reverse osmosis filtration to reduce up to 99.99% of 90 ® contaminants . The system’s patented SmartFlow technology is engineered to ® provide you with more pure water, less water waste, and longer filter life than the average RO system. -
Page 3: Box Contents
BOX CONTENTS STAGE 1 STAGE 2 STAGE 3 STAGE 4 System Manifold Chrome Nut Stage 1: Carbon Block Water Tank Valve Stage 2: SmartFlow Membrane Water Tank and Stand ® Stage 3: Advanced Carbon Block Drain Saddle Kit Stage 4: Remineralizer Inlet Tee Valve Faucet Remineralizer Bracket... -
Page 4: Installation Steps
INSTALLATION STEPS Tools recommended for installation • Tape measure • Adjustable wrench • Pan or bucket • Phillips head screwdriver • Bleach • Utility knife • Drill with 1/4" bit • Pencil • Safety glasses NOTE: We recommend using a professional if pipe cutting or drilling is required. Basic plumbing knowledge is recommended prior to installing this unit. - Page 5 INSTALLATION STEPS STAGE 4 __________________________________ Remineralizer AQ-SFRO-REMIN 15.7" Adds back calcium to improve water taste and pH balance. 12.93" (39.87 cm) Replace Remineralizer every 10.25" 6 months for best use. (33 cm) (26 cm) Scan to view Performance Data Sheet, 2.125"...
- Page 6 INSTALLATION STEPS Slide the chrome nut onto the 1/4” blue tubing, followed by the white plastic collar. NOTE: If your faucet includes pre-attached tubing, use wrench to tighten the chrome nut and proceed to step 3. Press the plastic tube insert into the end of the tubing. G.
- Page 7 INSTALLATION STEPS D. Insert nuts into the other half of the drain clamp. Place both halves together around the drainpipe, aligning with the hole you drilled. Use drill bit to help align. E. Tighten nuts and screws to secure the drain clamp halves around the drainpipe.
- Page 8 INSTALLATION STEPS Install System Manifold, Water Tank Stand, and Remineralizer Bracket A. Place system manifold under the sink in a place that will be easy to access for scheduled filter changes. Do not install filter cartridges at this time. B. Using your screw driver and included screw, install the remineralizer bracket on your cabinet wall near the system manifold.
- Page 9 INSTALLATION STEPS E. Insert one end of the yellow tubing into the water tank valve. Using the included eye dropper, add 3mL bleach into the open end of the attached yellow tubing. NOTE: Sanitation step will be completed during the pressure test and flush step of the installation.
-
Page 10: Connect Tubing
INSTALLATION STEPS Connect Tubing NOTES: Insert tubing completely to ensure connection. A fully connected tube can be inserted up to 5/8 an inch. Wet end of tubing for easier insertion. Connect tubing to system in a way that does not bend, crimp, or kink tubing as this will affect system performance. - Page 11 INSTALLATION STEPS Inlet Tee Valve Connect A. Locate the white tubing, connect to the inlet tee valve, and push into the white inlet port on the back of the system manifold, labeled, ‘INLET.’ *INSTALL AIR GAP COLD *Properly install air gap to comply with local codes. Air gap must be two pipe diameters or 1 inch (25mm), whichever is larger. <...
- Page 12 INSTALLATION STEPS Insert Filter Cartridges A. Insert each filter cartridge into its designated location in the system manifold by turning to the right. Ensure filter cartridge handle is vertical to the system manifold before inserting. The guides on each filter will ensure proper alignment within the system manifold.
- Page 13 INSTALLATION STEPS 11 Pressure Test, Check for Leaks, and Flush A. Turn off dedicated faucet. B. Turn on COLD water supply valve. C. Turn on kitchen faucet to release air from pipes. Once water is flowing normally, turn off kitchen faucet. D.
-
Page 14: Care & Safeguards
CARE & SAFEGUARDS Care To clean the system manifold and tank, wipe exterior with a damp cloth. Do not use any strong or abrasive cleaning agent or solvent cleaner. NOTICE Safeguards • If you experience a tubing connection leak, shut off cold water, disconnect and re-set the tube. -
Page 15: Specifications
CARE & SAFEGUARDS 13 Specifications AQ-SFRO2 Efficiency rating is the percentage of the influent water to the system Replacement cartridges AQ-SFRO-S1S3, AQ-SFRO-S2, and AQ-SFRO-REMIN that is available to the user as reverse osmosis treated water. Membrane TDS reduction: 89.6% minimum This measurement is taken under operation conditions that approximate Membrane TDS reduction: 96.4%+ average... -
Page 16: Arsenic Facts
CARE & SAFEGUARDS This system has been tested for the treatment of water containing pentavalent arsenic (also known as As(V), As(+5), or arsenate) at concentrations of 0.05 mg/L or less. This system reduces pentavalent arsenic, but may not remove other forms of arsenic. This system is to be used on water supplies containing a detectable free chlorine residual at the system inlet or on water supplies that have been demonstrated to contain only 50 ppb (0.050 mg/L) pentavalent arsenic. -
Page 17: Filter Replacements 15
FILTER REPLACEMENTS 15 Carbon Block and Advanced Carbon Block Replace every 6 months* The Carbon and Advanced Carbon Blocks are replaceable activated carbon cartridges located in Stages 1 and 3. It is recommended to replace these cartridges at least every 6 months. You may need to replace more often with high water usage or high sediment levels. -
Page 18: Performance & Certifications
NSF/ANSI 58 must be included. For the full list of contaminants filtered, scan or click here to view the AQ-SFRO2 Performance Data Sheet on Aquasana.com. < Back Next > To Table of Contents... -
Page 19: Troubleshooting Guide 17
TROUBLESHOOTING GUIDE 17 Issue Resolution Water Leak/ Step 1: Turn off the cold water valve underneath the sink and depressurize Drip From the system by opening the faucet and releasing all the water. Tubing or Step 2: Ensure color-coded tubing is installed into the correct placement Dedicated on the system. - Page 20 TROUBLESHOOTING GUIDE Issue Resolution Common How do I know I connected the tubing all the way? Questions The tubing must be inserted 5/8". We recommended making a mark at 5/8" from the end of the tube and then inserting the tube all the way up to that point.
- Page 21 TROUBLESHOOTING GUIDE 19 Issue Resolution Common Why is my flow rate slow? Questions The inlet water pressure will affect your flow rate. While this system has a 0.8 gpm flow rate, if your flow rate is less than that, you can consider purchasing a booster pump.
-
Page 22: Warranty
• The water filter has not been installed in accordance with aquasana.com. A water filter should be installed in such a the applicable local plumbing and/or building code(s) manner that, if the system or any connection thereto should and/ or regulations or in their absence. -
Page 23: Extended Limited Warranty
– at no extra cost. commitment required. CONTACT US TO LEARN MORE 866-275-2319 waterforlife@aquasana.com * Exclusions apply. Limited Warranty details are available at aquasana.com. Benefits are for the term of Water for Life membership. < Back Next > To Table of Contents... -
Page 24: Need Help
LOVE IT? NEED HELP? Please let us know with a Give us a call at review on Aquasana or 866-662-6885 your retailer’s site. tell us what's going on. Aquasana, Inc. 4343 S. Hamilton Road Groveport, OH 43125 866-662-6885 USA 877-332-7873 Canada www.aquasana.com...
