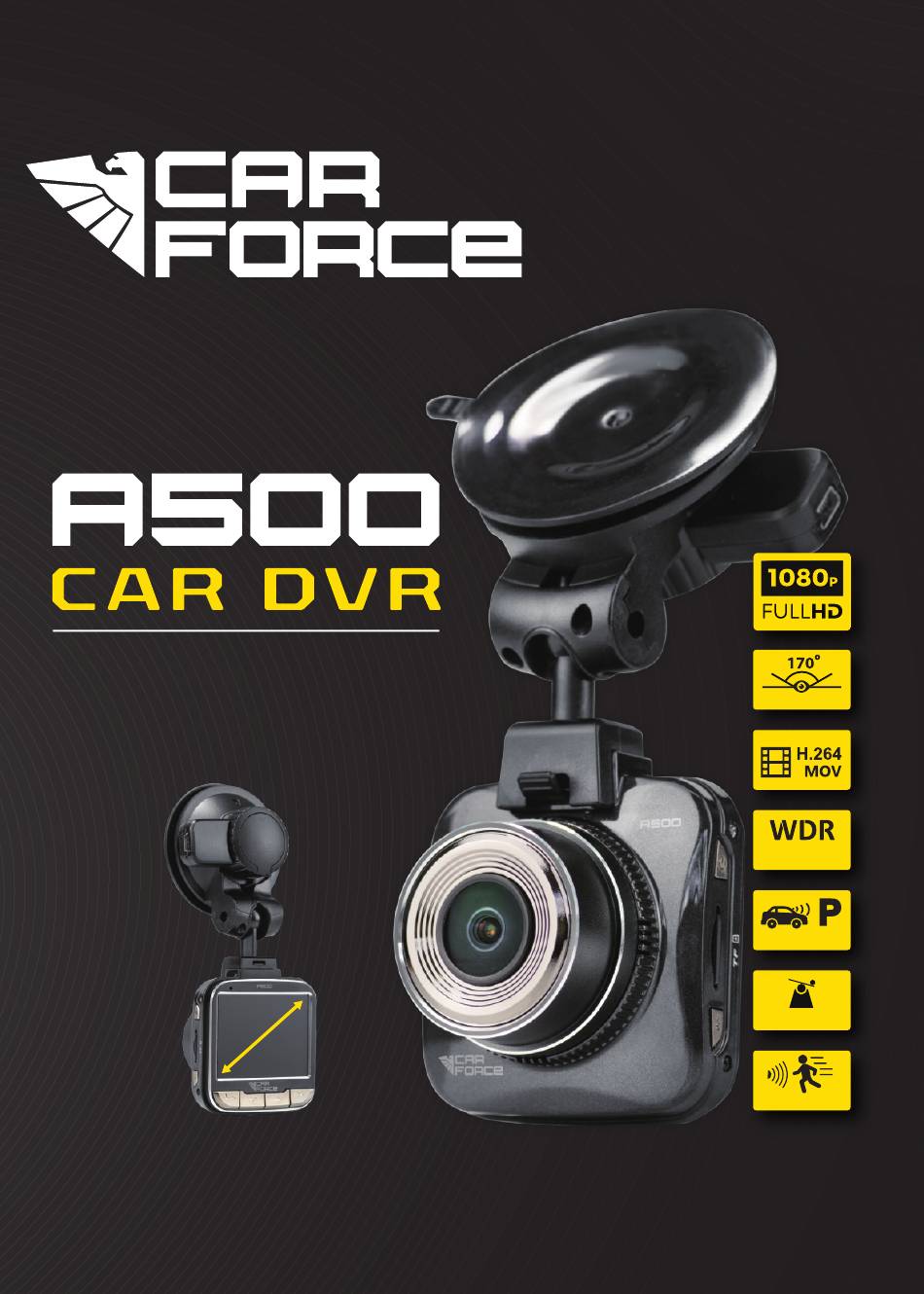

- Page 1 USER MANUAL WIDE ANGLE WIDE DYNAMIC RANGE PARKING MODE 2” G-Sensor MOTION SENSOR ver. 1.0...
-
Page 2: Device Diagram
INTRODUCTION Thank you for choosing CARFORCE video recorder. This product is used to record an image that is identical to what the driver sees when driving a car. By documenting the driving history, you can perform a detailed analysis of the tra c event recorded in the video. we believe that by o ering the product to you, we will increase the road safety. -
Page 3: Button Functions
BUTTON FUNCTIONS On / O button: Turns the device on or o . MENU / Secure button: Enters and exits the settings menu of the current mode (when recording is turned o ). Pressing it twice will bring up the second settings menu. During recording, it acts as a le securitisation button. - Page 4 USING THE DASHBOARD CAMERA Recording function WDR mode enabled Audio recording Recording mode enabled Recording Duration of the function 00:00:14 recording Recording 1080FHD loop time Recording Exposure resolution Memory card mounted 2019/07/22 15:55:07 Battery charging Date and time of recording Capture function Still Number of photos...
- Page 5 Turning recording on/o : 00:00:14 The CarForce A500 dashboard camera will start recording 1080FHD immediately after installation and activation. In order to turn the recording o and on again, press the OK button (*1). If recording is turned o , the recording time will disappear from the screen.
- Page 6 Browsing saved les: To check the recorded les, turn o the recording mode by pressing OK (* 1) and press the MODE button (*2) twice. The saved les will appear on the screen. To browse the les use the DOWN and UP buttons (*3).
-
Page 7: Settings Menu - Navigation
SETTINGS MENU – NAVIGATION 00:00:14 1080FHD Recording mode and settings menu: To start the device settings and recording menu, 2019/07/22 15:55:07 turn on the camera and turn o recording by pressing the OK button (*1). Then click the side MENU button (*2). Menu for capture mode and settings: 02963 To start the device settings and photo settings... - Page 8 After selecting the menu in which the changes will be made, it is still necessary to choose whether the changes should relate to the video recorder function (recording or capture) or device 1 /3 settings. The selection is made by pressing the MENU button (*1).
- Page 9 SETTINGS MENU - RECORDING MODE Resolution: Recording sound during 1080 FHD movie recording: 720P 60FPS 720P 30FPS WVGA Loop recording: Shock sensor sensitivity: 1 minute high sensitivity 3 minutes 5 minutes medium sensitivity 10 minutes low sensitivity Recording date: Wide Dynamic Range - extended tonal range: Parking mode (the device Exposure:...
- Page 10 SETTINGS MENU - CAPTURE MODE Capture mode Photo color selection: normal (standard / self-timer): black/white pojedyncze sepia 2 seconds 5 seconds 10 seconds Resolution: ISO selection: auto 2MHD 1.3M Exposure: Sequence - continuous shooting: + 2.0 + 0.0 - 2.0 Reducing vibrations: Quality: high...
- Page 11 SETTINGS MENU - SYSTEM SETTINGS Change of date, time and Screen refresh rate: 50 Hz display format 60 Hz Automatic shutdown: Screen blanking: always on never after 3 minutes after 3 minutes after 5 minutes after 5 minutes after 10 minutes after 10 minutes Formatting memory card Key sound:...
