SMC Networks 9452TX-2 - FICHE TECHNIQUE Overview

OVERVIEW

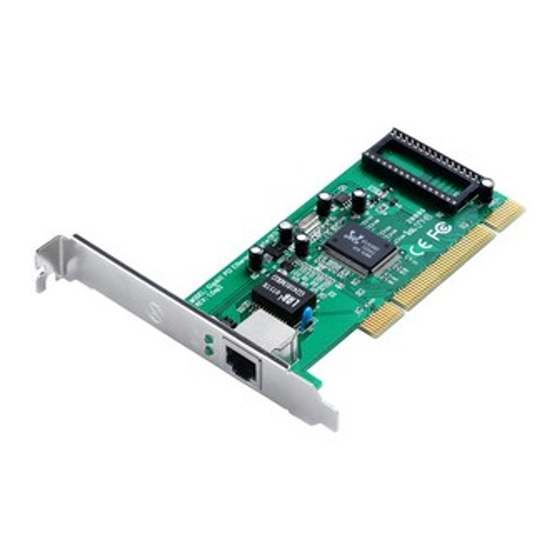

The EZ Card™ 1000 (SMC9452TX-2) is a high performance 32-bit 10/100/1000Mbps copper gigabit PCI inter-
face card designed for network connectivity for home or offi ce use. SMC9452TX-2 offers 10/100/1000Mbps
auto-confi guration, cross-over detection, auto correction, and full duplex support to maximize the network's
potential speed while accommodating the existing infrastructure. SMC9452TX-2's advanced features such
as TCP and UDP Checksum Offl oad (minimizes CPU utilization), Flow Control, VLAN, Jumbo Frame support
ensures data integrity under heavy loading. Fully IEEE compliant and up to 10 times faster than Fast Eth-
ernet, SMC9452TX-2 is an ideal Gigabit wired networking solution for home or offi ce with Wake-On-LAN,
remote wake-up support, Plug-and-Play installation, and support for major operating systems.
KEY FEATURES
Feature 1
Fully compliant with IEEE 802.3ab (1000BASE-T), IEEE 802.3u
(100BASE-TX), and IEEE IEEE802.3 (10BASE-T) standards with
2000Mbps Full-duplex performance.
Feature 3
Supports Wake-on-LAN and remote wake-up support (including
AMDMagic Packet, Re-LinkOk, and Microsoft® Wake-up frame) for
remote powering of the PCs
APPLICATION DIAGRAM
LEGEND
10G FIBER
1G FIBER
10G COPPER
1G COPPER
10/100
PoE
WIRELESS
SMC9452TX-2
EZ Card™ 1000Mbps Copper Gigabit PCI Adapter
Feature 2
Supports VLANs and Jumbo Frame for increased network perfor-
mance, improved manageability, and increased security.
Feature 4
Optional bootrom - Serial EEPROM and /or Flash support
www.smc.com
