Summary of Contents for Lionel LCS SER2

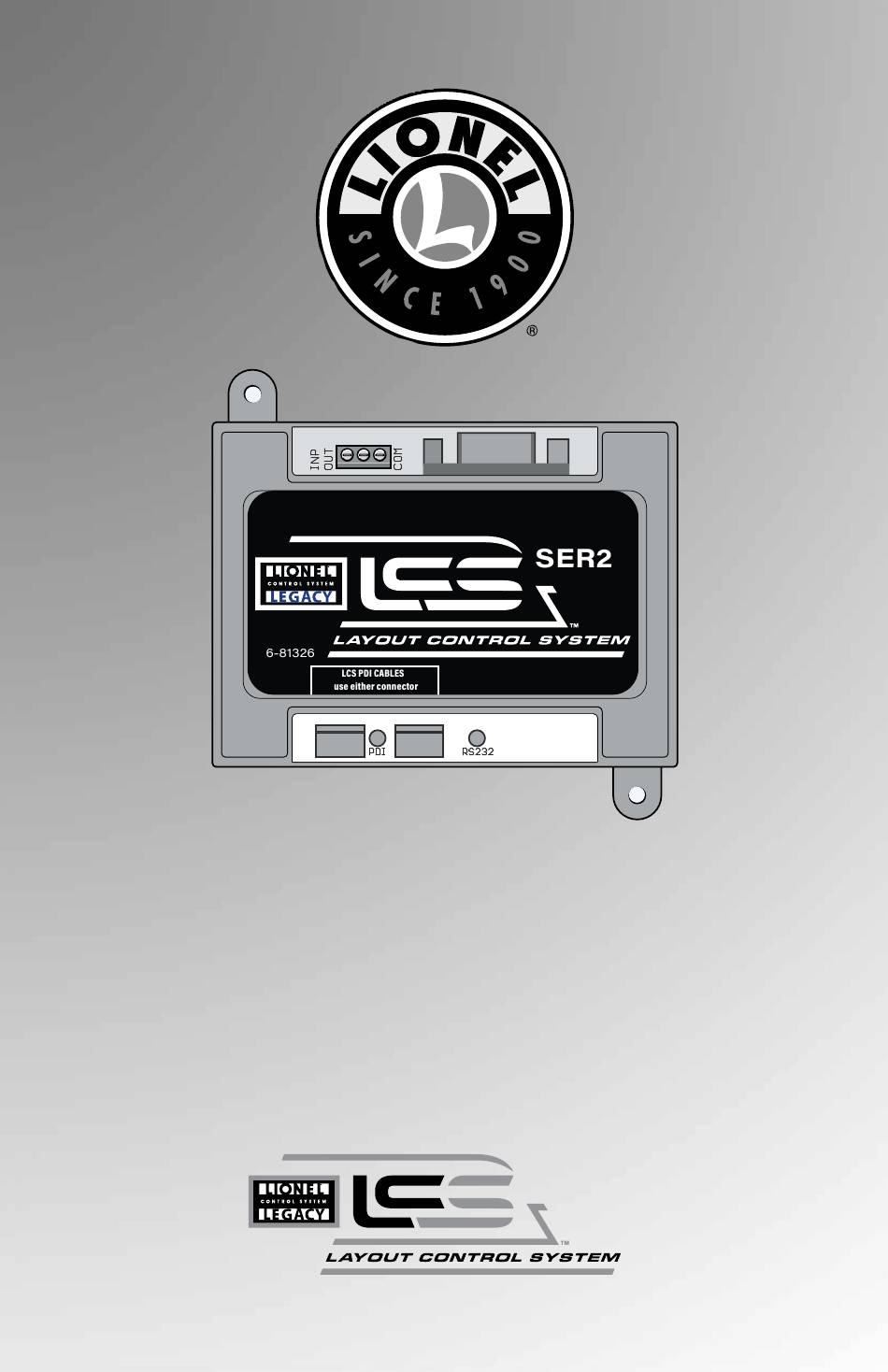

- Page 1 78-1326-250 1/25 Lionel SER2 Owner's Manual...
-
Page 2: Table Of Contents
Lionel Limited Warranty Policy & Service MTH® and DCS® are registered trademarks of Mike's Train House iPad is a registered trademark of Apple, Inc. The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. Lionel , CAB-1 Remote Controller, Accessory Switch Controller™, ASC™, Block Power Controller™, BPC™,... -
Page 3: What Is Lionel's Layout Control System
What is Lionel’s Layout Control System? LCS doesn’ t replace your existing Lionel Legacy Control system. It adds to it! You can control your layout from Lionel Cab Remote controllers or from smart devices like an Apple iPad and run locomotives, operate track switches, accessories and lighting. -
Page 4: Lcs Ser2 Module
A DB9 port and a 3 position screw terminal attachment are provided for ease of connection to older Lionel/ICC controls technology modules, such as the TPC, ASC, etc. SER2 also provides ample serial drive current to all connected devices, eliminating the need for an additional “serial booster. -
Page 5: Installing Your First Lcs Device
LCS component, please skip ahead to the next section titled “Installing additional LCS devices. ” When installing a new LCS system, it is required that you have a Lionel Base3. To install your first LCS Device, you will need a PDI cable, the LCS Device, and a Base3. -
Page 6: Installing A New Lcs System With A Base3
(any type) Figure 3. Installing a new LCS system with a Base3 With this setup, you can control Lionel locomotives and Layout Control System products using Legacy Remote(s), the Cab3 app and optionally, CAB-1L remote(s). If you have additional LCS devices to install, see “Installing additional LCS devices. ” If not, skip... -
Page 7: Installing Additional Lcs Devices
Installing additional LCS devices his section describes adding a new device to an existing Layout Control System installation. If you are installing a brand new LCS system, please refer to the previous section of this document, “Installing Your First LCS Device. ” Adding additional LCS devices to an existing Layout Control System requires an additional cable for each new device. -
Page 8: Configuring Your Lcs Device
SER2. The screw terminal connections are usually the most convenient, although the DB9 connector can also be used. Follow the wiring diagram below, with the LCS SER2's OUTPUT terminal connected to the other devices DAT connection. Also connect the COMMON terminal between the SER2 and the next device. -
Page 9: Connecting An Mth® Dcs® Track Interface Unit To An Lcs Ser2
MTH® DCS® Track Interface Unit, it should be connected to your SER2's DB9 connector. Both the TIU and the cable shown must be purchased from an MTH dealer. Connect the two devices as shown below: Figure 6. Connecting an MTH® DCS® Track Interface Unit to an LCS SER2... -
Page 10: Using Multiple Ser2'S In A Complex Layout
A sample configuration is shown below, adapt it as necessary to meet your needs. To LCS module or Base3 To Computer To Lionel ARC bi- directional serial device To MTH Track Interface Unit Figure 7. Using multiple SER2's in a complex layout... -
Page 11: Operation Of Leds
SER2. During operation, the Red LED flickers when commands are passing through the LCS PDI bus. Specifications of the LCS SER2 Mechanical • Size: 3.7” x 2.7” x 1.2” • Mounting: Two #4 pan head sheet metal screws LCS PDI Power Draw •... -
Page 12: Lionel Limited Warranty Policy & Service
Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
