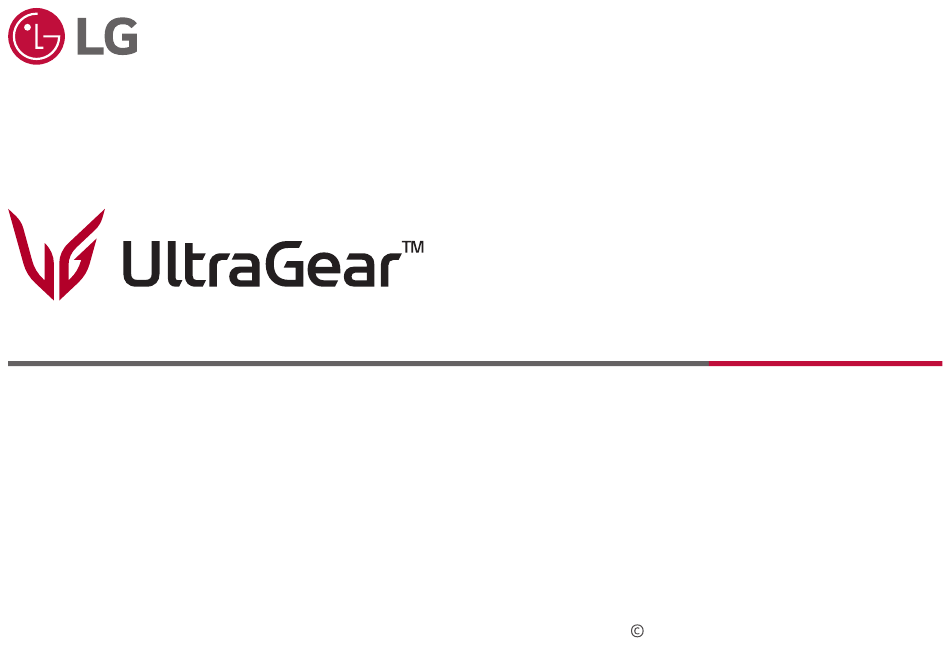

Owner's Manual
(LED Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
27GS60QC
27GS60QX
32GS60QC
32GS60QX
27GS60QN
32G60WA
Copyright
2024 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the UltraGear 32G60WA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG UltraGear 32G60WA

Summary of Contents for LG UltraGear 32G60WA

  • Page 1 Owner’s Manual (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 27GS60QC 27GS60QX 27GS60QN 32G60WA 32GS60QC 32GS60QX www.lg.com Copyright 2024 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ASSEMBLING AND PREPARING ............4 USING THE MONITOR ............... 12 - Installing ..........................5 - Connecting to a PC ......................12 Moving and Lifting the Monitor ..................5 HDMI Connection ......................12 Installing on a Table ......................6 DisplayPort Connection ....................13 - Connecting AV Devices .....................13 Using the Kensington Lock ....................6 HDMI Connection ......................13 Installing on the Wall ......................7...
  • Page 3 USER SETTINGS ................14 PRODUCT SPECIFICATION ..............20 - Activating the Main Menu ....................14 - Support Mode ........................22 Main Menu Features ......................15 (Preset Mode, HDMI) ......................22 Menu Settings ........................15 (Preset Mode, DisplayPort) ....................23 [Game Mode] ........................16 HDMI Timing (Video) ......................24 [Game Adjust] ........................17 TROUBLESHOOTING ................

  • Page 4: Assembling And Preparing

    • To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer • Always use genuine LG components to ensure safety and product performance. from which you purchased the product. • The product warranty will not cover damage or injury caused by the use of unauthorized components.

  • Page 5: Installing

    Installing CAUTION • Avoid touching the monitor screen as much as possible. Moving and Lifting the Monitor - This may result in damage to the screen or some of the pixels used to create images. • If you use the monitor panel without the stand base, its joystick button may cause the monitor to become When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or unstable and fall, resulting in damage to the monitor or human injury.

  • Page 6: Installing On A Table

    Installing on a Table Using the Kensington Lock • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website (3.9 inches) away from the wall to ensure sufficient ventilation.

  • Page 7: Installing On The Wall

    Installing on the Wall Installing the Wall Mount Plate When installing the monitor on a wall, attach the Wall mount plate (optional) to the back of the monitor using This monitor meets the specifications for the wall mount plate or other compatible devices. the wall mount bracket cover provided with the monitor, as shown in the figure below.
  • Page 8 NOTE Wall Mount (mm) 100 x 100 (3.9 x 3.9 inches) • Use the screws specified by VESA standards. Standard screw M4 x L10* • The wall mount kit includes the installation guide and all necessary parts. Number of screws • The wall mounting bracket is optional. You can obtain optional accessories from your local dealer. Wall Mount Plate (Optional) LSW149 •...
  • Page 9 • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. • To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.

  • Page 10: Product Description

    Product Description How to Use the Joystick Button You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/ down with your finger. Basic Functions (Power on): Press the joystick button once with your finger to turn on the monitor. (Power off): Press and hold the joystick button once more than 5 seconds with your finger to turn off the monitor.

  • Page 11: Adjusting The Angle

    Supported Software Adjusting the Angle Place the monitor mounted on the stand base in an upright position. You can download and install the latest version from the LGE website (www.lg.com). Adjust the angle of the screen. • Monitor Driver / The angle of the screen can be adjusted forward or backward from -5°...

  • Page 12: Using The Monitor

    CAUTION HDMI Connection • If you use generic cables not certified by LG, the screen may not display or there may be image noises. Transmits digital video and audio signals from your PC to the monitor. • Do not press the screen for a prolonged time. This may cause image distortion.

  • Page 13: Displayport Connection

    Connecting AV Devices DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. HDMI Connection NOTE HDMI transmits digital video and audio signals from your AV device to the monitor. • There may be no video or audio output depending on the DP (DisplayPort) version of the PC. •...

  • Page 14: Connecting Peripherals

    USER SETTINGS Connecting Peripherals Headphones Connection NOTE Connect peripherals to the monitor via the headphones port. • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. NOTE • When [Beep Guide] is activated, pressing the joystick button will take you to [Menu] right away. •...

  • Page 15: Main Menu Features

    Main Menu Features Menu Settings To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the [Menu]. Move the joystick up/down and left/right to set the options. To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it. If you want to exit the OSD menu, move the joystick to until you exit.

  • Page 16: [Game Mode]

    [Game Mode] [Game Mode] on HDR signal • [Gamer 1]/[Gamer 2]: [Gamer 1] and [Gamer 2] picture modes allow you to save two sets of customized [Menu] > [Game Adjust] > [Game Mode] display settings, including game-related setup options. • [FPS]: This mode is optimized for FPS games.

  • Page 17: [Game Adjust]

    [Game Adjust] • [Response Time]: Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use [Fast]. [Menu] > [Game Adjust] For a fast-moving picture, it is recommended that you use [Faster]. •...

  • Page 18: [Picture Adjust]

    [Picture Adjust] • [Six Color]: Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red, green, blue, cyan, magenta, and yellow) and then saving the settings. [Menu] > [Picture Adjust] - Hue: Adjusts the tone of the screen colors. •...

  • Page 19: [Input]

    [Input] [General] [Menu] > [Input] [Menu] > [General] • [Input List]: Selects the input mode. • [Language]: Sets the menu screen to the desired language. • • [Aspect Ratio]: Adjusts the aspect ratio of the screen. The display may look the same for [Full Wide], and [User-defined Key 1]/ [User-defined Key 2]: You can customize the main menu to access your preferred menu [Original] options at the recommended resolution (2560 x 1440).

  • Page 20: Product Specification

    PRODUCT SPECIFICATION • [Input Compatibility Version]: You can set each input to match the supported version of the connected device. • [Buzzer]: This feature lets you set the sound generated from Buzzer when your monitor powers on. • [OSD Lock]: This feature disables the configuration and adjustment of menus. Specifications are subject to change without notice.
  • Page 21 AC/DC Adapter Dimensions: Monitor Size (Width x Depth x Height) (mm/ inches) 27GS60QC/ 27GS60QX/ 27GS60QN 27GS60QC/ 27GS60QX/ 27GS60QN • • Model: ADS-45FSQ-19 19040EPG-1 With Stand: 604.9 x 226.5 x 450.7 (23.8 x 8.9 x 17.7) ADS-45FSQ-19 19040EPCU-1 • Without Stand: 604.9 x 95.7 x 363.8 (23.8 x 3.7 x 14.3) ADS-45SQ-19-3 19040E 32GS60QC/ 32GS60QX/ 32G60WA • Manufacturer: SHENZHEN HONOR ELECTRONIC CO., LTD •...

  • Page 22: Support Mode

    Support Mode (Preset Mode, HDMI) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.940 800 x 600 37.897 60.317 1024 x 768 48.363 60.000 1920 x 1080 67.500 60.000 2560 x 1440 88.787 59.951 Recommended Timing: HDMI1.4 2560 x 1440 111.857...

  • Page 23: (Preset Mode, Displayport)

    (Preset Mode, DisplayPort) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.940 800 x 600 37.897 60.317 1024 x 768 48.363 60.000 1920 x 1080 67.500 60.000 2560 x 1440 88.787 59.951 2560 x 1440 150.919 99.946 2560 x 1440...

  • Page 24: Hdmi Timing (Video)

    HDMI Timing (Video) Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 480P 31.5 720P 45.0 1080P 67.5 1080P 135.0 2160P 135.0...

  • Page 25: Troubleshooting

    • Have you installed the display driver? - Be sure to install the display driver from our web site: https://www.lg.com. Please refer to the list below if you experience any of the following issues during product use. - Make sure to check if the graphics card supports function.
  • Page 26 The display color is abnormal. Some features are disabled. • • Does the display appear discolored (16 colors)? Are some functions not available when you press the Menu button? - Set the color to 24 bit (true color) or higher. (The settings may differ depending on the operating system - The OSD is locked.

  • Page 27: License

    Administrator, Inc. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.

  • Page 28: Beep Guide

    BEEP GUIDE Menu Location Menu Location Game Adjust - Crosshair - Red Cross 1 5 1 Picture Adjust - Color Temp - Custom 2 5 1 Menu Location Game Adjust - Crosshair - Green Cross 1 5 2 Picture Adjust - Color Temp - Warm 2 5 2 Game Adjust - Crosshair - Red Dot 1 5 3...
  • Page 29 Menu Location Menu Location Menu Location Picture Adjust - Black Level - High 2 8 1 General - Language - Portuguese 4 1 8 General - SMART ENERGY SAVING Picture Adjust - Black Level - Low 2 8 2 General - Language - Portuguese (Brazil) 4 1 9 General - SMART ENERGY SAVING - High 4 4 1...
  • Page 30 Menu Location General - Information 4 10 General - Open Source Software License 4 11 General - Open Source Software License - View 4 11 1 General - Reset to Initial Settings 4 12 General - Reset to Initial Settings - No 4 12 1 General - Reset to Initial Settings - Yes 4 12 2...

  • Page 31: Limited Warranty (Usa)

    LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set...
  • Page 32 Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than $25,000 in damages,...

  • Page 33: Limited Warranty (Canada)

    Notice of Dispute.
  • Page 34 Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG’ s receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG...
  • Page 35 Opt Out. The arbitration provision requires you and LG to resolve disputes by binding arbitration instead of court, unless the laws of your province or territory do not permit that, or, in other jurisdictions, if you choose to opt out.
  • Page 36 The model and serial number of the product are located on the back and on one side Trade Name of the product. Responsible LG Electronics USA, Inc. Record them below in case you ever need service. Party Address 111 Sylvan Avenue, North...

  • Page 37: Important Precautions

    » If loosely connected, the poor connection may cause a fire or electric shock. Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc. » The use of non-approved products may cause a fire or electric shock.

  • Page 38: Precautions In Installing The Product

    » If you continue to use without taking proper measures, electrical shock or fire can occur. If you dropped the product or the case is broken, turn off the product and unplug the power cord. » If you continue to use without taking proper measures, electrical shock or fire can occur. Contact LG Customer Service.

  • Page 39: Precautions In Moving The Product

    Do not attempt to disassemble, repair or modify the product yourself. » Fire or electric shock can occur. » Contact LG Customer Service for repair. When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching.

  • Page 40: Précautions Importantes

    Assurez-vous d’enfoncer complètement la fiche du cordon dans l’adaptateur c.a. » Un branchement desserré pourrait causer un incendie ou une décharge électrique. Assurez-vous d’utiliser les cordons d’alimentation et adaptateurs c.a. fournis ou approuvés par LG Electronics, Inc. » L’utilisation de produits non approuvés pourrait entraîner un incendie ou une décharge électrique.
  • Page 41 Si une odeur de fumée ou toute autre odeur se dégage du moniteur ou si vous entendez un son étrange en provenance du moniteur, débranchez le cordon d’alimentation et contactez le service à la clientèle de LG. » Si vous continuez à utiliser l’appareil sans prendre de mesures appropriées, il y a un risque de décharge électrique ou d’incendie.
  • Page 42 Ne tentez pas de désassembler, de réparer ou de modifier l’appareil vous-même. » Il existe un risque d’incendie ou de décharge électrique. » Contactez le service à la clientèle de LG pour le faire réparer. Pour nettoyer l’appareil, débranchez le cordon d’alimentation et frottez doucement avec un chiffon doux pour prévenir toute éraflure.
  • Page 43 DDC(Display Data Channel) ENGLISH DEUTSCH DDC (Display Data Channel) DDC (Display Data Channel) DDC ist ein Kommunikationskanal, über DDC is a communication channel over which weiche Sie von lhrem Monitor automatisch the monitor automatically informs the host über das verbundene System (PC) und seine system (PC) about its capabilities.
  • Page 44 DDC(Display Data Channel) FRANÇAIS ITALIANO DDC (Display Data Channel) DDC (Display Data Channel) DDC est une chaine de communication par Il DDC è un canale di comunicazione attraverso le biais de laquelle le moniteur prévient il quale il monitor informa automaticamente il automatiquement le systéme central (PC) de sistema ospite (PC) circa le proprie capacità.
  • Page 45 DDC(Display Data Channel) ESPAÑOL PORTUGUÊS DDC (Canal de despliegue de DDC (Display Data Channel) información) DDC es un canal de comunicacion sobre el DDC é um canal de comunicação através cual el monitor automáticamente informa al do qual o monitor informa ao computador sistema anfitrión (PC) sobre sus capacidades.
  • Page 46 DDC(Display Data Channel) NEDERLANDS РУССКИЙ DDC (Display Data Channel) Канал обмена данных между монитором и компьютером DDC. DDC is een communicatiekanaal waarmee de DDC-канал связи, по которому монитор monitor het hostsysteem (PC) automatisch автоматически информирует компьютер о informeert over zijn mogelijkheden. своих...
  • Page 47 DDC(Display Data Channel) 日本語 한국어 DDC( 디스플레이 데이터 채널 ) DDC（ディスプレイ • データ • チャンネル） DDC 는 모니터의 기능에 관한 정보를 자동으로 호스 DDC は、 モニターがその状態をホスト • システム （Ｐ Ｃ）へ自動的に通知する通信チャンネルです。 트 시스템 (PC) 에 제공하는 통신 채널입니다 DDC protocol DDC プロトコル ①...
  • Page 48 DDC(Display Data Channel) CATALÀ ‫العربية‬ DDC (Canal de Dades de (‫ )قناة بيانات الشاشة‬DDC Pantalla) ‫ هي قناة تواصل ت ُ علم الشاشة من خاللها النظام المضيف‬DDC .‫)الكمبيوتر( تلقائي ا ً حول قدراتها‬ DDC és un canal de comunicació a través del DDC ‫بروتوكول‬...

  • Page 49: Energy Saving Design

    Energy Saving Design ENGLISH PORTUGUÊS Energy Saving Design Programa de economia de energia This program is designed to have computer equipment manufacturers build circuitry into their Este programa foi elaborado com a finalidade de products to reduce power consumption when it is estimular os fabricantes de equipamentos para not in operation.
  • Page 50 Energy Saving Design DEUTSCH 한국어 Energiespar-Design 절전디자인 Dieses Programm wurde konzipiert, um die 이 프로그램은 컴퓨터 장비 제조업체가 해당 제품에 회로를 Hersteller von Computergeräten zu veranlassen, 내장하여 , 사용하지 않는 기간에 전력 소비를 줄일 수 있도 록 만들어졌습니다. Schaltungen in ihre Produkte einzubauen, die zu einem geringeren Stromverbrauch führen, wenn 이...

  • Page 51: Bahasa Indonesia

    Energy Saving Design MAGYAR BAHASA INDONESIA Energiatakarékos kialakítás Desain Hemat Energi E program célja, hogy a számítógéptartozékgyártók Program ini dirancang agar produsen peralatan azon termékei, amelyek rendelkeznek az ehhez komputer membangun sistem sirkuit ke dalam szükséges áramkörrel, alacsony fogyasztással produk mereka untuk mengurangi konsumsi daya üzemeljenek akkor, amikor nincsenek saat peralatan sedang tidak beroperasi.
  • Page 52 Energy Saving Design ESPAÑOL 日本語 Diseño de ahorro de energía 省エネ設計 （省エネルギー設計、節電設計） Este programa está diseñado para que los fabricantes de equipos informáticos incorporen 本プログラムはコンピュータ機器メーカーが製造する sistemas de circuitos a sus productos con el fin 製品がその非使用時 ( 非動作時 ) は消費電力を抑 de reducir el consumo de energía cuando no esté える回路構成を持つことを目的に策定されま...
  • Page 53 Energy Saving Design ҚАЗАҚША NEDERLANDS Энергия үнемдейтін дизайн Energiebesparend ontwerp Бұл бағдарлама компьютер жабдықтарын Dit programma stimuleert fabrikanten van өндірушілерге жұмыс істемей тұрғанда, қуаттың computerapparatuur om schakelingen in producten тұтынылуын азайту мақсатымен өнімдеріне te bouwen die het stroomverbruik verminderen als электр...
  • Page 54 Energy Saving Design FRANÇAIS ΕΛΛΗΝΙΚΆ Design d’économie d’énergie Σχεδίαση εξοικονόμησης ενέργειας Ce programme est conçu pour obtenir l’installation Το πρόγραμμα αυτό έχει σχεδιαστεί ώστε οι de circuits par les fabricants d’équipements κατασκευαστές εξοπλισμού ηλεκτρονικών informatiques dans leurs produits afin de réduire υπολογιστών...
  • Page 55 Energy Saving Design ITALIANO РУССКИЙ Programma di risparmio Функция сохранения энергии energetico Эта программа разработана для создания и внедрения производителями компьютерного Questo programma è stato messo a punto affinché оборудования схем, позволяющих снизить i produttori di computer producano circuiti per i loro потребление...

  • Page 56: Oszczędzanie Energii

    Energy Saving Design POLSKI 繁體中文 Oszczędzanie energii 節能設計 Ten program został stworzony, aby producenci 此程式用於幫助電腦設備製造廠商在他們的產品中 sprzętu komputerowego mieli możliwość 建立電路，藉此降低產品處於非作業狀態時的功率 wbudowania do swoich produktów zespołów 消耗量。 obwodów elektrycznych redukujących pobór mocy w stanie bezczynności. 本顯示器與已安裝符合VESA 顯示能源管理訊號 (DPMS) 協定之螢幕抑制顯示軟體的電腦配合使用 W przypadku użycia tego monitora na komputerze 時，可降低處於非作業狀態時的功率消耗量，進而...
  • Page 57 Energy Saving Design ‫العربية‬ CATALÀ ‫تصميم موفر للطاقة‬ Disseny d’estalvi d’energia Aquest programa està dissenyat perquè els ‫تم إعداد هذا البرنامج بحيث تتمكن شركات تصنيع أجهزة الكمبيوتر من‬ ‫إدماج مجموعة دارات إلكترونية في منتجاتها للحد من استهالك الطاقة‬ fabricants d’equips informàtics integrin circuits als .‫عند...
  • Page 58 Service DEUTSCH ENGLISH Service Wartun Bei folgenden Fehlerbedingungen ist der Unplug the monitor from the wall outlet and Netzstecker des Monitors zu ziehen und der refer servicing to qualified service personnel Kundendienst zu benachrichtigen: when : Wenn der Netzstecker beschadigt oder das The power cord or plug is damaged or Netzkabel ausgefranst ist.

  • Page 59: Manutenzione

    Service ITALIANO FRANÇAIS Manutenzione Maintenance du Moniteur Débranchez le moniteur (prise murale) Staccare il monitor dalla presa elettrica et contactez un technicien qualifié de e consultare il personale addetto alla maintenance de ce type d’équipement dans manutenzione quando: les cas suivants: Il cavo elettrico o la spina sono danneggiati Le cordon d’alimentation ou la prise est o consumati.
  • Page 60 Service ESPAÑOL PORTUGUÊS Servicio Manutenção Desconecte el monitor del tomacorriente de Desligue o monitor da tomada e procure por la pared y refiera el servicio a personal de serviço autorizado, quando: servicio calificado cuando: O cabo de força ou plugue estiver danificado El cable o enchufe de energía está...
  • Page 61 Service NEDERLANDS РУССКИЙ Onderhoud Ремонт и Обслуживание In de volgende gevallen haalt u de stekker van В нижеперечисленных случаях отключите de monitor uit het stopcontact en roept u de монитор от сети и обратитесь в пункты hulp in van een gekwalificeerde technicus: сервисного...
  • Page 62 Service ‫العربية‬ ‫الخدمة‬ Maintenance Tel :‫افصل الشاشة عن مأخذ الحائط واتصل بفريق خدمة محترف‬ Dammam 8339561 . ٍ ‫إن سلك الطاقة أو المقبس تالف أو با ل‬ • .‫انسكب سائل على الشاشة‬ • Khobar 8942694 .‫تعرضت الشاشة للمطر أو الماء‬ •...
  • Page 63 Service 日本語 한국어 保守および修理 수리 次のような保守になったら、モニタ－の電源プラグ 다음과 같은 경우에는 벽면 콘센트에서 모니터의 플러그 をコンセントから抜き、修理センターにご相談くださ 를 뺀 다음 자격이 있는 수리 담당자에게 의뢰하십시오 . い。 전원코드 또는 플러그가 손상되거나 낡았습니다 . 電源コードまたはプラグが破損した、または擦り 액체가 엎질러져서 모니터에 흘러들어갔습니다 . 모니터가 비 또는 물에 노출되었습니다 . 切れた。...
  • Page 64 Service CATALÀ Servei Desconnecteu el monitor de l’endoll de paret i consulteu al personal de servei qualificat si: El cable o l’endoll estan danyats o esfilagarsats. Ha caigut líquid al monitor. El monitor s’ha vist exposat a la pluja o l’aigua. El monitor no funciona amb normalitat seguint les instruccions d’ús.
