Xiamen SimPal-WS420 User Manual

4g outdoor power socket
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SimPal-WS420
4G Outdoor Power Socket
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SimPal-WS420 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xiamen SimPal-WS420

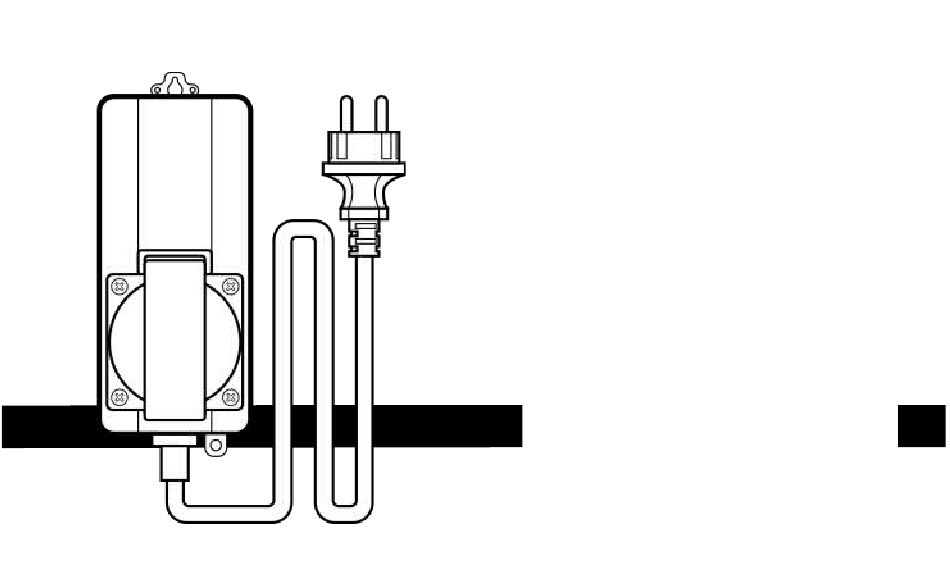

  • Page 1 SimPal-WS420 4G Outdoor Power Socket User Manual...
  • Page 2 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Manual version 1.0...
  • Page 3 SimPal-WS420 4G Outdoor Power Socket Thank you for purchasing the SimPal-WS420. SimPal-WS420 4G outdoor power socket is a remote-controlled socket consisting of a 4G module. With outdoor waterproof IP44 design, the power supply output can be turned on or off remotely by the SMS command or voice calling. It can works as router for slave socket SimPal-T20-V2/SimPal-S20 and wireless accessories.
  • Page 4 SimPal-WS420 4G Outdoor Power Socket USER MANUAL SimPal-WS420 can works with WTL-063-F Wireless Temperature & Light sensor. With this sensor, it can report temperature changes, set thermostat control and automatically turn on power at dusk. All services and functions need to be supported by the 4G network and a SIM card.
  • Page 5 SimPal-WS420 4G Outdoor Power Socket USER MANUAL instruction manual.

  • Page 6: Table Of Contents

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL For your safety.........................5 Exception clause......................7 1.1 Package contents.......................8 1.2 Sockets instructions....................9 1.3 LED indicator......................10 2.1 User authorization level....................10 2.2 About the SMS Command..................11 3.1 Start to use.......................12 3.2 Download “GSM Socket V3” APP................14 3.3 Register Master-number...................14...
  • Page 7 SimPal-WS420 4G Outdoor Power Socket USER MANUAL 3.6 Delay control......................19 3.7 Schedule control.......................20 3.8 Temperature control....................22 3.9 Temperature alarm....................25 3.10 Twilight power control.....................26 3.11 Wireless sensor alarm....................27 3.12 Pairing slave socket....................29 3.13 SMS when on/off button pressed................31 3.14 Power failure alarm....................31 3.15 Calling control......................32...
  • Page 8 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Appendix: SMS commands list..................38...
  • Page 9 1. Purchase a GSM SIM card (mobile phone card) from GSM network service provider and install it in the socket. This SIM card number is referred as SimPal-WS420 number on this brochure. 2. The user needs to activate the Caller ID Presentation function of...
  • Page 10 SimPal-WS420 4G Outdoor Power Socket USER MANUAL network service provider for support.

  • Page 11: For Your Safety

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL For your safety  This socket was designed waterproof IP44, forbid to put inside water or installed in open air. It is recommended to install in outdoor places with ceiling protection.  Please ensure that the mobile phone is allowed to be used in this area, otherwise, do not use this socket.
  • Page 12 SimPal-WS420 4G Outdoor Power Socket USER MANUAL  Do not make two plugs of socket short circuit.  Do not touch the socket jack by any metal objects or hand.  Do not plug this socket in a row, only allow connect other electricity device on the socket.
  • Page 13 SimPal-WS420 4G Outdoor Power Socket USER MANUAL  Switch off this socket and mobile phone when entering areas marked "Explosive", "Might explode", "Closed wireless transceiver sockets" etc.  Do not cast this socket in a fire, as this may cause explosion.

  • Page 14: Exception Clause

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL Exception clause 1. We operate on a policy of continuous development. We reserve the right to make changes and improvements to any of the sockets described in this document without prior notice. 2. For the latest socket information, please visit: http://www.simpal.cn. We don’t guarantee for the document veracity, reliability or any content except regulate in proper laws.
  • Page 15 SimPal-WS420 4G Outdoor Power Socket USER MANUAL 4. We hold no responsibility for any loss of income or any special, incidental, consequential or indirect damages howsoever caused. 5. The contents of this document are provided “as is”. Except as required by applicable law, no warranties of any kind, either expressed or implied, including, but not limited to the accuracy, reliability or contents of this document.

  • Page 16: Package Contents

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL 1.1 Package contents...

  • Page 17: Sockets Instructions

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL 1.2 Sockets instructions...

  • Page 18: Led Indicator

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL 1.3 LED indicator Color Action Status Slowly breath Power ON, Standby and sensor alarm OFF. Constant light Power ON, Standby and sensor alarm ON. Flash fast Power ON, lost network connection or sending SMS.
  • Page 19 There are two mobile phone user controlling levels: Master-user (“Master”): Only one Master has authorization to use all features of SimPal-WS420. In order to enable all the functions on the socket, the Master must store his/ her mobile number in the socket’s memory. Only one Master’s mobile number is allowed for a socket.

  • Page 20: About The Sms Command

    2.2 About the SMS Command  SMS command format: #code#content#.  The maximum digits that are allows for the phone number is sixteen.  SimPal-WS420 will reply to the user after it receives the SMS command.  Note  The “#” symbol must not be ignored when typing an SMS command.

  • Page 21: Start To Use

    3.1 Start to use  Open the cover of the SIM card slot, and push it upwards at the bevel.  Installed SIM card to SimPal-WS420 4G power socket; you will see a SIM card slot inside, make the SIM card metal...
  • Page 22 SimPal-WS420 4G Outdoor Power Socket USER MANUAL  Install the socket vertically on the wall and fix the two clips on the socket with screws. Make sure the cover of the socket is opened upward to prevent rainwater from seeping...
  • Page 23 The socket default LED in blue and power output is OFF. 2. Insert the plug of electronic appliance in the SimPal-WS420 electrical outlet. 3. After register numbers to the socket, users can send SMS command or make calling to control the power supply output.

  • Page 24: Download "Gsm Socket V3" App

    Check GSM network signal of the using place:  GSM network’s signal strength may affect the socket feature. Therefore, before using, the user should ensure that SimPal-WS420 is used in an area with a strong GSM network signal (CSQ higher than 10).

  • Page 25: Register Master-Number

    WS420. First time register device on APP, input device name and SIM card number which installed on SimPal-WS420 device. The APP will create SMS content, send the SMS to device, it will operate according APP function description. Even without APP, user can send SMS manually according following instruction.
  • Page 26 SimPal-WS420 4G Outdoor Power Socket USER MANUAL number will be the Master number): Register Master-number: #00# 3.3.1 Change Master number Master sends following SMS message in order to: Change master-number: #14# NewMasterNumber  NewMasterNumber should be the new Master mobile phone number.
  • Page 27 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Family-number have the authority to change device setting and receive SMS notification.  Method Master sends following SMS message in order to: Register a Family: #06# Family-Number #  Family-Number should be the User’s mobile phone number. It request to fill country code for Family number.

  • Page 28: Turn On/Off Power

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL Delete Family  Method Master sends following SMS message in order to: Delete a Family: #15# Family-Number # Delete all Family numbers: #15# 3.4 Turn on/off power  Method Master sends following SMS message to socket in order to set:...

  • Page 29: Power Load Alarm

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL Master socket power - ON: #01#0# Master socket and all Slave socket power – ON: #01# Master socket power - OFF: #02#0# Master socket and all Slave socket power – OFF: #02# (10) 3.5 Power load alarm...
  • Page 30 SimPal-WS420 4G Outdoor Power Socket USER MANUAL power consumption and report power consumption daily, weekly or monthly. Also can set power load alarm, it will send SMS when power load out or back setting range,  Method Master sends following SMS message in order to:...
  • Page 31 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Set power loading range: #53#0# MinValue # MaxValue # (16)  MinValue and MaxValue: The values can be set within the range of 0 to 3500, means 0-3500W. Default value is 5-3500.  The power alarm is executed only when the power is turned on. When the power is turned off, the power is always zero, it does not send alarm message.
  • Page 32 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Set daily report power consumption: #54#1# (18) Set weekly report power consumption: #54#2# (19) Set monthly report power consumption: #54#3# (20) Set report power consumption function - OFF(default): #54#0# (21)  Note: The power consumption data will lost when device reboot, it will new calculate from...

  • Page 33: Delay Control

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL 3.6 Delay control  Description  The socket output can be set to delay switch ON/OFF for a period time.  When the “delayed switch on the socket” command is received and if the socket output is switched on, the socket output will be switched off immediately and be switch on again as the setting delayed time is reaching.
  • Page 34 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Master sends following SMS message in order to set: Turn on power after certain minutes: #12#0# Minutes #1# (22) Turn off power after certain minutes: #12#0# Minutes #0# (23) Minutes are time parameters, its range is 1-720, Set delay control –...

  • Page 35: Schedule Control

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL 3.7 Schedule control 3.7.1 Activate schedule control  Description  The socket power can be set to automatically turn on according schedule. It allows to temporary manual change power on/off by send SMS, press button, Delay ...
  • Page 36 SimPal-WS420 4G Outdoor Power Socket USER MANUAL #20#0#ID# WorkDay # StartTime # EndTime # (25)  ID: the value is 1-3, it means allow to set three group schedules.  WorkDay: one digit, the values lie in the range of “0” to “9”.
  • Page 37 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Tuesday Wednesday Thursday Friday Saturday Sunday  StartTime and EndTime: Be consists of 4 digits (hh:mm) and works on a 24 hour clock. If StartTime bigger than EndTime, it will operate until next day EndTime.
  • Page 38 SimPal-WS420 4G Outdoor Power Socket USER MANUAL  For example: #20#0#1#12345#0800#2130# , 0 means the SimPal-WS420, 1 means first group schedule, 12345 means from Monday-Friday, 0000 means time 08:00(hh:mm)AM, 2130 means time 21:30. It will turn on power at 08:00, and turn off at 21:30 on Monday- Friday.

  • Page 39: Temperature Control

    3.8.1 Pair Temp & Light sensor  Description Each SimPal-WS420 can pair one WTL-063-F Temp & Light sensor. It will receive temperature and light level data from this sensor and use the data for temperature alarm, thermostat control and light control.
  • Page 40 SimPal-WS420 4G Outdoor Power Socket USER MANUAL 3.8.1 Activate temperature control  Description  After paired Temp & Light sensor, the power output can be auto controlled according environment temperature change.  Temperature control will always activate when the temperature within action range.
  • Page 41 SimPal-WS420 4G Outdoor Power Socket USER MANUAL mode, socket will auto turn on when temperature higher than bigger temperature value and turn off when temperature lower than smaller value.  Method The Master sends following SMS message in order to set:...
  • Page 42 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Master sends following SMS message in order to: Set temp control parameters: #24#0#mode#low-temp#high-temp# (31) Mode parameter can be 1 or 2, Warming mode is 1, cooling mode is 2; Temperature range should be within -30 to 70 degree.

  • Page 43: Temperature Alarm

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL After successful setting of temperature range, the temperature parameter will be saved on the socket until socket reset to factory settings. 3.9 Temperature alarm  Description After paired WTL-063-F Temp & Light sensor, it can set temperature alarm for this device.
  • Page 44 SimPal-WS420 4G Outdoor Power Socket USER MANUAL  Method Master sends following SMS message in order to set: Temperature alarm - ON: #21#0#1# (32) Set temperature range: #22#0# MinTemp # MaxTemp # (33)  MinTemp and MaxTemp: The values can be set within the range of -30 to 70 centigrade degree.

  • Page 45: Twilight Power Control

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL 3.10 Twilight power control  Description After paired WTL-063-F Temp & Light sensor, it can set this socket twilight power control. The power will automatically turn on at dusk, and turn off at dawn.

  • Page 46: Wireless Sensor Alarm

    (37) 3.11 Wireless sensor alarm  Description SimPal-WS420 can be working with 6pcs wireless sensor and 2pcs remote control, it can use for alarm functions. Only following sensor can be working with WS420:  WRC-048-F V2 remote control  WDS-051-F V2 Wireless door sensor...
  • Page 47 SimPal-WS420 4G Outdoor Power Socket USER MANUAL  WIR-053-F V2 Wireless PIR motion detector  WSI-055-F V2 Wireless strobe siren  WLD-061-F V2 Wireless water leak detector There are two types of alarm sensor, one is alarm type, only alarm when WS420 alarm function on, the other one is emergency type, it will always alarm even WS420 alarm function off.
  • Page 48 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Master sends following SMS message in order to: Pair alarm sensor: #30#1#Name# (38) Pair emergency sensor: #30#2#name# (39) Pair remote control: #30#3# (40) Check pair sensor list: #30# (41) Remove single sensor: #44#name#...
  • Page 49 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Set alarm function - OFF: #40#0# (46) Set schedule alarm time period: #46#ID#day#start-time#end-time# (47) Schedule alarm parameter day time parameters is same as Schedule control. Set schedule alarm function - OFF: #47#0# (48)

  • Page 50: Pairing Slave Socket

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL 3.12 Pairing slave socket SimPal-WS420 can be working with 4pcs wireless slave socket SimPal-T20-V2 or SimPal- S20. Slave socket needs to buy separately. Master sends SMS to paring slave socket, before paring, need to make sure slave socket reset factory setting, if this slave socket already paired before, need to keep press slave socket M button for 10 seconds to reset factory setting.
  • Page 51 SimPal-WS420 4G Outdoor Power Socket USER MANUAL connected with WS420 socket.  Note  “name” is the slave socket ID communicate with Master socket, operate slave socket by sending SMS request included “name” in SMS command.  Request different slave socket “name” for one GSM socket.

  • Page 52: Sms When On/Off Button Pressed

    (53) 3.13 SMS when on/off button pressed  Description SimPal-WS420 will default sending SMS notify Master and Family when press M button to turn on/off power. The Master can enable/disable this SMS notification.  Method Master sends following SMS message in order to set:...

  • Page 53: Power Failure Alarm

    SMS when on/off button pressed - ON: #03#0# (55) 3.14 Power failure alarm  Description SimPal-WS420 will default sending SMS notify when main power supply lost or restore. Master can enable/disable this SMS notification.  Method Master sends following SMS message in order to set:...

  • Page 54: Calling Control

    SMS when power lost or restore - OFF: #05#0# (57) 3.15 Calling control SimPal-WS420 default send SMS reply when Master or Family calling to turn on/off power, it can change the setting to calling control without SMS reply.  Method Master sends following SMS message in order to: SMS when calling control –...

  • Page 55: Sms Notification To User

    Allow any number calling control – ON : #31#1# (62) Allow any number calling control (Default): #31#0# (63) 3.16 SMS notification to User SimPal-WS420 will sending SMS alert when mains power lost/restore, temperature alert or other information. Default sending SMS to both Master and family. Master...

  • Page 56: Check Status

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL can change the setting only send SMS to Master number.  Method Master sends following SMS message in order to: SMS to family number – ON (Default): #16#1# (64) SMS to family number – OFF: #16#0# (65) 3.17 Check status...
  • Page 57 SimPal-WS420 4G Outdoor Power Socket USER MANUAL After receiving the SMS commands, it will reply SMS message like this: Main unit: OFF, 22C, 13W, T, S, D, H, L Daylight “ESP1”: OFF, 25C, 0W, T, S, D It may display different characters after the power loading, it means the socket under different status.

  • Page 58: Weak Gsm Signal Alarm

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL “T”: means this socket under temperature control. “H”: means this socket alarm function is on. “L”: means this socket under twilight control. “Daylight” or “Night” means the light level from light sensor. If the socket do not paired with Temp & Light sensor, then it will do not display temperature, “T”, “L”...
  • Page 59 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Master user can enable/disable this SMS notification. Method The Master user sends following SMS message in order to set: Check GSM signal #27# (67) Weak GSM signal alarm - ON: #27#1# (68) Weak GSM signal alarm - OFF (Default):...

  • Page 60: Reset Factory Setting

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL 4. Reset factory setting  Description  This function resets all programmed settings to their original values, including cleaning all user number, timing parameter and temperature parameter.  If the setting status is wrong or the malfunctions can’t be corrected, users can restore the socket to its original status to make it work normally.

  • Page 61: Main Technical Parameters

    SimPal-WS420 4G Outdoor Power Socket USER MANUAL Method 2: Master sends following SMS message in order to: Reset Master socket: #08#1234# (70) 5. Main Technical Parameters 110~230V/50HZ, Input power plug CEE 7/7 hybrid Schuko/French/American/Australia plug 110~ 230V/50HZ, 16A Output power outlet CEE7/4 German “Schuko”/ French/ American/Australia...
  • Page 62 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Relative humidity 10-90%，without condensation Communication protocols GSM PHASE 2/2+ (including data operation) Data interface GSM SIM 1.8V/3.0V socket RF frequency 434Mhz FSK Slave socket distance Up to 30 meters Cat1 LTE FDD: B1, B3, B5, B7 ,B8 ,B20...
  • Page 63 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Category Function Command Change Master-number (2) #14# NewMasterNumber # Add Family-number (3) #06# Family-Number # users Check Family-number (4) #06# Delete Family-number (5) #15# Family-Number # Delete all Family-number (6) #15# Turn power - ON...
  • Page 64 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Category Function Command Check this week power (13) #52#2# consumption Check this month power (14) #52#3# consumption Power loading alarm - ON (15) #53#0#1# (16) Set power loading range #53#0# MinValue # MaxValue #...
  • Page 65 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Category Function Command Turn power ON after a certain (22) #12#0# Minutes #1# minutes Turn power OFF after a certain Delay control (23) #12#0# Minutes #0# minutes Set delay control – OFF (Default)
  • Page 66 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Category Function Command (31) #24#0#mode#low- Set temp control parameters temp#high-temp# Temperature alarm - ON (32) #21#0#1# Temperature Set temp range (33) #22#0# MinTemp # MaxTemp # alarm Temperature alarm - OFF (34) #21#0#0#...
  • Page 67 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Category Function Command Check sensor list (41) #30# Remove single sensor (42) #44#name# Remove all sensors (43) #44# Remove all remote control (44) #45# Alarm function – ON (45) #40#1# Alarm function – OFF (Default)
  • Page 68 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Category Function Command Remove all slave sockets (53) #71# SMS when on/off button pressed (54) #03#1# - ON (Default) SMS when on/off button pressed (55) #03#0# - OFF notification SMS when power lost or restore (56) #05#1# –...
  • Page 69 SimPal-WS420 4G Outdoor Power Socket USER MANUAL Category Function Command Allow any number calling control - (62) #31#1# Allow any number calling control - (63) #31#0# OFF(Default) SMS to Users – ON (Default) (64) #16#1# SMS to Users SMS to Users – OFF...
