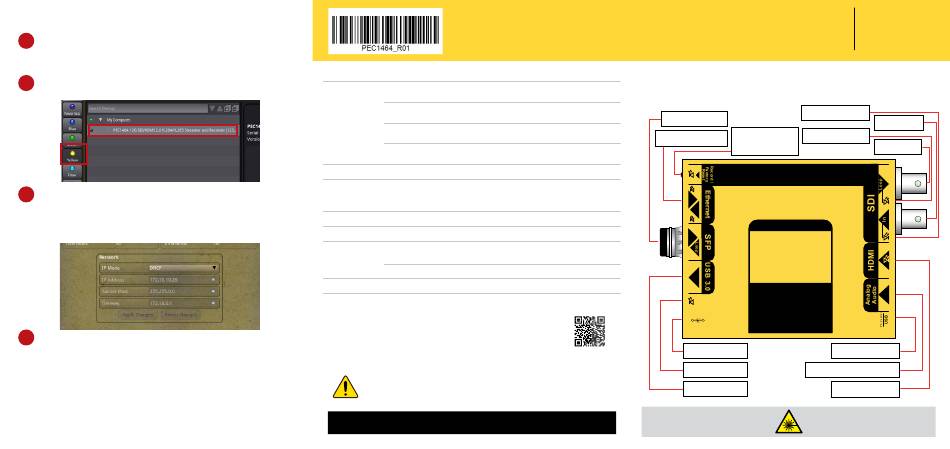

LYNXTechnik Yellobrik PEC 1464 Quick Reference

Quick Start Guide: Access PEC 1464 Web GUI
1
After connecting your PEC 1464 with your local network, connect the
PEC 1464 via the supplied mini USB cable to a PC or MAC with the latest
version of LynxCentraal or yelloGUI installed.
2 In LynxCentraal: Look for the PEC 1464 in the "yellow" section.
In yelloGUI: The device will be listed in the device list.
3
On the Main Page a "Network" section should be visible with DHCP select.
Because of this the IP Address shown for your device will vary. Copy the IP
Address to your preferred browser to show the Web UI.
Note: Your browser will most likely warn you about accessing this address. To avoid this warning
in the future an SSL certificate can be uploaded to the device, or the warning can be ignored.
4
On the login page enter the default password:
yellobrik$admin
We recommend changing the password via the web UI "system" settings.
Note: If a full factory reset is performed (i.e. with the factory reset button on the device) the
password will reset as well.
If your network requires you to set a fixed IP address switch DHCP to Static and
enter the necessary settings in LynxCentraal or yelloGUI.
For more information on this, please refer to the PEC 1464 manual and your
local network administrator.
yellobrik
Technical Specifications
SDI Video 1 x SDI Input on 75 Ohm BNC connector
1 x SDI Loop Output on 75 Ohm BNC connector
Input
SMPTE ST 2082 (12G), SMPTE ST 2081 (6G), SMPTE 424M (3G),
SMPTE 292M (1.5G)
Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz
to 3GHz, >7dB from 3GHz to 6GHz, >4dB from 6Ghz to 12GHz
Automatic cable EQ (Belden 1694A cable)
190m @ 1.5Gbit/s, 150m @ 3Gbit/s, 85m @ 12Gbit/s
HDMI Input
1x HDMI 2.0b Input
Fiber Optic SFP Port (Optional): SMPTE ST-2082
Input 1 x fiber optic input (LC/PC Connections)
1 x fiber optic loop output (LC/PC Connections)
Network
10/100/1000 Ethernet (RJ-45) - Cat 7
Analog Audio
1x 3.5mm Stereo Audio Jack (Tip Ring Sleeve)
USB
1x USB 3.0 female Type A for storage media
(Supported formatting: FAT32, exFAT, vFAT, Ext2, Ext3, Ext4)
1x USB Mini female Type B port for control, monitoring, and updates
Power +12V DC @ 15W nominal (supports 10 - 24V DC input range)
Online Product Page
For additional information on the device visit our website
via the QR code to the right. This website shows the most
recent datasheets, quick reference guides and more.
CAUTION:
This is a high power module. If mounting the module in the RFR
1200 rack frame please leave an empty slot each side of the module to allow
for adequate airflow to prevent the risk of overheating.
LYNXTechnik AG |
www.lynx-technik.com
yellobrik
®
PEC 1464
H.265 Streamer and Recorder
SDI SFP Port
Record/
RJ-45 Ethernet
Factory Reset
LYNXTechnik
12G/3G/HD SDI and HDMI
H.264 / H.265 Encoder
Processing
Stream Encoder
TS over UDP or RTP, HLS, SRT,
RTP/RTSP, RTMP, RTMPS
Video Processing
Down-Conversion, Logo/Text Overlay
Audio Processing
AAC Encoded
1x Stereo RTMP/RTMPS or
4x Stereo TS-UDP/TS-RTP/HLS/RTP/SRT
Record to USB Device
.mp4, .ts, or .mov
Start/Stop recording:
Power LED
Short press and release of record button
Record Status LED below record button
Power +
• Red Recording Active
Prog.Settings
– • Green Ready for Recording
+ ⎓
• Yellow Storage Media Error
12V 0V
• Off Storage Media Disconnected
Power Input
Power LED
USB 3.0
WARNING
CLASS 1M LASER PRODUCT
Quick
®
Reference
SDI Input LED
SDI Input
SDI Loop LED
SDI Loop
AG
USB Control
Analog Audio Input
HDMI Input
Laser Radiation
Do not look directly into emitter
with optical instruments
