Summary of Contents for Watex RO-UX5

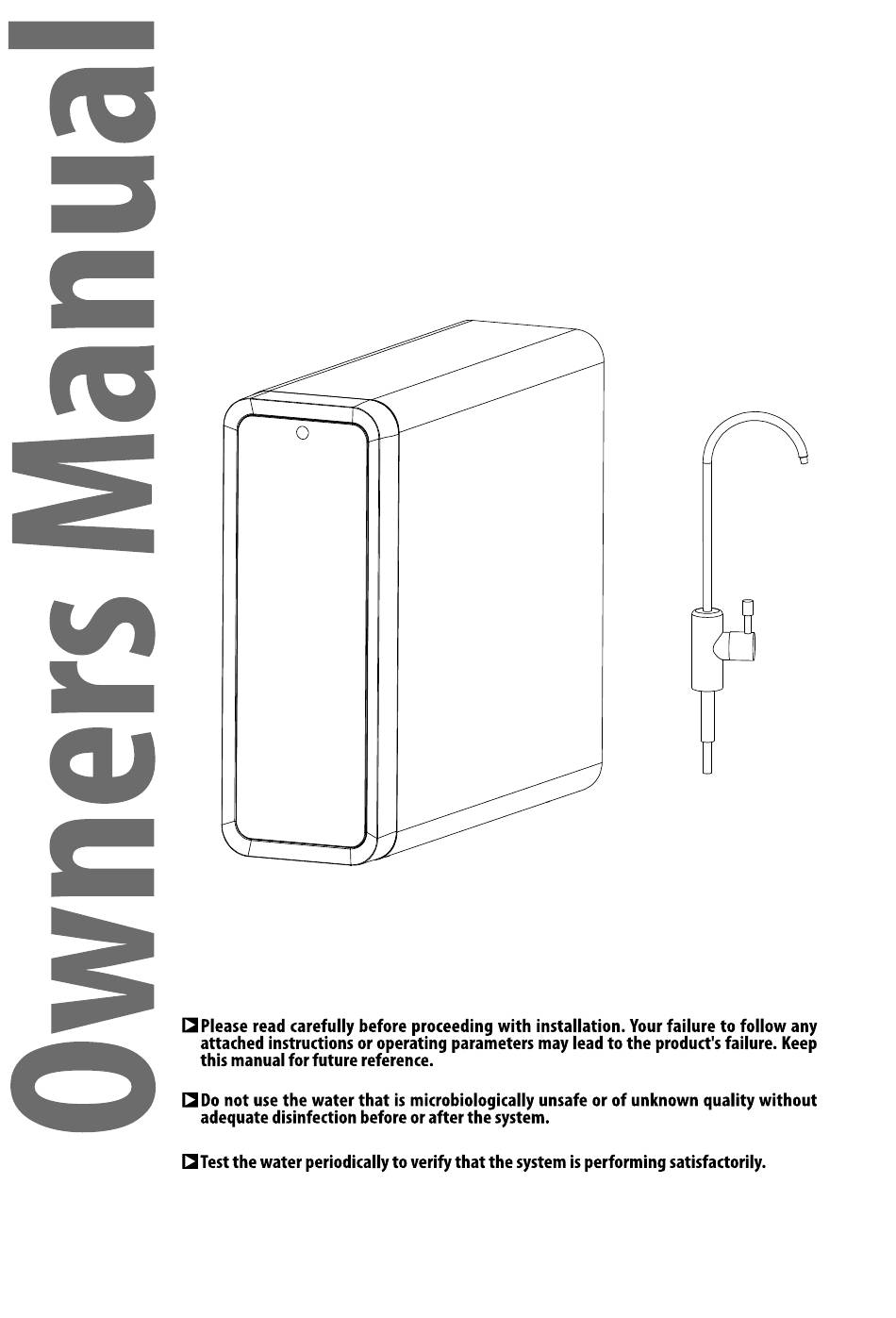

- Page 1 RO Drinking Water System RO-UX5...
-
Page 3: Table Of Contents
READ THIS PAGE FIRST RO SYSTEM SPECIFICATIONS UNPACK & INSPECT YOUR RO SYSTEM RO SYSTEM DIMENSIONS CHECK MODEL LABEL AND SERIAL NUMBER OVERVIEW OF THE RO SYSTEM'S COMPONENTS FLOW SEQUENCE ELECTRICAL SCHEMATIC PARTS BREAKDOWN INSTALLATION RO UNIT LED DISPLAY & TOUCH KEYS PROGRAMMING GUIDE SERVICE AND MAINTENANCE TROUBLE SHOOTING GUIDE... -
Page 4: Read This Page First
READ THIS PAGE FIRST BEFORE STARTING INSTALLATION （ EXAMPLE: EXAMPLE: NOTE INSTALL CAUTION NOTES & SAFETY MESSAGES EXAMPLE: Watch for the following messages WARNING in this manual:... -
Page 5: System Specifications
RO SYSTEM SPECIFICATIONS RO-UX5 Model RO-UX5-400G Water Supply Feed Line Pressure Faucet Flow Salt Rejection Recovery ≥65% Feed Water Temperature Ambient Humidity Sound Level 60dB Membrane Rating 400 GPD 600 GPD 800 GPD 1000 GPD Faucet 3/8” Quick Connect Inlet 3/8”... - Page 6 PERFORMANCE & TECHNICAL INFORMATION Factors Which Affect Performance Performance of the reverse osmosis membrane is aff ected by several factors which must be considered when judging the condition of the system. The main factors which aff ect system performance are pressure, temperature, total dissolved solids level, recovery and PH. Pressure Water pressure aff...
-
Page 7: Unpack & Inspect Your Ro System
UNPACK & INSPECT YOUR RO SYSTEM PACKAGE CONTENTS: L-Connector 3/8"×1/4"Stem... -
Page 8: System Dimensions
RO SYSTEM DIMENSIONS CHECK MODEL LABEL AND SERIAL NUMBER How to Read Series Number? 1040000859-W3G-02-0001 Product Part # Year Date Batch code Sequence # Month (1040000859): Product part # (W)YEAR: "V" stand for year 2021, "W" stand for year 2022, "X" stand for year 2023... -
Page 9: Overview Of The Ro System's Components
OVERVIEW OF THE RO SYSTEM'S COMPONENTS... -
Page 10: Flow Sequence
FLOW SEQUENCE Faucet Filter Filter Filter Booster Pump Pressure High Pressure Switch Switch Inlet 3-way Valve Check Inlet Valve Solenoid Valve Drain Water Flush Solenoid Supply Valve ELECTRICAL SCHEMATIC Flush Inlet Solenoid Valve Booster Pump Solenoid Valve Controller Low Pressure High Pressure Display Leak Detector... -
Page 11: Parts Breakdown
PARTS BREAKDOWN 3010012427 Plug 3/8" 2020006509 Front Trim Cover 3010012417 Plug 1/4" 2020005580 Light Guide Column 3010008851 Filter Base 3010021250 Display PCB 2020004861 Cabinet Cover 2020009085 Front Cover 2020009086 Back Cover 3010012336 Silicone Pad 3010008831 Integrated Water Manifold 3010008863 Leakage Detector Cover 3010008843 Power Cable Bracket 3010019051... -
Page 12: Installation Ro Unit
INSTALLATION RO UNIT Before Installation 1. Check the accessories in the packing box and con rm if they are complete. 2. Shut off the water supply before installation. 3. Prepare some tools or equipments required for installation. Suggested Installation Equipment As installations may vary, some extra plumbing connection ttings may be required. - Page 13 Symbols for Tubing Connection Drain Inlet Faucet Step-1 Select System Installation Locations Important Considerations:...
-
Page 14: Step-2 Faucet Installation
Step-2 Faucet Installation Faucet Mounting Surface Rubber Washer SS Plate Faucet Adaptor 1/4” to 3/8” Tubing 3/8” Figure 1 Do not miss the blue secure clip for all tubing connection. -
Page 15: Step-4 Connect System Drain
Step-3 Install T-Adapter Valve Hose Pipe Should be 1/2” Sealing Gasket Inlet Tubing 3/8” Inlet 3-way Valve Should be 1/2” Sealing Gasket Cold Water Supply Figure 2 Step-4 Connect System Drain Figure 3 The installation gures above are only for reference, it may vary from diff... -
Page 16: Step-6 Start-Up Instructions
Step-6 Start-Up Instructions 1. Check system to verify all components are correctly installed. 2. Open inlet valve, connect to water supply. 3. Plug in power cord, connect power on. 4. Open the faucet and let the water ow through each lter elements. 5. - Page 17 Filter Life Indication: The lters' life are indicated by 3 LED lights. The lights will display blue color as the system is newly installed. As more water being treated, the lter become exhausted and need to be replaced. At this time, the light will display orange or red color. But the system still can work and will not stop the pump.
-
Page 18: Service And Maintenance
12 months Note: Filter life may vary greatly depend on different water quality, RO filter life will be affected by other factors. The service schedule above is only for reference. RO-UX5 is designed only for household use, do not install the system where the water usage demand is high. Filter Element Should Be Replaced If Following Situations Occur: 1. Produced water quality is poor, taste bad. -
Page 19: Application Notes
How to Replace Filter Elements? 1. Close the T-adaptor valve to shut off water supply. 2. Open the faucet to release pressure. 3. Turn off power supply. 4. Rotate the old lter element for 90° anti-clockwise quickly, as the triangle icon on top of lter element pointed at icon, take out the old element(As Figure 6). -
Page 20: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Problem Possible Solutions 1. Pump Not Running, No Product Water 2. Pump Continuously Running. 3. Pump Continuously On & Off . 4. Not Enough Product Water 5. Product Water is High in TDS 6. Tastes and Odors in Product Water 7.
