TECHNICAL USER'S MANUAL FOR:
PC/104
MSM486SN/SV
Nordstrasse 11/F
CH- 4542 Luterbach
Tel.:
++41 (0)32 681 58 00
Fax:
++41 (0)32 681 58 01
Email:
support@digitallogic.com
Homepage:
http://www.digitallogic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Microspace MSM486SN and is the answer not in the manual?

Questions and answers

Related Manuals for DIGITAL-LOGIC Microspace MSM486SN

Summary of Contents for DIGITAL-LOGIC Microspace MSM486SN

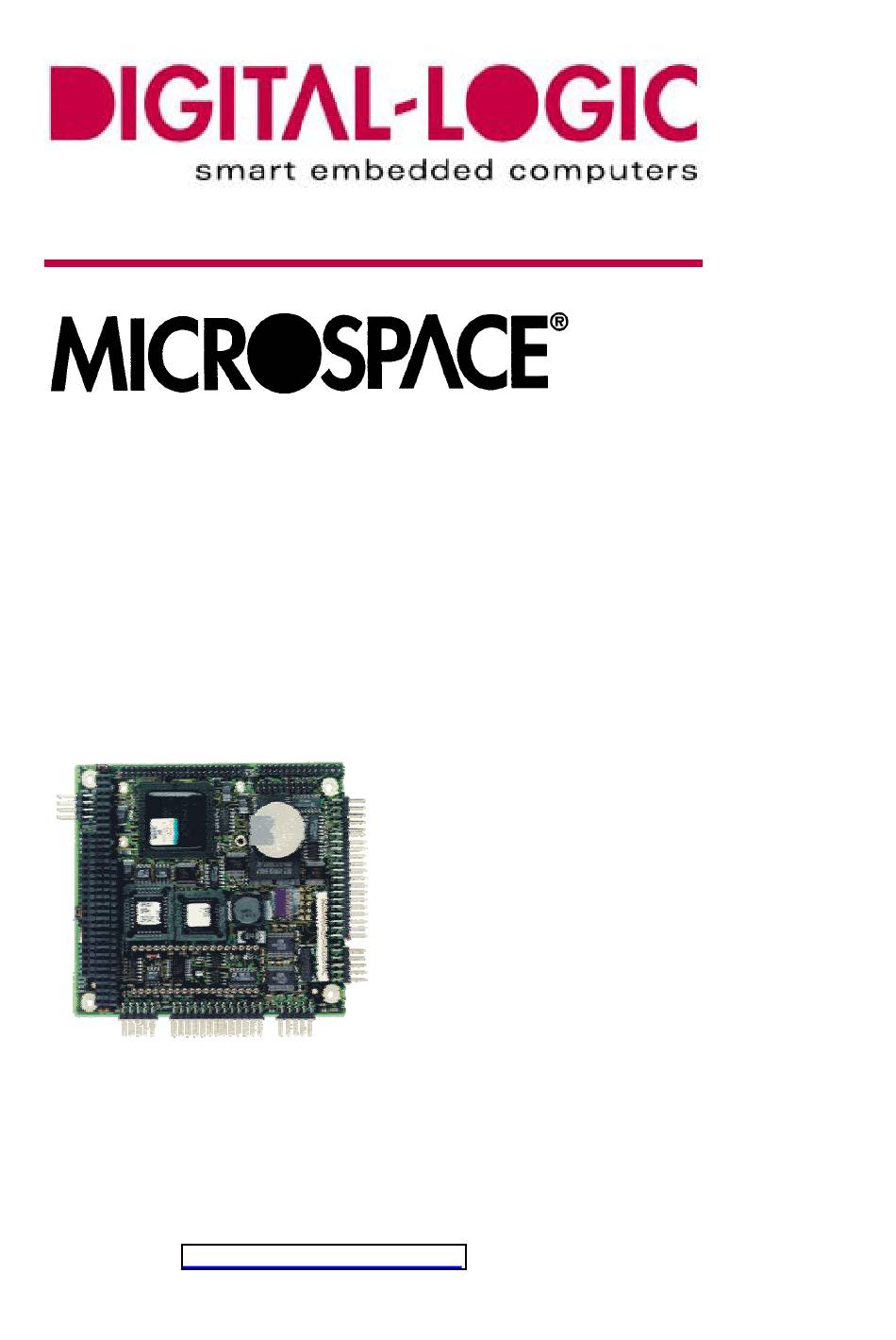

  • Page 1 TECHNICAL USER'S MANUAL FOR: PC/104 MSM486SN/SV Nordstrasse 11/F CH- 4542 Luterbach Tel.: ++41 (0)32 681 58 00 Fax: ++41 (0)32 681 58 01 Email: support@digitallogic.com Homepage: http://www.digitallogic.com...

  • Page 2: Revision History

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 COPYRIGHT     1995- 2001 BY DIGITAL-LOGIC AG No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, in any form or by any means, electronic, mechanical, optical, manual, or otherwise, without the prior written permis- sion of DIGITAL-LOGIC AG.

  • Page 3: Table Of Contents

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Table of Contents PREFACE ......................7 How to use this Manual ......................7 Trademarks ..........................7 Disclaimer ..........................7 Who should use this Product....................7 Recycling Information......................8 Technical Support ........................8 Limited Warranty ........................8 OVERVIEW ......................
  • Page 4 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Timers and Counters ......................37 3.5.1 Programmable Timers...................... 37 3.5.2 Battery Backed Clock (RTC) .................... 37 3.5.3 Watchdog ......................... 37 BIOS............................37 3.6.1 ROM-BIOS Sockets ......................37 3.6.2 EEPROM Memory for Setup .................... 38 3.6.3 BIOS CMOS Setup ......................38 3.6.4 CMOS RAM Map ......................
  • Page 5 9.3.3 Used Memory Window on the PC .................. 120 9.3.4 Access and Data Integrity of the Flashdisk Technologies ..........120 9.3.5 Installing the IDE-Flashdrives ..................120 9.3.6 Installing the DIGITAL-LOGIC Flashdisk Module ............121 9.3.7 Installing the DiskOnChip (DOC2000) ................122 The Powersave Functions ....................123 9.4.1 Hardware controlled suspend/resume function..............
  • Page 6 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 14.2.8 Suspend to Disk Codes....................166 14.2.9 SMI Suspend Codes ...................... 167 14.2.10 SMI Resume Codes ....................167 14.2.11 SMI Entry/Exit Codes ....................167 14.2.12 SMI Software/Hardware Request Codes ..............167 14.2.13 Global Standby Exit Codes..................168 14.2.14 Post/Reschedule Codes .....................

  • Page 7: Preface

    DIGITAL-LOGIC AG reserves the right to revise this publication from time to time without obligation to notify any person of such revisions. If errors are found, please contact DIGITAL-LOGIC AG at the address listed on the title page of this document.

  • Page 8: Recycling Information

    AG, Switzerland. This warranty is limited to the original purchaser of product and is not transferable. During the one year warranty period, DIGITAL-LOGIC AG will repair or replace, at its discretion, any defec- tive product or part at no additional charge, provided that the product is returned, shipping prepaid, to DIGITAL-LOGIC AG.

  • Page 9: Overview

    SV: VGA/24bit-LCD video interface on VESA Local BUS SN: Character LCD PC/104 Embedded BUS PS/2 mouse interface Unique Features The MICROSPACE MSM486SV includes all standard PC/AT functions plus unique DIGITAL-LOGIC AG en- hancements, such as: DiskOnChip socket SVGA/LCD interface Low power, 3 watt 3.3V CPU...

  • Page 10: Msm486Sv Block Diagram

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 MSM486SV Block Diagram 2 x PCCARD LOCAL-BUS ELAN400 Speaker 486-66MHz LCD/VGA Video RAM DRAM 1 MByte Controller 65548 4, 8, 32 MByte IrDA COM2 LiBAT ISA-BUS PC/104 BIOS Super I/O UART DOC2000 Char./ Watchdog EEPROM...

  • Page 11: Msm486Sv Specifications

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 MSM486SV Specifications CPU: CPU 486: AMD 400ä compatible with 486-66MHz Mode: Real / Protected Compatibility: 8086 – 80386 1. Level Cache: 8 kByte write-back Word Size: 16 Bits Physical Addressing: 24 lines Virtual Addressing: 64 Mbytes...
  • Page 12 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Sockets SSD: 1st socket: READ/WRITE ROMDisk, Flashdisk 512kByte - 8MByte IDE: MSFLASH-Drive 4MB , 8Mb or 16MB onboard mountable Standard AT Interfaces: Serial: Name FIFO IRQs Modes available COM1 IRQ4 RS485 COM2 PIRQ3 TTL, RS 232C/ 422/ 485...
  • Page 13 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 EMI / EMC (IEC1131-2 refer MIL 461/462): ESD Electro Static Discharge: IEC 801-2, EN55101-2, VDE 0843/0847 Part 2 metallic protection needed separate Ground Layer included 15 kV single peak REF Radiated Electromagnetic Field: IEC 801-3, VDE 0843 Part 3, IEC770 6.2.9.

  • Page 14: Thermoscan

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Thermoscan Product: MSM486SV V2.1 / V2.4 Scan time: 60min.

  • Page 15: Ordering Codes

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Ordering Codes MSM486SV4 with 4 MB DRAM, with VGA/LCD -25°C to 70°C BurnIn proofed, at 66MHz MSM486SV8 with 8 MB DRAM, with VGA/LCD -25°C to 70°C BurnIn proofed, at 66MHz MSM486SV32 with 32 MB DRAM, with VGA/LCD -25°C to 70°C BurnIn proofed, at 66MHz MSM486SN4 with 4 MB DRAM, -25°C to 70°C BurnIn proofed, at 66MHz...

  • Page 16: Bios History

    2000 CAPABLE” means only that DIGITAL-LOGIC has verified that the product as a whole meet this definition when tested as a stand-alone product in a test lab, but dies not mean that DIGITAL-LOGIC has verified that the product is “YEAR 2000 CAPABLE” as used in your particular situation or configu- ration.

  • Page 17: Mechanical Dimensions V2.4B

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 2.9 Mechanical dimensions V2.4b...
  • Page 18 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5...

  • Page 19: Errata For Elan400 Rev. 4

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 2.10 Errata for ELAN400 Rev. 4 Item: MSM486SV: PCCARD Reset Code Error using ROMCS0 not used onboard Burst ROM read with ZWS not ok not used onboard DMA in Suspend not functional as event no priority...

  • Page 20: Incompatibilities Of The Elan400 Versus The At-Pc

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 2.12 Incompatibilities of the ELAN400 versus the AT-PC Since the ELAN400 is single chip PC, all components are direct integrated into one silicon. The ELAN400 is a very complex circuit and therefore all known problems or some warnings are published in this chapter.

  • Page 21: Com1 And Com3 Port With Irq4

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 2.12.6 COM1 and COM3 port with IRQ4 COM1 and COM3 cannot share the IRQ4 at the same time. If you are using both interfaces, one is working with IRQ4 and the other must be polled by the application software. The IRQ4 may be gener- ated from the internal UART (=COM1) or from the external COM3.

  • Page 22: Pc/104 Bus Signals

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 2.14 PC/104 Bus signals AEN, output Address Enable is used to degate the microprocessor and other devices from the I/O channel to allow DMA transfers to take place. low = CPU Cycle , high = DMA Cycle...
  • Page 23 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 IRQ[ 3 - 7,12,14], input These signals are used to tell the microprocessor that an I/O device needs attention. An interrupt re- quest is generated when an IRQ line is raised from low to high. The line must be held high until the microprocessor acknowledges the interrupt request.
  • Page 24 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 /SMEMR input/output These signals instruct the memory devices to drive data onto the data bus for the first MByte. /SMEMR is active on all memory read cycles. /SMEMR may be driven by any microprocessor or DMA controller in the system.

  • Page 25: Expansion Bus

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 2.15 Expansion Bus The Bus currents are: Output Signals: IOH: IOL: D0 - D16 24 mA 24 mA A0 - A23 24 mA 24 mA MR, MW, IOR, IOW, RES, ALE, AEN, C14 24 mA...

  • Page 26: High Frequency Radiation (To Meet En55022)

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 2.16 High frequency Radiation (to meet EN55022) Since the PC/104 CPU modules are very high integrated embedded computers, no peripheral lines are protected against the radiation of high frequency spectrum. To meet a typical EN55022 require- ment, all peripherals, they are going outside of the computer case, must be filtered externaly.

  • Page 27: Detailed System Description

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 ETAILED YSTEM ESCRIPTION This system has a system configuration based on the ISA architecture. Check the I/O and the Memory map in this chapter. Power Requirements The power is connected through the PC/104 power connector; or the separate power connector on the board.

  • Page 28: Cpu, Board And Rams

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 In all power modes, the program is resident in the refreshed DRAM! Others: KBD = 10mA, Floppy = 10mA, HD = 300mA/10mA, Flashdisk = 1mA, VGA = ~300mA Remarks: 1s to 24h prog.=Timer controlled (modifiable in the CMOS-Setup)

  • Page 29: Line Printer Port Lpt1

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.3.2 Line Printer Port LPT1 A standard bi-directional LPT port is integrated in the MICROSPACE PC. Further information about these signals is available in numerous publications, including the IBM tech- nical reference manuals for the PC and AT computers and from some other reference documents.

  • Page 30: Serial Ports Com1-Com2-Com3

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.3.3 Serial Ports COM1-COM2-COM3 The serial channels are fully compatible with 16C550 UARTS. COM1 is the primary serial port, and is supported by the board's ROM-BIOS as the PC-DOS 'COM1' device. The secondary serial port is COM2;...

  • Page 31: Serial Ports Rs485 On Com1

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Third serial port (default COM2) S2CF1 (DTR2 line) R45 S2CF0 (RTS2 line) R43 port address Disabled high COM4 2E8h high COM1 3F8h high high COM2 2F8h In order to make any changes the resistor must be wired to the other potential.

  • Page 32: The Irda Interface

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.3.5 The IrDA interface Connect the following pins of the J5 connector to a HSDL1001 from Hewlett-Packard IrDA transceiver. Refer also to the datasheet of the HSDL1001 IrDA transceiver for the detailed information. 1. Step: Pin 19 (J5) to the IR-Transmitterdiode Pin 20 (J5) to the IR-Receiverdiode.

  • Page 33: Floppy Disk Interface

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.3.6 Floppy Disk interface The onboard floppy disk controller and ROM-BIOS support one or two floppy disk drives in any of the standard PC-DOS and MS-DOS formats shown in the table . Supported Floppy Formats...

  • Page 34: Speaker Interface

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.3.7 Speaker Interface The speaker logic signal is not driven by an amplifier. This must be done externaly. Then connect the speaker between VCC and speaker output to have no quiescient current. Interrupts 3.4.1 Interrupt Controllers An 8259A compatible interrupt controller, within the device, provides seven prioritized interrupt levels.

  • Page 35: Interrupt Redirection

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.4.2 Interrupt Redirection On this design, some IRQ’s are free programmable interrupt lines. So-called PIRQ’s (Programmable Interrupt ReQuest) may be routed to other IRQ-lines. The program E4IRQMAP.EXE /PIRQ /IRQ select the multiplexer of the ELAN400. The redirector must be loaded before the first time of using the inter- rupt ! Since BIOS Version 2.12, you can change the PIRQ number in the BIOS Setup !

  • Page 36: Elan400 Pirq Usage On This Product

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.4.3 ELAN400 PIRQ usage on this product The ELAN400 uses 8 free programmable interrupt lines. The usage on this product is as follow: ELAN400 PIRQ ISA-BUS IRQ Default Function Remarks PIRQ 0 IRQ 14 IDE Interrupt...

  • Page 37: Timers And Counters

    One unique feature of the board's battery-backed clock device is that it contains the backup battery directly on the board. The battery is a DIGITAL-LOGIC AG replacement part. The battery-backed clock can be set by using the DIGITAL-LOGIC AG SETUP at boot-time.

  • Page 38: Eeprom Memory For Setup

    On the next setup pages (switched with PgDn and PgUp) the values for special parameters are modi- fiable. Normally the parameters are set correctly by DIGITAL-LOGIC AG. Be very careful in modifying any parameter since the system could crash. Some parameters are dependent on the CPU type. The cache parameter is always available, for example.

  • Page 39: Cmos Ram Map

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.6.4 CMOS RAM Map Systems based on the industry-standard specification include a battery backed Real Time Clock chip. This clock contains at least 64 bytes of non-volatile RAM. The system BIOS uses this area to store information including system configuration and initialization parameters, system diagnostics, and the time and date.
  • Page 40 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Location Description Time of day (seconds) specified in BCD Alarm (seconds) specified in BCD Time of Day (minutes) specified in BCD Alarm (minutes) specified in BCD Time of Day (hours) specified in BCD Alarm (hours) specified in BCD...
  • Page 41 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 CMOS Map Continued... Location Description CMOS Location for Bad CMOS and Checksum Flags bit 7 = Flag for CMOS Lost Power Power OK Lost Power bit 6 = Flag for CMOS checksum bad Checksum is valid...
  • Page 42 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 CMOS Map Continued... Location Description Equipment bits 7-6 = Number of Diskette Drives One diskette drive Two diskette drives 10, 11 = Reserved bits 5-4 = Primary Display Type Adapter with option ROM CGA in 40 column mode...
  • Page 43 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 CMOS Map Continued... Location Description Reserved EMS Memory Size Low Byte EMS Memory Size High Byte 1Fh - 24h Custom Drive Table 0 These 6 bytes (48 bits) contain the following data: Cylinders Landing Zone...
  • Page 44 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 CMOS Map Continued... Location Description Byte 3 bits 7-6 = Reserved bits 5-0 = Upper 6 Bits of Write Precompensation Byte 4 bits 7-0 = Number of Heads Byte 5 bits 7-0 = Sectors Per Track...

  • Page 45: Default Chipset Values

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.6.5 Default chipset values HEX dump of MSM486SV BIOS V2.21: 9C 00 00 9C 5C 40 09 0A 0B 0C 0D 0E 0F 00 0D 15 19 1A 1B 1C 1D 1E 1F 08 2D B3 00...

  • Page 46: Eeprom Saved Cmos Setup

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.6.7 EEPROM saved CMOS Setup The EEPROM has different functions, as listed below: • Backup of the CMOS-Setup values. • Storing the keymatrix definitions, if the hardware supports a keymatrix (MSM486SV, MSM386SN, MSM486SV). • Storing system informations like: version, production date, customisation of the board, CPU type.

  • Page 47: Download The Vga-Bios And The Core-Bios

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Download the VGA-BIOS and the CORE-BIOS Before downloading a BIOS, please check as follows: Select the SHADOW option in the BIOS, for a BIOS and VGA (if this option is available). Disable the EMM386 or other memory managers in the CONFIG.SYS of your bootdisk.

  • Page 48: Vga- Bios Download Function

    The previously loaded VGA- BIOS is not corresponding 100% or works only on the LCD properly. If the screen is dark after the reboot of the system: A new system BIOS must be programmed. Ask DIGITAL-LOGIC AG for the binary file. If the previous version is still programmed: Switch off the board and do not make a warm boot due to the fact that the data may are still stored in the memory shadow.

  • Page 49: Memory

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Memory 3.8.1 System Memory Map The AMD ELAN400ä CPU used as central processing unit on the MICROSPACE PC has a memory address space which is defined by 26 address bits. Therefore, it can address 64 MByte of memory.
  • Page 50 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.8.1.2 CPU AMD ELAN400 Bios 2.xx Address: Size: Function / Comments: 0000000 - 009FFFFh 640 KBytes Onboard DRAM for DOS applications 00A0000 - 00BFFFFh 128 KBytes CGA, EGA, LCD Video RAM 128kB 00C0000 - 00CBFFFh...

  • Page 51: System I/O Map

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.8.2 System I/O map The following table shows the detailed listing of the I/O port assignments used in the MICROSPACE board: I/O Ad- Read/Write Description dress Status 0000h R / W DMA channel 0 address byte 0 (low), then byte 1...
  • Page 52 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 0008h DMA channel 0-3 command register bit 7 = DACK sense active high/low high bit 6 = DREQ sense active high/low high bit 5 = Write selection Late write selection...
  • Page 53 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 000Ch DMA clear byte pointer flip/flop 000Dh DMA read temporary register 000Dh DMA master clear 000Eh DMA clear mask register 000Fh DMA write mask register 0020h Programmable Interrupt Controller -...
  • Page 54 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 0021h R / W PIC master interrupt mask register (OCW1) bit 7 Enable parallel printer interrupt bit 6 Enable diskette interrupt bit 5 Enable hard disk interrupt bit 4...
  • Page 55 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 0022h R / W Chipsset Register Address 0023h R / W Chipsset Register Data 0040h R / W Programmable Interrupt Time read/write counter 0, key- board controller channel 0...
  • Page 56 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 0064h Keyboard controller read status bit 7 No parity error Parity error on keyboard transmission bit 6 No timeout Received timeout bit 5 No timeout Keyboard transmission timeout bit 4...
  • Page 57 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 00A0h - 00A1h are reserved for the slave programmable interrupt controller. The bit definitions are identical to those of addresses 0020h - 0021h except where indicated. 00A0h R / W...
  • Page 58 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 00D2h Write request register for DMA channels 4-7 00D4h Write single mask register bit for DMA channels 4-7 bits 7-3 = 0 Reserved bit 2 Clear mask bit, 1 Set mask bit...
  • Page 59 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 0173h R / W Sector number for hard disk 1 0174h R / W Number of cylinders (low byte) for hard drive 1 0175h R / W Number of cylinders (high byte) for hard drive 1...
  • Page 60 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 01F6h R / W Drive/Head register for hard drive 0 bit 7 bit 6 bit 5 bit 4 = Drive select First hard drive Second hard drive bits 3-0 = Head select bits...
  • Page 61 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status I/O addresses 02F8h - 02FFh are reserved for use with serial port 2. See the bit defini- tions for I/O addresses 03F8h - 03FFh. 02F8h Transmitter holding register for serial port 2...
  • Page 62 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 037Ah R / W Control port for parallel port 1 bits 7-5 = Reserved bit 4 Enable IRQ bit 3 Select printer bit 2 Initialize printer bit 1 Automatic line feed...
  • Page 63 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 03F4h Status register for primary diskette drive controller bit 7 Data register is ready bit 6 Transfer from system to controller Transfer from controller to system bit 5 Non-DMA mode...
  • Page 64 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 03F8h R / W Baud rate divisor (low byte) - This byte along with the high byte (03F9h) store the data transmission rate divisor. bits 7-0 = Data bits 0-7 when the Divisor Latch Access...
  • Page 65 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 I/O Ad- Read/Write Description dress Status 03FDh Line status register - serial port 1 bit 7 = Reserved bit 6 Transmitting shift and holding registers empty bit 5 Transmitter shift register empty bit 4 Break interrupt...

  • Page 66: Bios-Variable-Segment

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.8.3 BIOS-Variable-Segment The BIOS Data Area is an area within system RAM that contains information about the system envi- ronment. System environment information includes definitions associated with hard disks, diskette drives, keyboard, video, as well as other BIOS functions. This area is created when the system is first powered on.
  • Page 67 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 BIOS Data Area Definitions Continued... Location Description 15h - 16h Reserved Keyboard Shift Qualifier States bit 7 = Insert mode bit 6 = CAPS lock bit 5 = Numlock bit 4 = Scroll Lock bit 3...
  • Page 68 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 BIOS Data Area Definitions Continued... Location Description Diskette Drive Motor Status bit 7 = Current operation Write or Format Read or Verify bit 6 = Reserved bits 5-4 = Drive Select Drive A Drive B...
  • Page 69 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 BIOS Data Area Definitions Continued... Location Description 50h - 5Fh Position of cursor for each video page. Current cursor po- sition is stored two bytes per page. First byte specifies the column, the second byte specifies the row.
  • Page 70 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 BIOS Data Area Definitions Continued... Location Description 78h - 7Bh Default parallel port timeout values 7Dh - 7Fh Default serial port timeout values 80h - 81h Pointer to start of keyboard buffer 82h - 83h...
  • Page 71 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 BIOS Data Area Definitions Continued... Location Description 92h - 93h Scratch area for diskette media. Low byte for drive A, high byte for drive B. 94h - 95h Current track number for both drives. Low byte for drive A, high byte for drive B.
  • Page 72 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.8.3.1 Compatibility Service Table In order to ensure compatibility with industry-standard memory locations for interrupt service routines and miscellaneous tabular data, the BIOS maintains tables and jump vectors. Location Description FE05Bh Entry Point for POST...
  • Page 73 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.8.3.2 System Configuration Parameter Table The System Configuration Parameter Table located at F000:E6F5h contains basic configuration in- formation about the computer. This table can be copied to system RAM by using INT 15h function C0h "Return System Configuration Parameters".

  • Page 74: Vga, Lcd

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 VGA, LCD 3.9.1 VGA / LCD Controller 65548 The 65548 High Performance Flatpanel/CRT VGA controller • High integrated design (flatpanel/CRT VGA controller, RAMDAC, clock synthesizer) • Local Bus (32 Bit CPU) • Flexible display memory configurations - One 256Kx16 DRAM (512 KB) •...
  • Page 75 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 65548 Display Capabilities CRT Mode Mono LCD DD STN LCD 9-Bit TFT LCD Video Simultaneous 2, 3, 4 1, 2, 3, 4 Resolution Color Gray Scales Colors Colors Memory Display 320x200 256 /256Ks 61 / 61...
  • Page 76 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Supported VGA Modes Mode: Type: Colors: CRT: Text: Graphic: DRAM: Monitor: Refresh/HR: Text 40 x 25 320 x 200 256k 70 Hz Text 80 x 25 640 x 200 256k 70 Hz Graphic 40 x 25...

  • Page 77: Vga/Lcd Bios Support

    7. Re-check the LCD connection. A new LCD type (not available yet): If the LCD BIOS for your LCD is not available, DIGITAL-LOGIC AG will adapt the LCD and provide you with one prototype-cable. To initialize this, we need the following from you: 1.

  • Page 78: Driver Resolutions And File Names

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.9.3 Driver resolutions and file names Application: Resolution: Colors: 65535/65540: Acce.: 65545/48 Windows 3.1 640 x 480 LINEAR4.DRV VIDGX4.DRV 800 x 600 LINEAR4.DRV VIDGX4.DRV 1024 x 768 LINEAR4.DRV VIDGX4.DRV 1280 x 1024 LINEAR4.DRV VIDGX4.DRV 640 x 480 LINEAR8:DRV VIDGX8.DRV...

  • Page 79: The Elan400 Videocontroller For ¼Vga Panel, (Not Supported)

    This command will read out ********.DAT file, generate a table and fills up the serial EEPROM with this values. Only a part of serial EEPROM, reserved by DIGITAL-LOGIC AG, is used for this table. The custom part is free for the user.

  • Page 80: Keymatrix

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.11 Keymatrix 3.11.1 Define a Keymatrix Start the EDITMATR.EXE tool from the tooldisk. This tool enables the assignment of the keymatrix table in the keyboard controller. Start this tool and read the help screen after pressing F1. The follow- ing steps must be performed: Press F2 to clear the whole matrix.

  • Page 81: Old Step By Step Version For Storing The Values To Another Board

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.11.4 Old step by step version for storing the values to another board Write the EEPROM-Keymatrix to Disk The keymatrix stored in the EEPROM (with the SAVEMATR.EXE– tool) may be backuped to a diskfile for documentation or reproduction to other boards.

  • Page 82: Character Lcd Interface

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.12 Character LCD Interface There are two different types of LCD interfaces: 1. Latched I/O LCD's 2. CPU bus interfaced LCD's The ELAN board may interface both types but some jumpers have to be modified.
  • Page 83 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 These jumpers must be selected: No.: Close: Function: LCDWR on Pin 3 LCD Enable on Pin 5 LCD Command/Data Signal on Pin 4 Address MAP: Latch for LCD-Data output 0A9h indexed through port 22h Latch for LCD Control lines...

  • Page 84: Two 4Bit Character Lcd With The Hd44780 Controller

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.12.2 Two 4Bit Character LCD with the HD44780 Controller With our LCD_CHAR.COM driver (on the ELAN_UTIL Disk) up to two HD44780 based LCD lines may be controlled. With this driver, the LCD is connected as a 4Bit datainterface. The upper 4 databit are used to select the line (for each line a separate HD44780 controller is used).

  • Page 85: Cpu Bus Interfaced Dot-Matrix Lcds

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.12.4 CPU Bus interfaced DOT-Matrix LCDs These jumpers must be selected: Close Function: -IOW on Pin 3 -IOR on Pin 5 System Address 0 on Pin 4 Address MAP: Latch for LCD-Data I/O = 2B0h to 2B7h...

  • Page 86: 8Bit Dot-Matrix Lcd With The Hd61830 Controller

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.12.5 8Bit DOT-Matrix LCD with the HD61830 Controller With our LCD_DOT1.COM driver (on the ELAN_UTIL Disk) may be controlled one HD61830 based LCD line. With this driver, the LCD is connected as a 8Bit data interface.

  • Page 87: 8Bit Dot-Matrix Lcd With The T6963C Controller

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.12.6 8Bit DOT-Matrix LCD with the T6963C Controller With our LCD_DOT1.COM driver (on the ELAN_UTIL Disk) may be controlled one T6963C based LCD line. With this driver, the LCD is connected as a 8Bit data interface.

  • Page 88: Watchdog Programming

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 3.13 WatchDOG Programming The Jumper J6 must be closed, to enable the watchdog function. The internal UART must be enabled in the BIOS-Setup. Until Version 2.x Board the watchdog is enabled with the DTR signal of the internal UART. Be care- fully if you are using the internal UART for serial communication and using parallel also the watchdog function.

  • Page 89: Description Of The Connectors

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 ESCRIPTION OF THE CONNECTORS Flat cable • 44pin IDE is: IDT Terminal for Dual Row (2.00mm grid) and 1.00mm flat cable • All others are: IDT Terminal for Dual Row 0.1" (2.54mm grid) and 1.27mm flat cable...
  • Page 90 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Serial port, primary COM Header onboard D-SUB connector Signal RS422/485 option Pin 1 Pin 1 = DCD Pin 2 Pin 6 = DSR Pin 3 Pin 2 = RxD TX+ (B) Pin 4 Pin 7...
  • Page 91 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Floppy Disk Interface connector FD26: Signal Name Function in/out +5 volts Index Pulse +5 volts Drive Select * +5 volts DCHG Disk Change Motor on * DIRC Direction Select STEP Step Write Data Signal grounds...
  • Page 92 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 IDE interface Signal Signal Pin 1 = Reset (active low) Pin 2 = N.C. Pin 3 = D7 Pin 4 = D8 Pin 5 = D6 Pin 6 = D9 Pin 7 = D5 Pin 8...
  • Page 93 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Power supply connector Signal Signal Pin 1 = Ground Pin 2 = VCC +5V Pin 3 = AC-Sense Input Pin 4 = +12 Volt *) Pin 5 = RS485 Signal A Pin 6 = RS485 Signal B...
  • Page 94 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 LCD- ELAN controller, CGA (not assembled and supported) Signal Signal VL11 VL10 VL12 VL13 Character/Graphic LCD Interface: Signals are located on the connector Signal Signal LCD_D0 LCD_D1 LCD_D2 LCD_D3 LCD_D4 LCD_D5 LCD_D6 LCD_D7 LCD_M LCD_LC...
  • Page 95 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Keyboard PS/2-Mouse Utility connector Attention: The speaker must be connected to VCC, to have a low inactive current in the speaker! Signal Signal Pin 1 = Speaker Out Pin 2 = Suspend/Resume Pin 3 = Reset In...
  • Page 96 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 LCD connector VGA-LCD Interface (flatpanel signals): Signals P20-P23 are located on the J8M connector Signal Signal M-Signal (altern. DE) Line Pulse LP Switched VDD (5V/1A) Shift Clock Switched B’light (12V/1A) Enable VEE (TTL) VCC Panel (5V/3,3V) The Pin 9 is supplied from J30 pin 4 (+12V).
  • Page 97 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 PC/104 BUS interface Ground Ground IOCHCK Ground SBHE MEMCS16 RESET LA23 IOCS16 LA22 IRQ10, (redirected) (IRQ9), LA21 IRQ11, (redirected) (redirected) (-5V) LA20 IRQ12, (PIRQ2) DRQ2 LA19 IRQ15, (redirected) (-12V) LA18 IRQ14, (PIRQ0) (SRDY) LA17 (DACK0)
  • Page 98 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 PC-CARD A connector Signal ICDIR BVD1 BVD2 WAIT MCEH MCEL VPP1 VPP2 Not connected SA24 SA25...
  • Page 99 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Keymatrix connector Keymatrix Interface: Signals are located on the connector Signal Signal Column 1 (KSO0) Column 2 (KSO1) Column 3 (KSO2) Column 4 (KSO3) Column 5 (KSO4) Column 6 (KSO5) Column 7 (KSO6) Column 8 (KSO7)
  • Page 100 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Character-LCD connector Character/Graphic LCD Interface: Signals are located on the connector Signal Signal LCDW (-IOW) LCDCD ( SA0) LCDE (-IOR) LCD-Data 0 i/o LCD-Data 1 i/o LCD-Data 2 i/o LCD-Data 3 i/o LCD-Data 4 i/o...

  • Page 101: Jumper Descriptions

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 UMPER DESCRIPTIONS The figure shows the location of all jumper blocks on the MSM486SV board. The numbers shown in this figure are silk screened on the board so that the pins can easily be located. This chapter refers to the individual pins for these jumpers.

  • Page 102: Com Port Assembling

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 The jumpers on the rear side (solder jumpers) Jumper Signal 1-2 = open 2-3 = closed Floppy Motor select 1-2 = Drive B: 2-3 = Drive A: Floppy Drive select 1-2 = Drive B: 2-3 = Drive A:...

  • Page 103: Jumper Locations

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 5.1.2 Jumper locations Jumperlocations on the boardversion V2.x J8L-LCD J8M-VGA J13-COM2 J9-FDC J61-COM4 J59 J51 J53 DIGITAL-LOGIC AG MSM486SV/SN V2.x JMP-LOCATION TOP-VIEW 0399 JM BIOS U24-CPU J1-PC104 J30-POWER J46 J44 J45 J47...
  • Page 104 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 DIGITAL-LOGIC AG MSM486SV V2.x JMP-LOCATION BOTTOM-VIEW 0399 JM...
  • Page 105 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Jumper locations on the boardversion V2.4A VGA/LCD TOP SIDE DUP / 24.01.2000 BIOS PC.Card PC104 POWER BOTTOM SIDE DUP / 24.01.2000...

  • Page 106: Led Criterions

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 6 LED CRITERIONS Color Function Primary HDD...

  • Page 107: Cable Interface

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 ABLE NTERFACE The harddisk cable 44 pins IDT Terminal for Dual Row (2.00 mm grid) and 1.00 mm flat cable. 44 pins = 40 pins signal and 4 pins power. ATTENTION: Check the pin 1 marker of the cable and the connector before you power on. Refer to the technical manual of the used drives, because a wrong cable will immediately destroy the drive and/or the MICROSPACE MSM486SV board.

  • Page 108: The Com 1/2 Serial Interface Cable

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 The COM 1/2 serial interface cable DT terminal for dual row 0.1" (2.54 mm grid) and 1.27 mm flat cable. Line o f p in 1 COM1 9p in D-Sub m a le COM1/ 2 ATTENTION: Do not short-circuit these signal lines.

  • Page 109: The Printer Interface Cable (J14)

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 The printer interface cable (J14) IDT terminal for dual row 0.1" (2.54mm grid) and 1.27 mm flat cable Parallelport Cable LPT1 ATTENTION: Maximum length of this cable is 6 meters. Prevent short-circuits. Never apply power to these signals, the MICROSPACE MSM486SV will be destroyed.

  • Page 110: The Micro Floppy Interface Cable

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 The Micro Floppy interface cable...

  • Page 111: Redirection Fdd To Lpt

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 7.5 Redirection FDD to LPT Adaptercable LPT to FDD, RM2.54mm: FDD to LPT redirect, since BIOS version 2.22 Signal Signal D-SUB connector 2x15, RM2.54 25 male female Strobe Pin 01 Pin 12 Drive select B...

  • Page 112: Software

    OS/2 V2.0, Wap 3.0 Application Programs: All software which DIGITAL-LOGIC AG has tested so far are compatible and run without problems. HD harddisk driver This driver is installed as TSR and controls the power saving features of the harddisk. After a specified time, the driver sends an E0h command to the harddisk, to stop the spindle motor and the control electronics.

  • Page 113: Operating Systems, Installation-Informations

    DOS V6.22 All versions of DOS passed through the OS-test, without reporting an error.. 8.3.2 WIN-CE Version 2.0 and V2.1 are tested and some drivers are available from DIGITAL-LOGIC. 8.3.3 WIN95 WIN95 needs a minimum of 16Mbyte DRAM to work.

  • Page 114: Linux

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 8.3.7 LINUX The KERNEL must be patched to work properly, since the A20 Gate is not fully compatible to a stan- dard PC/AT model. Example to modifiy the KERNEL Version 2.0.35 In the i386/boot/setup.s and i386/boot/setup.s file add the lines:...

  • Page 115: Special Peripherals, Configuration

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 PECIAL ERIPHERALS ONFIGURATION Special Peripherals 9.1.1 Multifunction Latch The multifunction latch allows control over several functions such as powerdown, contrast and watch- dog. This latch can be controlled by the application program. Latch 1: Programming address is:...

  • Page 116: The Special Function Interface (Sfi)

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 The Special Function Interface (SFI) All functions are performed by starting the SW-interrupt 15h with the following arguments: 9.2.1 EEPROM Functions: Function: WRITE TO EEPROM Number: Description: Writes the data byte into the addressed memory cell of the serial EEPROM.
  • Page 117 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Function: TRANSFER CHARACTER FROM KEYMATRIX TO EEPROM Number: Description: Writes the data byte into the addressed memory cell of the keymatrix area of the serial EEPROM. Input Values: AH = Function Request AL = Data byte to store into the EEPROM...

  • Page 118: Watchdog Functions

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 9.2.2 Watchdog functions: Function: WATCHDOG Number: Description: Enables, strobes and disables the watchdog. After power-up, the watchdog is always disabled as the BIOS does not send strobes to the watchdog. Once the watchdog has been enabled, the user application must perform a strobe at least every 800ms, otherwise the watchdog performs a hardware reset.

  • Page 119: The Flashdisk

    Up to 2 drives are possible as master and slave drive interfaces. The capacity may be doubled to up to 2 x 10MByte. Flashmodules from DIGITAL-LOGIC AG with 2, 4, 6, 8MByte are fully DOS compatible. Single 512k Flashdevice with 512k.

  • Page 120: Used Memory Window On The Pc

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 9.3.3 Used Memory Window on the PC The FFS software uses a 64k memory window at ELAN400:D000-DFFFF to transfer data to and from the flashdisk. Only the IDE Flashdrive needs no memory window. The DiskOnChip needs a memory window such as the FFS software with 64k in the D-Segment.

  • Page 121: Installing The Digital-Logic Flashdisk Module

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 9.3.6 Installing the DIGITAL-LOGIC Flashdisk Module On the SSD 36pin socket the MSM-Flashmodules with 2, 4, 6, 8MByte may be installed directly on- board. Operating Systems: MS-DOS, (DL-DOS, ROM-DOS only doen’t work with the formating programm), RTX-DOS, WIN 3.11, ROM-WIN are working with these drives.

  • Page 122: Installing The Diskonchip (Doc2000)

    Pin 1 of the socket 9.3.7.1 Enabling and Formatting of the DiskOnChip-Modules Enabling: Disable the Virus-Alert Option, and disable the DIGITAL-LOGIC flashdisk. On the BIOS V2.xx Setup, the M-Systems DOC2000 may be directly selected. Format: Boot-up from the standard floppydisk A: or from a harddisk.

  • Page 123: The Powersave Functions

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 The Powersave Functions 9.4.1 Hardware controlled suspend/resume function The suspend input pin may be used to suspend the system or to resume the system. The input is TTL compatible. A falling pulse generates a suspend. The second puls generates a resume of the system.

  • Page 124: Software Controlled Powermode Switching

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 9.4.5 Software controlled Powermode Switching The powermodes may also be switched with software commands directly from the application. To program an ELAN register use the following assembly code: mov al,80h Register index 80h out 22h,al...

  • Page 125: Bios Setup For The Different Powermodes

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 BIOS SETUP FOR THE DIFFERENT POWERMODES 10.1 Power Management The ACIN feature can be configured to disable most mode transitions and allow the system to run at maximum performance. Suspend mode can still be accessed.

  • Page 126: High-Speed Mode

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 • The system is in High-Speed mode and a primary activity happens. The same PLL start up time restrictions apply. The system leaves Hyper-Speed mode when: • The Hyper-Speed mode timer times out Drops to High-Speed mode •...

  • Page 127: Standby Mode

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 BL2 causes a mode change to Critical Suspend mode if enabled and ACIN is not active BL0 or BL1 causes a mode change to Low-Speed mode if enabled and ACIN is not active High-Speed Mode This mode is used when there is not a lot of CPU intensive activity in the chip and the CPU clock can be slowed down for all CPU cycles.

  • Page 128: Critical Suspend Mode

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 • A primary activity is detected Goes back up to High-Speed or Low-Speed mode • A secondary activity is detected Goes to Temporary Low-Speed mode The Standby timer is paused while in Temporary Low-Speed mode. The count-down continues when Standby mode is re-entered.

  • Page 129: Temporary Low-Speed Mode

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 • ACIN is toggled • BL2 goes inactive • BL2 and BL1 go inactive Actions taken in the chip during Critical Suspend mode: • Same as Suspend mode • The system is locked in Critical Suspend mode as long as an unlock sequence does not occur.

  • Page 130: Mappable Gpio_Pmua-Gpio_Pmud Signals

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 • Temporary Low-Speed mode timer times out If the last mode was Standby will return to Standby. Otherwise will go to Suspend. • Programmed directly out with the PMU Force Mode Register Can go to any other mode •...

  • Page 131: Battery Low

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 PMU will change mode, but will immediately switch back to High-Speed or Hyper-Speed mode be- cause of ACIN. Activities, wake-ups, and SMI/NMIs still work when ACIN is active also. SMI/NMIs are still accessible and the system will still wake up from Suspend when ACIN is active.

  • Page 132: Critical Suspend Mode Access

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 10.1.10 Critical Suspend Mode Access Battery Low 2 is programmable to force the chip to Critical Suspend mode (within 55 µ s from the falling edge of BL2) and lock the system into this mode to stop it from resuming until it is unlocked. The un- lock requires special handling since the BL2 signal may go High again after Suspend mode is reached.

  • Page 133: Remote Link To A Host-Pc

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 REMOTE L INK TO A HOST The embedded remote control in the BIOS allows you to control your target machine (DIGITAL- LOGIC’s embedded PC) from a host computer using a serial AT Null- modem cable. This is accom- plished by transferring all INT10h (video) and INT16h (keyboard) requests to the host machine, exe- cuting the command there, and finally returning the results back to the target system.

  • Page 134: What Are The Functions Of The Remote- Link

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 11.1 What are the functions of the REMOTE- link ? The remote link is used, to redirect the video, keyboard and the floppy over the serial interface to a host PC. In application, where no monitor or keyboard or floppy are available, the remote may be useful to communicate with the embedded PC.

  • Page 135: Remote Enabler

    The AT Null- modem cable is a standard cable, available in every computer store and may at DIGITAL-LOGIC AG. The REMOTE- ENABLER must be modified on the AT Null- modem cable itself. DIGITAL-LOGIC AG sells a special REMOTE-ENABLER expander to connect to a normal AT Null- modem cable.

  • Page 136: Remote Server Remhost.exe

    (COM1...4) use parallel communication (not supported on the DIGITAL-LOGIC computers) You can escape REMHOST by pressing LEFT – SHIFT and LEFT- CTRL simultaneously. If this should not work immediately for some reasons, keep these buttons pressed down and power down...

  • Page 137: Building A System

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 UILDING A YSTEM To build up a system based on your board, you should prepare the following equipments: A stable power supply of 5V (> 3 ampères), depending on the cpu, memory, etc. Assemble CPU with the proper clk- settings and cooling (fan) depending on board.

  • Page 138: Bios-Setup

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 12.2 BIOS-Setup 12.2.1 Accessing the SCU To access the SCU, type <Ctrl ,Alt, S> during system boot up. The SCU displays the system's current configuration settings. The top of the screen has a menu bar with various items (i.e., Startup, Memory, Disks, etc.).
  • Page 139 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Overview of the Digital- Logic– BIOS based on the System Soft BIOS V2.0 Note: Pictures have been taken on a home PC therefore, RAM- and CPU clock- values are not ELAN typical START UP DATE and TIME FAST BOOT Initializes and quickly boots the system in a few seconds by bypassing certain diagnostic tests.

  • Page 140: Date And Time

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 DATE and TIME Provides a single window for setting the system date and time. The Date and Time window allows the user to specify the date , month , and year as well as the Hour , Min- ute , and Second .
  • Page 141 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 PASSWORD This option allows users to create passwords that must be used to gain access to the system at boot time or when resuming from a suspend state. To select a new password or change an existing one, 1.

  • Page 142: Video Controller

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 CONTROLLERS VIDEO CONTROLLER PCMCIA- B CONTROLLER enable/disable with ENTER REMOTE enable/disable with ENTER REMOTE FLOPPY If enabled, the floppy accesses are redirected to the host computer connected to the remote link cable with a remote enabler.
  • Page 143 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 MEMORY Provides several configuration options for the 486 processor’s internal (on-board) cache. The Cache Systems window contains a section which provides options for selecting the mode for the L1 cache. This section includes the following choices: 1.

  • Page 144: Diskette Drive

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 DISKS DISKETTE DRIVE FFS / M-SYSTEM DOC / CHIPSELECT HARDDISK 1 HARDDISK 2 DISKETTE DRIVE Specifies a drive type for the diskette drive. Valid configurations are: 1. None . 2. 360KB . 3. 720KB .
  • Page 145 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 FFS / M-SYSTEM Defines the type of installed flashdisks. The setting are: 1. None or MSYSTEM modul ; MSYSTEM DOC2000 is installed or no flashdisk is installed. 2. DL-FFS enabled as read/write ; MSFFS installed and read / write access allowed 3.
  • Page 146 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 HARDDISK 1 & 2 Jump with TAB- key Choose option by using the ARROW- keys Select device with the SPACE- key Save with ENTER...
  • Page 147 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Configures the hard disk drive 1 (DOS drive C:) and 2 (DOS drive D:). The Hard Disk menu contains the following options: Custom Use this option to configure a drive cannot be automatically configured. When Custom is selected, the values for cylinders, heads, sectors per track (SPT), landing zone (LZone), and write precomposition (Precomp) for the drive can be modified.
  • Page 148 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 COMPONENTS INTERNAL COM PORT EXTERNAL COM PORT LPT PORT LPT TYPE PIRQ MAPPING PGPO MAPPING KEYBOARD NUM- LOCK Specifies whether Num Lock is ON or OFF at system boot time. A check mark indicates, that the Num Lock key is ON at system boot.
  • Page 149 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 INTERNAL COM PORT Configures the I/O address for the internal serial (COM) port, ELAN400. The following settings are available from the COM Port Assignment window: 1. Disable 2. COM1 (IRQ4 3F8) . 3. COM2 (IRQ3 2F8) .
  • Page 150 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 LPT PORT Configures the port address and the interrupt line (IRQ) for the internal parallel port (LPT). Specifies the port designation and IRQ assignment for the LPT port. Available I/O addresses include: 1. None .
  • Page 151 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 LPT TYPE Specifies the type of LPT port. Selections include: 1. Standard AT (Centronics SSP) . 2. Enhanced Parallel Port (EPP) . 3. Bidirectional (Extended Capabilities Port, ECP) . 4. ECP and EPP . EPP mode: 1.
  • Page 152 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 PGPO MAPPING P rogrammable G eneral P urpose O utput, defines several options: 1. 3 COM- port controller settings 2. LCD character activation 3. LCD width Jump with TAB- key Choose option by using the ARROW- keys...
  • Page 153 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 POWER ENABLE POWER SAVINGS Enables or disables all power-saving features. When enabled, any specific power-saving features that have been enabled are in effect. When this item is disabled, all power-saving features, whether or not they are individually enabled, are not in effect.

  • Page 154: Mode Timer

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 MODE TIMER Disk: disabled/ 125ms/ 250ms /500ms/ 1s/ 4s/ 8s/ 16s Video: disabled/ 125ms/ 250ms /500ms/ 1s/ 4s/ 8s/ 16s Suspend: 8s/ 16s/ 32s/ 1min/ 4min/ 8min/ 16min Sleep: 1min/ 2min/ 4min/ 8min/ 16min/ 32min/ 60min...
  • Page 155 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 This option allows the user to specify the time-out periods for the following operating modes: Hyper Speed , High Speed , Low Speed , and Standby . 1. Hyper Speed Disabled, 0.125, 0.25, .5, 1, 4, 8, 16 seconds 2.

  • Page 156: Save And Reboot

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 EXIT SAVE AND REBOOT EXIT NO SAVE DEFAULT SETTINGS RESTORE SETTINGS VERSION SAVE AND REBOOT Saves the current settings and reboots the system so that the settings can take effect. Choose option by using the ARROW- keys...

  • Page 157: Default Settings

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 DEFAULT SETTINGS Restores the default settings (the original settings found in the ROM). Choose option by using the ARROW- keys Save with ENTER RESTORE SETTINGS Restores the current setup settings to the original custom settings (those that were set prior to making the current changes).
  • Page 158 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 VERSION Display the current BIOS version information which includes version number and date. Exit with ENTER or ESC...

  • Page 159: Thermal Specifications

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 HERMAL PECIFICATIONS Each product will be burnin with 10 cycles of 30min. between the operating temperatures of –25°C to +70°C or higher if extended ranges are odered. The critical point is to meet the max. Tcase temperature of the CPU .

  • Page 160: Thermal Analysis For Mounting In A Case

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 13.1 Thermal analysis for mounting in a case Since the integrated heatsink is unidirectional, the airflow must be exactly in the direction of the heat- rails. If possible mount the board verticaly, so that the heatrails shows up/down. The self produced airflow is around 3m/sec in this case.

  • Page 161: Diagnostics

    2. Use Internet Support Request form on http://www.digitallogic.com -> Support -> Support Request Form 3. Send a FAX or an E-mail to DIGITAL-LOGIC AG with a description of your problem. DIGITAL-LOGIC AG Dept. Tech. Support Fax: ++41-32 681 58 01 Nordstr.

  • Page 162: The Pod-Errors

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 14.1 The POD-Errors The following numeric codes appear on the System Board LEDs (in hex) to report the progress of the Power-On Diagnostics, or on the LEDs and on the screen (in decimal) to report errors found by the Diagnostics.
  • Page 163 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Code Description Going to Initialize Video Search for Monochrome Adapter Search for Color Adapter Sign-On Messages Displayed Special Initialization of Keyboard Controller Test If Keyboard Present Test Keyboard Interrupt Test Keyboard Controller Command Byte TEST, Blank, and Count All RAM...

  • Page 164: Power Management Diagnostic Codes

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 14.2 Power Management Diagnostic Codes This section lists the port 80h diagnostic codes assigned to SystemSoft's Power Management soft- ware. 14.2.1 Dynamic Power Management Modechange Codes Code Description Keypressed and switch to Hypermode Hyper Mode Timeout HS to LS (local.asm)

  • Page 165: Bios Menu Codes

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 14.2.3 BIOS Menu Codes Code Description Set Up Hardware Rest CPU to Real Mode (on some chipsets) Set Up CMOS Clocks See Below See Below See Below See Below See Below See Below See Below...

  • Page 166: Smi Device Codes

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 14.2.6 SMI Device Codes Code Description Set Up for Device Initialization Device Initialization Set Up for Device Standby Device Standby Set Up for Device Wakeup Device Wakeup Set Up for Suspend Device Suspend Device Set Up for Resume Device...

  • Page 167: Smi Suspend Codes

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 14.2.9 SMI Suspend Codes Code Description Save CPU Save Chipset Registers Save Miscellaneous Save Keyboard Save A20h Save Device Save Ports Reset CPU Save Programmable Interrupt Controllers Suspend Chip 14.2.10 SMI Resume Codes Code Description...

  • Page 168: Global Standby Exit Codes

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 14.2.13 Global Standby Exit Codes Code Description Exit upon Interrupt Request Exit upon AutoPower Off Exit upon Switch Exit upon External Activity 14.2.14 Post/Reschedule Codes Code Description Post Critical Events Execute External Process Restart Scheduler...

  • Page 169: Amd Elan400 Tm Uart Errata

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 14.3 AMD ELAN400 UART Errata Errata #P20 – UART Compatibility Issues SYSTEM The UART module handles some error conditions differently from the National 16550 SYMPTOM: UART chip. ERRATA There are four areas in which the UART on the SC450 behaves differently from the DESCRIPTION: National 16550 UART chip.

  • Page 170: The Bios Harddisk Limitations

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 15 T BIOS H ARDDISK IMITATIONS Note: The ELAN400 with the SYSTEMSOFT- BIOS does support maximum 8192 cylinders (ca 3GB !) by Jan Steunebrink Version 2, June 1999 This article is published at <http://web.inter.nl.net/hcc/J.Steunebrink/bioslim.htm> Contents •...
  • Page 171 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 The 504 MB BIOS Limit The (in)famous 504 MB (528 million bytes) limit comes from the fact that the ATA (IDE) specification has different limits than the BIOS. When the traditional BIOS Int 13h interface is used to control an (E)IDE harddisk, the limits are combined as illustrated below.
  • Page 172 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Example: A 2014MB drive has a CHS count of 4092x16x63. According to the above method, this will be translated into 1023x64x63, nicely within the Int 13h interface limit. In other words; DOS (or any other OS which uses the BIOS Int 13h interface for that mat- ter) thinks that it deals with a drive which has 1023 Cylinders, 64 Heads and 63 Sec- tors/track while the BIOS still controls the drive with its original geometry.
  • Page 173 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Does my BIOS support translation? Now that the theory has been dealt with, it is time to answer this question. First check your BIOS date. If it is 7/94 or later, chances are pretty good that you have a translating BIOS.
  • Page 174 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 This trick assumes a PC with one < 504 MB harddisk and a BIOS with user definable drive types. • Enter the BIOS setup and select for the second (non-present) drive a CHS of 2048x16x63.
  • Page 175 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 • When a cylinder count of over 4095 is entered in the BIOS setup, the BIOS will cause a system lock-up at boot time, making the entire system inaccessible.
  • Page 176 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Apart from the last scenario, I don’t know any other reliable method to detect this 2 GB limit than by hooking up a drive with more then 4095 cylinders. However, you may have found something when using “the trick” for detecting a translating BIOS. (See above) BIOSes dated May 1996 or later should be free of these problems and support translation up to the Int 13h interface limit of 8 GB.
  • Page 177 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 The Int 13h extensions - Breaking the 8 GB barrier With the rate in which the harddisk technology is progressing, we are now faced with EIDE drives exceeding the 8064 MB limit of the Int 13h interface.
  • Page 178 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 Last but not least, we need a partition utility capable of creating partitions above the 8 GB boundary which the OS can see. The version of FDISK supplied with these Operating Sys- tems is able to do this with the aid of new partition types 0Eh and 0Fh (FAT16) or 0Bh and 0Ch (FAT32;...

  • Page 179: Amd Elan400 Tm Uart Errata

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 15.1 AMD ELAN400 UART Errata Errata #P20 – UART Compatibility Issues SYSTEM The UART module handles some error conditions differently from the National 16550 SYMPTOM: UART chip. ERRATA There are four areas in which the UART on the SC450 behaves differently from the DESCRIPTION: National 16550 UART chip.

  • Page 180: Index

    DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 NDEX HD.COM AT- Null- modem I/O map IDE interface 11, 92 Input Signals interfaces Battery interrupt 15h battery current Interrupt Controllers BEEP CODE Interrupt Redirection 35, 36 BIOS CMOS BIOS ROM BIOS-Setup Block Diagram Building a system...
  • Page 181 DIGITAL-LOGIC AG MSM486SV/SN Manual V2.5 REMOTE Link ROM-BIOS RS422/485 Utility Connector serial interface cable Serial ports VGA Controller Chips Serial Ports 30, 31 VGA Modes VGA Monitor Software Compatibility Speaker Special Function Interface Specifications SPKROUT Watchdog Watchdog functions Technical Support...

This manual is also suitable for:

Microspace msm486svMicrospace pc/104Microspace msm486seMicrospace msm486sev

Table of Contents
