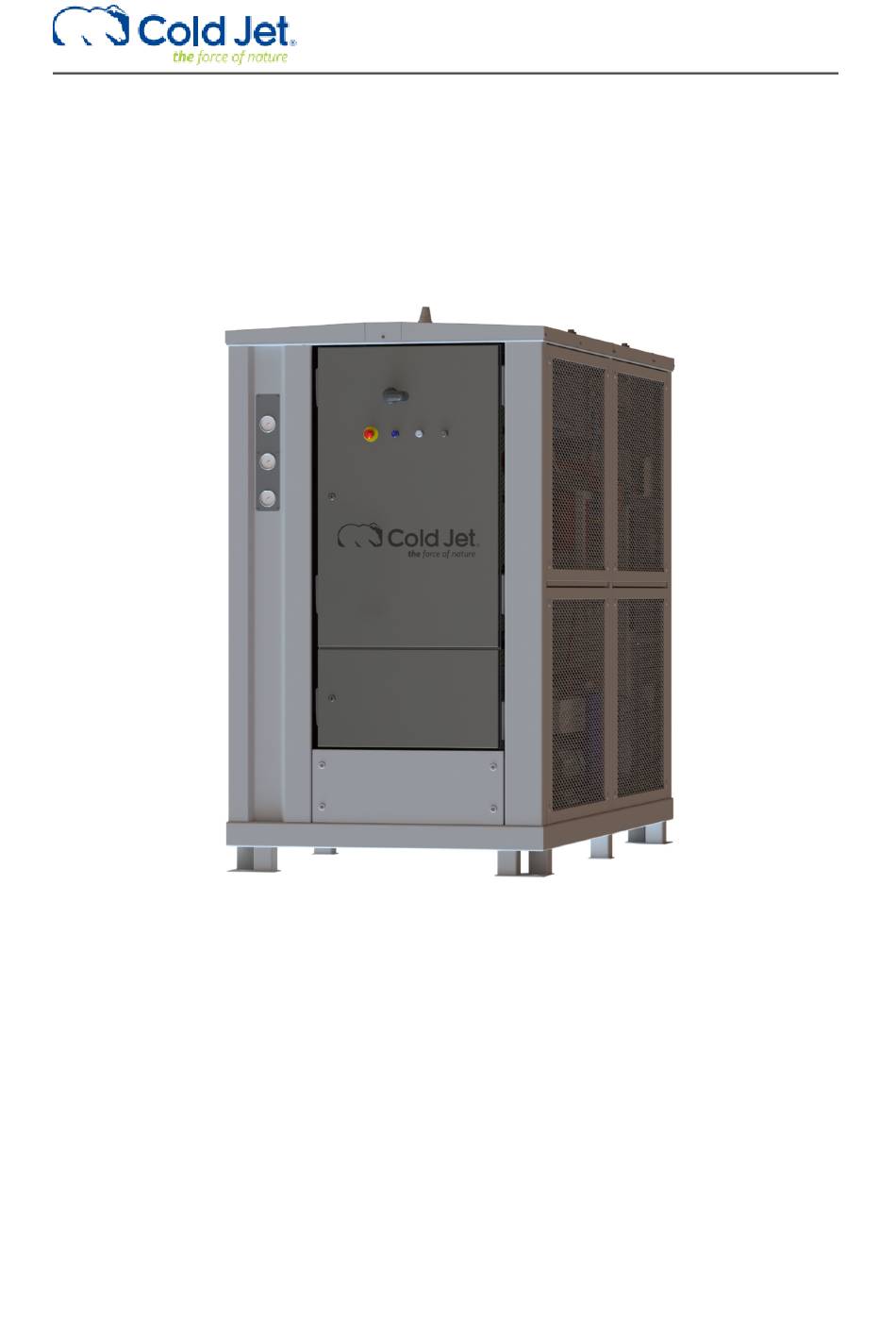

- Page 1 Recovery Unit RE-CO OPERATOR MANUAL November 2024 Version 1 Original Instructions [English]...
- Page 2 INFORMATION AND INTELLECTUAL PROPERTY CONTAINED HEREIN IS CONFIDENTIAL BETWEEN COLD JET AND THE CLIENT AND REMAINS THE EXCLUSIVE PROPERTY OF COLD JET. IF YOU FIND ANY PROBLEMS IN THE DOCUMENTATION, PLEASE REPORT THEM TO US IN WRITING. COLD JET DOES NOT WARRANT THAT THIS DOCUMENT IS ERROR-FREE.
-
Page 3: Table Of Contents
CONTENT INTRODUCTION Technical Data • SAFETY REGULATIONS Safety Labels • OPERATING LIMITATIONS MACHINE CONTROLS AUTOMATION Starting up the Recovery Unit RE-CO • STOPPING THE RECOVERY UNIT RE-CO ALARM MESSAGES MAINTENANCE TERMS OF WARRANTY CONTACT INFORMATION RE-CO Version: Page: 3 of 24 Operator manual Date: 2024.11.14... -
Page 4: Introduction
About the Machine The recovery RE-CO2 320V2 is especially designed to be connected with a Cold Jet Pelletizer or a line control unit. The machine can operate with different multiple pelletizer brands. This technology is the subject of Patent application No. 0408224.4. -
Page 5: Technical Data
Technical Data Voltage AC/ Frequency (EU 50Hz) 3 x 400 VAC/50Hz Voltage AC/ Frequency (US 60 Hz) 3 x 480 VAC/60Hz Average Power Consumption 50 kWh Rated Current (Imax) 85 A Dimensions without the buffer tank (L x W x H) 2718 x 1320 x 2259 mm (107 x 52 x 89 in.) Dimensions with the buffer tank (L x W x H) 2718 x 1320 x 3751 mm (107 x 52 x 147.7 in.) - Page 6 RE-CO Version: Page: 6 of 35 Operator manual Date: 2024.11.07...
-
Page 7: Safety Regulations
SAFETY REGULATIONS General Measures The manual contains instructions for starting up, operating, and servicing the machine. The operator must follow all the instructions in this manual. The owner must make sure that the operator understands the contents of this manual and follows its guidelines and safety regulations. -
Page 8: Safety Labels
Safety Labels The symbols used on the machine were developed by the International Organization for Standardization (ISO) and are defined below. These symbols may include yellow warnings triangles, blue mandatory action circles, or red prohibited action circles. Danger of Suffocation The recovery unit coverts gas CO to liquid CO in a closed system. - Page 9 Danger of Congelation The gaseous and liquid CO has a temperature down to -25° C (-13° F). The operator should be aware of the congestion with piping and elements inside the machine. Most pipes are insulated to keep the CO cold, but also work as safety protection.
- Page 10 Electrical shock Hazard When the main disconnect switch is in the ON position, the control panel is energized, and dangerous voltage is present internal ingress protection rating is at least IP2x/NEMA2. When the main disconnect switch is in the OFF position the line side of the switch remains energized. Wires that remain energized with the main disconnect switch in the OFF position are orange.
-
Page 11: Operating Limitations
-10°C and 30°C. (14°F and 86°F). If the ambient temperature exceeds the interval -10°C and 30°C (14°F and 86°F) contact Cold Jet, as capacity will drop. For ambient temperatures exceeding 30°C (86°F), warm weather kits can be installed. This ensures the capacity ●... -
Page 12: Machine Controls
The RE-CO is controlled from a HMI screen either in a connected pelletizer (Cold Jet PR350H or PR750H), a control box or a line control. The front of the electrical cabinet and the pressure gauge panel include the following functions. - Page 13 Normal gauge readings during operations These are the readings you would expect to see after the Recovery has cooled down and commenced stable operation (after 10-15 minutes) ● Refrigeration Condensing Pressure: Between 13 and 22 bar. Refrigeration Evaporation Pressure: Between 0,6 and 2 bar. ●...
- Page 14 HMI structure – RE-CO The control PLC that is controlling the recovery unit is either in a Cold Jet PR Pelletizer, a line control or a control box. In either case the recovery program will have an interface on the HMI as here described:...
- Page 15 Main page Compressor load Running hours and ambient temperature gas pressure inlet pressure pressure in the line Calculated capacity Calculated power consumption RE-CO Version: Page: 15 of 24 Operator manual Date: 2024.11.14...
- Page 16 P&I diagram This page is divided into two circuits. The left side is the refrigerant side, and the right side is the CO circuit. Choose which side to operate by pressing on either side. RE-CO Version: Page: 16 of 24 Operator manual Date: 2024.11.14...
- Page 17 Settings The setting page allows the user to activate the functions described. The recovery is primarily an autonomous machine when operating. Alarm The alarm screen is where all current and alarm log can be found. This page is used when resetting alarms and diagnosing.
- Page 18 Hardware The hardware subpage shows the hardware for the Recovery unit. The status is shown on the element with text and colour. Log & information The log is an production log, that shows, date, availability of the machine and availability of pelletizer barrels, production, apparent power, compressor load, pressor, and ambient temperature.
-
Page 19: Automation
AUTOMATION Power supply and control protection system A voltage monitoring relay in the panel stops the recovery and lights up the electrical failure lamp on the panel. The relay switches off if the voltage is too low, the phases order is wrong, or a phase is missing. Pressure protection system. -
Page 20: Stopping The Recovery Unit Re-Co
STOPPING THE RECOVERY UNIT RE-CO Stopping without depressurizing the system. ● The Recovery and pelletizer can be stopped at any time. It is not advisable to switch off the power or use the emergency stop button without first emptying the Recovery of liquid CO ●... -
Page 21: Alarm Messages
ALARM MESSAGES Alarms will be shown on the HMI controlling the recovery unit. In the alarm list the action needed to be taken can be found. To access the alarm page press the alarm at the top, or by pressing the alarms bottom at the control panel to the right. -
Page 22: Maintenance
MAINTENANCE Accessing the equipment by unauthorized or untrained individuals can lead to physical injury or damage to property. The system consists of two separate sub-systems. The CO sub-system is cooled by R452A refrigerant. Due to the environmental impact of R452A, repair of the refrigeration parts must be conducted only by suitably trained, equipped and authorized personnel. -
Page 23: Terms Of Warranty
Cold Jet technician or by the owner’s qualified personnel who has been trained by Cold Jet in the repair and maintenance of Cold Jet dry ice blasting and dry ice production machines and accessories. -
Page 24: Contact Information
Phone (After hours): +1(513)440-3619 Email: service.eu@coldjet.com Email: service.eu@coldjet.com Spain – Cold jet Madrid Poland – Cold Jet Sp. Z o.o. C/ Oporto, Portal, 3 ul. Łukowska 12, Oborniki, Pol.Ind. Europolis Poland, 64-600 28232 Las Rozas de Madrid, Madrid, Spain Phone: +48 798 33 88 00...
