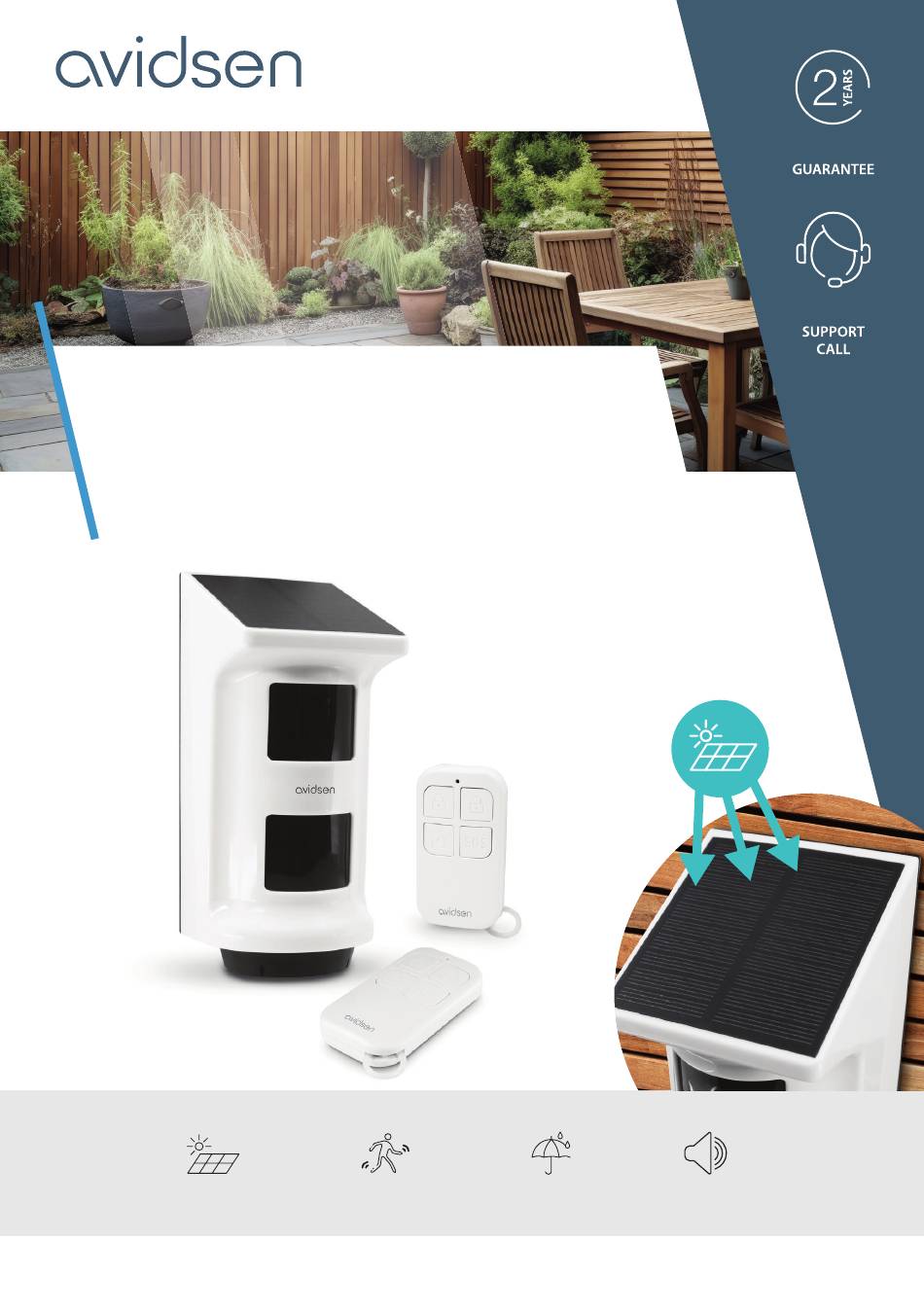

- Page 1 Solar Guard INTRUDER DETECTOR Solar outdoor intruder detector Ref. 100026 Works with solar energy Fonctionne à l’énergie solaire SOLAR MOTION IP 53 BUILT-IN PANEL DETECTION SIREN www.avidsen.com...
-
Page 2: Table Of Contents
CONTENTS A - SAFETY 2 - SILENT ARM 3 - DISARMED INSTRUCTIONS 4 - ALERT TRIGGER 5 - SOS FEATURE 1 - OPERATING PRECAUTIONS 6 - RESETTING THE DETECTOR 2 - MAINTENANCE AND CLEANING 7 - ADJUSTING THE VOLUME OF THE 3 - RECYCLING DETECTOR B - PRODUCT... -
Page 5: A - Safety Instructions
A - SAFETY INSTRUCTIONS This symbol means that devices no 1 - OPERATING PRECAUTIONS longer in use should not be disposed of with household waste. The hazardous • Do not allow children to handle the product. substances they may contain can be •... -
Page 6: B - Product Description
B - PRODUCT DESCRIPTION 1 - KIT CONTENTS Solar outdoor intruder detector Wall plugs for solar outdoor intruder detector Remote controls Clip for detector adjustment Mains adapter to charge the detector battery Mounting screws for solar outdoor intruder detector 2 - INTRUDER DETECTOR Solar panel Solar outdoor intruder detector charging cable Infrared detection sensors... - Page 7 B - PRODUCT DESCRIPTION 3 - REMOTE CONTROL Arm button: Pressing the button will place the Silent arm button: Pressing the button will place detector in Arm mode. The alarm will sound and the detector in Silent arm mode. In this mode, the flash when motion is detected.
-
Page 8: C - Installation
C - INSTALLATION 1 - ACTIVATING THE DETECTOR Please note: your detector has an anti-tamper sensor on the mounting bracket. If the product is turned on (ON/OFF switch turned ON) and you remove the product mounting bracket, the siren will go off. Before securing the detector outdoors, fully charge it using the mains adapter provided in the pack. -
Page 9: Pairing The Remote Controls With The Detector
C - INSTALLATION 2 - PAIRING THE REMOTE CONTROLS WITH THE DETECTOR All remote controls supplied with the kit have already been paired with the detector. If not, please follow the steps below: - Press and hold the “7” pairing button in the recess on the back of the detector until you hear a short beep and the product LEDs light up. -
Page 10: Installing The Solar Outdoor Intruder Detector
C - INSTALLATION that as soon as an intruder crosses a beam, if the alarm is activated, the siren will go off. With switches (2) and (3), the type of detection can be set: Type of detection Setting Configuration Rapid detection If an intruder crosses one of the infrared beams, the siren goes off. - Page 11 C - INSTALLATION Reinstall the protective cover on the back of the detector and attach it to the mounting plate.
-
Page 12: Fully Armed
D - CONFIGURATION 1 - FULLY ARMED 6 - RESETTING THE DETECTOR When you fully arm the detector, any detection will The detector resetting process removes all remote trigger an alert (typically used when you leave your controls. home). Press and hold the RESET button (7) until you hear Using the remote control: three long beeps and the product flashes three times, then the siren goes off again. -
Page 13: Technical Characteristics
F - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS INTRUDER DETECTOR Solar panel power 5 V / 750 mW Power supply 110 / 220 VAC at 12 VDC 1000 mA Backup battery Integrated, Lithium, 3.7 V 1000 mAh, Consumption <... -
Page 14: Warranty
EN 60598-1:2021 will be void if the device is tampered with. EN 60598-2-2:2012 EN 62479: 2010 Avidsen undertakes to keep a stock of spare parts EN 50663: 2017 for this product throughout the contractual warranty EN 301489-1 V2.2.3 (2019-11) period. - Page 16 Avidsen 19 avenue Marcel Dassault - ZAC des Deux Lions 37200 Tours - France...
