Summary of Contents for Feider Machines FLP335-A

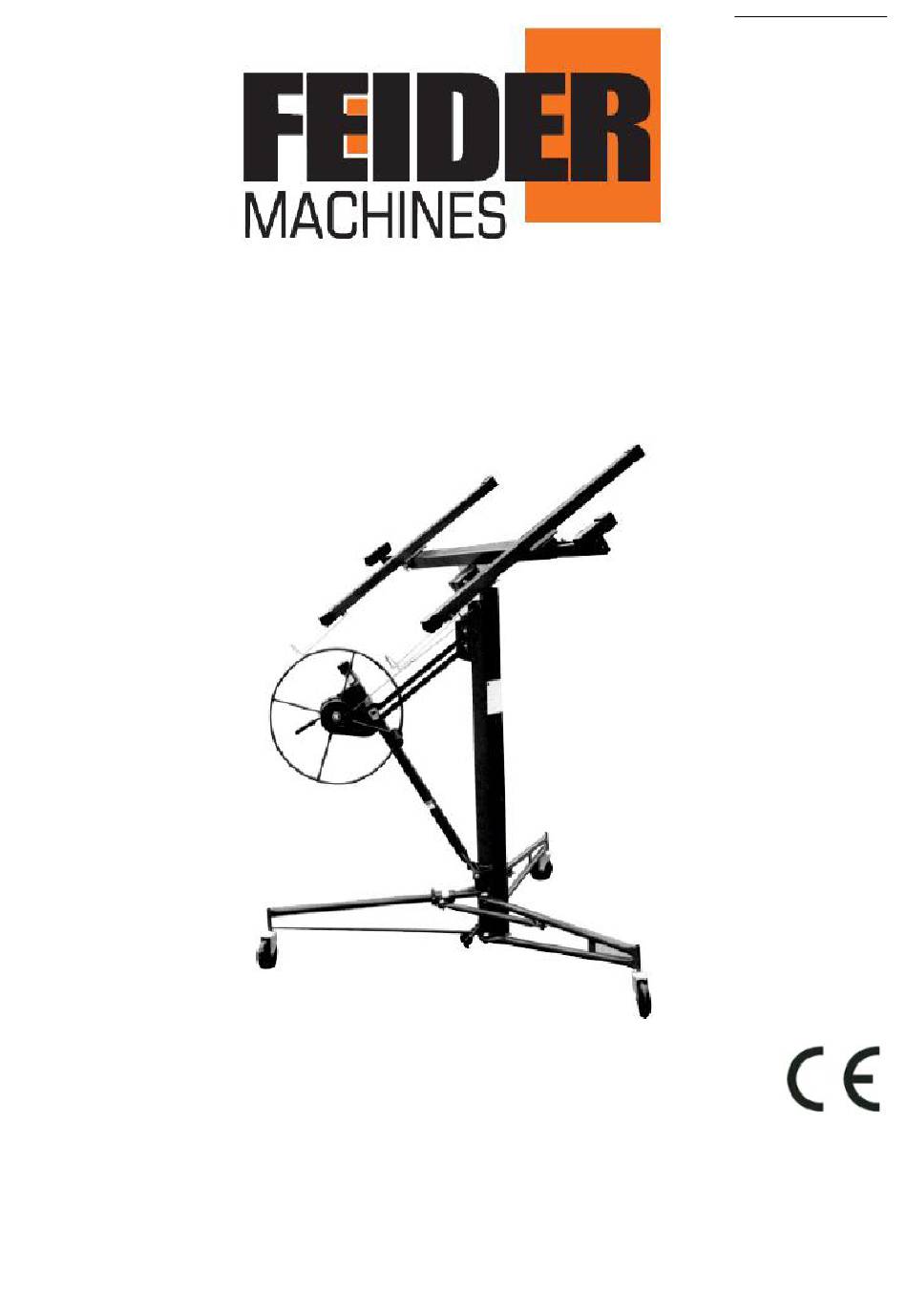

- Page 1 ORIGINAL INSTRUCTIONS DRYWALL AND PANEL HOIST INSTRUCTION MANUAL FLP335-A BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
-
Page 2: Important Precautions
ORIGINAL INSTRUCTIONS 1. INTRODUCTION The Drywall Lift allows one person to lift a drywall panel that is up to 120 -480CM in size, without assistance. The panel can be raised to a maximum height of 330CM for attachment to level ceilings or(with the lift's cradle tilted) to sloped ceilings or side walls. -
Page 3: Assembly Procedure
ORIGINAL INSTRUCTIONS 3. COMPONENTS The Drywall Lift is shipped as several components that must be assembled before use: A. Tripod base assembly B. Frame assembly, which includes a winch assembly and standard (4-ft) telescoping lift sections C. Cradle assembly, without its detachable crossarms D. - Page 4 ORIGINAL INSTRUCTIONS SET UP THE TRIPOD BASE: Set the base on the floor, resting on its casters. Press down on the slide yoke ring. Hold the ring down while you swing the two forward legs out until the yoke rings snaps into the locking hole on the bottom of the slide tube.
-
Page 5: Operator Controls
ORIGINAL INSTRUCTIONS retaining hook away so it no longer secures the telescoping sections inside the frame housing. PRESS THE WINCH ASSEMBLY SLIGHTLY BACK TOWARD THE FRAME.THIS AUTOMATICALLY ENGAGES THE SLIDE BAR LOCK TO KEEP THE WINCH FULLY EXTENDED. IMPORTANT : Before continuing, be sure that the slide bar lock is fully engaged- that is, rotated clockwise as far as possible. - Page 6 ORIGINAL INSTRUCTIONS Outriggers The outriggers on the crossarms extend for supporting a longer drywall panel. To extend an outrigger, pull out the lock pin with your right hand until you can slide the outrigger out with your left hand. The lock pin can engage to lock the outrigger at one of three positions: fully retracted; extended 21 inches.;...
- Page 7 ORIGINAL INSTRUCTIONS Slide Bar Lock The slide bar lock holds the winch assembly at its operating (fully extended) position. To fold the winch assembly against the frame (when disassembling the unit for transport or storage), disengage the lock by turning it counterclockwise as you lift on the slide bar. When you reassemble the unit for operation, extending the winch assembly all the way and then pressing it back slightly toward the frame automatically engages the lock.
- Page 8 ORIGINAL INSTRUCTIONS Brake Arm A spring-loaded brake holds the cradle at whatever height you raise it by cranking the winch wheel. To lower the cradle, control the backward rotation of the winch by grasping the wheel handle as you carefully raise the brake arm to release the brake.
-
Page 9: Operating Procedure
ORIGINAL INSTRUCTIONS 6. OPERATING PROCEDURE IMPORTANT : Read the Important Precautions on page 2 before you operate the lift. Safety Check Before Operation Before you begin operating the lift each day: • Inspect the unit carefully for wear or damage. Pay special attention to the cable. •... -
Page 10: Disassembly And Storage
ORIGINAL INSTRUCTIONS 7. DISASSEMBLY AND STORAGE Always store the Drywall Lift in a dry, protected area. Disassembly To disassemble the Drywall Lift for transport or compact storage: Crank the cradle all the way down. Slide the cradle outriggers all the way in until they latch. Close the panel support hooks. Remove the crossarms by pressing the spring tab on the bottom and sliding the crossarms out of the tapered socket. -
Page 11: Warranty
9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 12: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 13: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
