Summary of Contents for Wieland VACPRO 16

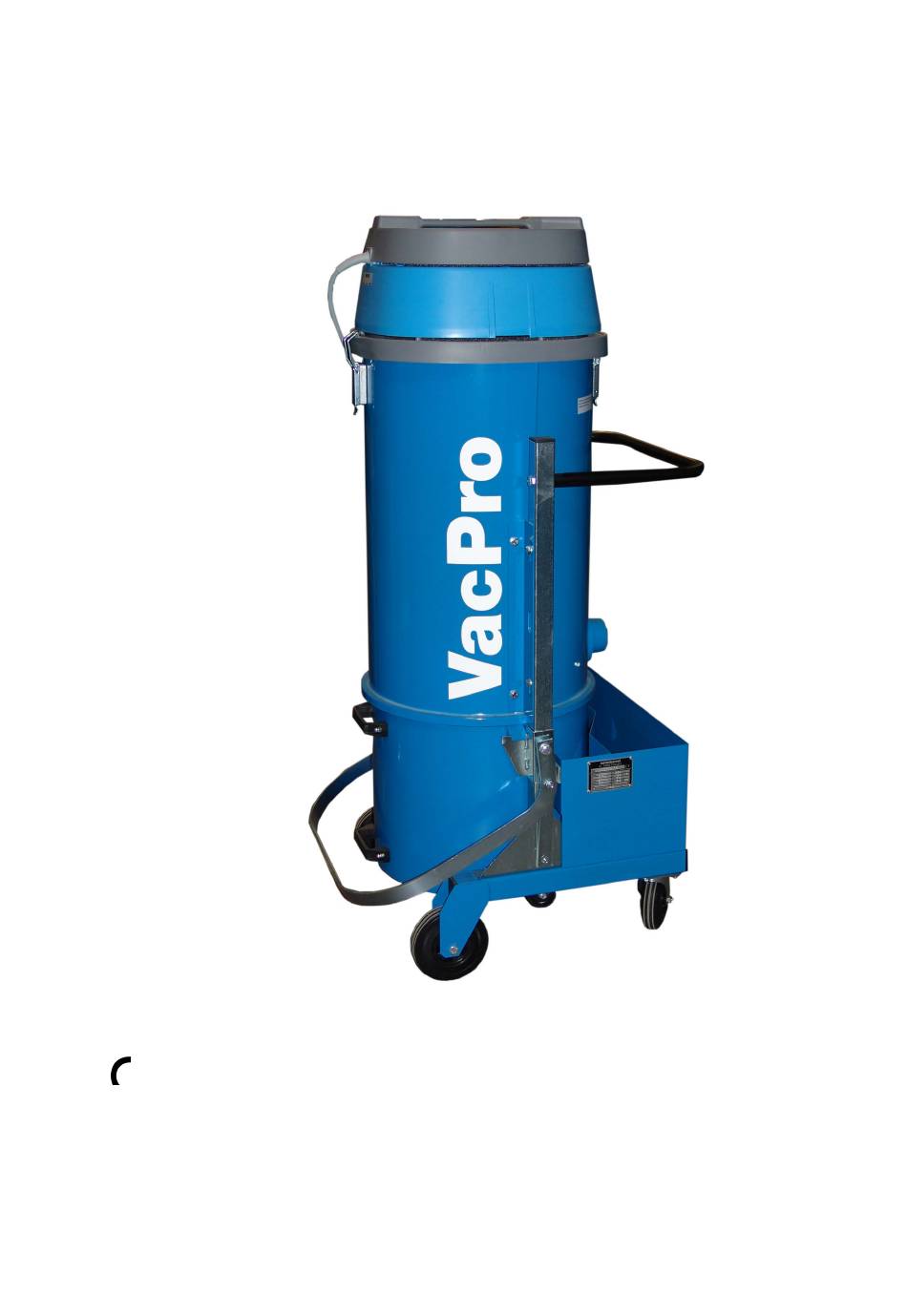

- Page 1 Operation and maintenance manual Operation and maintenance manual VacPro 16 single phase Read the operation and VacPro 16 maintenance instructions carefully Single-phase before using the unit Order-No. 610011 Translation of the original operating Page 1/15 Issue 3 2...
-
Page 2: Table Of Contents
Operation and maintenance manual VacPro 16 single phase Title Page Table of contents 2/15 Product and functional description Intended application 3/15 Product and functional description 3-4/15 Specifications 5/15 Safety instructions – Read before initial operation! Safety instructions before initial operation... -
Page 3: Product And Functional Description
For the handling of such material special units are available. Please ask Wieland Lufttechnik for more information. Product and functional description The extracted material is separated by an impact separator from the transport air flow and is collected in the collection container. - Page 4 Operation and maintenance manual VacPro 16 single phase Legend: Filter housing Tool box Suction inlet DN 50 O-Ring for suction inlet Wheeling handle Suction head 3,6 kW Tension clamps Collection container 50 l Bracket for lifting/lowering device Castor wheel Guide wheel with stop device Base frame AirShock...
-
Page 5: Specifications
Operation and maintenance manual VacPro 16 single phase Specifications Description Unit VacPro 16 single-phase Driving power Average power (Pm) Max. airflow. m³/h Max. vacuum mbar Suction inlet Ø Capacity of container Litres Main filter area cm² 14000 Dimensions (LxWxH) 700 x 580 x 1420 Weight approx. -
Page 6: Safety Instructions - Read Before Initial Operation
Check mains cable of suction cleaner regularly for damage. Replace damaged cable immediately. For replacing mains cable or other electrical parts use original Wieland Lufttechnik spare parts only – see list of spare and wear parts. Damaged electrical cables should only be replaced by a Wieland Lufttechnik service engineer or other suitably qualified specialist. -
Page 7: Safety Instructions For Maintenance Work
This is arranged by the respective national legislation. For the safety technical inspection we recommend to ask for a service technician of Wieland Lufttechnik. Thereby is ensured that the industrial cleaner is inspected according to the technical guidelines of manufacturer. After inspection the industrial cleaner is marked with an inspection plate to document the safety technical inspection. -
Page 8: Operation
DN 40, DN 50 and DN 60. Usually the VacPro 16 should be operated with suction hose and suction tools in DN 50. The optimal suction performance is reached this way. Handling of small amounts of material and short suction distances can also be done with DN 40. -
Page 9: Filter Cleaning
PE-bag perfectly fits into the shape of the collection container, therefore it is not necessary to install a pressure compensation device to avoid sucking up the bags. Not suitable for stationary use (dust extraction). Please contact Wieland Lufttechnik. Page 9/15... -
Page 10: Maintenance
Operation and maintenance manual VacPro 16 single phase Maintenance Exchange of pocket filter The pocket filter is a wear part and should be replaced once a year respectively if necessary. It the pocket filter is heavily contaminated and if the filter cleaning result is not sufficient any more, the filter must be replaced.:... -
Page 11: Exchange Of Blowers For Suction Head
Operation and maintenance manual VacPro 16 single phase Exchange of blowers for suction head The turbo blowers consist of single phase motor and suction blower and should be understood as complete element. They are intended for an average life time of approx. 300 up to 400 operation hours. -
Page 12: Maintenance Schedule
Operation and maintenance manual VacPro 16 single phase Maintenance intervals Any fault occurred has to be repaired immediately. Description Maintenance Remarks interval Discharge of the suction material out Daily, respectively of the collection container after finishing of suction work Check the filter system daily Clean or replace filter –... -
Page 13: Spare And Wear Parts
Operation and maintenance manual VacPro 16 single phase Spare and wear parts S = spare part, W = wear part, X = not illustrated Pos. Illustration Description piece Order-No.. Page Filter housing 250661 Tool box 430125 Suction inlet DN 50... -
Page 14: Warranty Conditions
Guarantee claims are subject to approval be Wieland Lufttechnik. For this the return of the unit (with empty resp. cleaned collection container) or vacuum pump is required. The unit should be cleaned and decontaminated if necessary. -
Page 15: Eg-Declaration Of Conformity
Operation and maintenance manual VacPro 16 single phase Page 15/15...
