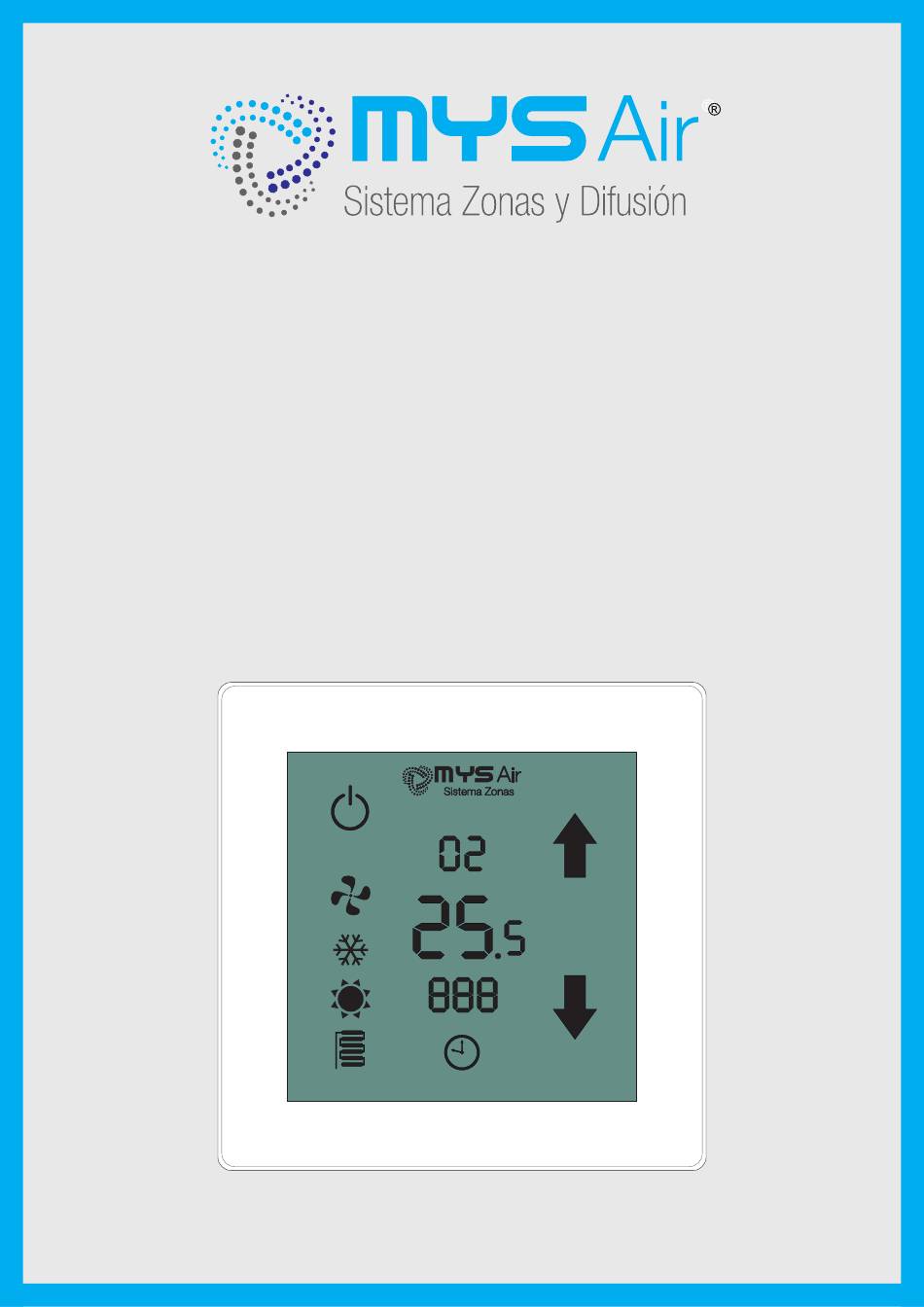

- Page 1 THERMOSTAT INSTALLER MANUAL ROMA ºC...
-
Page 2: Main Functions
FEATURES Digital touch screen. Ÿ Backlit display (programmable ligh ng me from 1 to 30s.). Ÿ Master mode. Ÿ Battery Type Screen Lock (only allows turning the thermostat on and off). Ÿ Stand by Consumption Temperature management and working modes. Ÿ... - Page 3 ROMA THERMOSTAT INSTALLATION 2. BATTERY INSTALLATION (Only in Radio Thermostats). 1. Remove the thermostat from the wall. 2. On the back of the thermostat, there are two covers, one on each side of the thermostat. Remove the covers by pressing down on the tab at the top and pulling it out.
- Page 4 POWER SUPPLY AND START-UP THERMOSTATS CABLE The MYSAir ROMA thermostat with radio communication works with 2 AAA batteries that are supplied with the thermostat, but not installed, so it must be installed in the thermostat when it has to be put into operation. If the thermostat is the wired version, it must be wired from the thermostat to the MYSAir control module with 3x0.25mm²...
- Page 5 CONFIGURATION CODES TABLE INSTALLER MENU (MENU 10) The following Tables describe the different functions and settings of the Installer Menu (Menu 10) that exist for the installer in the ROMA thermostat. THERMOSTAT TEMPERATURE CALIBRATION ZONE NUMBER -3º 0.5º Zona 1 -2.5º...
- Page 6 CONFIGURATION ALLOWED WORKING MODES The CONFIGURATION OF PERMITTED WORKING MODES allows you to configure the working modes that can be selected on the thermostat, depending on the type of installation. The selectable working modes are: Cold Air Mode Air Heat Mode Underfloor heating mode in Cold Underfloor heating mode in heat The configuration is found in the menu ”80"...
- Page 7 CONFIGURACIÓN INICIAL MS20, MS22 y MS25 INITIAL SETUP Fig. 1. Fig. 2. 1. Facility Code or ID. (Only for Radio thermostats). ATTENTION. ALL RADIO THERMOSTATS IN THE SAME INSTALLATION MUST HAVE THE ºC SAME INSTALLATION CODE. 1) With the thermostat OFF, press and hold the icon on the screen (Fig.1) until “00"...
- Page 8 OTHER FUNCTIONS INDOOR FAN SPEED ADJUSTMENT. (Only the MS20 model). Fig. 9. 7. Activate Indoor Fan Speed function. ATTENTION. YOU CAN ONLY USE THIS FUNCTION IF THE INSTALLATION HAS A TOTAL CONTROL GATEWAY MODULE INSTALLED. 1) Once inside the Installer Menu (point 2). 2) Select the function "85"...
- Page 9 OTHER FUNCTIONS HOME SYSTEM WIFI CONFIGURATION Fig. 14 Fig. 15 If your system has a Wi-Fi connection module MS209W or MS210WR, you can start the link process of the Wi-Fi module with your network from the same thermostat without having to physically access the Wi-Fi module MS209W or MS210WR.
-
Page 10: Factory Reset
OTHER FUNCTIONS ACTIVATE TIMER FUNCTION OPTION. Fig. 20 Fig. 21 You can Activate the timer function to be able to program the thermostat so that it turns off after the time that is programmed in the timer has elapsed. Selectable time of 30, 60, 90, and 120min. - Page 11 OTHER FUNCTIONS CONFIGURATION OF THE TIME THAT THE Fig. 29 Fig. 30 BACKLIGHT Other configuration codes available in the thermostat, required for the configuration of various functions, are described in the following sections. This time is configurable from 1 to 30 seconds. The thermostat allows selecting more than 30 seconds, but in case of selecting it, when confirming the parameter the thermostat will save the configuration of 30 seconds.
-
Page 12: Minimum Speed
OTHER FUNCTIONS CODE PERCENTAGE SYSTEM SPEED MINIMUM SPEED AVERAGE SPEED 100% MAXIMUM SPEED AS THE ZONES ARE OPENED, THE PERCENTAGES THAT HAVE BEEN ASSIGNED TO EACH ZONE ARE ADDED UP AND THE SYSTEM INCREASES THE SPEED, ACCORDING TO THE SUM OF THE PERCENTAGES, AS FOLLOWS: FROM 1% TO 60%, MINIMUM SPEED. - Page 13 OTHER FUNCTIONS AS THE ZONES ARE OPENED, THE GRID SURFACES THAT HAVE BEEN ASSIGNED TO EACH ZONE ARE ADDED UP AND THE SYSTEM INCREASES THE SPEED, ACCORDING TO THE SUM OF SURFACES, AS FOLLOWS: FROM 200x150mm. UP TO 900X150mm., MINIMUM SPEED. FROM 901X150mm.
- Page 14 OTHER FUNCTIONS MASTER THERMOSTAT Fig. 39 Fig. 40 If it is desired that the system have a master thermostat so that this thermostat is the only one that can change the Heat and Cool modes of the system, it can be configured as a master by following the steps below: 1) With the thermostat OFF, press and hold the icon on the screen until the...
- Page 15 OTHER FUNCTIONS CONFIGURATION OF THE MINIMUM / MAXIMUM LIMITS IN SELECTION SETPOINT TEMPERATURE (HOTEL MODE) Fig. 48 Fig. 49 The thermostat has a setpoint temperature selection range lock (Hotel Mode), in case you want to limit the setpoint temperature selection range in the installed thermostats.
- Page 16 C/ Mayor 27, 30149. MURCIA (ESPAÑA) Telf: + 34 966744473 FAX: + 34 966741928 www.mysair.es www.agfri.com...
