Giovenzana GSL30 Instruction Manual

Silicone led strip
Hide thumbs Also See for GSL30:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Strawinskylaan 1105
1077 XX Amsterdam, The Netherlands
LED STRIP AND ACCESSORIES . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preliminary operations . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LED strip wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connectors installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Upper side tensioner mounting . . . . . . . . . . . . . . . . . . . . 4
Lower side tensioner mounting . . . . . . . . . . . . . . . . . . . . 5
Wall plugs mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TECHNICAL CARACHTERISTICS . . . . . . . . . . . . . . . . . . . 7
LAYOUT EXAMPLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
MT-GSL-EN / 03.10.2022

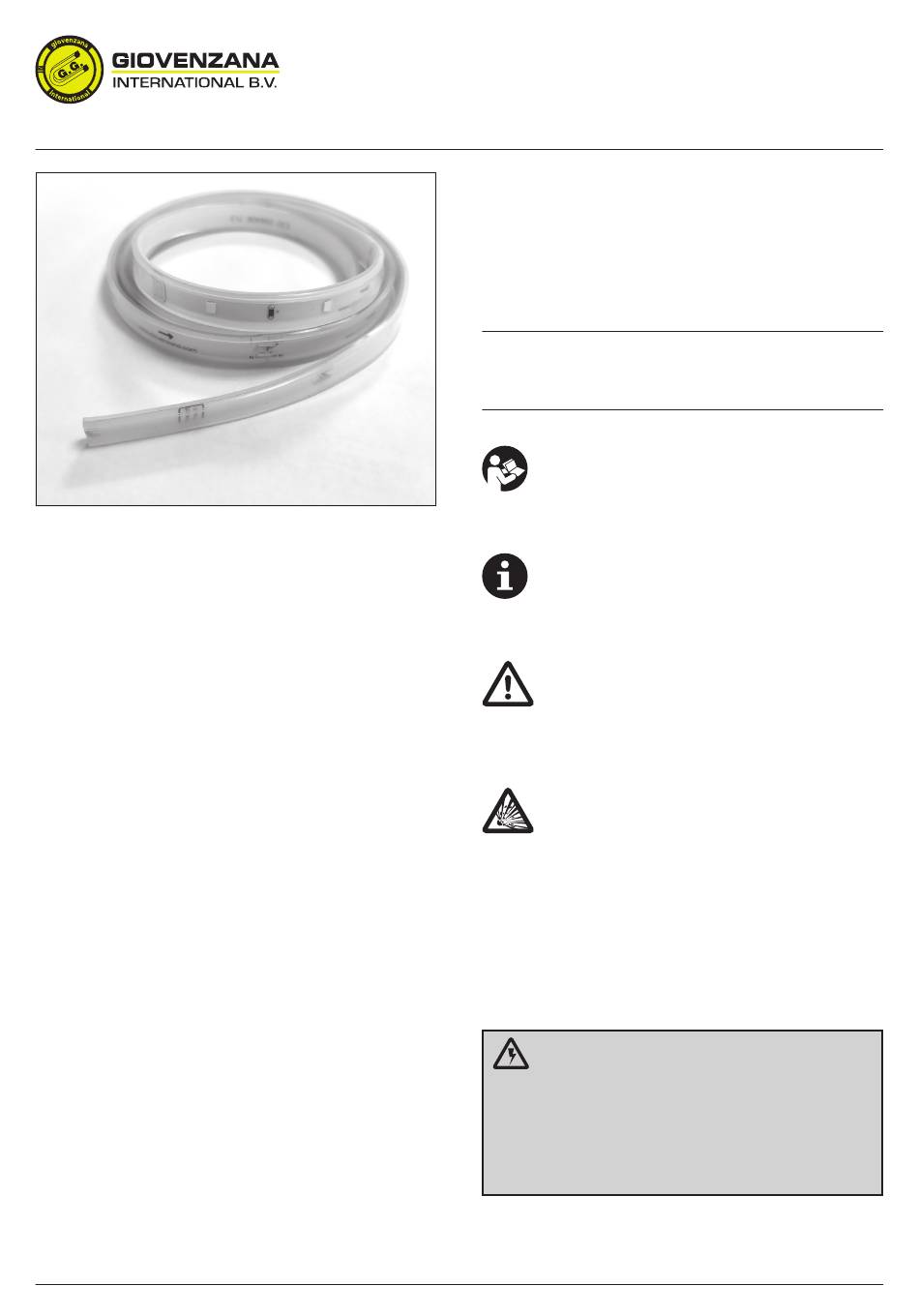

GSL30
GSL60
SILICONE LED STRIP
Before use, read this booklet carefully to
acquaint yourself with the features of the
product. This booklet is an integral part of
the product and therefore must be kept until
the product is dismissed.
Giovenzana International B.V. reserves the
right to change the features and data shown
in this document at any time and without
notice. This document cannot therefore be
considered a contract with third parties.
Any improper installation or any tampering
of the device may cause serious personnel
injury or property damage, therefore, the
installation and maintenance must be
performed by specialized and authorized
personnel.
The use of this device is not allowed in
environment with a potentially explosive
atmosphere or in presence of corrosive
substances and in salt spray.
ATTENTION
Before any installation or maintenance operation,
disconnect the power supply to the system.
Before restoring the power supply, make sure that
all connections to the device have been made
correctly. Giovenzana International B.V. disclaims
any responsibility for any damage to things and
people caused by non-compliance with the rules
described here.
Rev. 6
EN
instruction manual
1 / 8
