Summary of Contents for North 205102

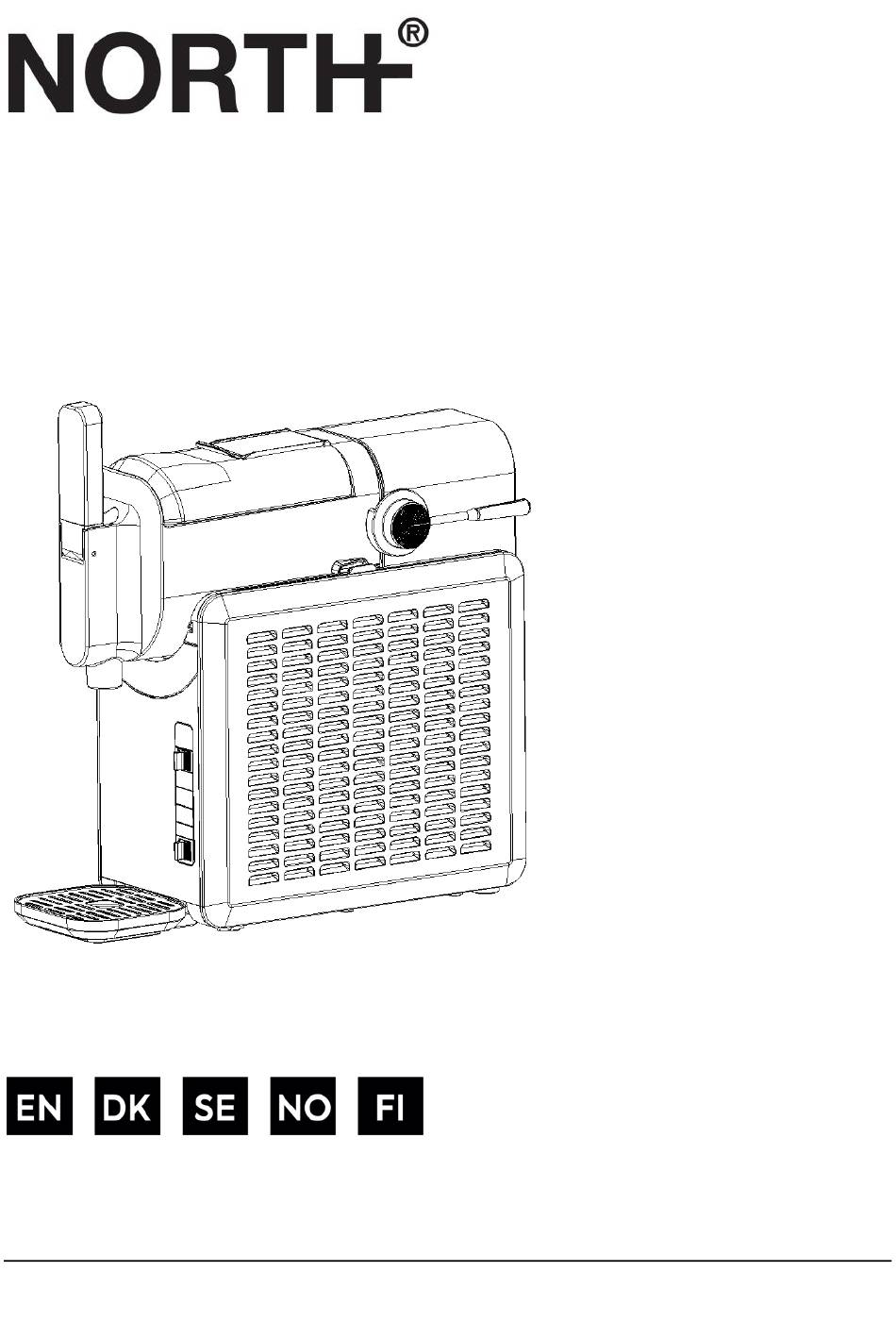

- Page 1 205102 MV2402 SLUSH ICE MACHINE INSTRUCTION MANUAL THANK YOU FOR CHOOSING OUR SLUSH ICE MACHINE PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 2: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Before using the slush ice machine for the first time, please wait 2 hours after positioning it, and keep the transparent lid open for at least 2 hours. -
Page 3: Specifications
19. Regarding the information pertaining to the use of the appliance, please refer to the paragraphs below. 20. Do not put your fingers into the discharge opening as this may cause danger. SPECIFICATIONS Model Number: 205102 Effective volume: 2L (using volume: 1.42L) Voltage: AC220-240V / 50 Hz Power Consumption: 220 W Rated current : 1.4A... - Page 4 FEATURE Touch buttons, LED display, toggle adjustment switch, simple operation, reliable, convenient and worry-free. The thickness of the beverage can be adjusted There are five types of beverage Slush Ice production modes plus cleaning mode. The parts are detachable, easy to clean, hygienic and safe. INSTRUCTION……...
-
Page 5: Control Panel
4. Water tank 9. Stirring blades 5. Control panel 10. Locked barrel switch 2) Control panel Mode Mode switch Start/Pause Power Child lock Thickness Preset Thickness switch... - Page 6 OPERATION INSTRUCTION NOTE: Before use, please thoroughly wash and wipe off all components that come into contact with liquid, including evaporator, loading barrel, mixing blade, etc. Before cleaning, it is necessary to ensure that the power cord plug is disconnected from the socket.
-
Page 7: Operation Steps
The open state of the The open state when the charging charging barrel switch barrel switch is locked Before installation After installation OPERATION STEPS 1. Check the charging barrel before pouring the material into the charging barrel to ensure that the charging barrel is installed in place (see the "cleaning" part for the disassembly and assembly steps, please install the discharge handle and water receiving tray before using it for the first time), open the top cover of the charging barrel, and then slowly pour the material into the charging barrel (as shown in... - Page 8 2. Then close the top lid of the charging barrel. 3. Plug in the power supply, touch the power switch icon and the machine will turn on, the default slush ice mode will be turned on for the first time, and the mode used last time will be automatically selected if it is not used for the first time (see Figure 3 for the mode description), the selected mode icon flashes, and the left or right toggle function to select the switchable mode.
-
Page 9: Protection Function
machine is kept at the set temperature for cyclic work. At this time, put the cup under the discharge port, press the discharge handle, and enjoy the Slush Ice. 5. After 4 hours of heat preservation, the machine returns to the mode selection state, and the machine returns to standby state after 10 minutes without any operation. - Page 10 TIPS 1. In order to avoid increased mixing load and overflow after ingredients expansion, the ingredients should not exceed the maximum capacity water level. For accurate temperature control and normal operation, the ingredients needs to be added to the minimum capacity water level (see Figure 2). 2.
-
Page 11: Maintenance
scrapped. The unlocking position Figure 4 The filling bucket, mixing fan blades and water box are all dishwasher safe and hand washed as follows: Prepare about 8L of warm water (about 40-50 degrees) and a cleaning solution in a basin. Use a suitable brush and thoroughly wash all parts that come into contact with the material with a cleaning solution. -
Page 12: Common Problem & Solutions
The following conditions is not covered by the warranty: 1) Components are damaged due to improper use, maintenance and storage; 2) Damage caused by non-NORTH maintenance personnel or designated personnel to disassemble the product by themselves. 3) No purchase invoice or purchase invoice does not match the product;... - Page 13 PARTS Water tray box User manual Water tray box cover Handle assembly 1 set This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
