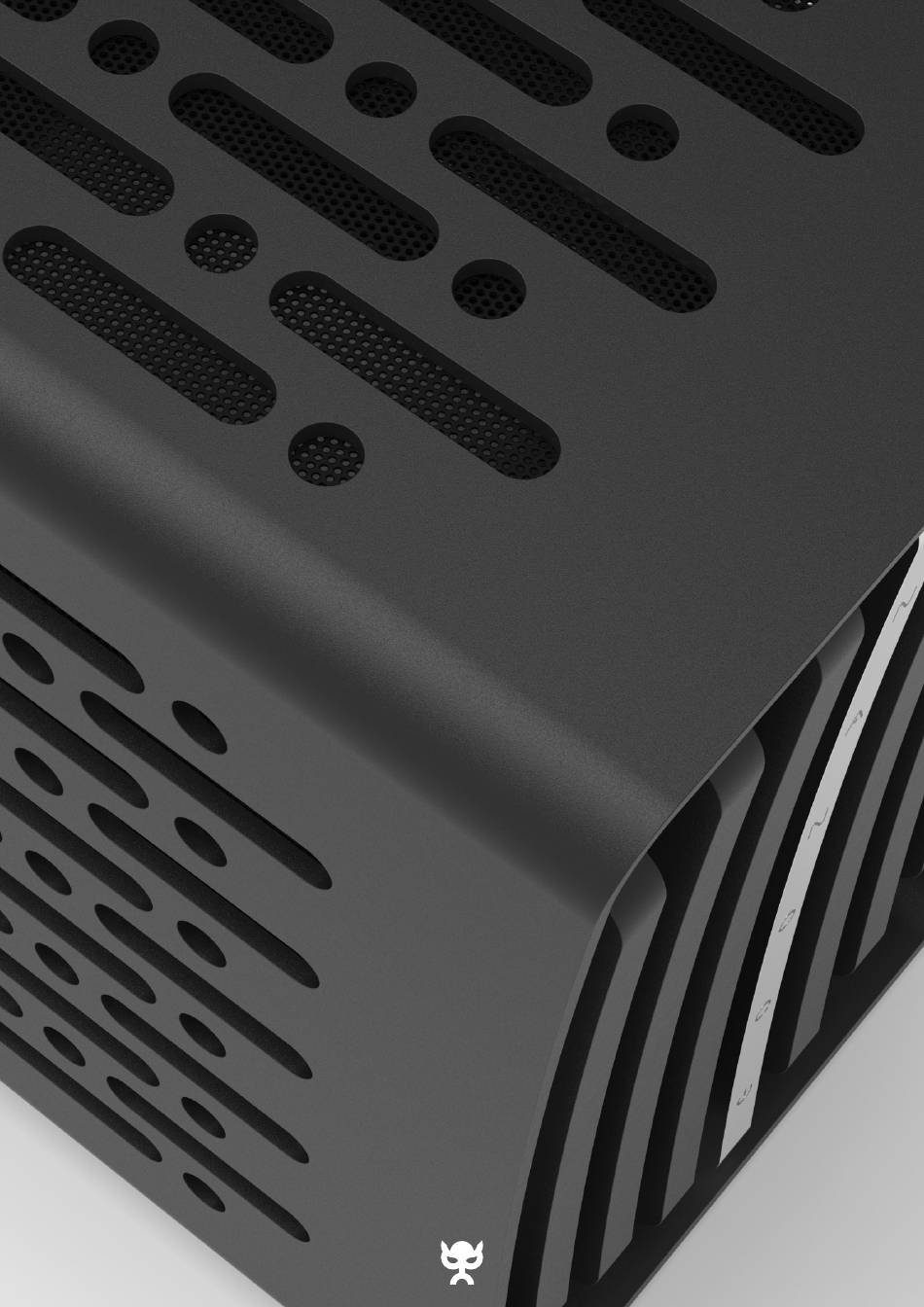

  • Page 1 T H O R Z O N E N A N O Q U SE R M A NUA L V2 (EN G)

  • Page 2: What's In The Box

    WHAT’S IN THE BOX? (1/2) NANOQ S SCREWS 12X #6-32x1.325in COUNTERSNK 6X #6-32x0.4375in COUNTERSNK 14X #6-32x0.3125in COUNTERSNK 12X #6-32 NUT 4X #6-32x0.75in BUTTON HEAD 4X #6-32x0.25in BUTTON HEAD 6X M3x5 1X M3x6 COUNTERSNK 1X M3x10 COUNTERSNK 1X M3x13 4X #6-32x0.25inx4 STANDOFF...
  • Page 3 1X CENTER COLUMN 2X LOCK COLUMN 2X 3RD COLUMN 2X 4TH COLUMN Asetek Gen 7 AIO (Addon) 1X 240 MM AIO 1X AM5 / AM4 BRACKET 1X LGA1700 BRACKET THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...

  • Page 4: Opening And Closing The Case

    Repeat steps 1-3 in reverse to close the case again. When closing the case, insert the core through the back of the shell. FORCE AND GENTLY PUSH THE RISER IN WITH YOUR PALM. FRONT BACK THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 5 Gently insert the rubber feet into the ventilation holes on the shell. You can choose any side and the side you choose will become the bottom of the case. ORIENTATION 1 ORIENTATION 2 THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 6 Remove the (2) power button screws. • Now you can either flip the original Chrome Front 180° or install the Carbon Front or Walnut Front by performing steps 1-3 in reverse. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...

  • Page 7: Adjusting The Lock

    Remove the (2) lock column screws and install your desired lock column (e.g. walnut), NOTE: Please don’t lose the (4) nylon washers, as then tighten those (2) screws again. they help the lock system function smoothly. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 8 TIP: Use the included grip feet to give the handles extra protection and stability when placed on hard surfaces. Secure the handles with (4) corner rail screws. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 9 5V DIGITAL RGB HEADERS ONLY - AVOID 12V HEADERS AT ALL COSTS. • CORRECTLY CONNECT POWER, DATA AND GROUND. • TIP: Lightrays are controlled through motherboard software. Software examples: SignalRGB or OpenRGB. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...

  • Page 10: Dust Filters

    Place a dust filter above these exposed magnet plates and press down. NOTE: BE VERY CAREFUL WHEN OPENING AND CLOSING THE CASE TO AVOID DAMAGING THE DUST FILTERS. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 11 Now you can shift the spine more towards the CPU side or the GPU side. • Tighten the previously loosened screws to fix the spine in the new position. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...

  • Page 12: Graphics Card

    BE VERY CAREFUL WHEN CLOSING THE CASE. DO NOT USE recommend masking the most exposed areas on your GPU FORCE AND GENTLY PUSH THE RISER IN WITH YOUR PALM. with tape (or similar) to protect it. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 13 Place the GPU lock over or under the GPU bracket. Secure the GPU lock to the core with an M3x6 countersunk screw. Secure the GPU lock with (2) M3x5 screws. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 14 Remove the front part of the core. Perform the steps on the previous two pages to install your GPU. Repeat steps 1-2 in reverse to assemble the core again. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 15 NOTE: Using the riser bracket in its lowest position (not default) Repeat steps 1-2 in reverse to lock the new GPU position. may require a longer riser. Please contact us for help. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 16 Align the motherboard with the I/O shield and secure it with (4) button head NOTE: Compatible with mini-ITX motherboards only. screws. Connect the power button. NOTE: Connect the power button PCB to the motherboard with the included power button cable. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 17 SCREWS 4-8x Torx key (size: T10) #6-32x0.3125in COUNTERSUNK INSTRUCTIONS • Radiators and AIO water coolers can be mounted to the radiator rails using (4-8) #6-32x0.3125 countersunk screws. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 18 Torx key (size: T10) #6-32x1.325in COUNTERSUNK 4-8x #6-32 NUT INSTRUCTIONS • Fans can be mounted to the radiator rails using (4-8) #6-32x1.325 countersunk screws and (4-8) #6-32 nuts. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 19 Detach both 3rd and 4th columns. Detach magnetically. Secure the fan with (4) #6-32x1.325in countersunk screws and (4) #6-32 nuts. Attach both 3rd and 4th columns again. NOTE: Attach magnetically. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 20 NOTE: Detach both 3rd and 4th columns. Detach magnetically. Secure the radiator with (4) #6-32x0.3125in countersunk screws. Attach both 3rd and 4th columns again. NOTE: Attach magnetically. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...

  • Page 21: Power Supply

    Snap-in the power cable into the back panel. Plug in the power cable into the PSU power socket. • Compatible with SFX and SFX-L PSUs only. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
  • Page 22 INSTRUCTIONS Loosen the (6) screws holding the PSU. Shift the PSU sideways to fit your needs. Tighten the previously loosened screws to lock the new PSU position. THOR ZONE NANOQ S S:t Persgatan 23, 602 33 Norrköping Sweden contact@thor-zone.com thor-zone.com...
