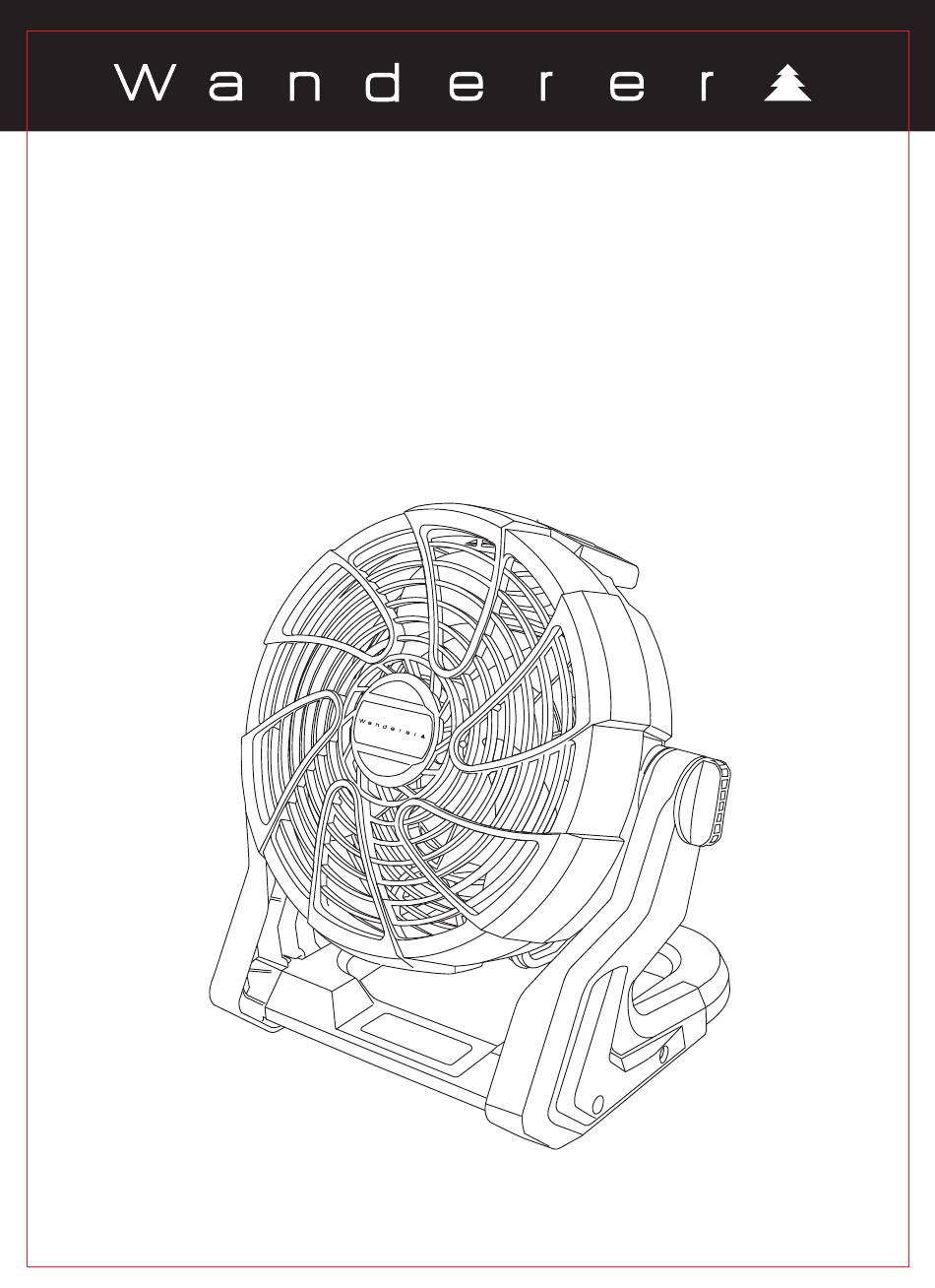

- Page 1 18V RECHARGEABLE FAN OPERATION INSTRUCTION Please read this user manual carefully before use and please keep it for future reference. PLU: 690015...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION..............IN THE BOX..................OPERATION INSTRUCTIONS............CAUTIONS..................MAINTENANCES................SPECIFICATIONS................WARRANTY.................. -
Page 3: Safety Information
SAFETY INFORMATION Warning Symbols: WARNING: Read the operation's manual Do not use in the rain or leave outdoors while it is raining. SWITCH OFF: Remove plug from mains before cleaning or maintenance. Warning of hazard. For indoor use only(only for charger). Positive terminal Negative terminal Prevent short circuit... - Page 4 General Safety Warnings WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 1. This fan is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 5 6. Disconnect this fan from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk. 7. Do not use this fan with any solid-state speed control device. 8.
- Page 6 7. Keep battery pack clean and dry. 8. Wipe the battery pack terminals with a clean dry cloth if they become dirty. 9. Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure. 10.
- Page 7 its service agent or similarly qualified persons in order to avoid a hazard. 4. The battery terminal not connected to the chassis has to be connected first. The other connections is be made to the chassis, remote the battery and fuel line. The battery charger is then to be connected to the supply mains.
- Page 8 pack is charged when the air temperature is between 18°C and 24°C. Do not charge the battery pack in air temperatures below 4.5°C, or above 40.5°C. This is important as it can prevent serious damage to the battery pack. 19. Charge only battery pack of the same model provided by manufacturer and of models recommended by manufacturer.
-
Page 9: In The Box
IN THE BOX Number Parts Number Parts Fan shroud DC socket Tilt locker Battery Pack Release Button Leg pad Battery pack Support leg Hang hook Top handle AC adaptor Control switch Battery pack charger... -
Page 10: Operation Instructions
Product Introduce OPERATION INSTRUCTION Note: Before using this fan, read the instruction book carefully. 1. Battery pack 1) Before the fan work, press the ''on'' button to activate battery pack and you will see battery pack power indicator. - Page 11 2) Charging BEFORE PUTTING INTO OPERATION CHARGING THE BATTERY PACK NOTE: a. The battery in your new fan is not fully charged when it leaves the factory. Therefore it must be fully charged before using the first time. b. Do not use any charger other than that specifically provided for use with the equipment c.
- Page 12 • Make sure to grasp the plug when removing from power supply to avoid damaging the cord. • If the indicator lights fail to illuminate during the charging cycle, unplug the charger from the power supply socket outlet and replace the battery pack.
- Page 13 recharging. If the red indicator flickers rapidly at 0.2 - second intervals, turn off from power supply and check for and take out any foreign objects in the charger's battery slot. If there are no foreign objects, it is probable that the battery pack or charger is malfunctioning. Allow battery/charger to normalise and try again.
-
Page 14: Cautions
supply power, the battery pack stop working. Before using DC socket, draw out the rubber cap first. 3. AC adaptor When use AC adaptor, insert the DC plug into DC socket, and then plug the AC pins plug into a main power supply. Make sure that the voltage rating of the main power supply corresponds with that of the adaptor. -
Page 15: Maintenances
4. Never use water or chemical cleaners to clean the fan. Wipe clean with a dry cloth. Always store the fan in a dry place. 5. Do not remove rubber cap from this fan! When do not use DC socket, always using rubber cap on socket, it is prevent dust into DC socket. -
Page 16: Specifications
SPECIFICATIONS Blade Size 18cm Voltage DC 18V or AC 230-240V AC Adaptor 100-240VAC, 50-60Hz, 0.7A Input (Model: MX24W1-1202000S) Output 12Vdc, 2A 18V Battery Charger 100-240VAC, 50-60Hz, 65W Input 21Vdc, 2.3A Output Battery Pack Model BL1820-HF 18V Battery Capacity 2000mAh 1.5h 18V Battery Charging Time Three Fan Speed Settings Low: 10h/Mid: 5.5h/ High: 3.5h... -
Page 17: Warranty
WARRANTY Our product is guaranteed to be free from quality and manufacturing defects for a period of 12 months. If your product becomes defective during this period, SRGS PTY LTD will offer you either a replacement, credit or refund where a product is faulty; wrongly described;... - Page 20 PLU: 690015 CODE: CPFK-18V DESC: 18V RECHARGEABLE FAN WANDERER Manufactured & packaged for SRGS PTY LTD ABN 23 113 230 050 6 Coulthards Avenue, Strathpine QLD 4500, Australia MADE IN CHINA...
