Instruction Manual

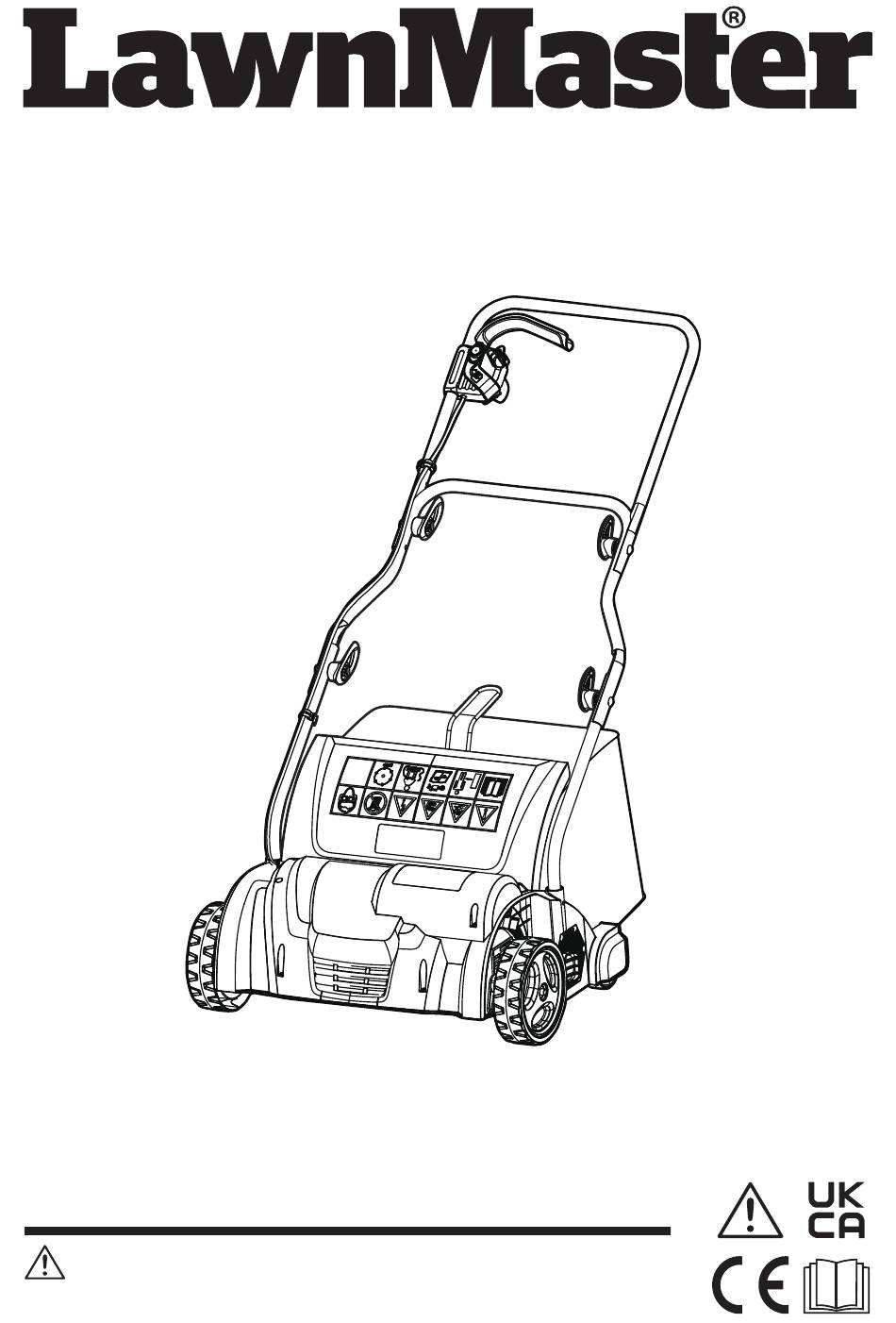

33cm 1350W 2-in-1 Scarifier and Raker GV1333B Combo
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LawnMaster GV1333B Combo
Summary of Contents for LawnMaster GV1333B Combo
- Page 1 Instruction Manual 33cm 1350W 2-in-1 Scarifier and Raker GV1333B Combo Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Section Page Symbols Safety Information 8-16 In the Box Assembly 18-19 Operation 20-22 Maintenance 23-24 Troubleshooting Technical Data Recycling and Disposal... -
Page 6: Symbols
SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Beware of thrown objects. WARNING! Beware of sharp tines, keep fingers and toes away. Remove plug from mains before maintenance, adjusting, cleaning or if the cord is entangled or damaged. - Page 7 SYMBOLS WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the instruction manual. If you do not understand the warnings and instructions in the instruction manual, do not use this product.
-
Page 8: Safety Information
SAFETY INFORMATION IMPORTANT When using equipment, the following safety precautions must be followed to avoid injuries and damage: ■ Read all operating instructions carefully and comply with them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements. -
Page 9: Operating The Machine
SAFETY INFORMATION ■ The machine must only be operated by adults. Children and people who are not familiar with these instructions must not be allowed to use this machine. Never operate this machine while it is raining and in a wet environment. ■... - Page 10 SAFETY INFORMATION that could be caught up and flung out. Never use the machine to level out uneven patches. ■ Wear ear protection and safety glasses at all times while operating the machine. ■ Always wear appropriate protective work clothes and firm shoes with non-slip soles, strong long trousers, ear defenders and goggles.
- Page 11 SAFETY INFORMATION ■ Before starting the machine, check that all screws, nuts, bolts, and other fasteners are properly secured, and that guards and screens are in place. Replace damaged or unreadable labels. ■ If your equipment vibrates or emits unusual noises when switched on, disconnect the plug from the socket and check the cutting cylinder.
- Page 12 SAFETY INFORMATION ■ Always maintain a secure footing while working, especially on a sloping terrain. Always work across slopes – never up and down! Be particularly careful when changing the travelling direction. Do not work on very steep slopes. ■ Walk, never run. ■...
- Page 13 SAFETY INFORMATION lifted or tilted and when traversing surfaces other than grass. ■ Never leave the machine unattended at the place of work. ■ Always switch off the machine and disconnect the power plug. Make sure that all moving parts have come to a complete stop: −...
- Page 14 SAFETY INFORMATION ■ Always allow the machine to cool down before storing. ■ When servicing the tine assembly, be aware that it can still be moved even though the power source is switched off. ■ When servicing the tine assembly be aware that, even though the power source is switched off, the tine assembly can still be moved.
-
Page 15: Electrical Safety
SAFETY INFORMATION supplied or recommended by the manufacturer. The use of unauthorised parts results in the immediate loss of all guarantee claims. ■ Ensure that all nuts, bolts and screws are firmly tightened and that the machine is in a safe working state. ■... - Page 16 SAFETY INFORMATION Should the power cable become damaged during work, then instantly disconnect the power cable from the mains. DO NOT touch the power cable before it has been disconnected from the mains. ■ Keep the extension cables away from the blades and tines. The blades and tines may damage the cables and result in contact with live parts.
-
Page 17: In The Box
IN THE BOX 1. Upper Handle 11. Height Adjustment Lever 2. Starting Lever 12. Front Wheel (X2) 3. Power Cable 13. Motor Cover 4. Centre Handle 14. Wing Knob And Bolt (X4) 5. Collection Bag Handle 15. Cable Clip (X2) 6. -
Page 18: Assembly
ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to pay attention to this warning could result in serious personal injury. - Page 19 ASSEMBLY Mounting and Emptying the Collection Bag (See Figs. 3-4) WARNING Never operate the machine without the safety guard. Danger of injury! The collection bag must be assembled before it is mounted on the machine. ■ Assemble the collection bag frame by connecting the two parts ( ) (Fig.
-
Page 20: Operation
OPERATION NOTE: Please observe local regulations concerning noise protection. Setting the Working Position (See Fig. 5) The machine has 4 principal position settings: Transport position 0 setting This position sets the maximum height for transportation between the tool and the floor. Working position 1 setting Set this position when working with a new machine. -
Page 21: Working With The Machine
OPERATION Changing the Cylinder (See Fig. 7) The machine has two easily exchangeable cylinders: a rake cylinder made of hard plastic with vertically rotating sprung tines, and a scarifier cylinder with vertically mounted high-grade steel knives. WARNING Switch off the machine, disconnect the mains plug and wait until the cylinder is standing still. Wear gloves when handling the cylinder. - Page 22 OPERATION ■ Mow the lawn to between 20 – 30mm. ■ Do not use the scarifier in long grass. It may wind around the scarifier blade and result in damage to the equipment. ■ Select the appropriate working or readjustment position (in the event of cylinder wear) so that the machine is not overloaded.
-
Page 23: Maintenance
MAINTENANCE WARNING If a part becomes worn or damaged, use recommended manufacturers replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always switch the product off, disconnect the plug from the power socket and wait until the cylinder is standing still before performing inspection, maintenance and cleaning work! WARNING Wear gloves when handling the cylinder. - Page 24 MAINTENANCE Storing the Machine (See Fig. 8) The device features the following storage options to save space: ■ Before storing your machine, disconnect the plug from the power socket. Remove the collection bag. ■ Loosen the wing knobs on both sides of the handle bars. ■...
-
Page 25: Troubleshooting
TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist. Gloves and appropriate protective clothing must be worn when performing these instructions. Always turn off the machine and disconnect the plug and wait until the cylinder is standing still before making any adjustment. -
Page 26: Technical Data
TECHNICAL DATA 1350W 2-in-1 Scarifier and Raker GV1333B Combo Motor input 1350W Rated voltage 230-240V~, 50Hz Protection class / II Degree of protection IPX4 Spring tine drum: Max. 33cm Working width Scarifier drum: Max. 33cm Working depth Max. 10mm Collection bag volume Weight 14.7kg... - Page 28 ② ① Fig.3 ③ Fig.1 Fig.2 Fig.4 Fig.5 ④ ⑤ Fig.7 Fig.8 Fig.6...
- Page 30 GV1333B Combo Suzhou Cleva Electric Appliance Co. Ltd No.8 Ting Rong Street Suzhou Industrial Park, Suzhou Jiangsu Province, China www.cleva-europe.com Made in P.R.C...
