SAFE-TECH HESTIA HS-01-SER User Manual

SIGNAL EXTENDER
HS-01-SER
HESTIA Control System

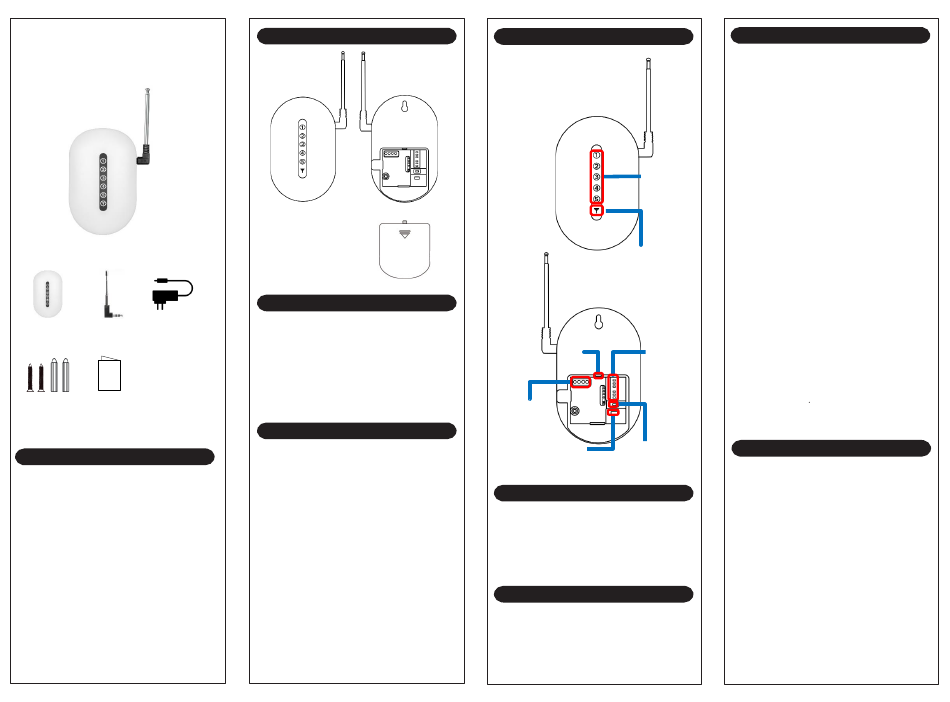

Packaging content
1 x HS-01-SER 1 x Detachable 1 x Power
Antenna Adapter and
USB cable
2 x Screws 1 x User
and plugs Guide
Technical Parameters
Power supply: DC5V or DC12V, Micro USB
Built-in battery: Ni-Hi DC 3.7V
Standby current: ＜ 20mA/DC 5V or <13mA/DC 12V
Working current: ＜ 600mA/DC 5V or <200mA/DC 12V
Working temperature: -20℃-55℃
Wireless parameters: 433 MHz(ASK)/868MHz(FSK)
Max. remote control：99
Max. wireless detector：99
Receiving detection distance: about 100M (open area)
Sending distance: about 600M (open area)
Appearance Design
FRONT BACK
BACK COVER
Introduction
The wireless Signal Extender's main function is to
extend the detector's range to transmit the signal to
the main alarm control panel. It is used where the
Control panel and the detector is far away from each
other, or the transmission and reception of signal is
impaired by walls or other obstacles, preventing a
clean signal to be sent and received. It does not need
to be paired to the HS-700-ACP main control center.
Features
1.Five programmable wireless zones. Each wireless
detector can be paired to one of the five wireless
zones.
2.Each zone can have several detectors paired up to
it, but the total number of paired detectors can not
be more than 99.
3.The two wired zones, Z4 and Z5, can be a closed-
circuit alarm or an open-circuit alarm (NO or NC on
the DIP switches).
4.Compatible with micro-chips of the 1527 series
(resistance 150K-470K) and ordinary coding chip
2262 series (resistance 1.5M-4.7M) for a wide
range of remote detectors.
5.Built-in rechargeable battery, an external power
supply to trickle charge the battery. The external
power supply automatically switch to battery
power when sufficient charged.
6.Built-in EEPROM chip, in case of shutdown or
power failure, so the remote control and detectors
and other programmed information will not be lost
to ensure information security.
LED's, Connections and Switches
FRONT
Zone LEDs
Signal LED
BACK
USB Port
DIP
Switches
Wired
Connection
SET
On/Off
Button
Switch
Operating – Programming Mode
Power on the device (if off). A short beep will sound,
and all 5 LED will quickly flash in order. Then press
the [SET] button for a couple of seconds. A short beep
will follow, and 5 Zone LEDs will light up. Release
button, and the signal extender is in programming
mode.
- Remove ALL Paired detectors
Set the Signal Extender to programming mode as
described above.
Press and hold the [SET] button to hear four beeps,
and the zone LEDs will flash ten times and turn off,
indicating that ALL the paired detector are removed
from the extender.
- Add a detector to a zone
Set the Signal Extender to programming mode as
described above.
Press the [SET] button to select zone. Each time [SET]
is pressed a short beep will sound, and a zone
indicator lights up to indicate which zone is selected.
So, Pressing one time will select zone 1, pressing two
times will select zone 2 and so on.
Then trigger the detector to be paired
(move/open/shock) to trigger a signal to sent to the
extender. If two short beeps are sounded, the
detector has been successfully paired with the
extender. If only one beep is sound, it means that the
detector is already paired to the extender. (You will
get this when you test a paired detector to the Signal
Extender.)
if you hear three beeps, and all 5 zone LEDs are
flashing, that means that 99 detectors are already
paired to the extender and another detector cannot
be added.
Exit the programming mode by pressing the SET
button for two seconds or more. All zone LEDs (or the
selected zone LED) will switch off.
Note: 20 seconds without any activity will
automatically exit the programming mode
When adding devices to zones, it is recommended to
create a list of which devices are paired into which
zone and its location.
- Remove a detector from a zone
Set the Signal Extender to programming mode as
described above.
Press [SET] key to select a zone as described.
Then hold down the [SET] key for a couple of
seconds. Four beeps will sound, and the selected
zone LED will flash four times and then switch
off, indicating that all accessories in the selected
zone are removed.
Repeat for each zone that needs to be cleared.
It is not possible to remove just one, selected
device from a zone. All devices will be removed.
When adding devices to zones, it is advisable to
create a list of which devices are paired into what
zone.
