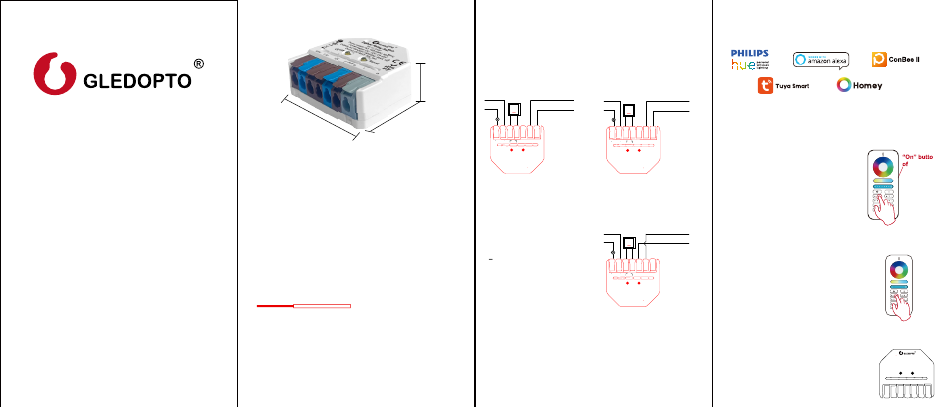

Gledopto GL-C-310P User Instruction

Zigbee Relay Switch
User Instruction
GL-C-310P
Product Parameter
17mm
38mm
42mm
Product model: GL-C-310P
Power supply AC: 100-240V, 50/60Hz
Power supply DC: 12V±10% / 24-48V
Max switching voltage AC: 240V
Max switching voltage DC: 30V
Max switching current AC: 16A
Max switching current DC: 10A
Communication protocol: ZigBee3.0+2.4G RF
Material: Fireproof PC
IP Rate: IP20
Operating temperature: -20~45℃
Size: 42x38x17mm
8-9mm wire preparation
0.5-1.63mm²(24-14AWG)
Function of Button
On/off:
Short press: On/Off
Long press (5 seconds or more): Enable/Disable power-off memory function
(The connected device turns on and off twice indicating activation of this
function)
Reset:
Short press: Change to connect with Push switch or Rocker switch
Long press (5 seconds or more): Reset relay switch
Indicator Light Status
1. Steady On: Rocker Switch
2. Flashing: Push Switch
*Note: The status of the indicator light indicates the device being set
for connecting Push switch or Rocker switch.
Wiring Method
AC 100~240V DC 24~48V
L
K
K
N
SW 12V L ( ) N + ( ) SW
I - 12V L ( ) I - N + ( )
Legend
Device terminals:
.
O: Relay output terminal
.
I: Relay input terminal
.
SW: Switch input terminal
.
L: Live (100-240 VAC) terminal
K
.
N: Neutral terminal
.
12V: DC positive terminal(12V stabilized)
.
I
: DC ground terminal
.
+
: DC positive terminal(24-48V)
SW ( ) + ( )
12V L - I N
Wires:
.
N: Neutral wire
.
L: Live (100 -240 VAC) wire
.
GND: DC ground wire
.
DC+: DC positive wire(24-48V)
.
12V+: Positive wire(12V stabilized)
Connecting with the Gateway
Network Connection:
1. Connect the power supply to the relay correctly.
2. Use the gateway's app to start device search, you need to wait for a
certain period (Please refer to the user manual of gateway). If the gateway
does not find the relay, try power cycling or reset the relay.
3. Once the gateway discovers the relay, add the relay to a designated
room or group.
4. Once connected to the network, you can start using the relay.
GND
Remote Control Pairing/Unpairing
DC+
Pairing Method:
(1)Power off the relay, then power it on again after 10 seconds.
(2)Within 4 seconds of powering on, press
the "On" button of any group on the RF
remote control (Please refer to the user
manual of remote).
(3)When the connected device turns on
and off once, it indicates connecting with
the remote control successfully.
Unpairing Method:
GND
DC 12V
(1)Power off the relay, then power it on again after 10 seconds.
(2)Within 4 seconds after powering on, press 5
times the "All ON" or "ON" button of the group
with which the relay being paired.
(3)When the connected device turns on and
off three times, it indicates disconnection
from the remote control.
short press 5 times
Reset Method
1. Button Reset:
Long press the RESET button for 5 seconds; when the
connected device turns on and off 5 times, it indicates
that the reset is complete.
group 1~6
5 6
M S S
+ -
5 6
M S + S -
Reset
