Summary of Contents for TCi TCI-W60

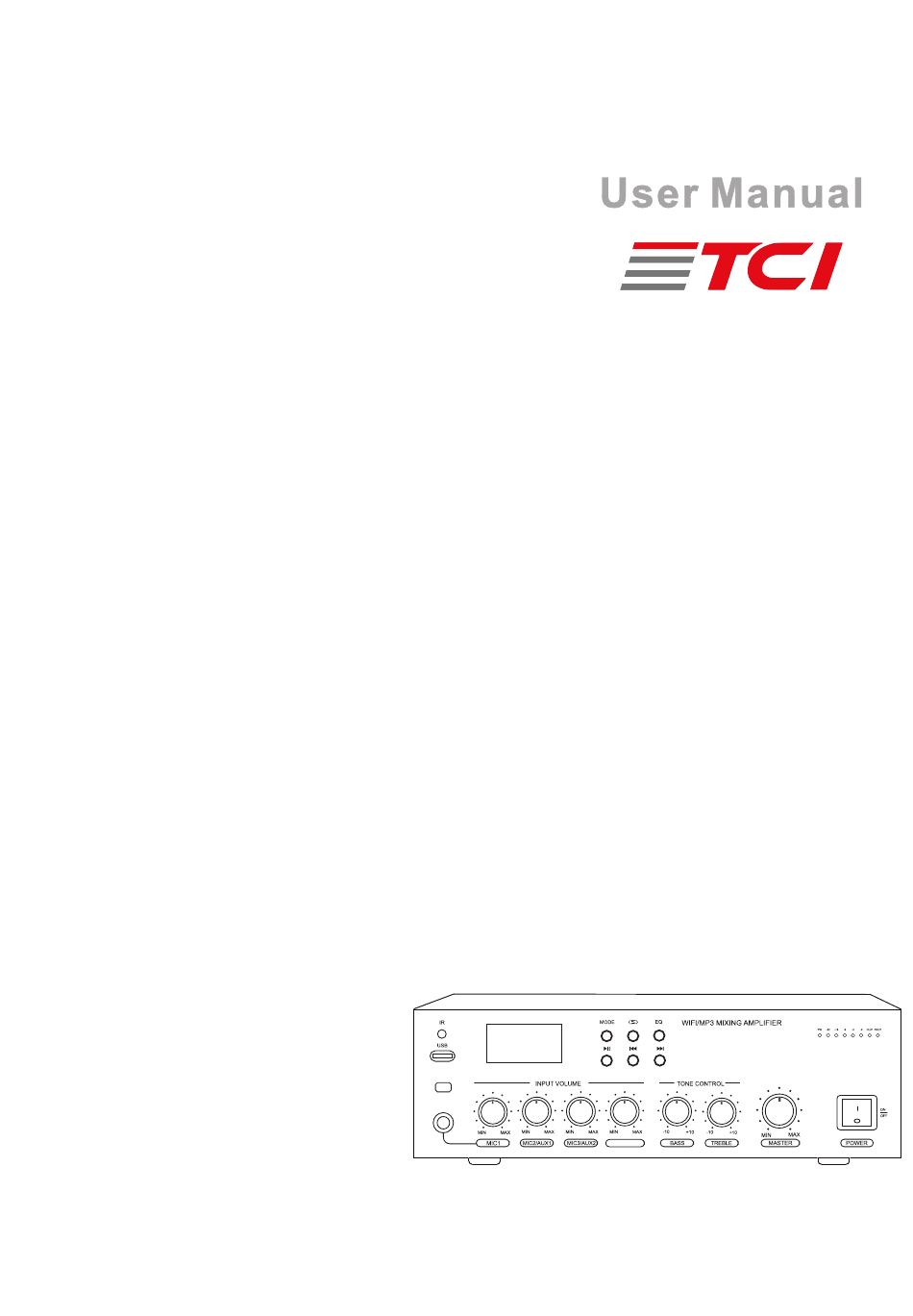

Page 1 VOICE PRIORITY WIFI/MP3 WIFI/MP3 MIXING AMPLIFIER...
Page 2: Safety Precautions
WIFI/MP3 MIXING AMPLIFIER Thank you for purchasing the WIFI/MP3 Mixing Amplifier. Please carefully follow the instructions in this manual to ensure long, trouble-free use of the equipment. Packaging Contents ..................1 WIFI amplifier ..................1 User manual ................... 1 AC power cord ...................
Page 3 WIFI/MP3 MIXING AMPLIFIER When the Unit is in Use ※ Should the following irregularity be found during use,immediately switch off the power,disconnect the power supply plug from the AC outlet and contact your nearest dealer.Make no further attempt to operate the unit in this condition as this may cause fire or electric shock. ·If you detect smoke or a strange smell coming from the unit.
Page 4: Limited Warranty
WIFI/MP3 MIXING AMPLIFIER When the Unit is in Use ※ Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal injury and/or property damage.In addition,the object itself may fall off and cause injury and/or damage.
Page 5: Description & Feature
WIFI/MP3 MIXING AMPLIFIER DESCRIPTION & FEATURE VOICE PRIORITY WIFI/MP3 This WIFI/MP3 Portable Mixing Amplifier is designed as convenient solution for small to medium PA installations with USB player,BT and WIFI receivers in a compact housing. Its outstanding feature of WiFi wireless music streaming receiver,supports connection with your smart device via a free APP,one RJ45 port is available on the rear panel as a backup for the point where the WiFi signal is weaker.
Page 6: Front Panel
WIFI/MP3 MIXING AMPLIFIER FRONT PANEL （3）（4） ⑴ （2） VOICE PRIORITY WIFI/MP3 ⑺ ⑸ ⑹ ⑻ ⑼ ⑽ ⑾ ⑿ ⒁ ⒀ (1) USB Input Interface: Allows you to play USB disk. (2) Screen: Displays the working status of playing programmes. (3) MP3 controllers: This button play or pause USB/BT song.
Page 7: Wps Button
WIFI/MP3 MIXING AMPLIFIER REAR PANEL ⑹ ⑴ ⑵ ⑶ ⑷ ⑼ ⑾ ⑺ ⑻ ⑽ (14) (13) (12) (1) BT/WIFI ANTENNA JACK: Using a special antenna allows for long-distance connection. (2) WPS BUTTON: Pressing it for 6-8 seconds then it will restart to its original factory state. (3) LAN PORT: Allows you to use network cable for the connection when the WiFi signal is weaker.
Page 8: Specification
WIFI/MP3 MIXING AMPLIFIER SPECIFICATION Model TCI-W60 Rated Power Low impedance:4 & 8 ohms (Ω) Speaker Output Mode Voltage line:70V & 100V Legacy Wireless Hi-Fi System WiFi Solution Legacy Player WiFi APP Name Android, iOS WiFi APP Version Wi-Fi 8.2.11 b/g/n(AP/STA modes supported)
Page 9: Connection Illustration
WIFI/MP3 MIXING AMPLIFIER CONNECTION ILLUSTRATION USB Flash Disk Front Panel VOICE PRIORITY WIFI/MP3 CD/DVD Player VIDEO OUTPUT CAUTION Cb/Pb Cr/Pr VIDEO RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING HIGH VOLTAGE INSIDE TO PREVENT ELECTRICAL SHOCK DO NOT REMOVE ANY COVER OR SCREW REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL DO NOT ALLOW THIS PRODUCT TO BE EXPOSED TO RAIN OR MOISTURE DISCONNECT THIS MAINS R-AUDIO-L...
Page 10: Speaker Connection
WIFI/MP3 MIXING AMPLIFIER SPEAKER CONNECTION Important Notes: This amplifier has different loudspeakers outputs of 100V,70V and low impedance 4Ω/8Ω. It's only possible to use one output at the same time,connecting more than one may damage internal parts of the amplifier.Each of 100V,70V,4Ω and 8Ω terminals must work with COM. (common) terminal.
Page 11 WIFI/MP3 MIXING AMPLIFIER 4Ω & 8Ω low impedance output This output allows connection of low impedance loudspeakers without transformers, When two or more loudspeakers are used ensure that they are wired in such a way in Series, or in Parallel, or in Series & Parallel Combination that total load impedance remains at 4Ω...
Page 12 2. Activate the BT settings on your mobile device. BT ON 3. Select this unit “TCI-W60” when its name appears in the list of devices displayed on the screen of your mobile device. Perform the connection with your mobile device close to the unit (about 1 m).
Page 13: Getting Started
WIFI/MP3 MIXING AMPLIFIER WIFI & APP OPERATIONS This amplifier uses the public Legacy Wireless Hi-Fi System The amplifier’s factory default Service Set Identifier(SSID) is: ex. “Link Play_XXXX” GETTING STARTED Connect the amplifier with your speakers. TURNING ON THE WIFI AMPLIFIER To turn this unit ON, plug in the power cord.When the unit turns on, the indicator light will flash Red.
Page 14 WIFI/MP3 MIXING AMPLIFIER •Select your Wi-Fi SSID then ‘Continue’ you will see the Figure 4. • Input your Wi-Fi SSID password,then ‘Continue’,when connected successfully you will see the Figure 5.Select ‘Continue’,a pop up menu Figure 6 will come up and you can select the name from pre-de?ned names or write a desired name for your unit.
Page 15 WIFI/MP3 MIXING AMPLIFIER INSTRUCTIONS OF PLAYING MUSIC My Music Through ‘My Music’, you can access the music that you have saved on your iOS or Android device’s internal storage. You can also access music stored in music server.There are other options such as “recently played”...
Page 16 WIFI/MP3 MIXING AMPLIFIER AirPlay You can play music through AirPlay on your iOS device. To do this you need to ensure that your iOS device and the WiFi amplifier s are connected to the same Wi-Fi network. Swipe up from the bottom of your iOS device and select ‘AirPlay’.
Page 17 WIFI/MP3 MIXING AMPLIFIER CHECK WI-FI STRENGTH To achieve smooth streaming experience, your WIFI AMPLIFIER should have good network connection with your connected router. When connected with Wi-Fi, please check the Wi-Fi strength when you have problem with streaming experience. The steps to check the Wi-Fi strength are as follows: 1.
Page 18 WIFI/MP3 MIXING AMPLIFIER ALARM CLOCK(Figure 18) The alarm lets you wake up to your own music from the iTunes library or your subscribed music services. You can set several alarms and specify for each alarm which days they should wake you up and which playlist to use.
Page 19 WIFI/MP3 MIXING AMPLIFIER LANGUAGE SETUP (Figure 20) You can click the “System” tab to select the language you want,then save it. Figure 20 CHANGE DEVICE NAME (Figure 21) The factory default device name is ex. “Linkplay_XXXX”,you can click the “Network” tab to “Change device name”...
Page 20: Troubleshoot
WIFI/MP3 MIXING AMPLIFIER TROUBLESHOOT SETTING UP THE AMPLIFIER How do I connect the WIFI AMPLIFIER to my Wi-Fi network? You'll need to download the Legacy Player app for iOS or Android. Once you download it, the app will help you through the setup process. I'm still having trouble setting up the Wi-Fi connection for my Amplifier.
Page 21: Frequently Asked Questions
WIFI/MP3 MIXING AMPLIFIER How do I stream music from my DLNA enabled NAS (Network-Attached Storage) device? First make sure your DLNA enabled NAS device is powered on and connected to the same wireless network as your Amplifier and smartphone/tablet. Tap the Legacy icon in the top left of the Legacy app. Select My Music, and select your device.
Page 22 WIFI/MP3 MIXING AMPLIFIER Can I login multiple WIFI AMPLIFIERS to Spotify at the same time? You should be able to login multiple devices to your Spotify premium account but you can only stream Spotify from one device (or multi-room group) at a time. The Spotify App allows you to switch among different Spotify Connect clients.
Page 23 WIFI/MP3 MIXING AMPLIFIER NOTE: Page 22...
Page 24 CAUTION: Do not open the equipment cover arbitrarily, so as not to electric shock. Please contact the professionals to maintian if necessary. The products are constantly improving,subject to change without prior notice.
