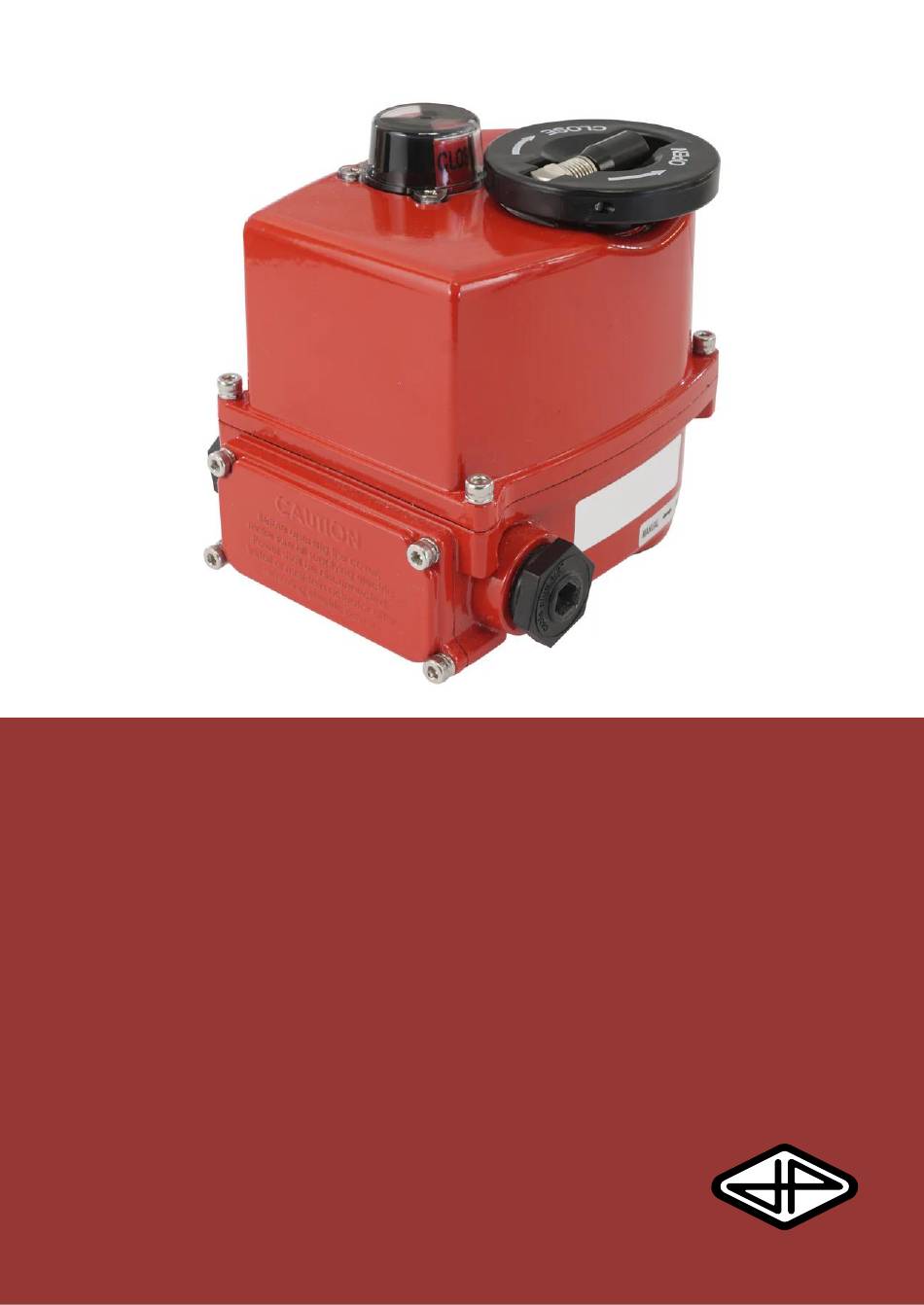

- Page 1 AG-540-DPS Modulating electric actuator JP Fluid Control®...
-
Page 2: Specifications
14x14 star connection Duty cycle S2 30 min Water resistance IP67 weather proof rating for housing Cable entry 2x 1/2” PF Feedback Two limit switches Heater power Outer dimensions 101.6 x 120.6 x 128.6 mm JP Fluid Control® Modulating electric actuator v20250204... -
Page 3: General Safety Instructions
Improper installation can permanently damage the actuator or lead to dangerous situations ◼ Compliance The actuators are CE marked and comply with the EMC Directive (2014/30/EU), provided that the cables and connectors are properly connected. JP Fluid Control® Modulating electric actuator v20250204... -
Page 4: Duty Cycle
Identification The following figure shows an example of the type plate of the actuator. Observe the specifications and the connection diagram before using the product. Figure 1 Example of specification sticker JP Fluid Control® Modulating electric actuator v20250204... - Page 5 Modulating electric actuator Components Figure 2 Components Dimensions Figure 3 Outer dimension JP Fluid Control® Modulating electric actuator v20250204...
-
Page 6: Electrical Connections
4. Insert a suitable cable through the cable gland. 5. Connect the wires to the terminal block according to the diagram below. Figure 4 Removal of terminal block plate Figure 6 Electrical wiring diagram JP Fluid Control® Modulating electric actuator v20250204... - Page 7 13. Wait for the automatic calibration program to complete. The actuator will cycle three times within the 0–10% range (closed position) and three times within the 90–100% range (open position). JP Fluid Control® Modulating electric actuator v20250204...
- Page 8 9x9mm or 11x11mm, an enclosed adapter can be used. The valve must be fixed to the actuator by four bolts of M5 (type F03), M6 (type F05) or M8 (type F07). Figure 9 Mounting position Figure 10 ISO 5212 mounting JP Fluid Control® Modulating electric actuator v20250204...
-
Page 9: Dip Switches
SPAN and ZERO follow these steps: Performing calibration can only be done by a certified service technician as it is done on a live PCB. 1. Remove the top cover (4 captive bolts). JP Fluid Control® Modulating electric actuator v20250204... - Page 10 To change the deadband, access the PCB by taking of the top cover (see Span and zero above) and use a flat screwdriver to rotate the potentiometer shown in figure 12. Figure 12 Deadband potentiometer on PCB JP Fluid Control® Modulating electric actuator v20250204...
-
Page 11: Led Status
2. Fold the lever in the wheel up and rotate until the actuator has reached the desired position. Figure 14 Manual mode operation JP Fluid Control® Rack & Pinion Pneumatic Actuators v20250130... -
Page 12: Limit Switch Adjustment
This manual can be downloaded from www.jpfluidcontrol.com. Modifications reserved. While this document has been prepared with the utmost care, JP Fluid Control assumes no liability for any errors or omissions. No rights can be derived from its contents. JP Fluid Control® Rack & Pinion Pneumatic Actuators...
