Kingbird GH1356 User Manual

Polycarbonate greenhouse 6x8x6 ft
Hide thumbs

Advertisement

Table of Contents

for KING BIRD Polycarbonate Greenhouse
6X8X6 FT MODEL: GH1356
Please read, understand, and practice the guidelines in this use
manual before use,and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GH1356 and is the answer not in the manual?

Questions and answers

Related Manuals for Kingbird GH1356

Summary of Contents for Kingbird GH1356

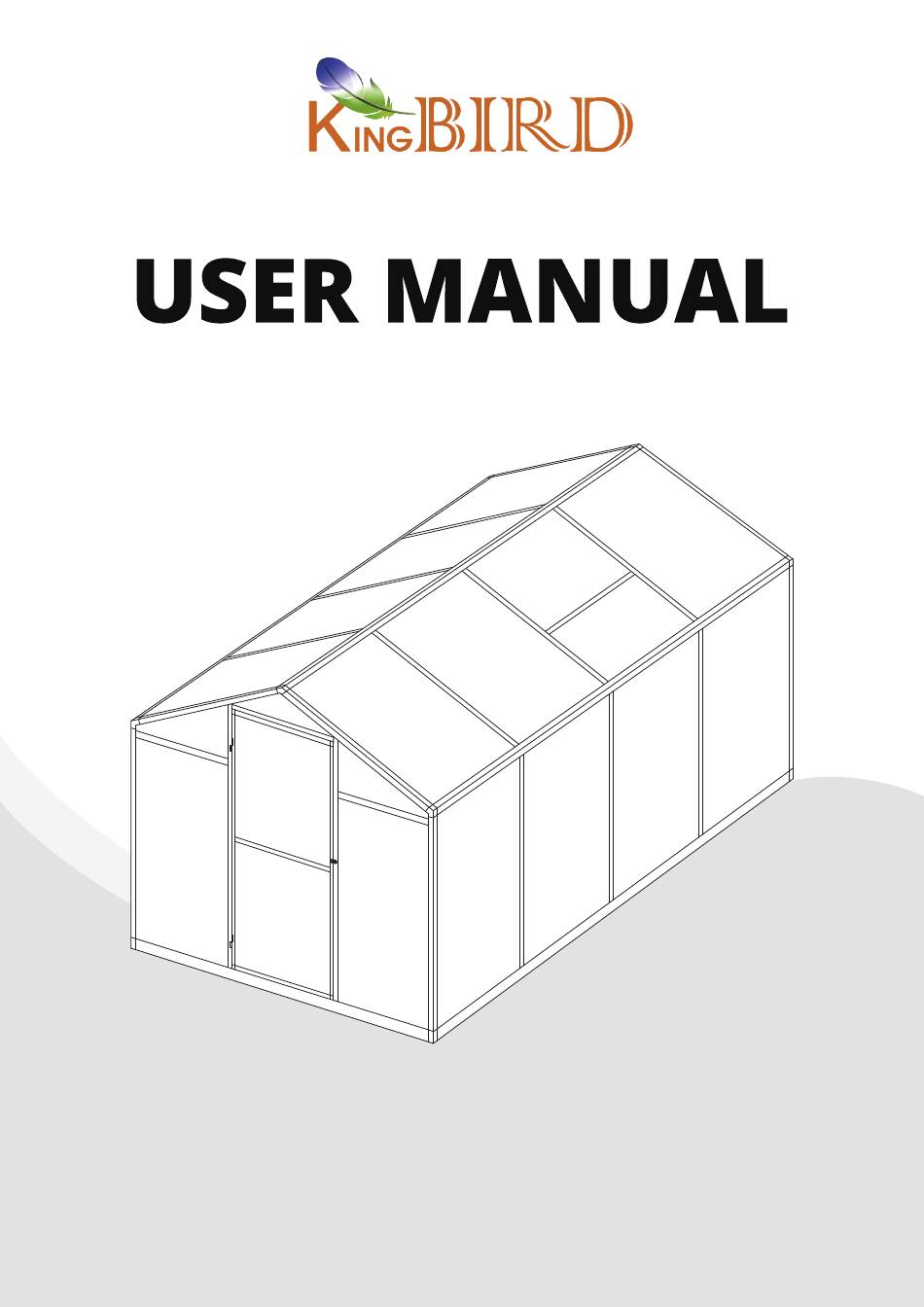

  • Page 1 KING BIRD Polycarbonate Greenhouse 6X8X6 FT MODEL: GH1356 Please read, understand, and practice the guidelines in this use manual before use,and keep it for future reference.
  • Page 3 Table of Contents 6X8X6 FT Polycarbonate Greenhouse (MODEL: GH1356) Maintenance Warranty Important We’d love to hear from our customers. If you have any questions about the manual or would like us to help in any way, please feel free to contact the support team. We will reply in 12 hours.

  • Page 4: Important Recommendations

    Safe Advice 1.Please wear gloves before installation to prevent injury.The Green- house contains parts with sharp edges. 2.Keep children away from the assembly area.When using power tools, make sure that you are following the manufacturer’s safety advice. 3.PC(Polycarbonate) panel accompanied by a layer of plastic paper, Important Recommendations 1.Important recommendations 2.Please check the parts list before starting the installation to make...
  • Page 5 6x8x6 FT Polycarbonate Greenhouse (MODEL: GH1356) You'll receive (2) box for this model. Please pay particular attention to making sure all parts are numbered and graphically indexed as shown on the Parts List, and so does the quantity for each part.
  • Page 6 The Part Number of Connectors...
  • Page 7 Back Side Left Side Right Side Front Side Door...

  • Page 8: Parts List

    Parts List Part Image Description Part# 46.42" Pole 1 46.42" Pole 2 67.72" Pole 3 67.72" Pole 4 51.30" Pole 5A 51.30" Pole 5B BOX - 1 46.42" Pole 6 46.42" Pole 7 37.64" Pole 8 37.64" Pole 9 37.64" Pole 10 37.64"...
  • Page 9 Parts List Part Image Description Part# 64.68" Pole 12 64.68" Pole 13 65.28" Pole 14 65.28" Pole 15 51.30" Pole 16 38.15" Pole 17 BOX - 1 #18A 38.15" Pole 18A 38.15" Pole 18B #18B 20.35" Pole 19 21.50" Pole 20 24.80"...
  • Page 10 Parts List Part Image Description Part# 46.42" Pole 23A #23A 46.42" Pole 23B #23B 22.44" Pole 24 61.02" Pole 25 61.02" Pole 26 22.17'' Pole 27 BOX - 1 22.17" Pole 28 22.83" Window Fame 30 46.42" Pole 31 Leg Pole Connector Beam Connector-A #33A #33B...
  • Page 11 Parts List Part Image Description Part# Top Connector BOX - 1 Pipe Connector Channel Connector 52.56"X23.15" A-panel 38.98"X23.15'' B-panel 50.98"X22.24" C-panel 50.98"X23.15" D-panel BOX - 2 22.24"X14.17" E-panel 21.26"X23.15" F-panel 50.98"X21.06" G-panel 13.58"X21.06" H-panel 24.80"X7.76" I-panel...
  • Page 12 Parts List Part Image Description Part# BOX - 2 14.76"X23.15" J-panel 30.71"X22.80" K-panel 1 pack M6X7 Screws (4 pcs) 1 pack M6X9 Screws&Nuts (24 sets) 1 pack M6X12 Screws&Nuts (60 sets) 1 pack M6X26 Screws BOX - 1 (4 pcs) 1 pack M6X35 Screws&Nuts (8 sets)
  • Page 13 Step 1 First connect pole #1 & #2. Use #45x2 screws to strengthen two poles. Part Image Part# Step2 Use connectors #32 to link two sides of the frame. Part Image Part#...
  • Page 14 Attention: (Pole #1 #2 #3 #4) Longer side should be placed inside. longer side normal side...
  • Page 15 Step 3 Install pole #5A & #5B on the pole #3. Attention: The sides of #5A&5B which have two holes should be install up side; Longer side should be placed inside. Part Image Part# inside outside When you stand oudside of the frame and face pole #3, the #5A pole should be placed on your left side, and the #5B shoule be placed on your right side,...
  • Page 16 Step 4 Install pole #12 & #13 on the pole #3. Attention: The bottom of the Poles #12 & 13 have one hole. Use #42 screw to strengthen two poles. Part Image Part#...
  • Page 17 Step 5 Install the front side PC panels. Install the PC panel through the slot on the rod. Place panel in the slot and gently slide it down. Part Image Part# The slot of poles, panels should be installed in here. 5A&5B...
  • Page 18 Step 6 Install #19 poles. Place poles #19 on top of panel G and secure through slot. Then use secrews Part Image Part#...
  • Page 19 Step 7 First install pole #21 on the top of pole #12&13 ,then put panel #I on pole#21. Install panel # H & I； Install the PC panel through the slot on the rod. Place panel in the slot and gently slide it down.
  • Page 20 Step 8 Connect pole #8&#9 (This step needs connectors #33A & #33B & #34) Attention:Ensure that there is no gap when installing poles and connec- tors.The edge of the panels should be placed in the poles slots. Part Image Part# up side up side Next step, connect pole#8&9 to #5A &...
  • Page 21 Step 9 Use Screw #42 to strengthen pole #8 & 9 and pole# 21. Part Image Part# Install panels of other side.
  • Page 22 Step 10 Install pole #5A & #5B on the pole #4. Attention: The sides of #5A & 5B which have two holes should be install up side. Longer side should be placed inside. when you stand oudside of the frame and face pole #4, the #5A pole should be placed on your left side, and the #5B shoule be placed on your right side.
  • Page 23 Step 11 Install pole #15 & #14 on the pole #4. Attention:The bottom of the Poles #15 & 14 have one hole Use #42 screw to strengthen two poles. Part Image Part# Step 12 Install the PC panels of back side. Install the PC panel through the slot on the rod.
  • Page 24 5A&5B 14&15 Install #20 poles. Place poles #20 on top of panel G and secure through slot. Then use secrews Part Image Part#...
  • Page 25 Step 13 Install the panel #D by using the same method, then install the pole #22 and secure with #42 screws. Finally, gently insert # E panel the slots of poles # 5A &15 and # 5B &14. Part Image Part#...
  • Page 26 Step 14 Connect pole #10 &#11(This step needs connectors #33A &#33B & #34) Attention:Ensure that there is no gap when installing poles and connec- tors.The edge of the panels should be placed in the poles slots. Part Image Part# up side up side Next step, connect pole#10 &11 to #5A &...
  • Page 27 Step 15 Use Screw #42 to strengthen pole #10 & 11. Part Image Part#...
  • Page 28 Step 16 Connect pole#6&7 and use #45 screw to reinforce. Then, link pole#6&7 to the frame. After installation of poles ,tighten the screw #42 from the inside. Part Image Part# Part Image Part# From inside...
  • Page 29 Step 17 Connect pole#23A &2 3B and use #44 screw to reinforce. Next step ,install the window. After all that , connect pole #23A& B to the main frame.(need screw #44) Part Image Part# Part Image Part# The top round edge of the window frame should be stucked in the circular groove of the pole (#23B).
  • Page 30 Step 18 Install the PC panel through the slot on the rod. Place panel in the slot and gently slide it down. Part Image Part#...
  • Page 31 Step19 Install pole #15 & #14 on the pole #4. Part Image Part# 1.First place two screws through the groove of the pole.Place one screw in the bottom screw hole. 2. Then align the edge of the PC panel with the slot of the pole.
  • Page 32 Step 20 Install the PC panels through the slot on the rod. Place panel in the slot and gently slide it down. Part Image Part# Part Image Part#...
  • Page 33 Step 21 Install top poles. Part Image Part# 1. First place two screws #41 in the slot of the pole and put those two screw into holes. 2.Align the pole with the card slots on 3. Ensure that the top and sides of the PC panel are in the slots of the rod.
  • Page 34 Step 22 Install the frame of window. Or the installation of window will fail. (By hands or other supporting) Place two screws #42 in the slot of the pole #24 and put those two screw into holes on #18A & B. Finally,Tighten the screw through the nut. Step 23 Insert the panels gently through the slot of the pole and ensure that the top and sides of the panels also go into the slot.
  • Page 35 Step 24 Install larmiers. Part Image Part# Install the upper square part through the hole in the sink, then screw in the lower part. You can choose to use a water pipe, which will collect rainwater for your irriga- tion.
  • Page 36 You can attach the pipe to the frame with a buckle #52 Frame Frame Step 25 Install the door. 1.First use screws #37 to connect the two sides of pole #27 and the bottom of poles #26&#27. Then swipe the #K panel into the frame from the top. Part Image Part#...
  • Page 37 2.Next step , install pole #28 at the top of the panel, and connect to pole #26 & 27 by screw #42. 3.Insert the #K panel from the top and install the #27 pole,which is secured to the top of the #26 & 27 rod by the #37 screw.
  • Page 38 Step 26 Install the stake components First, hang the black stake on the edge of the frame. Then insert the silver stake and press it in.

  • Page 39: Maintenance

    Maintenance To help you maintain your greenhouse in optimal conditicon and for longer service life, please refer to our suggestions below: Please clean up snow in time, or the greenhouse may break due to overloading. When high winds blow, please open all the doors and windows to let the winds pass through.
  • Page 40 Reminders In the event that you failed to access your order information online, we strongly advise you to keep the original packaging and shipping carton(s) because they are treated as a proof of purchase. 2. To get what you need as soon as possible, we strongly suggest you providing all of the following information Order number Required parts (name, quantity, and part number)
