Summary of Contents for AVANT OptiTemp A458935

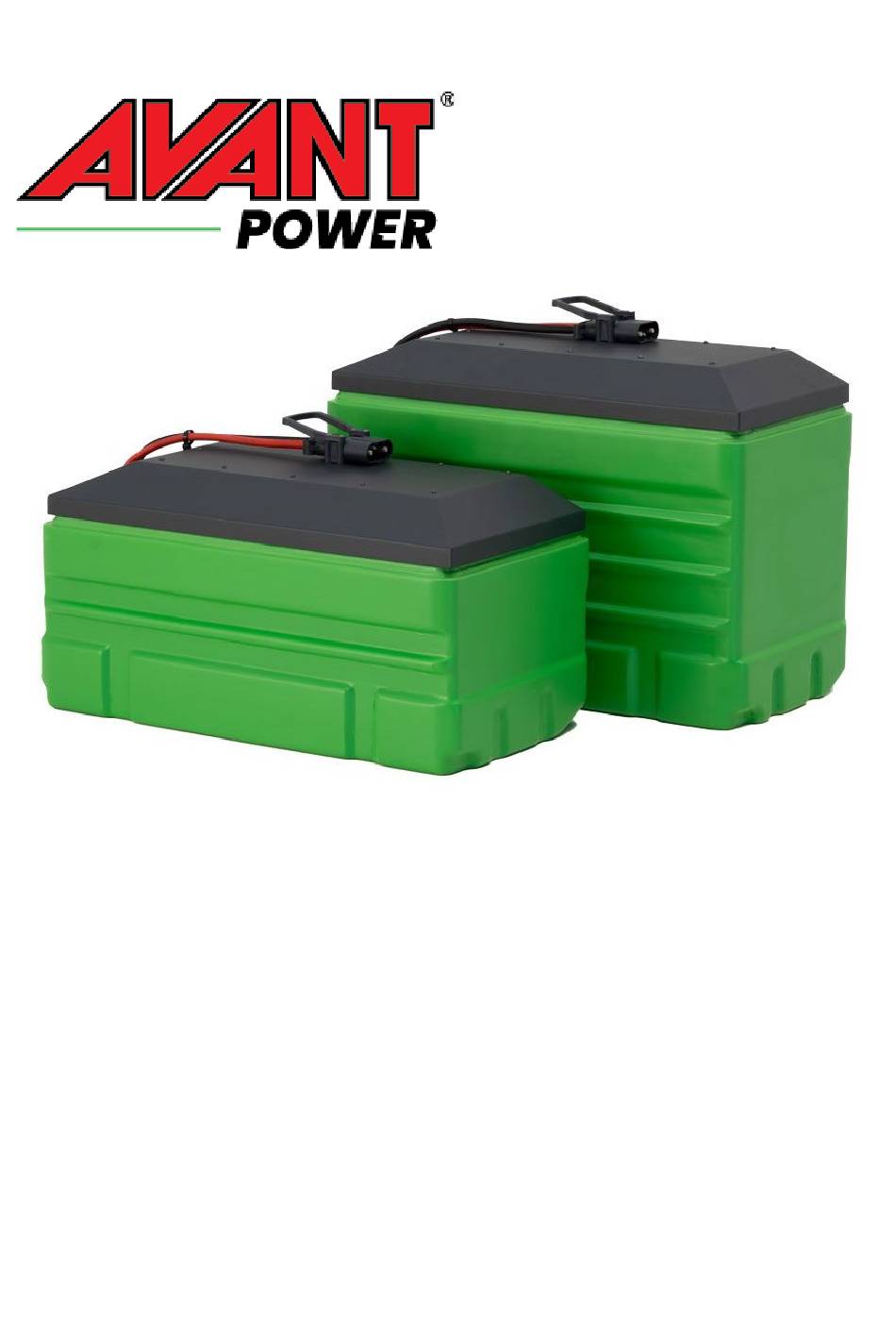

- Page 1 OptiTemp® – Batteries A458935 A458226 A466799 Operator’s Manual A465990 rev 1 www.avanttecno.com +358 3 347 8800...
-
Page 2: Table Of Contents
OPERATOR’S MANUAL No.: A465990 rev 1 Date of issue: 12.2.2024 Date of revision: 24.10.2024 Contents 1. FOREWARD ..............................3 1.2 Warning symbols used in this manual ....................3 1.3 Important relation to other safety documents ................... 4 2. DESIGNED PURPOSE OF USE .......................... 4 3. -
Page 3: Foreward
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 4: Important Relation To Other Safety Documents
2. DESIGNED PURPOSE OF USE The AVANT POWER Optitemp LiION battery pack is rechargeable energy source for use with ELECTRIC AVANT LOADERS. The battery pack is intended to provide energy to drive and operate the Loader. -
Page 5: Safety Instructions
Risk of electric shock and thermal liquid leak if the battery drops when removing from or installing it into a Loader. Lifting device is required. Do not remove or install the battery yourself. Only Avant service is authorized to remove or install a battery. ... -
Page 6: Personal Protective Equipment
OPERATOR’S MANUAL No.: A465990 rev 1 Date of issue: 12.2.2024 Date of revision: 24.10.2024 3.1 Personal protective equipment Remember to wear proper personal protective equipment: Wear protective gloves when cleaning the battery and mounting space. Wear safety glasses e.g. when using cleaning aids. 4. -
Page 7: Safety Labels, Main Components And Dimensions Of The Battery
OPERATOR’S MANUAL No.: A465990 rev 1 Date of issue: 12.2.2024 Date of revision: 24.10.2024 4.1 Safety labels, main components and dimensions of the battery Listed below are the labels and markings attached to the battery and e-Loader. They must be visible and readable on the equipment. - Page 8 OPERATOR’S MANUAL No.: A465990 rev 1 Date of issue: 12.2.2024 Date of revision: 24.10.2024 Picture 2 – Examble of identification label Picture 3 - Warranty label Page 8 / 13...
- Page 9 OPERATOR’S MANUAL No.: A465990 rev 1 Date of issue: 12.2.2024 Date of revision: 24.10.2024 Picture 4 – Dimensions of the batteries Battery Model Width (X) Length (Y) Height (Z) Double-module OptiTemp battery 419 mm 846 mm 400 mm 4-module OptiTemp battery 419 mm 846 mm 567 mm...
-
Page 10: Removing Or Installing The Battery
Date of revision: 24.10.2024 5. REMOVING OR INSTALLING THE BATTERY Do not remove or install the battery yourself. Only Avant service is authorized to perform such maneuvers. Contact your local Avant service provider for further actions. 6. CONNECTING AND DISCONNECTING THE CHARGER CONNECTOR ... -
Page 11: Safety Features Of The Battery Management System
In normal situation charger will follow battery charge commands and over-charging cannot happen. Always use the onboard charger of the loader or Avant rapid charger to charge battery. 9. RUTINE INSPECTIONS BEFORE USE OF THE E-LOADER Following inspection guideline should be performed before normal use of the e-Loader. -
Page 12: Maintenance And Service
Contact your local Avant service provider for further service and maintenance. 11. WARRANTY TERMS Avant Power Oy grants a warranty of three years (36 months) or 900 charging cycles which ever comes first, from the date of purchase of the battery or the loader. -
Page 13: Ec Declaration Of Conformity
OPERATOR’S MANUAL No.: A465990 rev 1 Date of issue: 12.2.2024 Date of revision: 24.10.2024 12. EC DECLARATION OF CONFORMITY The Battery System is a part of the CE marking of the loader according to the applicable regulations. 12.1 Norms & regulations •...
