HDA uControl Remote Product Manual

Hide thumbs Also See for uControl Remote:
Table of Contents

Advertisement

Quick Links

Download this manual
uControl Remote
PRODUCT GUIDE
English (UK)
Revision 1: 15/08/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uControl Remote and is the answer not in the manual?

Questions and answers

Related Manuals for HDA uControl Remote

Summary of Contents for HDA uControl Remote

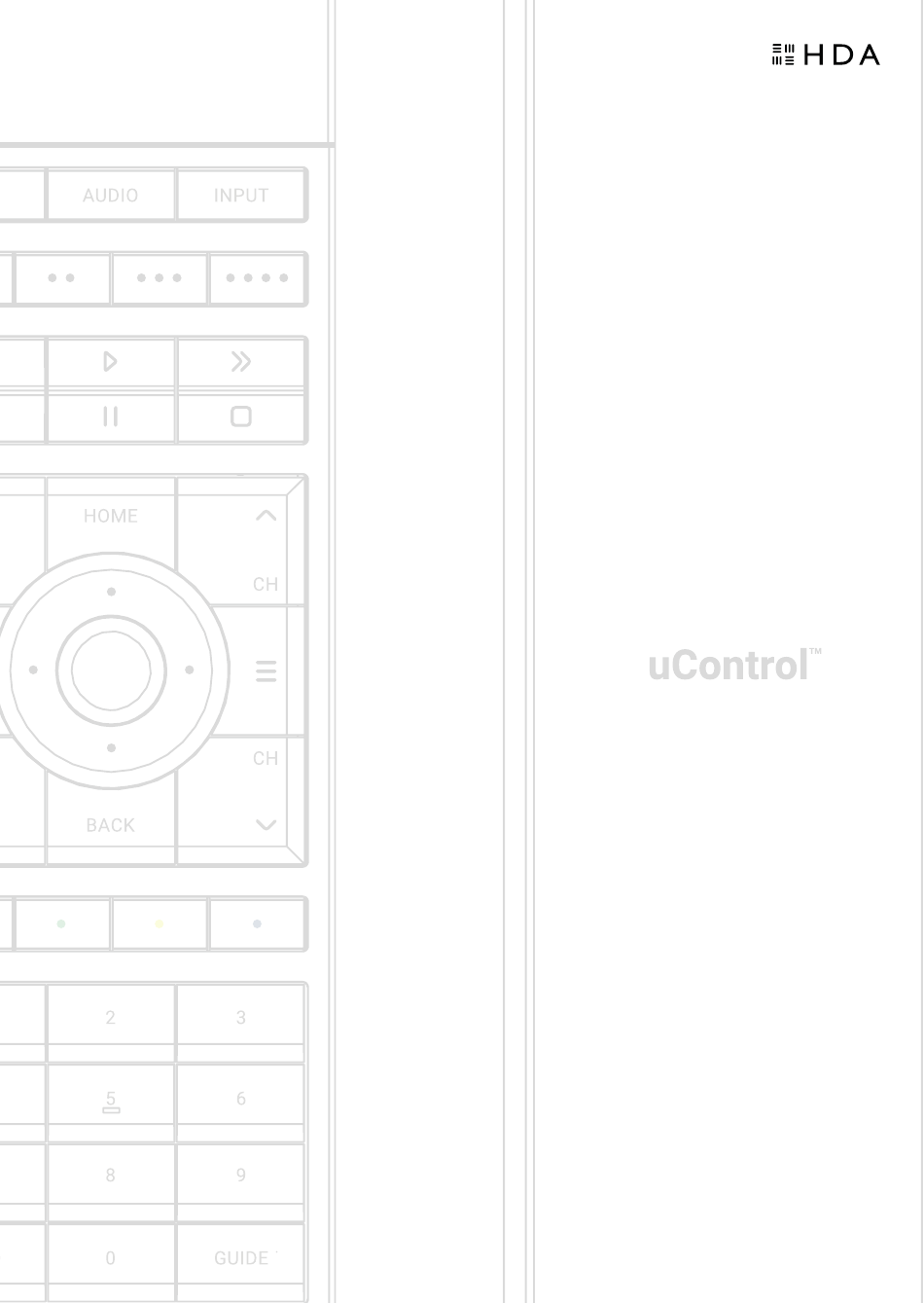

  • Page 1 Remote PRODUCT GUIDE English (UK) Revision 1: 15/08/24...

  • Page 2: Table Of Contents

    Multiple Zones with multiple uControl Remotes using MHUB Media or cinema rooms with MHUB Media or cinema rooms with Zone or Connect Processors Warranty information 16-17 In the box. uControl Remote (Plastic or Aluminium) 25cm | 9.84 inches USB-C Charging Cable 1200mAh Battery (Installed)

  • Page 3: Helpful Things To Know

    Avoid hiding too many controls as long press events or putting all room/Zone controls on to the uControl Remote. Remember: its primary purpose is to be a great remote for TV and music. Try to keep your customisations simple and easy to use.

  • Page 4: Adding To Your Wifi Network

    USB-C cable. Press & Hold for 5 seconds Power ON the uControl Remote. Press and hold both the HDA and Power keys for 5 seconds until the device turns on. It will boot up and display “DISCOVERY MODE” showing its WiFi network name (SSID) and IP address.
  • Page 5 Access the uControl Remote’s Network Page. Open a browser and go to: http://192.168.10.1 SKY55568E Follow the on-screen instructions to connect the uControl Remote to your local WiFi YOUR_WIFI_NAME network. Wait for connection. The uControl Remote will attempt to connect to your WiFi. The screen will update with its progress.

  • Page 6: Configuring For Use

    Configuring for use. Test with the App first. VOL UP Before adding the uControl Remote to a Zone or Room, test all commands, Sequences and Functions for that Zone using the uControl App. This is faster than testing with the Remote, saving you time during setup.
  • Page 7 Remote is ready to use. After rebooting, the uControl Remote will display its home screen, showing the active Zone and input controls. Your uControl Remote is now ready to use.

  • Page 8: Device Diagram & Details

    Displays active control options, the Zone the uControl Remote is assigned to, menus and feedback from the wider uControl system. Input Selector Keys Select between “TV”, “Audio” or “Input” to map uControl Remote’ s keys (#8) to another device for control. If multiple devices exist, a menu will appear. Sequence Keys Assign uOS Sequence(s) or Functions to these keys to control AV, lighting, blinds, shades etc.

  • Page 10: Specifications

    Specifications. Dimensions (W/H/D) 50.38 x 207.05 x 12.13 mm | 1.98 x 8.14 x 0.47 inches Materials ABS Plastic / ABS Plastic & Aluminium Colour (Plastic) Black Colours (Aluminium) Carbonite, Custom Weight 124g | 4.37 ounces Package Weight 300g | 10.58 ounces Aerials WiFi (2.4Gz) | BT Low Energy (5.1) WiFi type...
  • Page 11 50.38 mm 12.13 mm...

  • Page 12: Adding To Hda Systems

    Remote in typical scenarios. For maximum control flexibility, use MHUB. Adding the uControl Remote to MHUB gives you more options, like mobile IR transmission, IR control for all sources, and CEC-based automations (which are often better than IP control, especially for displays).

  • Page 13: Multiple Zones With Multiple Ucontrol Remotes Using Mhub

    You have the choice to emit IR commands from the Remote or from the display receiver IR emitter. Additionally, you also gain the option to use CEC for on/off behaviours. If a Zone contains an audio output from MHUB or MZMA or an AVR, then you can transfer volume control to the uControl Remote.

  • Page 14: Media Or Cinema Rooms With Mhub

    Use the IR emitter connected to MHUB’ s display receiver to control devices where uControl Remote’ s on-board IR has no direct line-of-sight. Creating a Function with a relay to allow Sequences for Room Off or Room ON to control...

  • Page 15: Media Or Cinema Rooms With Zone Or Connect Processors

    It is recommended to use an IP Pack (if supported) to control the AVR so that the uControl Remote can switch inputs on the AVR when an input control is selected. Use the optional CEC port on the Zone Processor to automate Room OFF or Room ON operations on the display (if supported).

  • Page 16: Warranty Information

    OUR GUARANTEE TO YOU 2. We, HDANYWHERE warrant to you, the end user of the HDA hardware (the “Products”) that on the date of delivery of the Products to you, and for a period of 2 years from that date of delivery, the Products shall: (a) match any description that has been provided to you;...
  • Page 17 TRANSFERRING YOUR GUARANTEE TO SOMEONE ELSE 7. HDA will not accept any liability under such guarantee unless you are the original customer or can produce a letter or chain of letters from the original customer and subsequent customers (where appropriate) transferring the benefit of the guarantee to you.
  • Page 18 HD Connectivity Ltd. Registered in England & Wales 06046737 VAT 913222367 HDA assumes no responsibility for any inaccuracies that may be contained in this document. In no event will HDA be liable for direct, indirect, special, incidental, or consequential damages resulting...
