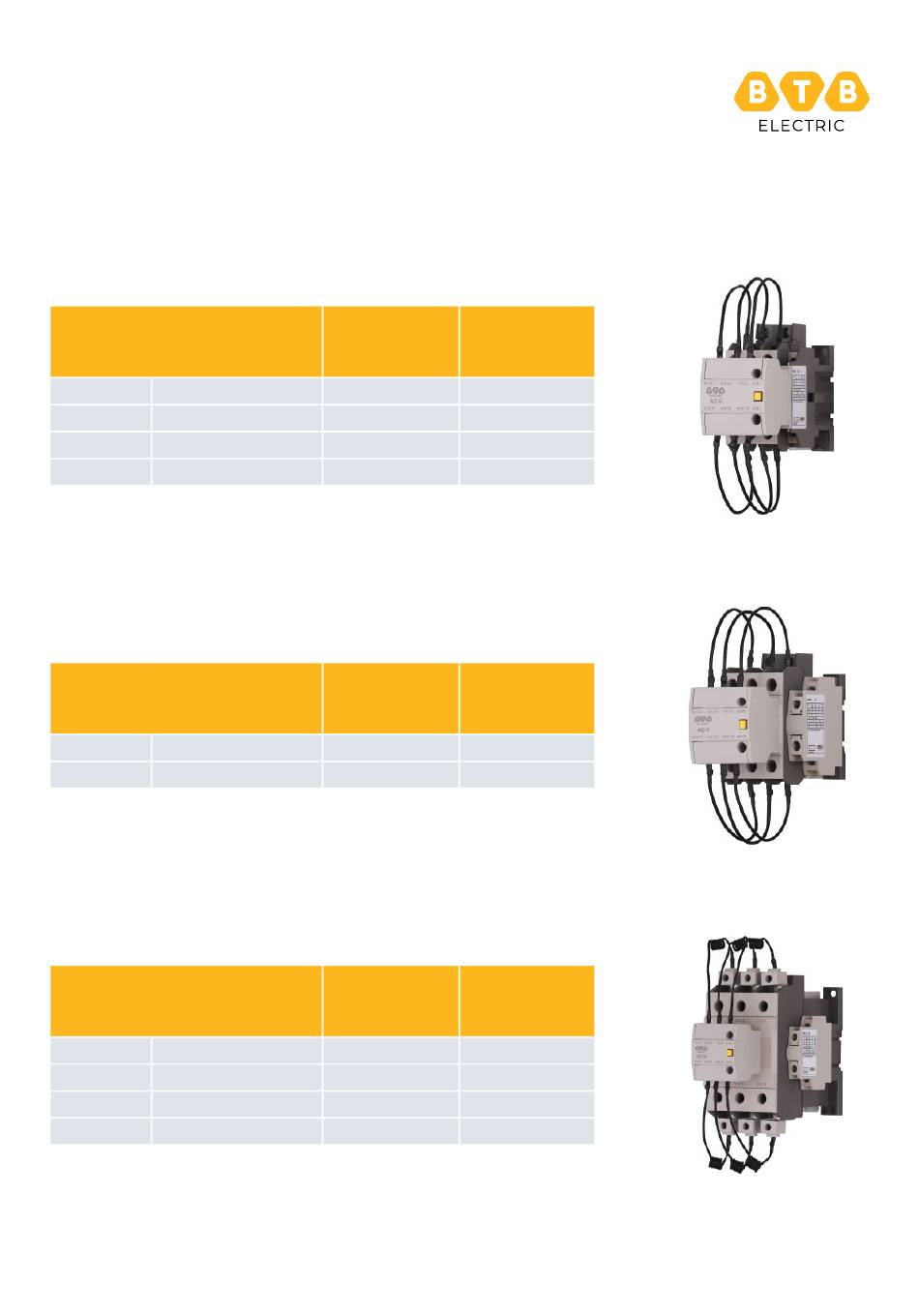

BTB MC3-9C Instructions For Using

INSTRUCTIONS FOR USING
Capacitor Switching Contactor
A capacitor switching contactor is a specialized device designed for switching capacitors in reactive power
compensation systems. This device combines a contactor with a starter specifi cally designed for AC-6b capacitor
applications, aiming to reduce the initial inrush current.
Model
MC3-9C
MC3-9 with AC-9
MC3-12C
MC3-12 with AC-9
MC3-18C MC3-18 with AC-9
MC3-22C MC3-22 with AC-9
Model
MC3-32C MC3-32 with AC-9
MC3-40C MC3-40 with AC-9
Model
MC3-50C MC3-50 with AC-50
MC3-65C MC3-65 with AC-50
MC3-75C MC3-75 with AC-50
MC3-85C
MC3-85 with AC-50
1
Capacitor
Rated current
capacity
(at 400~440V)
(at 400~440V)
9.7kVAr 14A
12.5kVAr 18A
16.7kVAr 24A
18kVAr 26A
Capacitor
Rated current
capacity
(at 400~440V)
(at 400~440V)
25kVAr 36A
33.3kVAr 48A
Capacitor
Rated current
capacity
(at 400~440V)
(at 400~440V)
40kVAr 58A
45.7kVAr 66A
54kVAr 78A
60kVAr 87A
