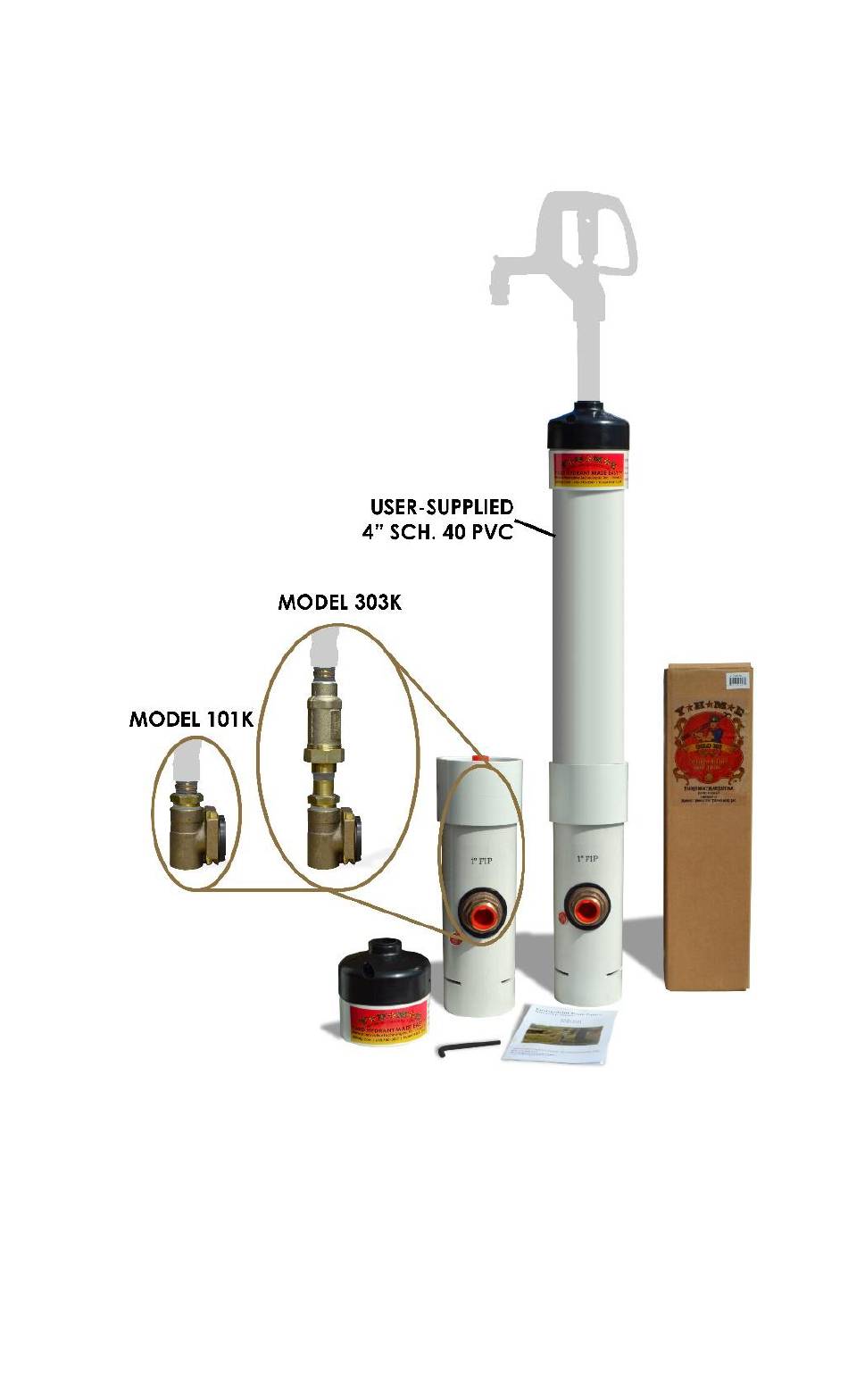

Yard Hydrant Made Easy™
Instruction Manual
This manual is for kit models only. If you have a telescoping model, see
corresponding instructions.
Model #101K
Model #303K
MIDWEST INNOVATIVE TECHNOLOGIES, INC.
Patent No. 8,413,675
US Customer Service: 618-740-0074
www.mitimfg.com
Find our INSTALLATION VIDEO at mitimfg.com/videos.
IN GOD WE TRUST
Advertisement
Summary of Contents for Midwest Yard Hydrant Made Easy 101K
- Page 1 Instruction Manual This manual is for kit models only. If you have a telescoping model, see corresponding instructions. Model #101K Model #303K MIDWEST INNOVATIVE TECHNOLOGIES, INC. Patent No. 8,413,675 IN GOD WE TRUST US Customer Service: 618-740-0074 www.mitimfg.com Find our INSTALLATION VIDEO at mitimfg.com/videos.
- Page 2 Also from Midwest Innovative Technologies, Inc. Thank you for your purchase of a Yard Hydrant Made Easy™! If you love the Yard Hydrant Made Easy™, check out our Wall Hydrant Made Easy™. The Wall Hydrant Made Easy™ applies the concept of the Yard Hydrant Made Easy™ - quick and easy hydrant replacement –...
-
Page 3: Getting Started
Getting Started Please note: • This product is only compatible with ¾-inch standard yard hydrants. • DO NOT back-fill around the YHME without the yard hydrant first being installed. The hydrant needs to be in place in order to maintain correct positioning of all components during the back-fill process. -
Page 4: Installation Procedure
Installation Procedure 1. Excavate the ditch to the required water supply depth. To accommodate the filtered drainage section of the YHME, dig a secondary hole roughly 12 inches in diameter and 8 inches deeper than the water line. Place a small amount of gravel in the bottom of this hole such that the 1”... - Page 5 7. Insert the new yard hydrant with the removable portion of the pitless adapter assembly down into the YHME casing. The removable portion of the pitless adapter must align with the fixed portion mounted in the bottom of the YHME casing and then slide into place.
-
Page 6: Product Diagram
Product Diagram... - Page 7 O-Ring Replacement Instructions The Yard Hydrant Made Easy™ original o-ring (located in the removable section of the pitless adapter) should give you several years of service but eventually may get damaged while changing a hydrant. No problem; the o-ring is easy to replace if you ever get a leak. Your YHME was shipped with a spare o-ring.
- Page 8 10. Slide the hydrant and the removable portion of the pitless adapter back into the Yard Hydrant Made Easy™, properly mating the pitless adapter halves. Contact Us Midwest Innovative Technologies, Inc. 402 S Broadway Ave. Salem, Illinois 62881 Phone: 618-740-0074 Email: info@mitimfg.com...
