Summary of Contents for Dultmeier Sales DU KZ1

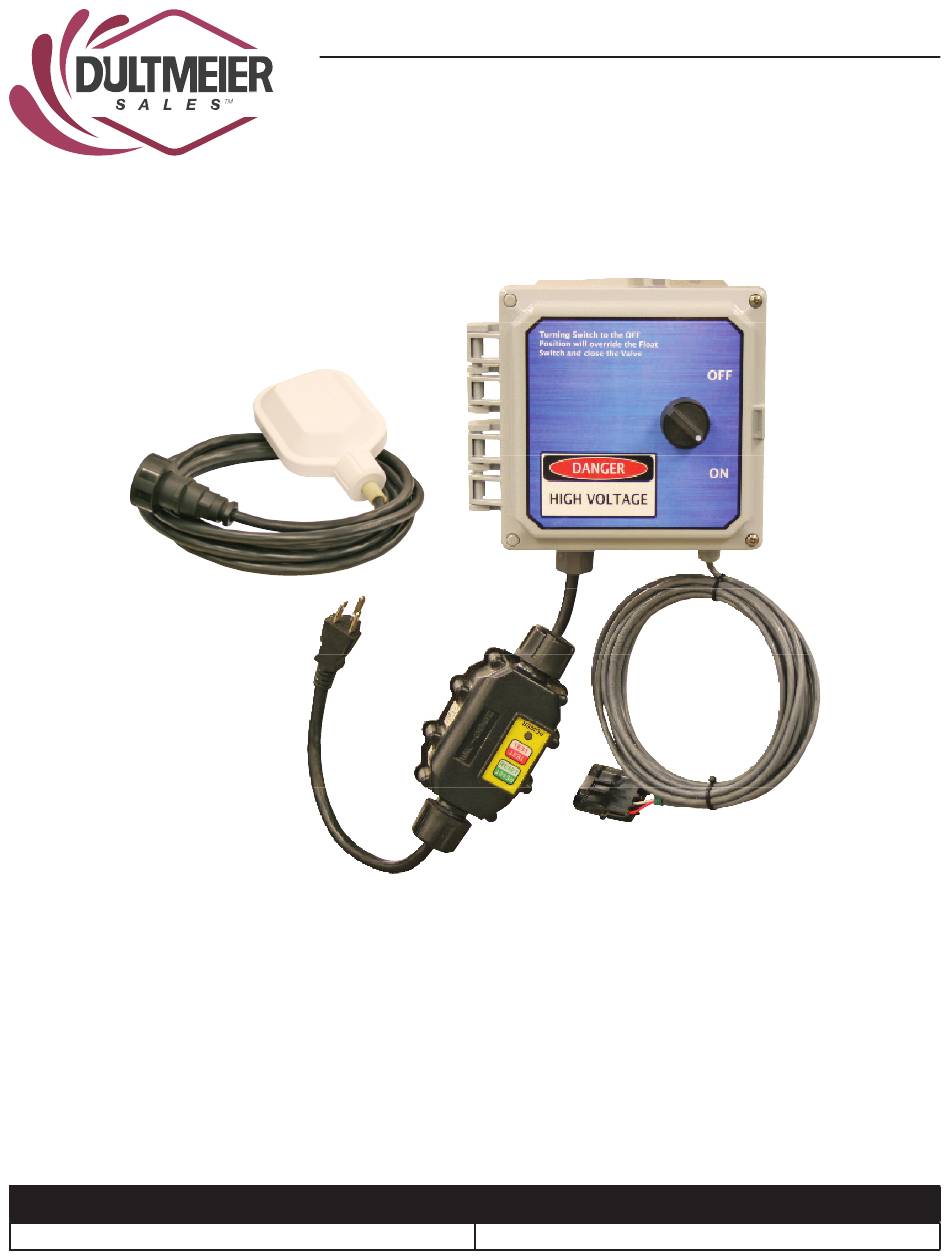

- Page 1 Water Level Controller DU KZ1 Owner’s Manual #0798 V2 02.19.24 Serial Number: Installation Date:...
-
Page 2: Table Of Contents
Consumers should notice that this manual may differ slightly from the actual product as more improvements are made to our products. Some of the pictures in this manual may differ slightly from the actual product as well. Dultmeier Sales reserves the right to update designs and / or change the specifications at any time without incurring any obligation to install them on units previously sold. -
Page 3: Safety Information
To avoid serious or fatal personal injury or major property damage, read and follow all safety and operation instructions in the manual. This is a Safety Alert Symbol - When you see this symbol in the manual, look for the following signal words & be alert to the potential for personal injury or property damage. -
Page 4: Setup
Fault Circuit Interrupter (GFCI) • The DU KZ1 is supplied with a 15’ control cable to run a 24 volt KZ Valve. (Fig. 1-A) It is suggested to install the valve within reach of the control cable. If this is not possible an extension harness can be purchased. -
Page 5: Testing
Testing Keep main water valve closed IMPORTANT until testing is complete. 1. Turn On-Off switch to the OFF position. 7. Turn On-Off switch to OFF position. 2. With all control cables connected, plug in 120v power At this time the KZ Valve should be in the closed cord. -
Page 6: Parts Breakdown
Parts Breakdown: DU KZ1 Item Part Number Description 1.... AR 2P055-50 ..... Float Switch 2.... AR CW5 ..... Float Switch Cable Weight 3.... RV WPS4 ....4 Port Weatherpack, Female (For KZ Valve Extension Cable) 4.... RV WPT4 ....4 Port Weatherpack, Male (For KZ Valve Extension Cable) 5.... -
Page 7: Warranty Information
Notice Regarding Manufacturer’s Limited Warranty Dultmeier Sales Limited Liability Company (hereinafter Dultmeier), notifies you that component part(s) carry a manufacturer’s limited warranty provided by the manufacturer of said component part(s). These warranties do not pertain to normal wear of component part(s) that may occur within any specified period. While Dultmeier is not the manufacturer of any of the component part(s), Dultmeier will assist you in processing any and all manufacturer’s warranty claim if applicable and available.
