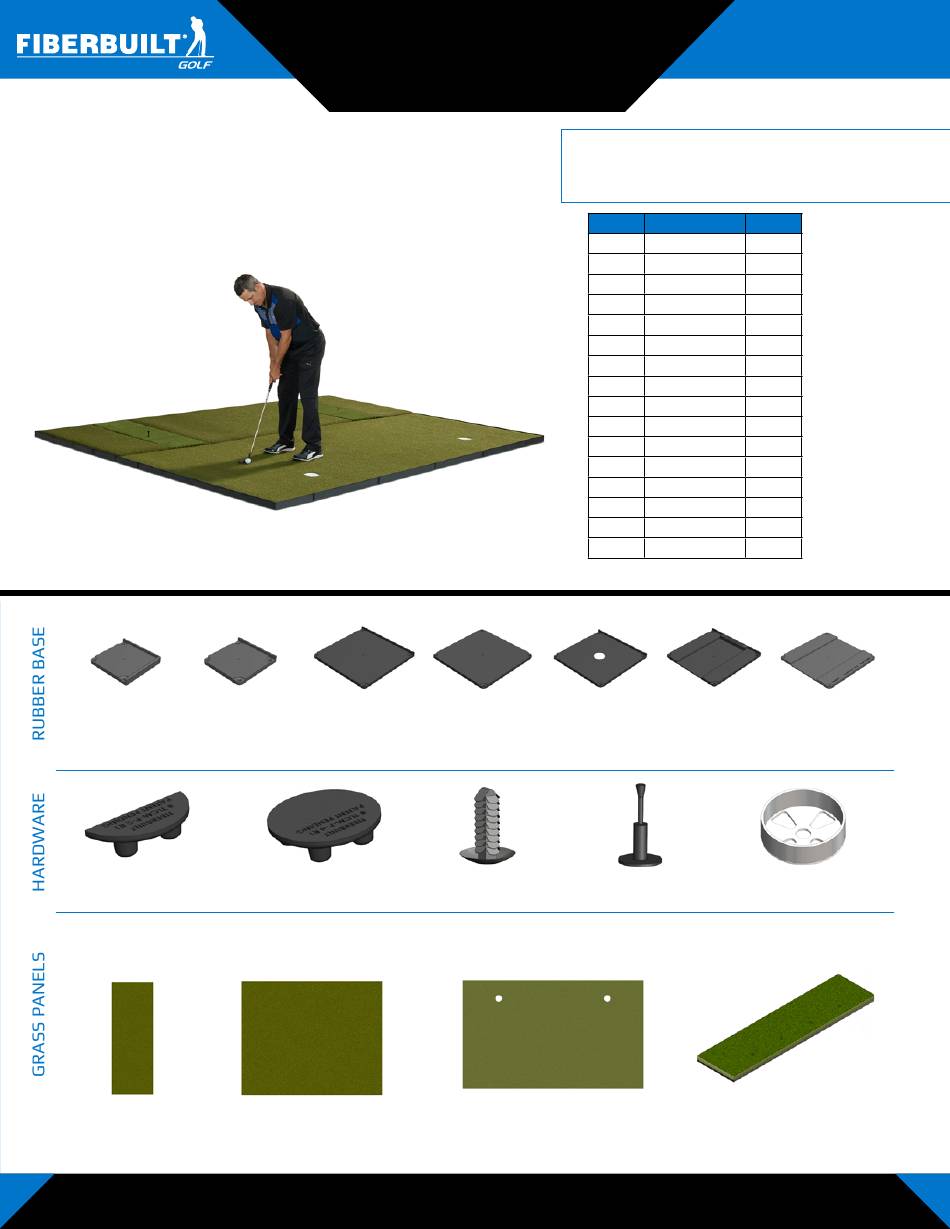

Fiberbuilt T-COMBO-10X10-DH Parts & Assembly

Grass series combo mat double-hitting - 10'x10'
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
A
1'x1' Corner (x4)
1'x1' Edge (x16)
H
2-Pin Connector (x38)
M
1.5'x4' Spacer Turf (x2)
FiberbuiltGolf.com
FIBERBUILT GRASS series COMBO mat
double-hitting - 10'x10'
B
C
2'x2' Edge (x4)
I
4-Pin Connector (x20)
N
5'x4' Stance Turf (x1)
T-Combo-10x10-dH
Please check your box for accuracy.
All of these pieces should be included.
ITEM
E
D
2'x2' Edge With
2'x2' Middle (x10)
Hole (x2)
J
Pins (x4 Bags)
Adjustable Tee (x2)
O
10'x6' Putting Turf (x1)
Parts & assembly
PART NUMBER
QTY.
A
TLCM-C-1
4
B
TLCM-E-1
16
C
TLCM-E-2
4
D
TLCM-M-2
10
E
TLCM-E-2/H
2
F
TLCM-E-FBG-CM
2
G
TLCM-M-FBG
2
H
TLCM-P-2
38
I
TLCM-P-4
20
J
TLCM-PINS50
4 Bags
K
658/621-BLK
2
L
P-760CUPS
2
M
660-TL-1.5X4
2
N
660-TL-4X5
1
O
760-6X10-13-DH
1
P
381/40-4
2
F
2'x2' Grass Panel
2'x2' Grass Panel
Edge (x2)
K
Putting Cup (x2)
P
1'x4' Fiberbuilt Grass Panel (x2)
833.328.3218
G
Middle (x2)
L
[Images not to scale]
