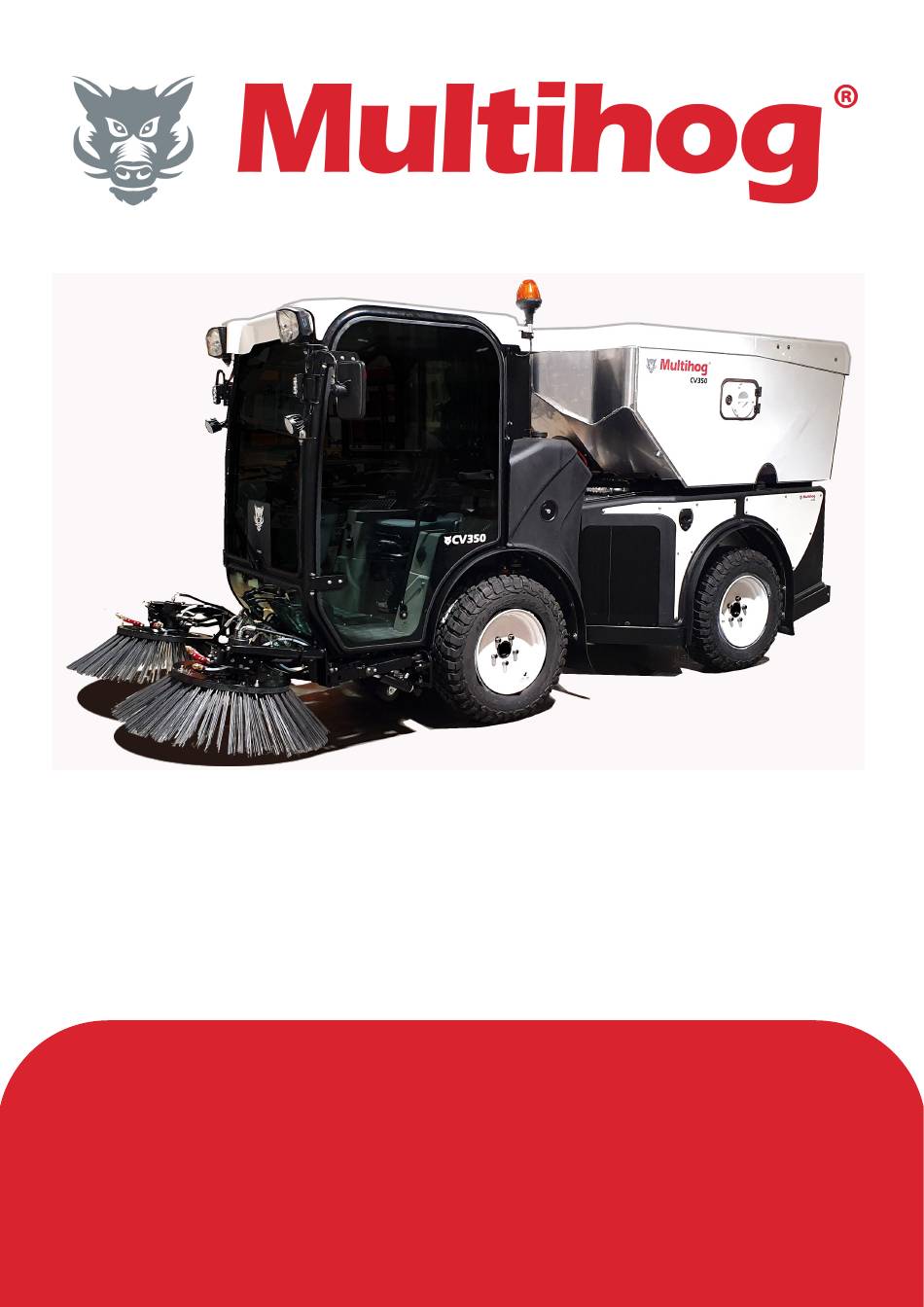

- Page 1 CV 350 Sweeper WARNING: This guide must be used as a supplementary document to the Operator Manual and not as a replacement. The Operator Manual must have been read and understood before this document can be used. Quick Start Guide...
- Page 2 CV 350 Sweeper Quick Start Guide 10 Points for Maximum Sweeper Cleaning Effectiveness Make sure that that the mesh panels (x3) inside the hopper are clean for maximum suction. Make sure that the hopper seals are clean and secured tight with the hopper lid closed fully for maximum suction.
- Page 3 CV Sweeper Quick Start Guide After preparing the machine and making sure that the isolator switch at the back of the machine is switched on, get in using the 3 point contact method. Get comfortable, and put on your seat belt. Lower both armrests (5).
- Page 4 CV 350 Sweeper Quick Start Guide Switch on the beacon/flashers (2). Turn on the work lights if required using button (3). The windscreen can be cleared by the wipers (5) and cleaned with washer fluid (4). Use the indicator stalk (6) to turn on position lights, head lights, and turn signals. Make sure that the side mirrors are positioned correctly.
- Page 5 CV 350 Sweeper Quick Start Guide Press the green Auto Start button (1) to start sweeper operation. The engine will ramp up to 1600 rpm. · The suction fan will start spinning first and after a short delay the brushes will start to ·...
- Page 6 CV 350 Sweeper Quick Start Guide Press the green Auto Start button (1) again to pause sweeper operation. The brushes will stop turning and will lift, but the suction fan will continue to spin. · The suction hood will lift.
-
Page 7: Operation
Green Button “Auto Start” Operation Auto Start Activation The engine revs should be set to minimum and the CV should be in neutral. The CV should be stationary. · The CV must be running and in Sweep Activated Mode i.e. the machine is in Work Mode (11) and ·... - Page 8 Green Button “Auto Start” Operation Pause Auto Start Operation Press the green Auto Start button (1) while it is active to pause operation: The brushes stop spinning. The brushes lift. The suction hood lifts. The suction fan and engine remain at the set speed. The water pumps turn off.
-
Page 9: Washing The Machine
Washing the Machine Washing the Machine If washing the machine with a pressure washer, the spray nozzle must be kept 2 metres away from · the machine to avoid any damage. Eye protection must always be worn. Do not spray any electrical components with a pressure washer. ·... - Page 10 Washing the Machine Washing the Recirculation Tank The hopper must be emptied before it can be cleaned. · On the front side of the suction hopper, after removing the caps connect flushing hoses to both of the · 2 lower brass ports (1), either at the same time or individually. Open the access door at the rear of the hopper and connect the drain hose to the drain valve (2) ·...
- Page 11 Washing the Machine Washing the Hopper While it is Raised The hopper can be tipped fully (with the · red cylinder safety stops fitted) for thorough hopper cleaning. It is recommended that the optional · pressure washer is used for cleaning the hopper while it is raised.
-
Page 12: Filling The Machine
Filling the Machine Filling the Machine with Fuel The machine fuel level can be seen on the control system display monitor in the cab. · Turn the machine off and wait for it · to cool down. To refill, unscrew the fuel cap (1). ·... - Page 13 Operating the Pressure Washer In the Cab Shut down Auto Start (1). Activate the BSS (Bypass Seat Switch), push the button (4) on the control monitor until the BSS turns yellow. With the engine running, set the engine speed (2) to its minimum (idle). Turn the suction fan (rear hydraulic pump) potentiometer (3) down to its minimum.
- Page 14 Operating the Pressure Washer In the Cab Set the engine speed (1) to 1400 rpm. Turn on the rear hydraulic pump (2) on the roof panel which will now power the pressure washer. Make sure there is sufficient water in the clean water tank. Roof Panel Keypad Using the Lance Clean water will now spray from the lance when the trigger (1) is squeezed.
- Page 15 Operating the Wander Hose Preparation Shut down Auto Start (1)and turn off the rear hydraulic pump (2) if it is on. Depending on the material to be vacuumed, a low suction fan speed (5) may be sufficient. With the hopper fully lowered, remove the wander hose mouthpiece (3) from the back of the machine.
- Page 16 Operating the Wander Hose Preparing the Hopper Following the hopper operation instructions, tip the hopper partially (a maximum of 25mm or 1 inch) and attach the hopper inlet seal plate (1) to the top of the suction hose. This blocks the inlet of the hopper.
