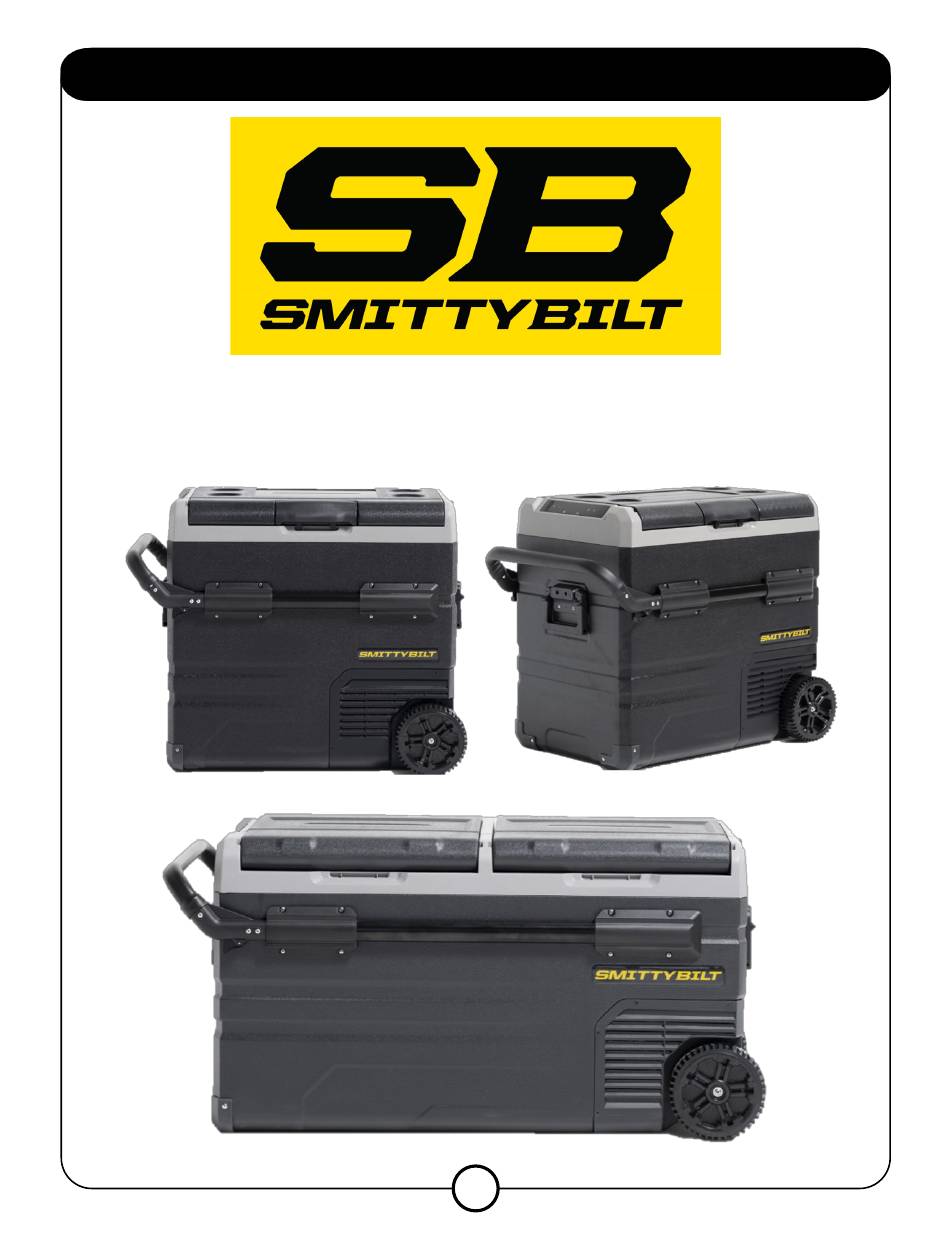

- Page 1 Owner’s Manual Smittybilt 55L Waypoint™ & 75L Basecamp™ Fridge Owner’s Manual Part # S/B2889 & S/B2989 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
-
Page 2: Table Of Contents
12. Smittybilt Connect App…..…………..…………………26 13. Troubleshooting…………………………………….……27 14. Warranty……..…………………………………………….28 For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989... -
Page 3: Introduction
Introduction Thank you for choosing Smittybilt accessories for your overlanding needs! If you would like to view our full range of available accessories, please visit us at www.smittybilt.com Overland Chairs Overland Tents Trail Bag 270° Awning Scout Trailer Winches Important Notes Before Starting Carefully read through this entire instruction manual thoroughly before attempting to operate this fridge. -
Page 4: Product Safety
• limited to; swelling, leaking, or a noticeable odor. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989... -
Page 5: Operation
This will primarily be a concern on older vehicles. Please contact an automotive electrician if you are not comfortable wiring. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022... -
Page 6: Technical Information
3 Stage User Selectable Voltage Protection Battery Size 15600mAh Coolant R134A (40g) For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989... - Page 7 3 Stage User Selectable Voltage Protection Battery Size 15600mAh Coolant R134A (80g) For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
- Page 8 Handle Release Handle Footpad Charging Port Wheel For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
- Page 9 Front/Back Aluminum Handle (1) w/ HDW - 55L/75L Replacement Lid - 55L S/B2889-18 For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
- Page 10 Front/Back Aluminum Handle (1) w/ HDW - 55L/75L Replacement Lid - 75L S/B2989-18 For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
-
Page 11: Function And Operation
Then press the SET button again to select between H (High), M (Medium), or L (Low). Use the chart below for reference. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022... - Page 12 Long press both the + and – buttons at the same time until the display shows 888. Recommended temperature for common foods: For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
-
Page 13: Usage Tips
Ir- reparable damage to cooling system can occur. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022... - Page 14 App Control Your new Smittybilt Waypoint™/Basecamp™ fridge can be controlled using the Smittybilt Connect App. This can be downloaded from the Apple® App Store or from the Google® Play Store. App usage instructions can be found on page 26 of this manual.
-
Page 15: Solar Guide
Lithium Ion. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989... -
Page 16: Handle Extension (55L/75L)
To retract the handle, press both levers and push the handle straight in. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022... - Page 17 Reverse Door Opening Direction: Waypoint™ 55L For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
- Page 18 Reverse Door Opening Direction: Basecamp™ 75L For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
- Page 19 To remove the wheels, unscrew the Phillips screw located in the center of each wheel. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022...
- Page 20 Remove the 12 Phillips screws that secure the back cover onto the fridge. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022...
- Page 21 Reinstall the rear cover. Handle and wheel removal is complete. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
-
Page 22: Transit Cover Install (55L)
Be sure to install above the handle to allow for access. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022... -
Page 23: Transit Cover Install (75L)
Step 5: Installation is now complete. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989... - Page 24 Be sure to install above the handle to allow for access. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022...
- Page 25 Step 5: Installation is now complete. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989...
-
Page 26: Smittybilt Connect App
Change between Fahrenheit and Celsius Battery Protection Modes For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Smittybilt 55L Waypoint™ and 75L Basecamp™ Fridge Rev 9/12/2022 Part # Smittybilt 2889 & 2989... -
Page 27: Troubleshooting
Code F3 Displayed •Possible Cause: The compressor starts too frequently. •Suggestion: Disconnect power from the fridge for 5 minutes, then restart the fridge. If the code reappears contact Smittybilt Tech Support. Code F4 Displayed •Possible Cause: Compressor not kicking on. •Suggestion: Discon- nect power to the fridge for 5 minutes, then restart the fridge. -
Page 28: Warranty
SMITTYBILT ADVANTAGE WARRANTY LIMITED 3-YEAR WARRANTY FOR ALL COMPONENTS Smittybilt Automotive Products, LLC (SAP) warrants to the original purchaser that (a) the physical components (e.g., outer shell, display, handles, etc.) of any SAP 55L Waypoint / 75L Basecamp Fridge will be free of defects in material and workmanship for 3-years from the date of purchase of the fridge, and (b) the compressor will be free of defects in material and workmanship for a period of 3-years from the original date of purchase.
