Minuteman Envision EV-NETCARD-1G User Manual

Envision netcard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Envision Netcard
EV-NETCARD-1G
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Envision EV-NETCARD-1G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Minuteman Envision EV-NETCARD-1G

Summary of Contents for Minuteman Envision EV-NETCARD-1G

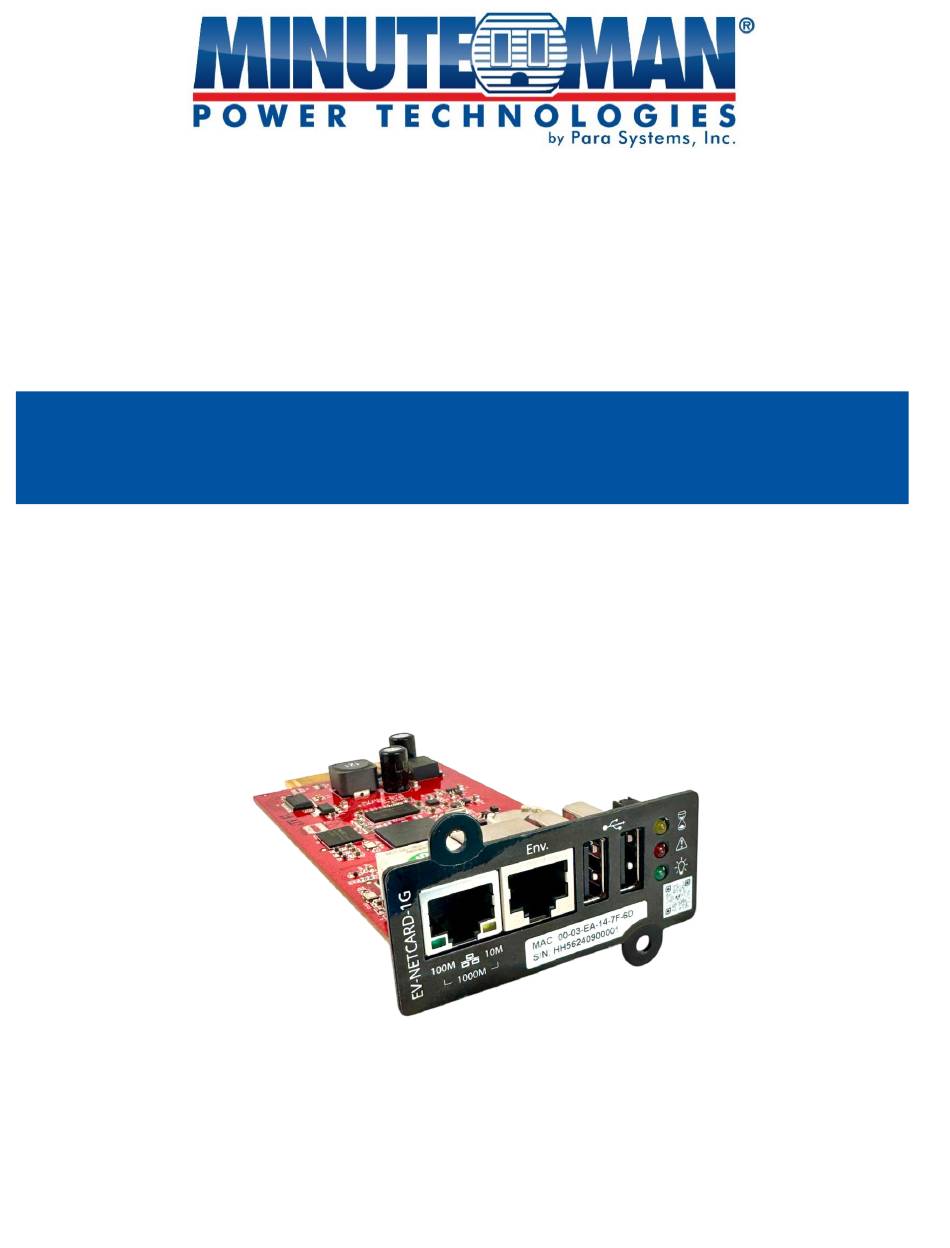

  • Page 1 Envision Netcard EV-NETCARD-1G User’s Manual...
  • Page 2 Copyright Information Copyright © 2024, Para Systems, Inc. All rights reserved. Reproduction without permission is prohibited. Technical Support and Contact Information Para Systems, Inc. Tel: 972-446-7363 Toll-free: 800-238-7272 Web: www.minutemanups.com E-mail: support@minutemanups.com minutemanups.com | 800.238.7272...

  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1: INTRODUCTION 1.1 Features 1.2 Applications CHAPTER 2: EV-NETCARD-1G CARD 2.1 EV-NETCARD-1G LED Indicator CHAPTER 3: SOFTWARE INSTALLATION 3.1 Envision Software Installation CHAPTER 4: Envision Operations and Settings 4.1 EV-NETCARD-1G Discovery 4.2 Login Procedure 4.3 Firmware Upgrade 4.4 EV-NETCARD-1G Web Interface and Settings 4.4.1 Information Information >...
  • Page 4 Configuration > System 4.4.3 Log Information Log Information > Event Log Log Information > Data Log 4.4.4 Management Management > Envision Web Management > File Manager Management > Serial Port Debug Management > Help Management > About 4.4.5 SNMPView Lite SNMPView Lite >...
  • Page 5 Page 3 Page 3 minutemanups.com | 800.238.7272...

  • Page 6: Chapter 1: Introduction

    Chapter 1: INTRODUCTION 1.1 Features The Envision EV-NETCARD-1G is a SNMP (Simple Network Management Protocol) card for monitoring and management of Minuteman UPS products. The EV-NETCARD-1G provides remote control of UPS as well as monitoring of its current status. It can also support connections to a compatible modem for sending SMS notification.

  • Page 7: Applications

    NETCARD-1G will issue a trap alarm when an abnormal power abnormal condition occurs. Management Information Base, (MIB), and Object information Database, (OID), files used for integrating the EV-NETCARD-1G card into a SNMP network can be found, and downloaded, from the Minuteman website at: https://minutemanups.com/resource-library  Envision Provides Shutdown Utilities...
  • Page 8 Status Power On Communication Lost Updating Firmware Yellow SNMP-XX-X Flashing Flashing UPS Communication Green Power Green Blue Power Communication Flashing Sending/Receiving Normal Power Data NOTE : When the RED LED is flashing, the card is updating firmware. DO NOT remove power until the update is complete.

  • Page 9: Chapter 3: Software Installation

    Chapter 3: Software Installation 3.1 Envision Software Installation  Free download The Envision installation utility software is available, free of charge, from the minuteman.com Resource Library. Go to: https://minutemanups.com/resource-library and choose the Network Accessories & Software tab from the menu options. Select: Envision Utility Software and...

  • Page 10: Function Selection

    The Envision utility main page is divided into 2 sections: 1. Online EV-NETCARD-1G List 2. Function Selection 2. Function HH56241001062 00-03-EA-14-77-9E 192.168.168.49 HH56241000647 00-03-EA-14-A2-9A 192.168.168.18 1. Online EV-NETCARD-1G 2.5 Refresh List 2.4 About 2.3 Firmware Upgrade 2.2 Network Settings 2.1 Launch Web User Interface Individual EV-NETCARD-1G Info 1.1 Online EV-NETCARD-1G List Page 8...

  • Page 11: Ev-Netcard-1G Discovery

    4.1 Online EV-NETCARD-1G Discovery When the Envision utility software is opened, it automatically searches all the available online EV- NETCARD-1G cards within the network, displaying the serial number, IP address, MAC address. Double click on the specific EV-NETCARD-1G card with a valid IP address and it will open that card’s webpage.
  • Page 12 HH56241001062 00-03-EA-14-77-9E 192.168.168.49 HH56241000647 00-03-EA-14-A2-9A 192.168.168.18 Hardware version Select EV-NETCARD-1G Card Firmware version 1. Online EV-NETCARD-1G  Launch Web User Interface Select the specific EV-NETCARD-1G card from the list and click on Launch Web User Interface to login to the EV-NETCARD-1G card’s webpage. 2.

  • Page 13: Network Settings

     Network Settings When connecting the EV-NETCARD-1G card for the first time, ensure the IP-address and other network settings are entered correctly in order to login to the EV-NETCARD-1G card’s webpage via a web browser or HyperTerminal. When choosing to obtain IP address by DHCP or BOOTP, the IP address and other network parameters will be assigned by the network EV-NETCARD-1G supports four network protocols - HTTP / HTTPS / TELNET / SSH for management and security preferences.
  • Page 14 1. Select an EV-NETCARD-1G card 2. Click on Network Settings HH56241001062 00-03-EA-14-77-9E 192.168.168.49 HH56241000647 00-03-EA-14-A2-9A 192.168.168.18 Select to obtain IP address by DHCP Select to set a static IP address Information required for assigning a Static IP address Default port for each protocol Page 12 minutemanups.com | 800.238.7272...
  • Page 15 Enter password Once a password is enabled, it will be required when changing any settings or updating firmware. Password Input Envision password: HH56241001062 00-03-EA-14-77-9E 192.168.168.49 HH56241000647 00-03-EA-14-A2-9A 192.168.168.18 minutemanups.com | 800.238.7272 Page 13...

  • Page 16: Firmware Upgrade

    4.3 Firmware Upgrade To check for the latest available version of the EV-NETCARD-1G firmware, go to  https://minutemanups.com/resource-library and look under the Network Accessories & Software section. Verify the selected firmware is for the EV-NETCARD-1G and is compatible with the hardware version of the card.
  • Page 17 Upgrade multiple (non- Upgrade individual card Upgrade consecutive (all) cards. consecutive) cards Downloading… 1 unit success, 0 unit fail 1. Select the .bin file 3. Upgrade status message 4. Cancel to exit 2. Click on Download  About Shows the current Envision utility version minutemanups.com | 800.238.7272 Page 15...

  • Page 18: Ev-Netcard-1G Web Interface And Settings

     Refresh List The list of EV-NETCARD-1G cards found by the Envision utility will automatically refresh every two minutes. However, it is also possible to manually refresh the list by selecting the Refresh List icon. HH56241001062 00-03-EA-14-77-9E 192.168.168.49 HH56241000647 00-03-EA-14-A2-9A 192.168.168.18 HH56241001062 00-03-EA-14-77-9E...

  • Page 19: Information > System Status

    • Alarm Status - The Alarm Status page offers a current status of the various active alarm monitoring.  System Status • System Information - The System Information screen provides all the basic information for the EV-NETCARD-1G such as hardware and firmware versions, Serial Number, UPS/card location, testing schedule, etc.
  • Page 20 • UPS Information - The UPS Information page shows UPS and Battery Information. This data is obtained directly from the UPS or the settings from the UPS Configuration webpage minutemanups.com | 800.238.7272 Page 18...
  • Page 21 • Network Status - The Network Status page provides the network address information of active EV-NETCARD-1G card. • Connection Status - The Connection Status page a log connection events for the various communication protocols on the active EV-NETCARD-1G card. minutemanups.com | 800.238.7272 Page 19...

  • Page 22: Information > Remote Control

    • Wireless Status - The Wireless Status page will appear when a Wi-Fi dongle is attached to the EV- NETCARD-1G card. It will provide the details of the network configuration information for the attached dongle.  Remote Control The Remote Control page can be used to remotely perform a variety of tests to the UPS. Select the test to be performed and then click on the Apply icon to execute it.

  • Page 23: Information > Sms Modem Status

     SMS Modem Status When the EV-NETCARD-1G connected to an optional SMS modem, this status page will provide the details of the Modem and its connection status.  EV-PROBE-TH This page shows the environmental status of the location where the EV-PROBE-TH is installed. It will also include status information for any attached sensors that are connected EV-PROBE-TH and the EV-NETCARD-1G.

  • Page 24: Configuration > Ups Configuration

    Envision software. UPS Communication Type: In order to establish the connection between EV-NETCARD- − 1G and your Minuteman UPS model, confirm the UPS Communication Type is set to: Minuteman. If the EV-NETCARD-1G card does not recognize the attached UPS, contact Minuteman support at: support@minutemanups.com...
  • Page 25 output frequency standard provided by the UPS, to its connected equipment. (50Hz or 60Hz) To change the alarm setting, enter a new value in the field and confirm by pressing “Apply” Nominal Volt-Amp Rating (VA): Displays the default alarm threshold for the maximum −...
  • Page 26 • Test log Test UPS Every: Sets the options for the frequency of the testing of the UPS. (Week, 2 Weeks, − Month, Quarter) are the available selections. − Test UPS on: The options for this setting are based on the “Test UPS Every” selection. Week or 2 Weeks: Select the day for the weekly test −...

  • Page 27: Configuration > Ups On/Off Schedule

     UPS On/Off Schedule UPS Action - This page is intended to set the parameters for UPS actions when a power or • UPS event occurs. To complete the action, set the start/stop time parameters then choose the event, the UPS action and any delay, if desired. Press the “Add” icon to initiate. Multiple actions and events can be configured and implemented.
  • Page 28 • Remote Shutdown - The Remote Shutdown page is intended to program the EV-NETCARD-1G card to issue a command for shutting down a network server, (or another network computer) without the use of installed shutdown software. Events need to first be added under “UPS Action”...
  • Page 29 With these two actions set, go to the “Remote Shutdown” tab and enter the domain IP addresses for Host 1 and Host 2. Select either Telnet or SSH for access, enter the user name/password for the server then enter the shutdown command for that operating system. For Windows, “shutdown /s“...
  • Page 30 To initiate a warning message prior to the scheduled shutdown of the UPS, select an option from the dropdown menu at the bottom of the page. When set, the EV-NETCARD-1G card will send the message at a pre-determined time before the shutdown action. When the programming is completed, press the “Apply”...

  • Page 31: Configuration > Network

     Network This page is responsible for the programming the network settings for the EV-NETCARD-1G card. • IPv4 - The IP address and DNS Server IP can be programmed either manually or through DHCP or BOOTp using the dropdown menus. If the IP address and DNS have previously been configured on the information will automatically show here.
  • Page 32 • IPv6 IP Address: All EV-NETCARD-1G cards support IPv6 addressing. Under the “IPv6” tab, the − address can be obtained from the dropdown list of options: Automatic, Stateless, DHCPV6, DHCPV6, or Manual. If Manual is selected all the IP and gateway information must be entered into the respective fields.
  • Page 33 • Ethernet Connection Type: − This menu option sets the communication speed between EV-NETCARD- 1G and connected network. NOTE: Once the network speed is selected, press the “Apply” icon and the EV-NETCARD- − 1G card will reboot with the new configuration. Stop UPS communication when Ethernet disconnected: menu Use this...
  • Page 34 E n v i s i o E n v i s i o E n v i s i o E n v i s i o If using iCV99.net as the service provider, follow instructions shown below: 1. Ensure the EV-NETCARD-1G card is able to connect to the internet. Select a service provide from the dropdown list.
  • Page 35 2. If using a router, login to the router and insert the IP and port number under the Virtual Server for port forwarding. For specific details on programming, refer to router’s user manual Router Configuration EV-NETCARD-1G 3. Wait at least 20 minutes and the EV-NETCARD-1G card should be logged in under the DDNS Domain name.
  • Page 36 minutemanups.com | 800.238.7272 Page 34...
  • Page 37 HH54241013250.iCV99.net HH54241013250 New Domain Name Enter new password Enter e-mail Press Done • PPPoE - Use this feature when connecting the EV-NETCARD-1G to the Internet directly using a xDSL modem by PPPoE. Enter the Login name and password to enable the connection. Once set-up, the EV-NETCARD-1G will connect directly to the Internet.

  • Page 38: Configuration > Wireless Lan

    Select: Connect Always Enter Login name Enter password  Wireless LAN The EV-NETCARD-1G is compatible with most popular USB Wi-Fi dongles. Before installing or configuring a Wi-Fi dongle, the EV-NETCARD-1G must be connected, and accessible, on the network using a wired Ethernet connection. Open the Envision software utility to discover and login to the EV-NETCARD-1G card on the network or use a web browser to type in and go directly to the specific, wired IP-address of the card to be used with the Wi-Fi dongle.
  • Page 39 If using the switch with the Ethernet cables, one cable must connect the computer/laptop to the switch with the second cable connecting the switch and the E-NETARD-1G card. The wireless configuration must be programmed at the remote site to properly connect to the site’s wireless network and save the connection information and the password associated with the SSID to the card’s firmware.

  • Page 40: Configuration > Snmp

     SNMP Use of this menu option is to configure the SNMP settings of the EV-NETCARD-1G for use with a NMS (Network Management System). (EnvisionSNMP, it is available on the from the minuteman website at: SNMP Resource Library - Minuteman...
  • Page 41 SNMPv3 Engine ID SNMPv3 Engine ID Format Type: When using SNMPv3, the EV-NETCARD-1G card is required − to have an Engine ID for identification to generate authentication and encryption keys. The format type can be selected from the dropdown list with option of: MAC Address, IPv4, IPv6 or Manual.
  • Page 42 User Name Auth. Protocol Privacy Protocol Auth. Password Privacy Password Minimum 8 characters *.*.*.* Includes all IP addresses • Trap Notification Trap Notification − Destination IP: Program specific IP addresses for receiving traps sent by the EV-NETCARD- 1G card. Up to 8 addresses can be programmed. Accept: When sending traps to the Destination IP addresses, select the SNMP trap type and −...
  • Page 43 Trap Type: Select from PPC MIB or RFC1628 MIB (The default is: PPC) −  MIB file is available via download at: SNMP Resource Library - Minuteman UPS Severity: This section set the Trap level for each receiver. There are three levels available: − •...
  • Page 44 − Send Power Restore and Adaptor Restore Traps: This function sets the repeat number of “Power Restore” traps, and the intervals between transmissions, sent to the recipients when power is restored to the EV-NETCARD-1G card. This function can be used to test the communications between trap receiver and the EV-NETCARD-1G card after power returns.

  • Page 45: Configuration > Email

     Email The menu option sets the parameters for sending email notifications when events occur or to send data log information. The EV-NETCARD-1G supports SSL, TLS, and STARTTLS • Email Setting Email Server: Enter the address of email server to be used. −...
  • Page 46 Sample of Test Email received • Email for Event Log (To received email notification Use this option to define up to 8 email addresses to receive warnings sent by EV-NETCARD-1G card when selected events occur. Enter each email address then press the “Select” icon. From the pop-up window, check the specific events to send alarms to that specific email address.
  • Page 47 • Email for Daily Report (To receive daily report) The EV-NETCARD-1G can provide a daily report of events and data recordings. These reports can be sent to individual email recipients, (up to 4). Enter the address in the available field then select “Yes” to send the daily report or “No”...

  • Page 48: Configuration > Sms

    Set time: hh:mm (24-hour format)  Configuration > SMS The EV-NETCARD-1G supports alarm notification through Short Message Signals (“SMS”) sent and received using a GSM/GPRS/CDMA Modem. A diagram of the operation is provided below. U P S E V - N E T C A R D - 1 G S M S M o d e m U P S E V - N E T C A R D - 1 G...
  • Page 49 SMS Modem Setting • SMS Modem Settings: Configure the card and modem settings for sending alarms through SMS communications. − Modem Communications Port: Select the port to use with the desired modem. SMS Communication: Select the signal type for using with the desired modem. −...
  • Page 50 − SMS Port: If using the Remote Service to send SMS messages, enter the port number of the SMS Server used for sending messages. (The default is Port 80) Account Name: If using the Remote Service to send SMS messages, enter the −...

  • Page 51: Configuration > Web/Telnet/Ftp

     Web/Telnet/FTP This menu option sets the permissions for each user account for Web, Telnet and FTP access, (for up to 8 users). Restrictions to enable/disable specific ports for HTTP/HTTPS, Telnet/ SSH and FTP can be programmed from this screen. •...
  • Page 52 − Permission: Sets the level of user rights when accessing the EV-NETCARD-1G via the web browser. The options are: No Access / Read / Read&Write  Permission Rule： At least one user account must have Read/Write permission  Permission Rule : Read and Write permissions must have a User Name and cannot be blank IP Filter: Restrict access to the card to only specific IP addresses: (using “*.*.*.*”...
  • Page 53 − IP Filter: Restrict access to the card to only specific IP addresses: (using “*.*.*.*” allows access from any IP address) • FTP/FTP-SSL - The menu will provide options to configure and set up the FTP/FTP-SSL access. Management Protocol Enable FTP Function: Check the box to enable the FTP function. −...
  • Page 54 • SSL Information The EV-NETCARD-1G card supports HTTPS protocol and varies SSL encryptions version for network connection. User may upload its Public Key and Certification for authentication. HTTPS Protocols - Select the encryption version to be used from the list provided: −...
  • Page 55 (To communicate via HTTPS, make sure to enable HTTPS port 443.) To have the EV-NETCARD- 1G create its own public key and certificate, please refer to OpenSSL software on the OpenSSL website at: https://openssl-library.org/source/ NOTE: When connecting the EV-NETCARD-1G using HTTPS, with its own generated public key and certificate, the web browser may show an error, please ignore and continue.
  • Page 56 Enable RADIUS in Web/Telnet Login: Select “Yes” or “No” from the dropdown menu − − RADIUS Server Address: If using RADIUS, enter the IP address of the RADIUS Server Authentication Port: Enter RADIUS port number (The default is 812) − Shared Key: Enter the Shared Key between RADIUS Server and client −...

  • Page 57: Configuration > Bacnet

     BACnet The EV-NETCARD-1G card supports BACnet/IP (Building Automation and Control/Internet Protocol) BACNet Device: Use this menu option to configure the device ID and access port number − for the EV-NETCARD-1G card when using BACnet for communications.  BACNet Device ID: Enter the assigned ID number to use for the card. (-1 is Out of Service) ...

  • Page 58: Configuration > Ev-Probe-Eh

     EV-PROBE-TH The EV-PROBE-TH is an optional external environmental sensor and hub device. Its primary purpose is to detect temperature, humidity and water conditions and trigger alarms when conditions warrant. The EV-PROBE-TH also contains a built-in RF receiver for use with other external sensors such as smoke and contact sensors.

  • Page 59: Configuration > Modbus

    • Calibrate – Use this tab to verify and calibrate the EV-PROBE-TH temperature and humidity settings. Use an external sensor to verify conditions and enter in the respective fields. When all the configuration settings are completed, press the “Apply” icon. ...

  • Page 60: Configuration > System

    − MODbus on RS485: Program the settings for use of the MODbus function over a RS485 connection. When all the configuration settings are completed, press the “Apply” icon.  System Use this menu option to set the EV-NETCARD-1G card system time, language and SYSLOG configuration.
  • Page 61 When all the configuration settings are completed, press the “Apply” icon. • Language - Program the preferred language interface settings for the EV-NETCARD-1G card. Interface Language: Select the preferred language to use for the web browser interface of − the EV-NETCARD-1G card. When first logging in to the EV-NETCARD-1G webpage, it will auto detect the default OS language of the PC and show the same language until changed and active using this option.
  • Page 62 • SYSLOG Setting - Use this menu option to set the SYSLOG configuration. Enable Syslog Server: Select No or Yes for activation of the Syslog function. − Syslog Protocol: Choose either UDP or TCP for the Syslog protocol − TCP Octet Counting: Check if using TCP Octal counting −...

  • Page 63: Log Information > Event Log

    • Save/Restore Save Current Configuration: Choose “Encrypted” or “Unencrypted” from the drop down − menu to save the current EV-NETCARD-1G configuration to the PC. If uploading to another computer, select “Unencrypted”. The default name of the text file will be: YYYY_MMDD_####.cfg.

  • Page 64: Log Information > Data Log

     Data Log • Data Chart - Records a real-time set of data points concerning the UPS: Input Volt.(V); Output Volt.(V); Freq.(Hz); Temperature(°C), Battery Volt.(V); Capacity(%) and Load(%). Logs can be saved in CSV format by clicking on “Save”. The bar on top can be adjusted to check the log status at specific time of the day.
  • Page 65 • Data Log - This menu option records UPS statistics in a list format and are date and time stamped as they occur. This list includes: Input Volt(V) Output Volt(V) Freq.(Hz) Load(%) Capacity(%) Battery Volt(V) Cell Volt(V) Temp.(°C°F NOTE: When the EV-PROBE-TH is installed, data from connected sensors will also be available. •...

  • Page 66: Management > Envision Web

    • User Log - Provides a running log actions performed through the EV-NETCARD-1G card. 4.4.4 Management  Envision Web • Netcard Web - This menu option will display all of the Envision Netcards installed within the network. Each card listing will include: its serial number; Mac Address; Hardware/Firmware version and IP-address.

  • Page 67: Management > File Manager

     Password: Set or change a password for access to the card. If a password is previously in use, enter the old password in the field provided, then enter the new password and confirm it before pressing the “OK” icon. Upgrade: When selected, follow the instructions to download the new configuration file −...

  • Page 68: Management > Serial Port Debug

     Serial Port Debug Logs the communication status between the EV-NETCARD-1G card and the UPS, listed through Sent and Received sections. • Debug Information - Commands can be sent automatically by the EV-NETCARD-1G card to the UPS. Commands can also be manually sent by entering the command to the UPS in the ”Sent Content” field.

  • Page 69: Management > Help

    •  Help The EV-NETCARD-1G card offers an online Help resource library that provides answers to questions and description on the function if individual pages of the web browser interface.  About • About - Displays the hardware and firmware revisions as well as the serial number for the card.
  • Page 70 • Firmware Update - This menu option is used for updating the firmware of the EV-NETCARD- 1G card. Update by FTP/SFTP: −  Protocol Type: Set the protocol between FTP and SFTP using the dropdown menu  FTP/SFTP Server: Enter the FTP server location on the network for the firmware update ...

  • Page 71: Snmpview Lite

    4.5 SNMPView Lite SNMPView Lite provides a single platform for real-time monitoring and programming of up to 9 active EV-NETCARD-1G cards over a network connection.  UPS Status • UPS Status – The UPS Status page can provide a real-time display of up to 9 EV-NETCARD-1G cards over a network connection.

  • Page 72: Snmpview Lite > Configuration

     Configuration • UPS Configuration – The Configuration page provides a real-time list of up to 9 EV-NETCARD- 1G cards over a network connection. The cards listed on this page will be the same as the cards listed on the UPS Status page. Selecting any one card among the list will expand the detailed information on that card.

  • Page 73: Snmpview Lite > Event Log

     Event Log • Event Log – Provides a monthly summary of events that occurred to the selected cards on the UPS Status or Configuration pages. The default calendar of events is set to Monthly but can be changed to view the current daily events. Use the drop down menus, then select “Refresh”, to look at previous months events.

  • Page 74: Snmpview Lite > Data Log

     Data Log • Data Chart – The data chart provides a running stream of input, output and load factors for a specific EV-NETCARD-1G card based on data points from the time intervals set in the System Configuration page of SNMPView Lite. Select the individual card to monitor from the drop down menu at the bottom of the page.
  • Page 75 • Data Statistics – The Data Statistics page provides a snapshot of minimum and maximum values for the input and output of a specific UPS with an installed EV-NETCARD-1G card. The information is limited to a specific date which can be selected from the field at the bottom of the page.

  • Page 76: Notes

    Notes: minutemanups.com | 800.238.7272 Page 74...

  • Page 77: Additional Notices

    Additional Notices: NOTICE: This product complies with the rules for Class B device, pursuant to Part 15 of the FCC rules for radio noise emissions from a digital apparatus. These limits are designed to provide reasonable protection against such interference in a residential installation.
  • Page 78 1455 LeMay Drive Carrollton, TX 75007 800.238.7272 www.minutemanups.com © 2024 PARA SYSTEMS, INC. Minuteman Power Technologies and Envision are owned by Para Systems, Inc. All other trademarks are property of their irrespective owners. 34000571 RevA 202411 minutemanups.com | 800.238.7272 Page 76...
