Summary of Contents for Joranalogue CYCLE 5

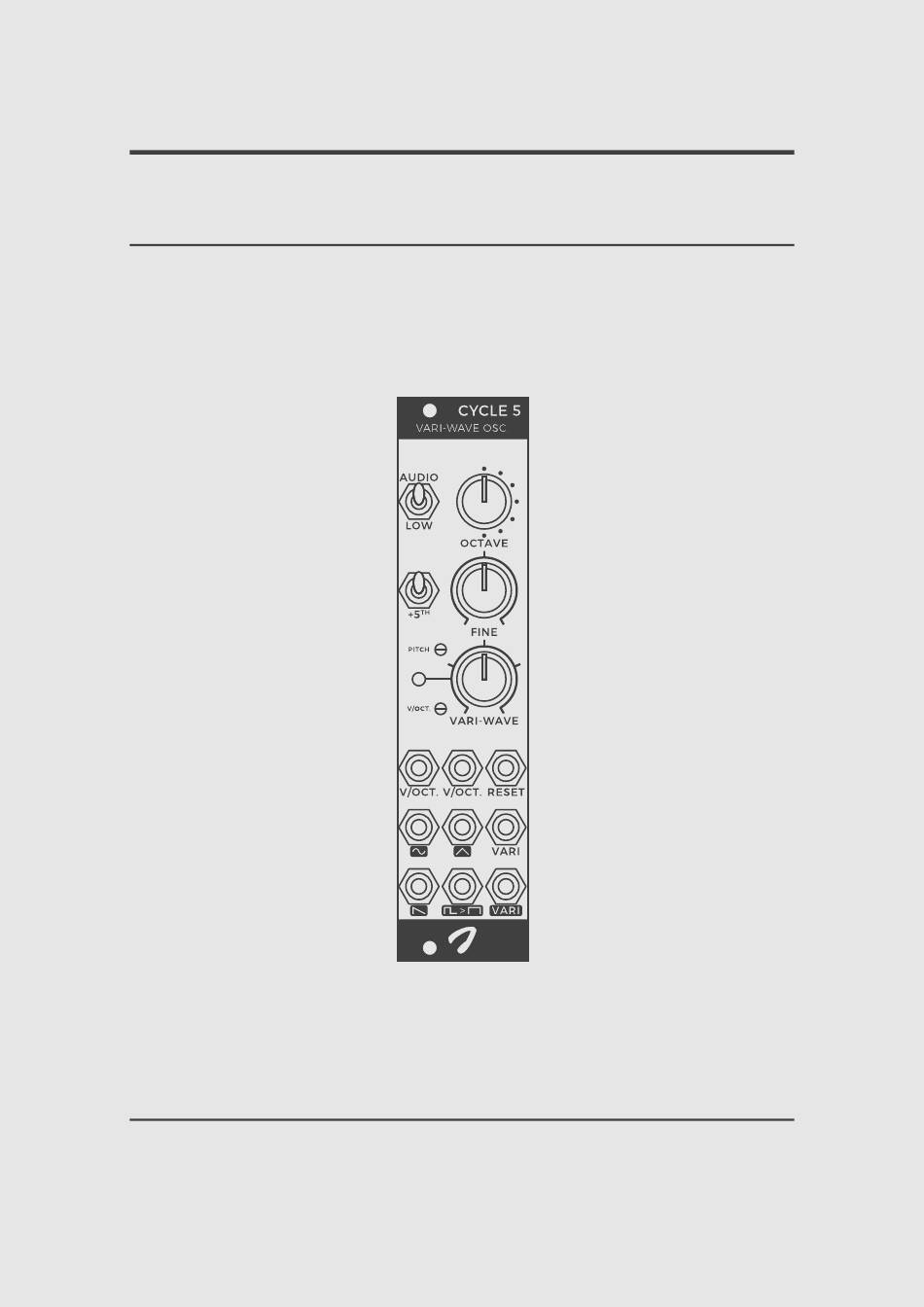

- Page 1 CYCLE 5 VARI-WAVE OSCILLATOR USER MANUAL COLLIDE 4 QUADRATURE SPECTRAL COMPUTER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Contents Installation Signal flow Controls & connections Specifications Support Acknowledgements CYCLE 5 VARI-WAVE OSCILLATOR 1 OF 10... -
Page 3: Introduction
INTRODUCTION A small oscillator that packs a punch: Cycle 5’s highlight however, is its vari- that’s the best way to summarise wave feature. By adjusting the vari-wave Cycle 5. knob, the waveform on the matching output will smoothly morph from sine,... -
Page 4: Contents
Mounting hardware: two black M3 x 6 mm hex screws, two black nylon washers and a hex key. The Cycle 5 module itself, in a protective, reusable cotton bag. If any of these items are missing, please contact your dealer or support@joranalogue.com. -
Page 5: Installation
Now you can power up your rack and case you are uncertain. enjoy your new module! Even if the polarity ends up reversed, this will not damage your module. However, this may not be true for modules of other brands. CYCLE 5 VARI-WAVE OSCILLATOR 4 OF 10... -
Page 6: Signal Flow
SIGNAL FLOW CONTROLS & CONNECTIONS F R EQU EN CY R AN GE SW I TCH This switch determines over which frequency range Cycle 5 will operate: low frequency (VCLFO) or audio frequency (VCO). OCTAVE SW I TCH The rotary octave switch sets the... - Page 7 PWM. range of 7 semitones. Note that through the CV input, it is Cycle 5 is tuned to C when this knob is possible to modulate the pulse centred and the fifth switch is disabled. waveform beyond the 99 % point, However, by using the fine knob and resulting in silence.
- Page 8 WAVEF OR M O U TP U T S not needed. All basic waveforms are available simultaneously at a standard amplitude Should you find your Cycle 5’s scaling to of 10 V via these output sockets: sine, be out of tune, set the range switch to triangle, saw and pulse.
- Page 9 P I TCH T R IM M ER Next, after the scaling has been adjusted, the pitch trim potentiometer is used to set the offset, so that Cycle 5 is tuned to C exactly. While still monitoring the pitch of the...
-
Page 10: Specifications
SPECIFICATIONS SUPPORT As all Joranalogue Audio Design products, Cycle 5 is designed, M O DUL E F ORM AT manufactured and tested with the Doepfer A-100 ‘Eurorack’ compatible highest standards, to provide the 3 U, 20 HP, 30 mm deep (including... -
Page 11: Acknowledgements
ACKNOWLEDGEMENTS With compliments to the following fine people, who helped to make Cycle 5 a reality! Ben ‘DivKid’ Wilson Bernhard Rasinger Björn Jauss Boris Uytterhaegen Daniel Miller Erwin Van Looveren Frits Jacobs Hannes d’Hoine Janus Coorevits Jeroen De Pessemier Konstantinos Fioretos... - Page 12 LAB GRADE SYNTHESIS. EST. 2016 FLANDERS FIELDS BELGIUM...
