Summary of Contents for Shelters4Less SR0155

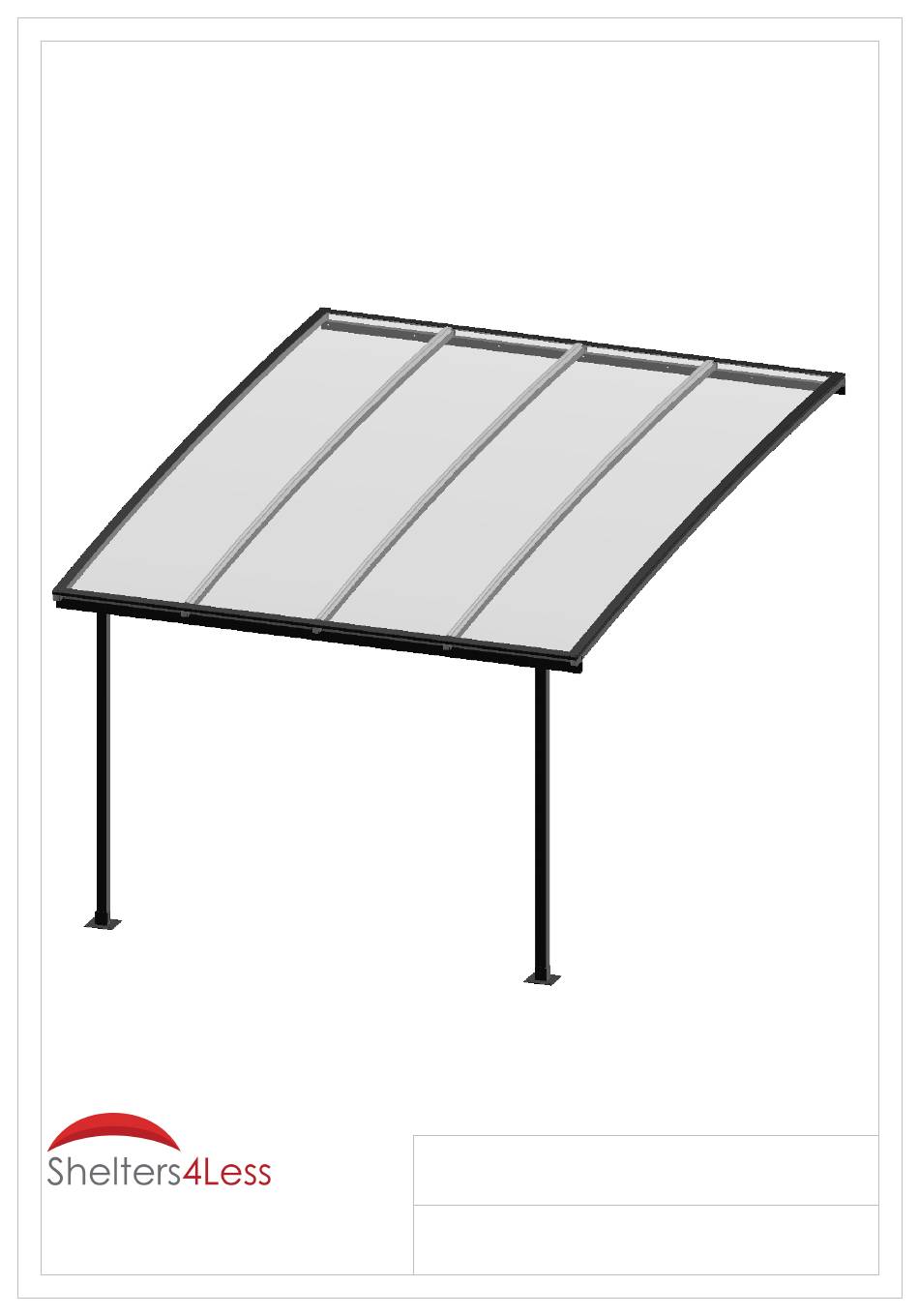

- Page 1 Assembly Instructions Product Code: SR0155 / SR0157 / SR0159 Email : Sales@shelters4less.co.uk Doc. No.: SR0155-01-081216-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
- Page 2 Exploded View & Fixings...
- Page 3 Defaul ITEM NO. PART NAME IMAGES t/QTY. POST 1 FOOT BRACKET 1 BEAM 1 WALL BRACKET 1 RAFTER 1 CAPEX 1 (2 PARTS) POLYCARBONATE 1 J-SECTION 1 J-SECTION 2...
- Page 4 Step 1 Mount Wall Bracket 1 to desired location 2620mm from ground level using M10x100 Anchor Bolts supplied. ENSURE WB1 is level before continuing Wall Bracket 1 (WB1) Wall Note: Ground level should be reasonably flat, adjustments should be made to heights if not.
- Page 5 Use the M10x100 Bolts, Nuts & Washers and loosely bolt Post 1 (P1) to Foot Bracket 1(FB1). Move Posts into position (See Table Below) Post Position (Wall to Front of Post) Shelter Type Distance SR0155 2984 SR0157 3987 SR0159 4941...
- Page 6 Step 3 Bolt Beam 1 to the welded tabs at the top of the post using M10x70 Bolts. U-Brackets may need to be attached to Beam if so use Tec Screws supplied to secure them in place see drawing below to show U-Bracket location. Beam 1 (B1) U-Bracket Welded Tab...
- Page 7 Step 4 Bolt Rafter 1 to the U-Brackets at front and rear. Screw the bottom part of the Capex to Rafters leave 70-75mm at the rear end of shelter & between 60- 70mm at the front. This allows the J-section to be attached. Rafter Capex Capex...
- Page 8 Step 5 Place J-Section on the rear of 1 Polycarbonate sheet line up on the roof use a Tec-Screw to keep in place. Put the remaining Polycarbonate in J-Section and secure. You can now add the remaining J-Section to the shelter and put the top of the Capex system in place.
-
Page 9: Plan View
Plan View Suggested size for concrete base: 200mm oversized on all 4 sides. 3728 3125 3328 Post Position (Wall to Front of Post) Shelter Type Distance (X) Distance (Y) SR0155 2984 3049.5 SR0157 3987 4052.5 SR0159 4941 5006.5... - Page 10 NOTES:...
- Page 11 NOTES:...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
