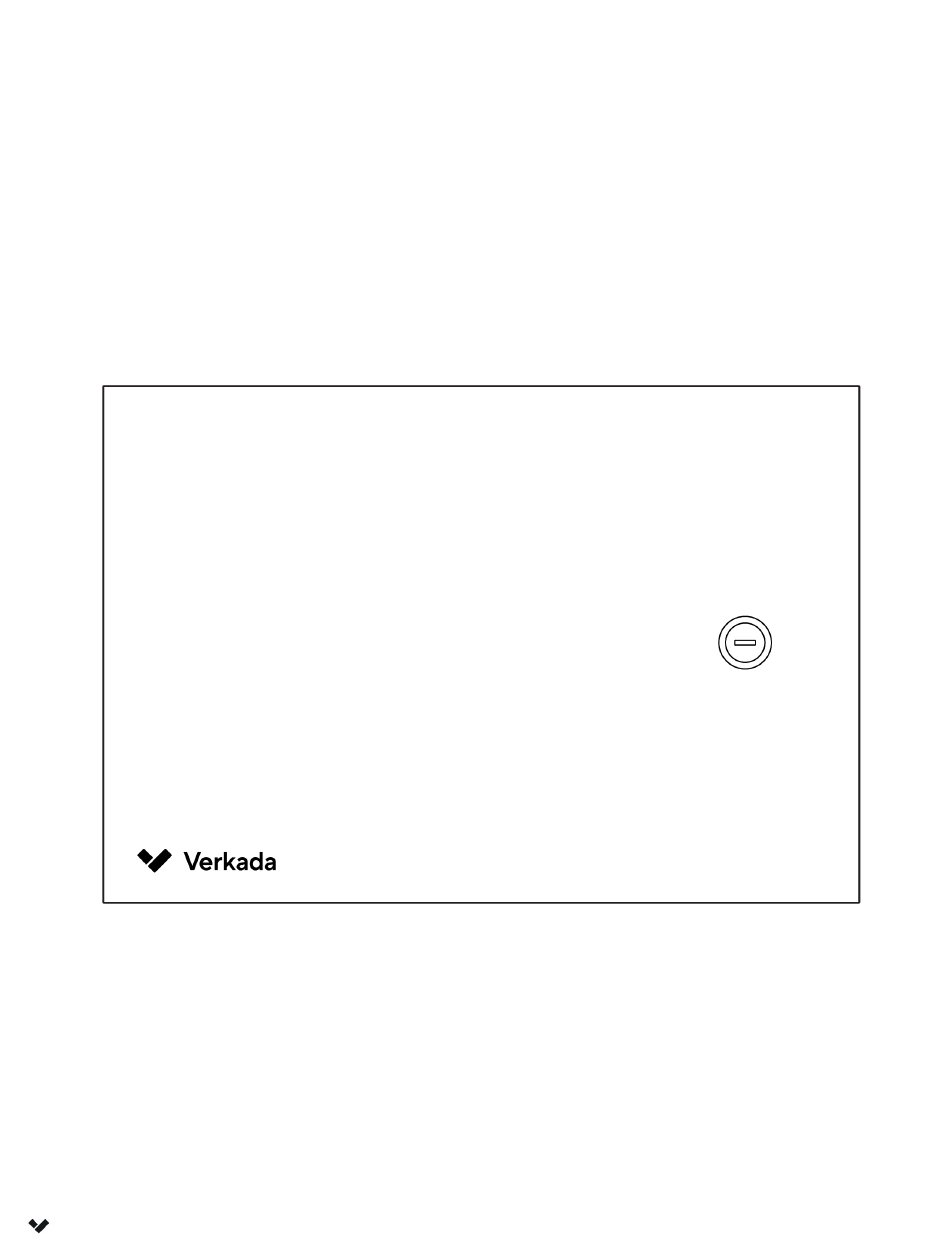

- Page 1 Install Guide ACC-VBX-ENC VBX Dual Battery Enclosure...
-
Page 2: Product Models
Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada. -
Page 3: Introduction What's In The Box
Introduction What’s in the box Keys (2 pcs) Conduit Couplings & Chase Nipples (2 pcs) ACC-VBX-ENC Push-In Cable Push-In Cable No. 12 Wood Screws (4 pcs) Extra Grounding Tie Down (2 pcs) Holder (2 pcs) Length: 1 inch Drive: #3 Philips... -
Page 4: Introduction Technical Specifications
Introduction Technical Specifications Dimensions 117mm (L) x 323mm (W) x 221mm (H) / 4.6in (L) x 12.7in (W) x 8.7in (H) Weight 3.3kg / 7.3lb °C-50°C / 32°F-122° Operating Temperature 0 - 90% humidity Mounting hardware kit Included Accessories Mounting Option Wall Mount Bracket Tamper Detection Yes (1x door switch, 1x wall-mount switch) - Page 5 Installation Mounting Choose a suitable mounting location above, below or side by side with your control Panel (e.g. BP52). Allowable installation locations (based on cable lengths / cable routing) are shown below.
- Page 6 Place ACC-VBX-ENC adjacent to a wired panel once removing the corresponding knockouts. Use the remaining conduit chase nipples to connect ACC-VBX-ENC to a wired panel. Secure ACC-VBX-ENC to the wall using the provided No.12 Screws.
-
Page 7: Installation
Installation Wiring Route the battery wire through the conduit connection and connect to the “VBX Battery Enclosure” port on a wired panel. Alternate way to route the battery wires if using the side knockouts. Route the tamper switch wires around the perimeter of the enclosure using the cable holders. - Page 8 Mounting Slide the door over the hinges and connect the grounding cable to the door. Use the provided ground cable to connect the ACC-VBX-ENC to each other or to BP52 enclosure. Connecting the Connecting the ACC-VBX-ENC to ACC-VBX-ENC to the BP52...
- Page 9 Installation Mounting Close and secure the door using the provided key to engage the lock.
-
Page 10: Battery Installation (Optional)
Installation Battery Installation (Optional) Battery Warning Do not install batteries until all wiring and servicing complete. Batteries Installation Remove all packaging material from the battery. Slide battery into enclosure until audible “click” is heard. Confirm correct installation via LED on battery turning on (refer to the LED behaviors page for more information). - Page 11 Installation Battery LED Behaviour Battery LEDs Battery LED Battery Status Battery LED Battery Status Battery Level Charging Battery (67-100%) Battery Level Battery Error (34-66%) Battery Level Battery not (1-33%) connected...
- Page 12 Appendix Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Statement (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 13 Appendix Support Thank you for purchasing this Verkada product. If for any reason you're experiencing issues or need assistance, please contact our 24/7 Technical Support Team immediately. Sincerely, The Verkada Team verkada.com/support...
