Summary of Contents for Mükava AP20 Hybrid

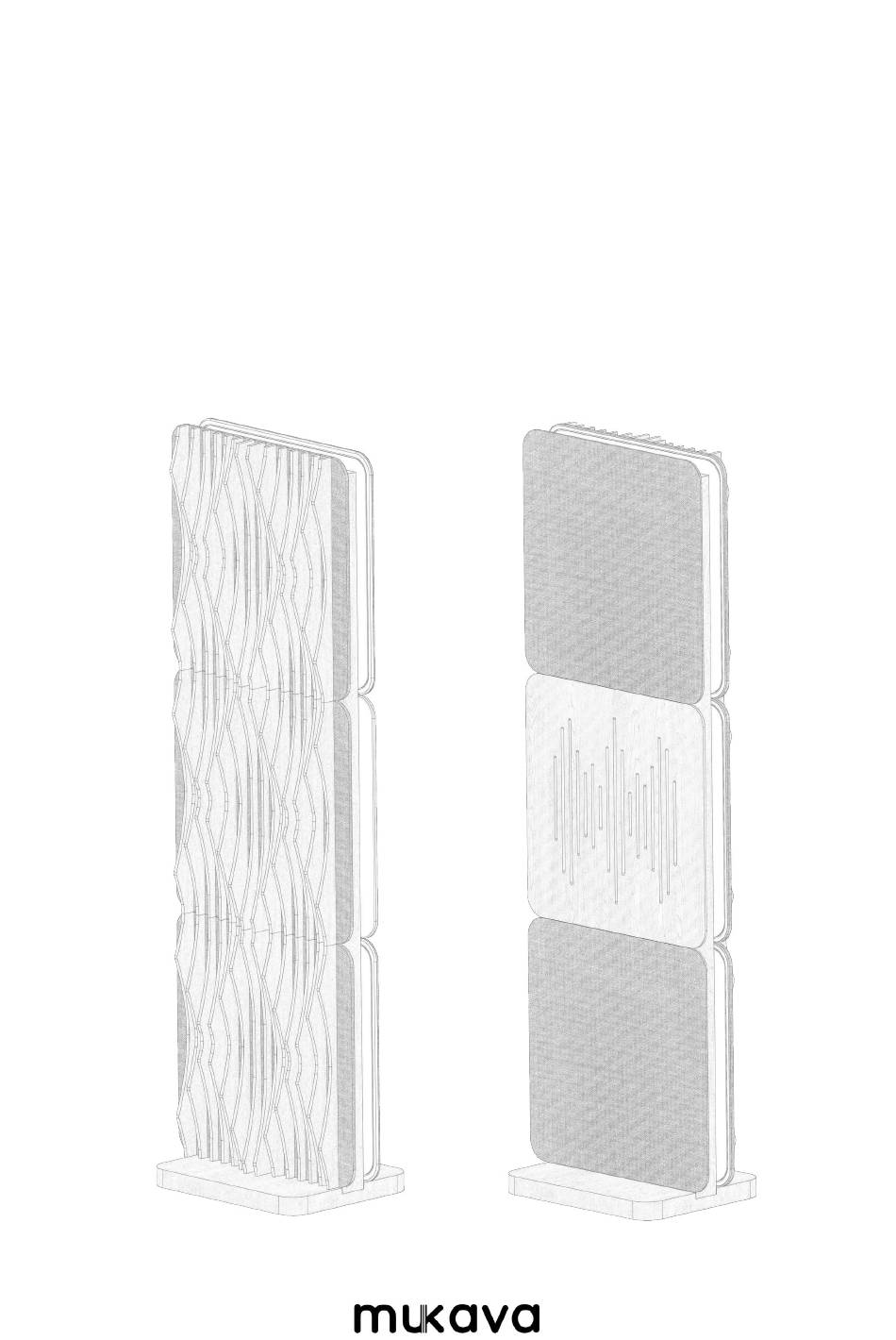

- Page 1 Acoustic Floor Screen For model AP20 Hybrid and AP10 DualAbsorb Installation Manual...
-
Page 2: Product Introduction
Product Introduction This product is a portable acoustic floor screen with sound absorption and diffusion capabilities, which can quickly improve the acoustic environment without renovation. This combined absorption and diffusion partition effectively eliminates noise, enhances sound clarity, and optimizes sound field distribution. - Page 3 Installation steps Model: AP10 DualAbsorb Acoustic Floor Screen...
- Page 4 Installation steps Model: AP10 DualAbsorb Acoustic Floor Screen Unpacking and Checking Products and Accessories. DualAbsorb 1 pc Acoustic Floor Screen Base 1 pc Base fixing screws (M8*35) 6 pcs adjustable foot pads 4 pcs...
- Page 5 Installation steps Model: AP10 DualAbsorb Acoustic Floor Screen Assembling the Base and installing the Foot Pads Lay the DualAbsorb acoustic floor screen frame flat (use the included fabric bag to prevent scratches on the floor), and use screws to secure the base to the floor screen frame.
- Page 6 Installation steps Model: AP10 DualAbsorb Acoustic Floor Screen Replacing Acoustic Fabric Covers (if needed) The acoustic fabric covers are pre-assembled at the factory. If users need to replace the covers, they can remove the current covers and attach new ones using the button fasteners on the frame.
-
Page 7: Final Assembly
Installation steps Model: AP10 DualAbsorb Acoustic Floor Screen Final Assembly The final assembled partition should look like the picture shown. -
Page 8: Installation Steps
Installation steps Model: AP20 Hybrid Acoustic Floor Screen... - Page 9 Installation steps Model: AP20 Hybrid Acoustic Floor Screen Unpacking and Checking Products and Accessories. Hybrid 1 pc Acoustic Floor Screen Base 1 pc Base fixing screws (M8*35) 6 pcs adjustable foot pads 4 pcs...
- Page 10 Installation steps Model: AP20 Hybrid Acoustic Floor Screen Assembling the Base and installing the Foot Pads Lay the Hybrid acoustic floor screen frame flat (use the included fabric bag to prevent scratches on the floor), and use screws to secure the base to the floor screen frame.
- Page 11 Installation steps Model: AP20 Hybrid Acoustic Floor Screen Replacing Acoustic Fabric Covers (if needed) The acoustic fabric covers are pre-assembled at the factory. If users need to replace the covers, they can remove the current covers and attach new ones using the button fasteners on the...
- Page 12 Installation steps Model: AP20 Hybrid Acoustic Floor Screen Final Assembly The final assembled partition should look like the picture shown.
-
Page 13: Acoustic Data
Materials Acoustic fiber: 100% recycled polyester fiber, formaldehyde-free, odorless, compliant with GB 18401-2010 national standards for textile product safety. Surface Material: High-transparency acoustic fabric, formaldehyde-free, compliant with GB 18401-2010 national standards for textile product safety. Acoustic Data Sound Absorption Coefficient: NRC ≥0.8 Effective Sound Absorption Range: 250Hz-5000Hz Diffusion Frequency Range: 2000Hz-6000Hz Acoustic Data... - Page 14 Product Quality Assurance This product includes a 2-year warranty covering the following Material and Workmanship Defects: Covers any defects in materials and manufacturing under normal use conditions. Exclusions: This warranty does not cover damage caused by misuse, improper installation, unauthorized modifications, normal wear and tear, or environmental factors such as humidity, temperature fluctuations, and exposure to sunlight.
-
Page 15: Daily Maintenance
Daily Maintenance Keep the surface of the acoustic fabric clean to avoid accumulation of grease and dust. It is recommended to gently wipe the surface with a soft brush or a slightly damp soft cloth every month to remove dust. If the surface of the acoustic fabric gets stained, you can gently wipe it with a slightly damp soft cloth. - Page 16 Precautions Installation Follow the instructions in the product manual carefully to ensure proper installation. Incorrect installation may affect product performance and void the warranty. Environmental Conditions Avoid placing the product in areas with high humidity, extreme temperatures, or direct sunlight, as these conditions may damage the materials and affect durability.
- Page 17 hello@mukavaacoustics.com...
