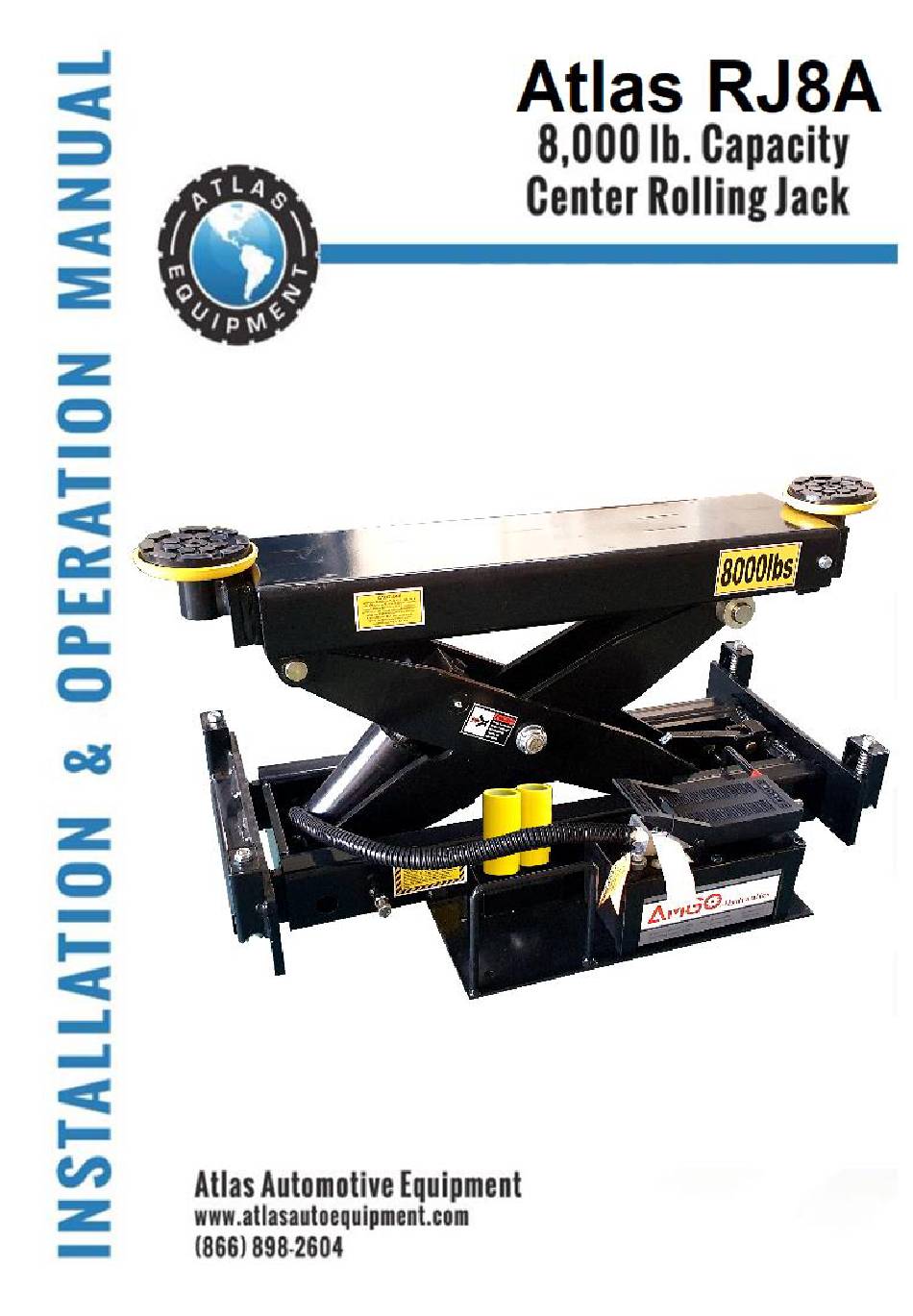

Summary of Contents for Atlas RJ8A
-
Page 2: Table Of Contents
CONTENTS Product Features and Specifications ............1 Storage and Installation ................ 3 Installation procedure ................3 Operation Instruction ................5 Maintenance schedule ................8 Trouble Shooting ................9 EXPLODED VIEW ................10 Car lift safety tips ................13 Lift Disposal ..................13... -
Page 3: Product Features And Specifications
Manual safety lock mechanism. Equipped with pneumatic/hydraulic pump for easy operation. Fits a range (sizes and brands) of four post and large scissors lifts. Adjustable lifting arms with 1.5", 2.5", 5’’ extension adapters & Rubber Pad Assemblies. RJ8A Fig.1... - Page 4 Measurement Image Fig.2 Specifications...
-
Page 5: Storage And Installation
II. Storage and Installation 1. Requirements. 1. 1. The equipment should be stored in a dry, mildew-free, non-flammable environment. 1.2 . The equipment is only approved for installation and use indoors, outdoor use is not recommended. 1 . 3 . To avoid equipment damaged, it is the responsibility of a n y operator to read and follow t h e instructions and safety precautions before installation. - Page 6 Equipment Installation 2. 1 Make sure the 4-post lift o r large scissor lift is fully lowered and the safety lock is locked. 2.2 Use a crane hoist, forklift, or other lifting equipment to lift the Rolling Jack above and between the Lift’s two platforms.
-
Page 7: Operation Instruction
1.4 The Pneumatic Pump comes from the factory full of Hydraulic Oil. You do not need to add any at this point u n l ess the oil has leaked out. 2. Operation of RJ8A 2.1 Operating instructions for pneumatic pump Loosen the exhaust nut approximately one turn counterclockwise before starting normal operation (it is tightened for shipment). - Page 8 2.2 Lifting Operation of RJ8A A. Position the Adjustable Arms of the Rolling Jack so the arm pads are underneath the Vehicle’s recommended lifting points. Fig.8 B. Press ‘ PUMP’ shown in Fig 7 to fill air into the oil pump and to raise the Rolling Jack .
- Page 9 2.3 Lowering Operation of RJ8A A. Press ‘ PUMP’ showed in Fig 7 to raise the Jack for few seconds till the safety lock device is released. Safety lock is released Fig.11 B. Press ‘ RELEASE’ of the pump with one hand, while other hand raises the safety lock handle.
-
Page 10: Maintenance Schedule
V. MAINTENANCE SCHEDULE Keep the Rolling Jack clean; wipe up any oil spills. Do not let dirt get into the hydraulic system. 1. Daily： • Make a visual inspection of all moving parts and check for damage or excessive wear. Replace any damaged or worn parts before setting the Jack back into service. -
Page 11: Trouble Shooting
C. Waste hydraulic oil used by the equipment cann ot be thrown into regular trash or dumped into the environment. It pollutes the environment and is illegal. Instead, take it to a recycling center. Used/dirty hydraulic oil can be cleaned and re-used. -
Page 12: Exploded View
VII. EXPLODED VIEW Fig.15... -
Page 13: Parts List
PARTS LIST Description Part No. Item Extendable arm frame Assembly 11680035A Hex Bolt M8*16 10201022 Upper support Assembly 11690021 Rubber Pad Assembly 11680030C 10209021 Hex Nut M10 Hex Bolt M12*70 10680055 Pin for upper roller 11680008 Upper roller 11680009 Clip Ring Ф25 10206032 11680011 Pin for lower roller... - Page 14 CYLINDER 10680021 Fig. 16 PARTS FOR HYDRAULIC CYLINDER Description Description Item Part No. Item Part No. Support Ring Dust RingФ38*Ф46*5 27- 1 10209078 27-7 10201029 Head Cap Y Ring 27-2 11670006 27-8 10201030 Support Bore Weldment 27-3 11670007 27-9 10201030A RingФ53*Ф63*3 O Ring Ф21*3.
-
Page 15: Car Lift Safety Tips
VIII. Car lift safety tips Keep these safety tips in a place where you can always alert the operator. Please reference to the lift manufacturer’s manual for specific information about the lift. 1. Check the lift daily. If the machine breaks down or has damaged parts, do not operate, and use the parts of original equipment to repair.
