Samsung RF261B Series Service Manual

Samsung RF261B Series Service Manual

Bottom mount freezer
Hide thumbs Also See for RF261B Series:
Table of Contents

Advertisement

Quick Links

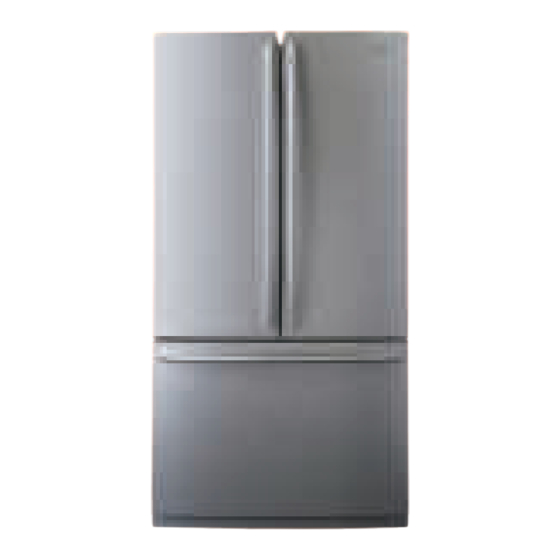

REFRIGERATOR
RF261B*/RF260B*
REFRIGERATOR
BOTTOM MOUNT FREEZER
BASIC : RF261B*/RF260B*
MODEL NAME:
RF260BEAESR
RF260BEAEBC
RF260BEAEWW
RF260BEAESP
RF260BEAESL
RF260BEAESG
MODEL NAME:
RF260BEAESR/AA
RF260BEAEBC/AA
RF260BEAEWW/AA
RF260BEAEWW/ML
RF260BEAESP/AA
RF260BEAESP/ML
RF260BEAESL/EM
RF260BEAESL/TA
RF260BEAESL/TR
RF260BEAESG/AA
CONTENTS
2. PRODUCT SPECIFICATIONS ····················8
4. TROUBLESHOOTING ····························46
5. PCB DIAGRAM ·····································82
6. WIRING DIAGRAM ································87
7. SCHEMATIC DIAGRAM ··························88
RF261BEAESR
RF261BEAEBC
RF261BEAEWW
RF261BEAESP
RF261BEAESL
RF261BEAESG
RF261BEAESR/AA
RF261BEAEBC/AA
RF261BEAEWW/AA
RF261BEAESP/AA
RF261BEAESL/EM
RF261BEAESG/AA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF261B Series and is the answer not in the manual?

Questions and answers

Mike
August 4, 2025

Water is accumulating under the vegetable draws

0
Laura Bonilla
August 3, 2025

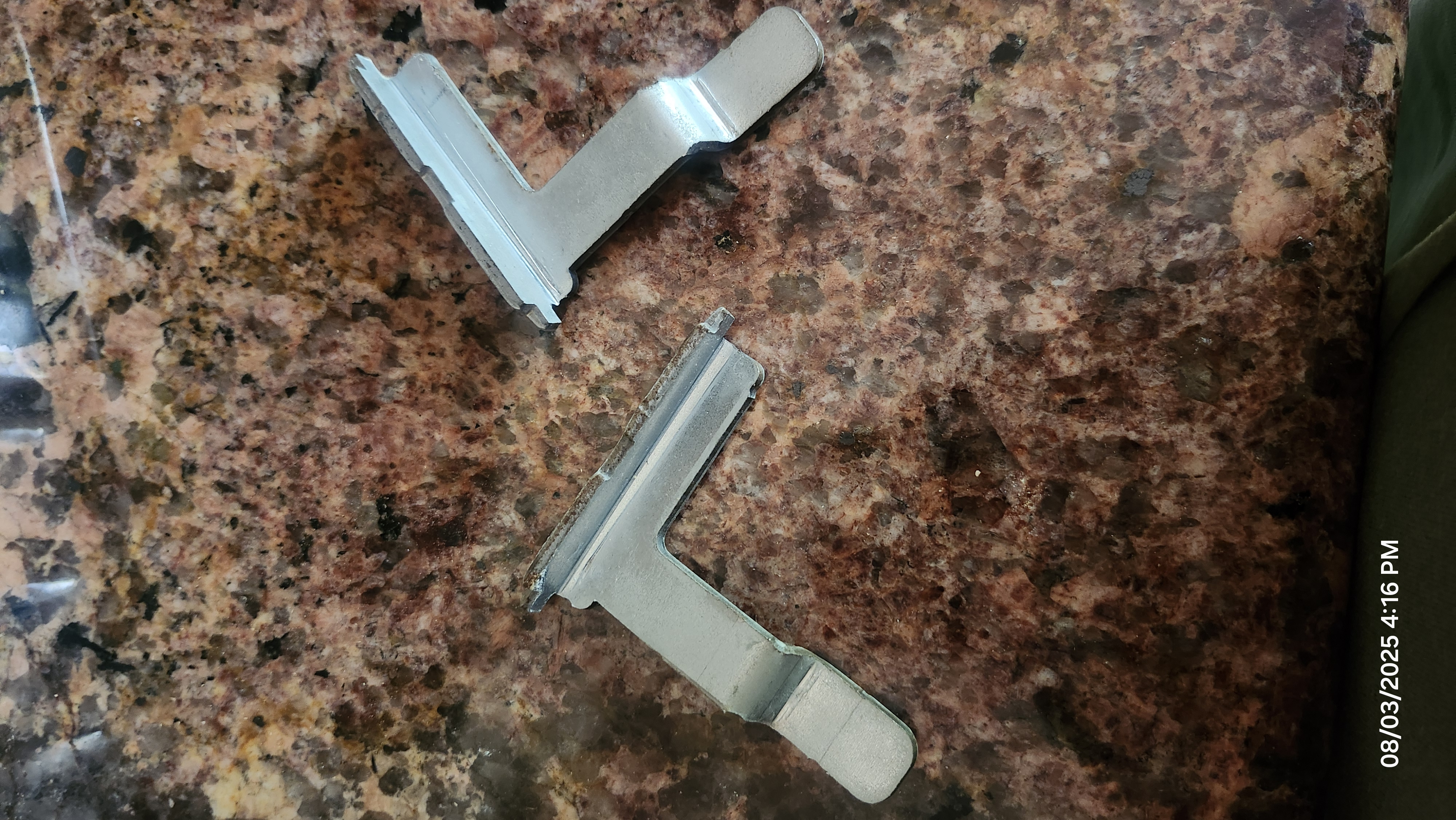

My brother took the doors off of the refrigerator. I'm trying to put them back on .there r 2 pieces that I can't figure out where they belong.

User image 688fc424c930a
0
Allen Murphy
July 2, 2025

How do I reset my water filter light

0
THOMAS AND BRENDA KACZMARCZYK
August 2, 2025

CAN I GET A MANUAL MAIL TO ME

-1

Related Manuals for Samsung RF261B Series

Summary of Contents for Samsung RF261B Series

  • Page 1: Table Of Contents

    REFRIGERATOR BOTTOM MOUNT FREEZER BASIC : RF261B*/RF260B* MODEL NAME: RF260BEAESR RF261BEAESR RF260BEAEBC RF261BEAEBC RF260BEAEWW RF261BEAEWW RF260BEAESP RF261BEAESP RF260BEAESL RF261BEAESL RF260BEAESG RF261BEAESG MODEL NAME: RF260BEAESR/AA RF261BEAESR/AA RF260BEAEBC/AA RF261BEAEBC/AA RF260BEAEWW/AA RF261BEAEWW/AA RF260BEAEWW/ML RF261BEAESP/AA RF260BEAESP/AA RF261BEAESL/EM RF260BEAESP/ML RF261BEAESG/AA RF260BEAESL/EM RF260BEAESL/TA RF260BEAESL/TR RF260BEAESG/AA REFRIGERATOR CONTENTS 1.

  • Page 2: Important Safety Notice

    Technical Service Guide Copyright 2012 All rights reserved. This service guide may not be reproduced in whole or in part in any form without written permission from the SAMSUNG ELECTRONICS Company. AW1-12 (RF261BEAESR)-12.05.04.indd 2 AW1-12 (RF261BEAESR)-12.05.04.indd 2 2012.5.4 1:33:25 PM...

  • Page 3: Precautions (Safety Warnings)

    1. PRECAUTIONS (SAFETY WARNINGS) ●Unplug the appliance before replacing or repairing electrical parts. ⇢ Be careful to avoid electric shock. ●Always use only the correct replacement parts. ⇢ Check the model, rated voltage, rated current and running temperature rating. ●When troubleshooting, verify that wiring harnesses are connected securely. ⇢...

  • Page 4: Warning And Caution

    PRECAUTIONS (SAFETY WARNINGS) Read all instructions before repairing the product and follow the instructions in order to prevent danger or property damage. Plug out and remove all the items in regrigerator prior to repair. CAUTION/WARNING SYMBOLS DISPLAYED SYMBOLS means "Prohibited". Indicates that a danger of death Warning...
  • Page 5 PRECAUTIONS (SAFETY WARNINGS) ❈ Please let users know following warnings & cautions in detail. Warning & Caution Customers should not store narrow Drugs requiring precise Customers should not store glass or long bottles or food in a small temperatures should not be stored bottles of liquid in the freezer in the refrigerator.
  • Page 6 PRECAUTIONS (SAFETY WARNINGS) FLOORING For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 660lbs(299kg).

  • Page 7: Product Specifications

    2. PRODUCT SPECIFICATIONS 2-1) Introduction of Main Function ........................9 2-2) Specifications ..............................11 2-3) Interior Views ............................... 12 2-4) Model Specification &Specification Chart ....................13 2-5) Dimensions of Refrigerator (Inches) ......................16 2-6) Optional Material Specification........................17 2-7) Refrigerant Route in Refrigeration cycle ..................... 18 2-7-1.

  • Page 8: 2-1) Introduction Of Main Function

    PRODUCT SPECIFICATIONS 2-1) Introduction of Main Function • A newly developed SAMSUNG bottom mount freezer in 2012 has the following characteristics. Surround Multi Flow • Provides uniform cooling for each shelf and every corner in the fresh food section. This is accomplished by using a center positioned fan and duct with multiple cooling flow openings.

  • Page 9: Electrical Specifications

    PRODUCT SPECIFICATIONS 2-2) Speci cations ELECTRICAL SPECIFICATIONS Refrigerator Defrost Control From 12 to 30hrs(comp. run time) Thermo Bimetal Protector 140°F(60°C)(o ) 104°F(40°C)(on) Defrost Thermistor(502AT) 50°F(10°C)(o ) Electrical Rating AC115V 60Hz 11.6 Amps (Air inlet) (Air inlet) (Air inlet) (Air inlet) Maximum Current Leakage 0.25 mA Maximum Ground Path Resistance...

  • Page 10: 2-3) Interior Views

    PRODUCT SPECIFICATIONS 2-3) Interior Views Digital Sensor Control Auto Door Closer Light Daily Compartment Water Filter Egg Container Door Bin Spill Proof Glass Shelf Internal Water Vertical Hinged Dispenser(RF261B*) Section Gallon Door Bin Vegetable & Fruit Drawers Cool Select Pantry Light Ice Maker Ice Bin...

  • Page 11: 2-4) Model Specification &Specification Chart

    PRODUCT SPECIFICATIONS 2-4) Model Specification &Specification Chart SAMSUNG MAYTAG ITEM SPEC RF261B*/RF260B* MFI2568AES LFX25960ST Appearance Cooling Tech Twin Cooling Mono Cooling Mono Cooling Product Zone Door Shape Contour Contour Contour Special Room Cool Select Pantry Pantry Pantry F-Room 250 ↓...
  • Page 12 PRODUCT SPECIFICATIONS RF261B* RF260B* Model Internal W/D with Pantry Pantry ITEM IMAGE 35 6/8 Inch(908mm) 35 6/8 Inch(908mm) On Cabinet 29 1/4 Inch (745mm) 29 1/4 Inch (745mm) W/O Handle 33 2/8 Inch (842mm) 33 2/8 Inch (842mm) External size With Handle 35 3/4 Inch (907mm) 35 3/4 Inch (907mm)
  • Page 13 PRODUCT SPECIFICATIONS Items Specification Model RF260B* RF261B* Model MSV172AL2J Compressor n i t Evaporator i g i o i t a l l ” 2 ” 8 Model Temperature Selection ON (°F) OFF (°F) -8°F (-23°C) -5°F (-21°C) -11°F (-24°C) THERMISTOR (F-SENSOR) -0°F (-18°C)
  • Page 14 PRODUCT SPECIFICATIONS Items Specification Model RF260B* RF261B* Defrost Heater(FRE) Heated at F Defrost AC 115V, 240W / AC 230V, 240W Defrost Heater(REF) Heated at R Defrost AC 115V, 120W / AC 230V, 120W Interlock with French DISPENSER Heater AC 115V, 10W / AC 230V, 3W Heater FRENCH Heater AC 115V, 10W / AC 230V, 10W...

  • Page 15: 2-5) Dimensions Of Refrigerator (Inches)

    PRODUCT SPECIFICATIONS 2-5) Dimensions of Refrigerator (Inches) Model RF263T**/ RF263B** Depth “A” 33 1/2” (850mm) Width “B” 35 3/4” (909mm) Height “C” 68 3/8” (1737mm) 70” (1778 mm) Overall Height “D” 35 3/4” (910mm) Depth “E” 35 3/4” (909 mm) 1 5/8”...
  • Page 16 PRODUCT SPECIFICATIONS Part Name Part Code AMOUNT DA61-11161A FIXER HANDLE DA80-00026B WRENCH SPANNER DA99-03429J ASSY LABEL HANDLE INSTRUCTION * The components are included in Assy Cushion Handle FILTER-WATER DA29-00019B LED LAMP REF DA41-00676J LED LAMP CASE-VEG R, L DA41-00519S LED LAMP FRE DA41-00676K AW1-12 (RF261BEAESR)-12.05.04.indd 17 2012.5.4 1:33:32 PM...

  • Page 17: 2-7) Refrigerant Route In Refrigeration Cycle

    PRODUCT SPECIFICATIONS 2-7) Refrigerant Route in Refrigeration cycle Compressor → Conden → Hot Pipe → Dryer → Capillary Tube → Refrigerator Evaporator → Freezer Evaporator → Suction Pipe → Compressor AW1-12 (RF261BEAESR)-12.05.04.indd 18 AW1-12 (RF261BEAESR)-12.05.04.indd 18 2012.5.4 1:33:32 PM 2012.5.4 1:33:32 PM...

  • Page 18: Principle Of Freezeer

    PRODUCT SPECIFICATIONS 2-7-1. Principle of freezeer AW1-12 (RF261BEAESR)-12.05.04.indd 19 AW1-12 (RF261BEAESR)-12.05.04.indd 19 2012.5.4 1:33:32 PM 2012.5.4 1:33:32 PM...

  • Page 19: Operation Theory Of Refrigeration Cycle Components

    PRODUCT SPECIFICATIONS 2-7-2. Operation theory of refrigeration cycle components ■Condenser 1) Role: A device which radiates heat to the outside of the refrigerator. As this heat is dispersed, the high temperature/ high pressure vapor refrigerant changes to a liquid state. 2) Types A.
  • Page 20 PRODUCT SPECIFICATIONS ■Evaporator 1. Role: As the low pressure liquid refrigerant flowed from capillary absorbs heat inside of the refrigerator, it becomes low pressure gas and refrigerate the foods. 2. Theory: The low pressure refrigerant flowed to evaporator operates cooling which takes ambient evaporated potential heat with maintaining the evaporation up to evaporate completely.

  • Page 21: Refrigeration Cycle Type

    PRODUCT SPECIFICATIONS ※ . Influence of moisture ① Moisture precipitation - Blocked by ice ② Refrigerant and reaction ③ Life reduction of oil ④ Acceleration of oxidization ⑤ Copper plating phenomenon ⑥ Gas dissolution by the interaction of synthetic insulating material (insulator) ※.

  • Page 22: 2-8) Cooling Air Circulation

    PRODUCT SPECIFICATIONS 2-8) Cooling Air Circulation Refrigerator Discharge Return Ice Maker Duct in Fridge Discharge Freezer Return Duct Duct in Freezer Discharge Return Duct In some cases, frost blocks the return hole in freezer and it may cause weak cooling or No ice making.

  • Page 23: Disassembly And Reassembly

    3. DISASSEMBLY AND REASSEMBLY 3-1) PRECAUTION ..............................26 3-2) Refrigerator Door ............................27 3-3) Door Handle Refrigerator ..........................29 3-4) Door Handle Freezer ........................... 29 3-5) Refrigerator Light ............................30 3-6) Cover-Display & Water-Dispenser ......................30 3-7) Water-Dispenser............................31 3-8) Glass Shelf..............................32 3-9) Foldable Glass Shelf ............................

  • Page 24: 3-1) Precaution

    DISASSEMBLY AND REASSEMBLY 3-1) PRECAUTION • Unplug the refrigerator before cleaning and making repairs. • Remove any foreign matter or dust from the power plug pins. - Otherwise there is a risk of fire. • Do not use a cord that shows cracks or abrasion damage along its length or at either end. •...

  • Page 25: 3-2) Refrigerator Door

    DISASSEMBLY AND REASSEMBLY 3-2) Refrigerator Door Part Name How To Do Descriptive Picture 1. Remove the 3 screws holding down the Top Table and remove the Top Table ( ) Refrigerator Door 2. After pulling the Hinge Lever, remove the Hinge.

  • Page 26: 3-3) Door Handle Refrigerator

    DISASSEMBLY AND REASSEMBLY 3-3) Door Handle Refrigerator Part Name How To Do Descriptive Picture 1. Loosen the Set Screw situated at the end of the inner part of handle about 0.1in by using Hex wrench. Door Handle Fridge 2. Pull the Set handle out by moving it straight Be careful not to scratch or break the parts.

  • Page 27: 3-5) Refrigerator Light

    DISASSEMBLY AND REASSEMBLY 3-5) Refrigerator Light Part Name How To Do Descriptive Picture 1. Press the tabs on the back of the Lamp Cover and take it off. Refrigerator Light 2. Remove the 3 screws And separate the LED panel. 3-6) Internal Water Dispenser Part Name How To Do...

  • Page 28: 3-7) Water-Dispenser

    DISASSEMBLY AND REASSEMBLY 3-7) Water-Dispenser Part Name How To Do Descriptive Picture 1. Disengage the Housing Connector by pushing a flat-blade screwdriver. 2. Remove 2 screws of the Case Ice Route Assy. Water-Dispenser 3. Pull the Case Ice Route Assy. 4.

  • Page 29: 3-8) Glass Shelf

    DISASSEMBLY AND REASSEMBLY 3-8) Glass Shelf Part Name How To Do Descriptive Picture Remove the shelf by lifting the front part of the Glass Shelf shelf up and pulling it out. 3-9) Foldable Glass Shelf Part Name How To Do Descriptive Picture Foldable Glass Shelf Remove 2 screws of the Folderble Glass Shelf...

  • Page 30: 3-10) Vegetable & Fruit Drawers Shelf

    DISASSEMBLY AND REASSEMBLY 3-10) Vegetable & Fruit Drawers Shelf Part Name How To Do Descriptive Picture 1. Remove the vegetable & fruit drawer. 2. Push the button on the left side of the shelf Vegetable & Fruit and lift up to release from the Assembly. Drawers Shelf (Refer to the picture) 3.

  • Page 31: 3-11) Case Water Filter

    DISASSEMBLY AND REASSEMBLY 3-12) Case Water Filter Part Name How To Do Descriptive Picture To disassemble the Case Water Filter, remove the water filter and all drawers and shelves. 1. a. Remove Cover Tube Fitting (1). b. Remove the Water tube (blue) from the tube fitting by pushing in on the locking ring (2) and pulling out the tube.

  • Page 32: 3-13) Motor Damper

    DISASSEMBLY AND REASSEMBLY 3-13) Motor Damper Part Name How To Do Descriptive Picture 1. Remove the cool select pantry. Remove the screw of motor damper part and than push the motor damper down. Motor Damper 2. Disengage 2 housing connectors from the rear motor damper.

  • Page 33: 3-14) Water Filter (Assembly & Disassembly)

    DISASSEMBLY AND REASSEMBLY 3-14) Water Filter (Assembly & Disassembly) Part Name How To Do Descriptive Picture 1. Turn the water filter count-clockwise. (Refer to the picture) 2. Remove the water filter by pulling it. (Refer to the picture) Water Filter 3.

  • Page 34: 3-15) Gallon Door Bin

    DISASSEMBLY AND REASSEMBLY 3-15) Gallon Door Bin Part Name How To Do Descriptive Picture 1. Remove the door bin by moving straight Gallon Door Bin (Right) 2. a. Remove dis door bin by moving straight Gallon Door Bin (Left) b. Remove by moving up the left side of door bin.

  • Page 35: 3-17) Evaporator Cover In Refrigerator

    DISASSEMBLY AND REASSEMBLY 3-17) Evaporator Cover In Refrigerator Part Name How To Do Descriptive Picture 1. Remove the angle cap with a flat-blade screwdriver. (Refer to the picture) Be careful not to scratch or break the parts CAUTION 2. Loosen the 4 screws, which fix the Evaporator cover Evaporator Cover In 3.

  • Page 36: 3-18) Evaporator In Refrigerator

    DISASSEMBLY AND REASSEMBLY 3-18) Evaporator In Refrigerator Part Name How To Do Descriptive Picture <Left> <Left> 1. Disconnect the housing connector part on left side. Before doing the above, make sure that the unit is unplugged. CAUTION <Right> <Right> 2. Disconnect the housing connector on right side.

  • Page 37: 3-19) Freezer Door

    DISASSEMBLY AND REASSEMBLY 3-19) Freezer Door Part Name How To Do Descriptive Picture 1. Pull out the Pull Out Drawer by maximum. 2. After lifting the Pull Out Drawer up holding both sides, remove it at the rail system. 3. Remove the Tilting Pocket( ) by lifting it up 4.

  • Page 38: 3-20) Ice-Maker

    DISASSEMBLY AND REASSEMBLY 3-20) Ice Maker Part Name How To Do Descriptive Picture 1. Remove the ice maker by pulling it out. Ice Maker 2. Disconnect the housing connector part. AW1-12 (RF261BEAESR)-12.05.04.indd 39 AW1-12 (RF261BEAESR)-12.05.04.indd 39 2012.5.4 1:33:45 PM 2012.5.4 1:33:45 PM...

  • Page 39: 3-22) Freezer Light

    DISASSEMBLY AND REASSEMBLY 3-21) Freezer Light Part Name How To Do Descriptive Picture 1. Remove the cover Freezer lamp ( ) using a flat-blade screwdriver. Freezer Light 2. Disengage the housing. Before doing the above, make sure that the unit is unplugged. CAUTION 3-22) Door Switch In Freezer Part Name...

  • Page 40: 3-24) Evaporator Cover In Freezer

    DISASSEMBLY AND REASSEMBLY 3-23) Evaporator Cover In Freezer Part Name How To Do Descriptive Picture 1. Loosen the 4 screws, which fix the Evaporator cover. Evaporator Cover In 2. Lift up the evaporator cover. Freezer 3. Disconnect the housing connector on right and remove the evaporator cover.

  • Page 41: 3-26) Machine Compartment

    DISASSEMBLY AND REASSEMBLY 3-25) Machine Compartment Part Name How To Do Descriptive Picture 1. Unscrew 5 screws of cover compressor. 2. Disengage the housing connector. (Refer to the picture) Before doing the above, make sure that the unit is unplugged. CAUTION 3.
  • Page 42 DISASSEMBLY AND REASSEMBLY Part Name How To Do Descriptive Picture 1. Disengage the housing connector. Relay O/L 2. Remove Cover Relay. 3. Remove the relay O/L with a flat-blade screwdriver. (Refer to the picture) AW1-12 (RF261BEAESR)-12.05.04.indd 43 AW1-12 (RF261BEAESR)-12.05.04.indd 43 2012.5.4 1:33:48 PM 2012.5.4 1:33:48 PM...

  • Page 43: 3-27) Compressor

    DISASSEMBLY AND REASSEMBLY 3-26) COMPRESSOR Part Name How To Do Descriptive Picture 1. Cut off the LOKRING connecting the COMP and the CONDENSER with a Pipe Cutter. (Red-line marking points) 2. Cut off the LOKRING connecting the CONDENSER and the HOT PIPE with a Pipe Cutter.

  • Page 44: 3-28) Electric Box

    DISASSEMBLY AND REASSEMBLY 3-27) Electric Box Part Name How To Do Descriptive Picture 1. Remove the 2 screw attached to the upper left and right Case PCB Panel with a phillips screwdriver(+). 2. Disengage all housing connectors from the PBA Main main PCB.

  • Page 45: Troubleshooting

    4. TROUBLESHOOTING 4-1) Function for failure diagnosis ........................51 4-1-1. Test mode (manual operation / manual defrost function) ............51 4-1-2. Display function of Communication error ..................52 4-1-3. Self-diagnostic function ......................... 53 4-1-4. Display function of Load condition ....................56 4-1-5.

  • Page 46: 4-1) Function For Failure Diagnosis

    TROUBLESHOOTING 4-1) Function for failure diagnosis 4-1-1. Test mode (manual operation / manual defrost function) • If Power Freezer + Fridge key on the front of panel are pressed simultaneously for 8 seconds , it will be changed to the test mode and all displays on the front of panel will be off. •...

  • Page 47: Display Function Of Communication Error

    TROUBLESHOOTING 2) Forced Defrost 2-1) When you press any key one more time at Fridge off Forced Operation [OF r], rd lights up on the Display Panel. At this time, the Forcd Operation stops immediately and R-Defrost will be performed at the same time.

  • Page 48: Self-Diagnostic Function

    TROUBLESHOOTING 4-1-3. Self-diagnostic function 1) Self-diagnostic function in the Initial power ON 1-1) Micom operates self-diagnostic function to check the temperature sensor condition within 1 second when the refrigerator turned On initially. 1-2) If bad sensor is detected by the self-diagnostic function, the applicable display LED will blink for 0.5 sec. At this moment, there is no beep sound.(Refer to self-diagnostic CHECK LIST) 1-3) Self-diagnostic button is recognized only when the error is displayed by the bad sensor.
  • Page 49 TROUBLESHOOTING ※ R Self-diagnostics check list Item Trouble contents Diagnostic method When measuring the voltage between the Main FZ-Sensor Error PCB CN30-"4" ↔ CN76-"1", it should read between 4.5V~1.0V. When measuring the voltage between the Main FF-Sensor Error PCB CN30-"5" ↔ CN76-"1", it should read between 4.5V~1.0V.
  • Page 50 TROUBLESHOOTING ※ R Self-diagnostics check list Item Trouble contents Diagnostic method After separating MAIN PCB CN77 wire from Display error when open error is detected PCB, resistance value between Black ↔ Brown "Flex Zone-Damper- by damper heater : separation of Damper wire shall be 135 ohm±...

  • Page 51: Display Function Of Load Condition

    TROUBLESHOOTING 4-1-4. Display function of Load condition ① ① ① If Power Freezer key + Power Fridge key are pressed simultaneously for 6 seconds, ALL ON/OFF will blink with 0.5interval for 2 seconds. ② If take the finger off from above keys and press Fridge, load condition mode will be started. 1) If Power Power Freezer key + Power Fridge key are pressed simultaneously for 6 seconds during normal operation, the temperature setting display of fresh food and freezer compartments will blink ALL ON/OFF with 0.5 for 2 seconds.

  • Page 52: Display Contents

    TROUBLESHOOTING ※ R Load mode Check list Display LED Display contents Operation contents R-1-ⓐ R-FAN High When FF compartment FAN operates with high speed, applicable LED ON R-1-ⓑ R-FAN Low When FF compartment FAN operates with low speed, applicable LED ON R-1-ⓒ...

  • Page 53: Troubleshooting

    TROUBLESHOOTING 4-1-6. Option setting function I • d i r t l u i r u o i t e r f food and freezer compartments temperature display will be changed to option setting mode. KEY operation method for changing to option mode ①...
  • Page 54 TROUBLESHOOTING Code Reference Value 1) For example, if you want to change freezer compartment standard temperature to -4℉(-2°C) by operating option, do as below. This function is for changing the standard temperature. In -2℉(-19°C) of current temperature of freezer compartment, if you make the temperature lower to -4℉ (-2°C) by the option, the standard temperature would be controlled -6℉(-21°C) Therefore, if you change the setting of temperature option to -2℉(-19°C) on the panel, the appliance will be operated with -6℉(-21°C).

  • Page 55: Option Table

    TROUBLESHOOTING 4-1-7. Option TABLE 1) Temperature changing table of freezer compartment Set item Freezer Temp Shift MODEL RF260B**, RF261B** Fridge Room 7-SEG Reference Value Setting value Temp. compensation compartment Code 0℉(0.0℃) -1℉(-0.5℃) -2℉(-1.0℃) -3℉(-1.5℃) -4℉(-2.0℃) -5℉(-2.5℃) -6℉(-3.0℃) -7℉(-3.5℃) +1℉(+0.5℃) Code Reference Value +2℉(+1.0℃) ex) If you want to change the freezer standard temperature to...
  • Page 56 TROUBLESHOOTING 3) Temperature changing table of ICE ROOM compartment . Set item ICE ROOM Temp shift MODEL RF260B* , RF261B* Fridge Room 7-SEG Reference Value Setting value Temp. compensation compartment Code 8.6℉(-13℃) ex) If you want to change the freezer compartment 6.8℉(-14℃) standard temperature to 5℉(-15℃)

  • Page 57: 4-2) Diagnostic Method According To The Trouble Symptom(Flow Chart)

    TROUBLESHOOTING 4-2) Diagnostic method according to the trouble symptom(Flow Chart) DATA1.Temperature table Resistance value and MICOM port voltage of sensor according to the temperature SENSOR CHIP : based on PX41C, PX41C, 502AT/ 103**(ICE MAKER SENSOR(MOLD)/FULL UP, 20Kohm ( Actual measurement = value of the table below X 2 ) ℃...
  • Page 58 TROUBLESHOOTING DATA2. Humidity Sensor table - Voltage output table @23°…, 5Vdc --- HTG3515CH/HTG3535CH RH(Temperature compensate ) = RH (Relative Humidity ) + ( Temp(°C) °© 23°C) x 0.05 ℃ ℉ ℃ ℉ ℃ ℉ Voltage Resi s tance Voltage Resi s tance Voltage Resi s tance 2246...

  • Page 59: If The Trouble Is Detected By Self-Diagnosis

    TROUBLESHOOTING 4-2-1. If the trouble is detected by self-diagnosis 1) ICE Maker(FZ) Sensor has troubled ERROR Code - This refrigerator has Dual Ice Maker, so controlled two Ice Makers. Start Is MAIN PCB DATA1. Connector CN90 inserted Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** ICE MAKER(FZ) : CN90 9 ↔...
  • Page 60 TROUBLESHOOTING 2) If R Sensor has trouble ERROR Code Start Is MAIN PCB DATA1. Connector CN30 and CN76 inserted Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** Is R Sensor R : CN30 - “6”...
  • Page 61 TROUBLESHOOTING 3) If R DEF Sensor has trouble ERROR Code Start Start Is MAIN PCB DATA1. Connector CN30 and CN76 inserted Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** R-DEF : CN30-"8"...
  • Page 62 TROUBLESHOOTING 4) If Ambient Sensor has trouble ERROR Code Start Start DATA1. MAIN PCB Connector CN78 inserted Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** Ambient : CN78-”8”↔ “12” measuring resistance value ** Placed in the right top table of upper hinge.
  • Page 63 TROUBLESHOOTING 5) If F Sensor has trouble ERROR Code Start Start Are MAIN PCB DATA1. Connector CN30 and CN76 Temperature table inserted correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** F : CN30-”4” ↔ CN76-”1” measuring resistance value F Sensor unit normal? ** 0Ω: Short trouble / Ω∞: Open trouble Refer to circuit diagram in the manual...
  • Page 64 TROUBLESHOOTING 6) If F DEF Sensor has trouble ERROR Code Start Start DATA1. MAIN PCB Connector CN30 and CN76 Temperature table insert correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor ** F-DEF : CCN30-”5” ↔ CN76-”1” measuring resistance FZ DEF Sensor unit value normal?
  • Page 65 TROUBLESHOOTING 7) If PANTRY Sensor has trouble ERROR Code Start Start Is MAIN PCB DATA1. Connector CN30 and CN76 insert Temperature table correctly? Bad contact of connector/ insert correctly ** Measuring point of resistance value according to Sensor Is Pantry Sensor Flex : CN30 ”9”...
  • Page 66 TROUBLESHOOTING 8) If Humidity Sensor has trouble ERROR Code Start Start Is MAIN PCB Connector CN30 inserted correctly? ** Measuring point of resistance value according to Bad contact of connector /insert correctly Sensor" Humidity : CN30 ”1” ↔ ”3” Is Humidity Sensor Resistance value with opened : about 50Ω...
  • Page 67 TROUBLESHOOTING 9) PANTRY Room Damper Heater has trouble(OPTION) ERROR Code Start Start Is Damper Heater normal?(about135ohm) Bad contact of connector/ insert correctly Measure the voltage of Resistance Is MAIN PCB connector between ① - ② after (CN77) inserted correctly? CN77 connector open / 1350 ohm ± 7% 1) Wire connector Initial Working...

  • Page 68: If Fan Does Not Operate

    TROUBLESHOOTING 4-2-2. If FAN does not operate - The refrigerator of this model has BLDC FAN motor. BLDC motor is driven by DC 7~12V. - On the normal condition of COMP ON, it operates together with F-FAN motor. If door is opened and closed once at a high ambient temperature, it will be operated after 1 minute delay.

  • Page 69: When Ice Maker(Fz) Does Not Operate

    TROUBLESHOOTING 4-2-3. When ICE MAKER(FZ) does not operate 1. Water will be automatically supplied to the Ice Maker depending on temperature & time conditions, and ice will be produced to dispense. 2. Power is applied to one end of the wires. So, make sure to refer to its Exploded View whenever doing the disassembly.

  • Page 70: If Defrost Does Not Operate (F,R Def Heater)

    TROUBLESHOOTING 4-2-4. If defrost does not operate (F,R DEF Heater) R DEF ERROR F DEF ERROR Start **Measuring point of resistance value according to heater** F-DEF : CN70 “3”(Brown) ↔ CN72 ”3” (Gray) measuring resistance value(63 ohm ± 7%) Are the all deforst R-DEF : CN70 ”1”(White) ↔...

  • Page 71: When Power Is Not Applied

    TROUBLESHOOTING 4-2-5. When Power is not applied - To check the Inverter PCB, Caution refer to the Operation and Start 'Refer' sections in this There is Over AC 115V and DC 310V manual at the Inverter PCB Power Circuit. So, be cautious when repairing the unit or measuring values..

  • Page 72: When Compressor Does Not Run (Inverter Comp.)

    TROUBLESHOOTING 4-2-6. When Compressor does not run (Inverter COMP.) Start 10 minutes have passed since COMP was off Check in 10 minutes When Forced Operation Refer to the TEST mode is activated, COMP Function in this manual operates Forced Operation signal sound should be checked F-Sensor is Good 0~800Hz 50%...

  • Page 73: When Alarm Sounds Continuously Without Stop(Related With Buzzer Sound)

    TROUBLESHOOTING 4-2-7. When alarm sounds continuously without stop(related with buzzer sound) ① If 'ding-dong'sound continuously Start Door is ajar Is door closed completely? Remove causes after comprehending the conditions of interferance by door gasket, food etc, Is water penetrated into the door switch? Replace Door S/W Seperate the door switch andcheck if the Is the door...
  • Page 74 TROUBLESHOOTING ③ If buzzer does not sound Buzzer is installed on the panel PCB in this model. If buzzer does not sound even though the button is pressed, manual operation is started and door is opened, it should separate panel PCB and check the breakage of buzzer and bad soldering. It is very hard to repair the panel PCB because it consists of SMD assemblies.

  • Page 75: When The Panel Pcb Does Not Operate Normally

    TROUBLESHOOTING 4-2-8. When the Panel PCB does not operate normally ① When the entire or a certain section of the Panel PCB does not light up - There is a MICOM embedded in the Panel PCB. So, take care when doing repairs. And, except the Solder Touch, replace the PCB.

  • Page 76: If Pantry Panel Pcb Is Not Working Normally

    TROUBLESHOOTING 4-2-9. If Pantry Panel PCB is not working normally You should check the display after door opening because the display of this model operates only when the fresh food compartment door is opened. Start room Does R Door switch operate normally? Check and repair the switch * Refer to <how to repair door switch>...

  • Page 77: When Refrigerator Room Lamp Does Not Light Up

    TROUBLESHOOTING 4-2-10. When refrigerator ROOM Lamp does not light up When controlling the regrigerator light with Regulator(12V) : LED LAMP → Applying to the F/R Room compartment (Option) * If the Vegetable Lamp does not work properly, check the R compartment LED Lamp because it is connected with the R compartment LED Lamp in parallel.

  • Page 78: If Ice Water Is Not Supplied

    TROUBLESHOOTING 4-2-11. If ICE Water is not supplied 1. Please shut the water supplying prior to repair. 2. Power is applied to the one end of wires. Be careful when disassembling not to get an electric shock. 1) Ice Water(F) Valve Typical PCB Ground J23 JUMMPER Start Is the confirming sound of...

  • Page 79: Led Blinking Frequency Depending On Protecting Functions

    TROUBLESHOOTING 4-2-12. LED blinking frequency depending on protecting functions If Failure Condition is detected during compressor is operating, immediately stop Compressor operating and stand by 5 minutes. During this 5 minutes, RPM command signal is not available. It means, even if available RPM command signal is applied to the compressor, it does not work and keep standing by.

  • Page 80: Spm Freewheeling Diode Voltage Value

    TROUBLESHOOTING SPM FREEWHEELING DIODE VOLTAGE VALUE AW1-12 (RF261BEAESR)-12.05.04.indd 81 AW1-12 (RF261BEAESR)-12.05.04.indd 81 2012.5.4 1:34:4 PM 2012.5.4 1:34:4 PM...

  • Page 81: Pcb Diagram

    5. PCB DIAGRAM 5-1) PCB Layout with part position ........................95 5-2) PCB Layout with part position (Inverter Board) ..................96 5-3) Connector Layout with part position (Main Board) ..................97 5-4) Connector Layout with part position (Inverter Board) ................98 AW1-12 (RF261BEAESR)-12.05.04.indd 82 AW1-12 (RF261BEAESR)-12.05.04.indd 82 2012.5.4 1:34:4 PM...

  • Page 82: 5-1) Pcb Layout With Part Position

    This document can not be used without Samsung's authorization PCB DIAGRAM 5-1) PCB Layout with part position 1. DC12V, 5V, GND supplied from SMPS PCB (Not Used) 2. Circuit for controlling Step-Valve (3-Way Valve) * Option 3. FAN MOTOR control part : To supply the power from 8.3V ~ 12V according to the motor types.

  • Page 83: 5-2) Pcb Layout With Part Position (Inverter Board)

    This document can not be used without Samsung's authorization PCB DIAGRAM 5-2) PCB Layout with part position (Inverter Board) 1. PCB Power Supply : From the SMPS circuit, it supplies 13.2V and 5V for the Main PBA control and supplies 15V and 5V to the Inverter circuit for the Compressor control.

  • Page 84: 5-3) Connector Layout With Part Position (Main Board)

    This document can not be used without Samsung's authorization PCB DIAGRAM 5-3) Connector Layout with part position (Main Board) 5-3-1. RF261* AW1-12 (RF261BEAESR)-12.05.04.indd 85 AW1-12 (RF261BEAESR)-12.05.04.indd 85 2012.5.4 1:34:5 PM 2012.5.4 1:34:5 PM...

  • Page 85: 5-4) Connector Layout With Part Position (Inverter Board)

    This document can not be used without Samsung's authorization PCB DIAGRAM 5-4) Connector Layout with part position (Inverter Board) AW1-12 (RF261BEAESR)-12.05.04.indd 86 AW1-12 (RF261BEAESR)-12.05.04.indd 86 2012.5.4 1:34:5 PM 2012.5.4 1:34:5 PM...

  • Page 86: Wiring Diagram

    This document can not be used without Samsung's authorization 6. WIRING DIAGRAM 6-1) Model : RF260B* , RF261B* AW1-12 (RF261BEAESR)-12.05.04.indd 87 AW1-12 (RF261BEAESR)-12.05.04.indd 87 2012.5.4 1:34:5 PM 2012.5.4 1:34:5 PM...

  • Page 87: Schematic Diagram

    This document can not be used without Samsung's authorization 7. SCHEMATIC DIAGRAM 7-1) Whole block diagram 7-1-1. MODEL : RF261* AW1-12 (RF261BEAESR)-12.05.04.indd 88 AW1-12 (RF261BEAESR)-12.05.04.indd 88 2012.5.4 1:34:5 PM 2012.5.4 1:34:5 PM...
  • Page 88 SCHEMATIC DIAGRAM 7-1-2. MODEL : RF260* AW1-12 (RF261BEAESR)-12.05.04.indd 89 AW1-12 (RF261BEAESR)-12.05.04.indd 89 2012.5.4 1:34:6 PM 2012.5.4 1:34:6 PM...
  • Page 89 This document can not be used without Samsung's authorization SCHEMATIC DIAGRAM 7-2) Whole block diagram 7-2-1. MODEL : RF260B* , RF261B* AW1-12 (RF261BEAESR)-12.05.04.indd 90 AW1-12 (RF261BEAESR)-12.05.04.indd 90 2012.5.4 1:34:6 PM 2012.5.4 1:34:6 PM...

  • Page 90: 7-3) Circuit Diagram

    This document can not be used without Samsung's authorization SCHEMATIC DIAGRAM 7-3) CIRCUIT DIAGRAM 7-3-1. Main AW1-12 (RF261BEAESR)-12.05.04.indd 91 AW1-12 (RF261BEAESR)-12.05.04.indd 91 2012.5.4 1:34:6 PM 2012.5.4 1:34:6 PM...
  • Page 91 This document can not be used without Samsung's authorization SCHEMATIC DIAGRAM 7-3-2. INVERTER (AC 115V) AW1-12 (RF261BEAESR)-12.05.04.indd 92 AW1-12 (RF261BEAESR)-12.05.04.indd 92 2012.5.4 1:34:6 PM 2012.5.4 1:34:6 PM...
  • Page 92 This document can not be used without Samsung's authorization SCHEMATIC DIAGRAM 7-3-3. INVERTER (AC 230V) AW1-12 (RF261BEAESR)-12.05.04.indd 93 AW1-12 (RF261BEAESR)-12.05.04.indd 93 2012.5.4 1:34:6 PM 2012.5.4 1:34:6 PM...
  • Page 93 SCHEMATIC DIAGRAM 7-4) Model name (nomenclature) - RF261* AW1-12 (RF261BEAESR)-12.05.04.indd 94 AW1-12 (RF261BEAESR)-12.05.04.indd 94 2012.5.4 1:34:7 PM 2012.5.4 1:34:7 PM...
  • Page 94 SCHEMATIC DIAGRAM 7-4) Model name (nomenclature) - RF260* AW1-12 (RF261BEAESR)-12.05.04.indd 95 AW1-12 (RF261BEAESR)-12.05.04.indd 95 2012.5.4 1:34:7 PM 2012.5.4 1:34:7 PM...
  • Page 95 • Europe, Mid east, Africa : http://gspn1.samsungcsportal.com • Asia : http://gspn2.samsungcsportal.com • North America : http://gspn3.samsungcsportal.com - This Service Manual is a property of Samsung Electronics Co., Ltd. Any unauthorized use of Manual can be punished under applicable International or domestic law.
