Summary of Contents for HardBASS Americans Amps Si2000.1

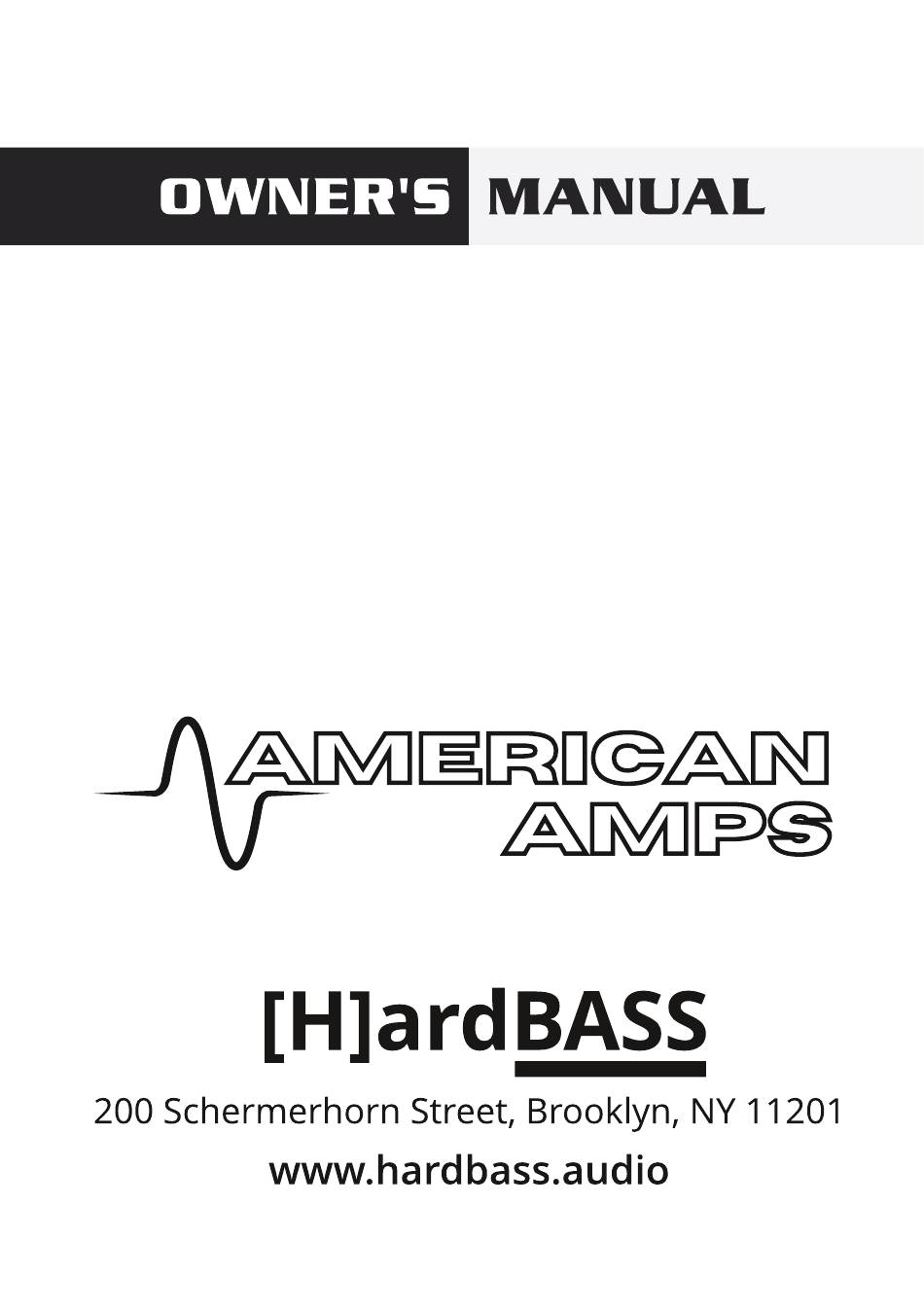

- Page 1 Si2000.1 Si2000.4 Si2000.5 Si4000.4 “Dragon”...
- Page 2 Introduction: Thank you for your purchase of the new Americans Amps series designed by [H]ardBASS in Brooklyn Heights, New York City. This series features upgraded components in a attractive and heavy heatsink design. Important Notes: ► High sound pressure levels (SPL) can be injurious to hearing. Please moderate your volume for the safety and comfort of those listening.
- Page 3 Monoblock Power & Signal Installation:...
- Page 4 4-Channel Power & Signal Installation: Amplifier - Signal Side Car Stereo Head unit Amplifier - Power Side +12V Remote Chassis Ground...
- Page 5 5-Channel Power & Signal Installation:...
- Page 6 4-Channel Speaker Installation: 4-Channel Amplifiers may be dedicated to Full-Range (or “Midrange”) amplification or used for both Full-Range and Subwoofer amplification. Full-Range Configuration: ► All channels have Full-Range, High-Pass or Low-Pass settings ► High-Pass (HPF) removes low-frequency from Midrange speakers ►...
- Page 7 4-Channel with Full-Range/Subwoofer Wiring 4-Channel with Full-Range only Wiring...
- Page 8 Monoblock Speaker Installation: Monoblock Amplifiers are used for dedicated Subwoofer amplification. ► There is only one channel internally (“mono”). This amplifier features two pairs of terminals wired in parallel for your convenience. ► This monoblock amplifier is 1-ohm stable. ► Single Subwoofer configurations: ►...
- Page 9 One Subwoofer Wiring Two Subwoofer Wiring Series/Parallel Wiring 1Ω 2Ω 2Ω 4Ω 2Ω 2Ω...
- Page 10 5-Channel Speaker Installation: 5-Channel Amplifiers are equipped for Full Range + Subwoofer operation. ► The Full-Range channels have Full-Range or High-Pass crossover switch ► High-Pass (HPF) removes low-frequencies from Midrange speakers ► A channel pair in bridge wiring will support 4Ω or 8Ω loads only. ►...
- Page 11 5-Channel Amplifier Wiring (Stereo Full-Range) 5-Channel Amplifier Wiring (Bridged Full-Range)
-
Page 12: Troubleshooting
Troubleshooting: ● No Power (Power light is not ON) ► Check ground connection ► Check fuses ► Check voltage at Remote (REM) and +12V connections. No Sound (Power light is ON, Protect light is OFF, but no sound is heard) ●... - Page 13 Troubleshooting: ► Diminished Bass Response ► Check speaker wiring polarity (out of phase speakers) ► Check phase adjustment (Monoblock only) ► Check Crossover settings (including any errant high-pass filters) ► Protection Light is ON ► Short-circuit protection: ► Check for short-circuited speaker wires or loose terminals ►...
-
Page 14: System Planning
System Planning ► Impedance (Loudspeakers) (Ohms) ► Impedance is the resistance to the flow of current in AC circuits. DC resistance can be measured in ohms (Ω) using a multimeter. ► Full-range loudspeakers are usually 4Ω or 8Ω impedance, while Subwoofers can be Single-4Ω, Dual-4Ω... - Page 15 Si2000.4 4-Channel | Specification Amplifier Topology: Class AB / 4-Channel Bridgeable Power Supply: High-Efficiency MOSFET Power Output: 2000 Watts Peak / 800 RMS Recommended Fuse: 80A External (not included) Continuous Power (RMS) @ 14.4V: 125 RMS x 4 @ 4-ohm 200 RMS x 4 @ 2-ohm 400 RMS x 2 @ 4-ohm Bridge Features:...
- Page 16 Si2000.5 5-Channel | Specification Amplifier Topology: Class AB Full-Range + Class D Subwoofer Power Supply: High-Efficiency MOSFET Power Output: 2000 Watts Peak / 1200 RMS Recommended Fuse: 140A External (not included) Continuous Power (RMS) @ 14.4V: 100 RMS x 4 Midrange + 300 RMS Subwoofer @ 4-ohm 150 RMS x 4 Midrange + 450 RMS Subwoofer @ 2-ohm 300 RMS x 2 Midrange (4-ohm Bridge) + 600 RMS into 1-ohm Subwoofer Features:...
- Page 17 Si2000.1 Monoblock | Specification Amplifier Topology: Class D / Monoblock Power Supply: High-Efficiency MOSFET Power Output: 2000 Watts Peak / 1000 RMS Recommended Fuse: 100A External (not included) Continuous Power (RMS) @ 14.4V: 500 RMS @ 4-ohm 750 RMS @ 2-ohm 1000 RMS @ 1-ohm Features: Low-Pass (LPF) crossover point adjustable from 40Hz to 180Hz...
- Page 18 Si4000.4 “Dragon” 4-Channel | Specification Amplifier Topology: Class D Full-Range / 4-Channel Bridgeable Power Supply: High-Efficiency MOSFET Power Output: 4000 Watts Peak / 1800 RMS Recommended Fuse: 160A External (not included) Continuous Power (RMS) @ 14.4V: 300 RMS x 4 @ 4-ohm 500 RMS x 4 @ 2-ohm 900 RMS x 2 @ 4-ohm Bridge Features:...
