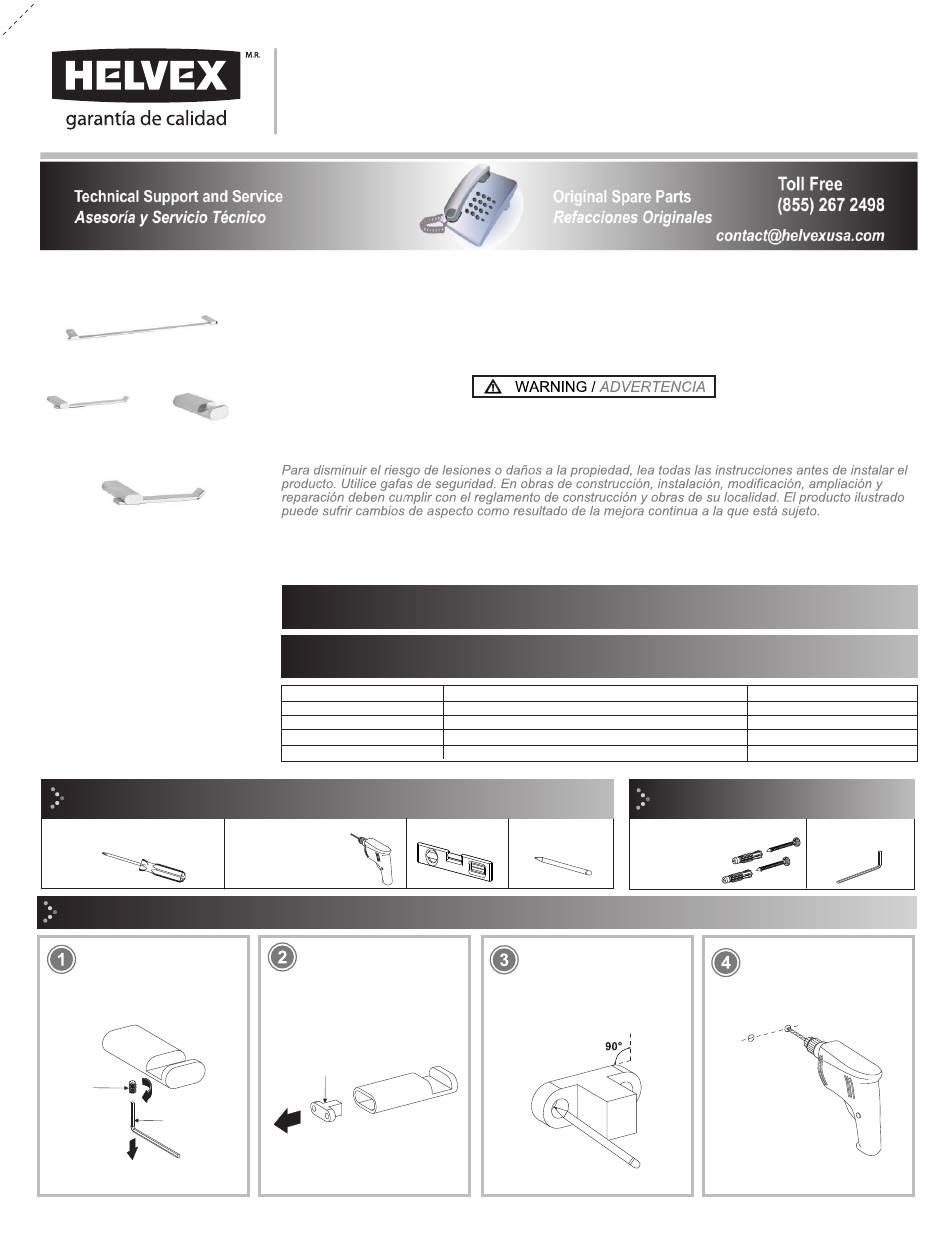

Recommended Tools and Materials /
Herramientas y Materiales Recomendados
phillips screwdriver
desarmador de cruz
General Installation / Instalación General
Unscrew the set screw with
the allen wrench (included).
Desenrosque el opresor con
la llave allen
(incluida).
set screw
opresor
3/32" allen wrench
(Included)
llave allen 3/32"
(Incluida)
INSTALLATION GUIDE
GUÍA DE INSTALACIÓN
Thank you for choosing HELVEX products.
We are confident that the product reliably will exceed your highest expectations. This product's functionality,
aesthetics, durability, quality and support will grant you full satisfaction for years, thus reflecting Helvex's
commitment to quality, innovation and the environment.
Agradecemos su elección por los productos HELVEX.
Estamos seguros de que la confiabilidad del producto excederá sus más altas expectativas, cuya
funcionalidad, estética, durabilidad, respaldo integral y alta calidad le otorgarán plena satisfacción por años,
reflejando el compromiso con la calidad, innovación y el medio ambiente que forman parte de Helvex.
To reduce the risk of injury or property damage, please read all instructions before installing the product.
Wear safety glasses. For any construction, installation, alteration, extension or repair, comply with your
local building codes. The product's illustration may vary in appearance to the actual product as result of
the continuous improvement process it is subject to.
This product can expose you to chemicals including lead, wich is known to the State of California to cause
cancer. For more information go to www.P65Warnings.ca.gov.
Este producto puede exponerlo a sustancias químicas, incluido el plomo, que es conocido por el estado de
California como causante de cáncer. Para obtener más información, visite www.P65Warnings.ca.gov.
This Installation Guide Applies to the Product in any Finishing.
Esta Guía de Instalación Aplica al Producto en Cualquier Acabado.
Recommended Heights for Accessories Installation. / Alturas Recomendadas para
MODEL
/
MODELO
U15104
U15105
U15106
U15109
* Recommended installation height based on FFL (Finished Floor Level).
drill with Ø ¼"
concrete drill bit
taladro con broca para
concreto de Ø ¼"
Remove the wall bracket.
Retire el ancla.
/
wall bracket
ancla
Instalación de Accesorios.
DESCRIPTION
/
DESCRIPCIÓN
Paper Holder
/
Porta papel
Towel Bar
/
Toallero de Barra
Robe Hook
/
Gancho Sencillo
Small Towel Bar
/ Toallero Corto
/ * Alturas recomendadas en base a NPT (Nivel de Piso Terminado).
level
pencil
nivel
lápiz
Place the wall bracket over
/
the wall, level and mark the
holes.
/ Presente el ancla
sobre la pared, nivele y
marque los barrenos.
1-03-1547-1
Accessories Line
Línea de Accesorios
HEIGHT
(")
19,6
47,2
64,9
59,0
Items Included in the Product /
Artículos Incluidos en el Producto
3/32" allen wrench
fixing kit for drywall and solid
llave allen de 3/32"
wall
/ kit de sujeción para
muro falso y muro
sólido
Drill with Ø 1/4" concrete drill
bit.
/ Barrene con broca para
concreto de Ø 1/4".
PREMIER
/
ALTURA (cm)
/ 50
/ 120
/ 165
/ 150
