PT419W
Professional 19" High-Bright Beam Splitter Teleprompter w/ Widescreen SDI Talent Monitor
OVERVIEW

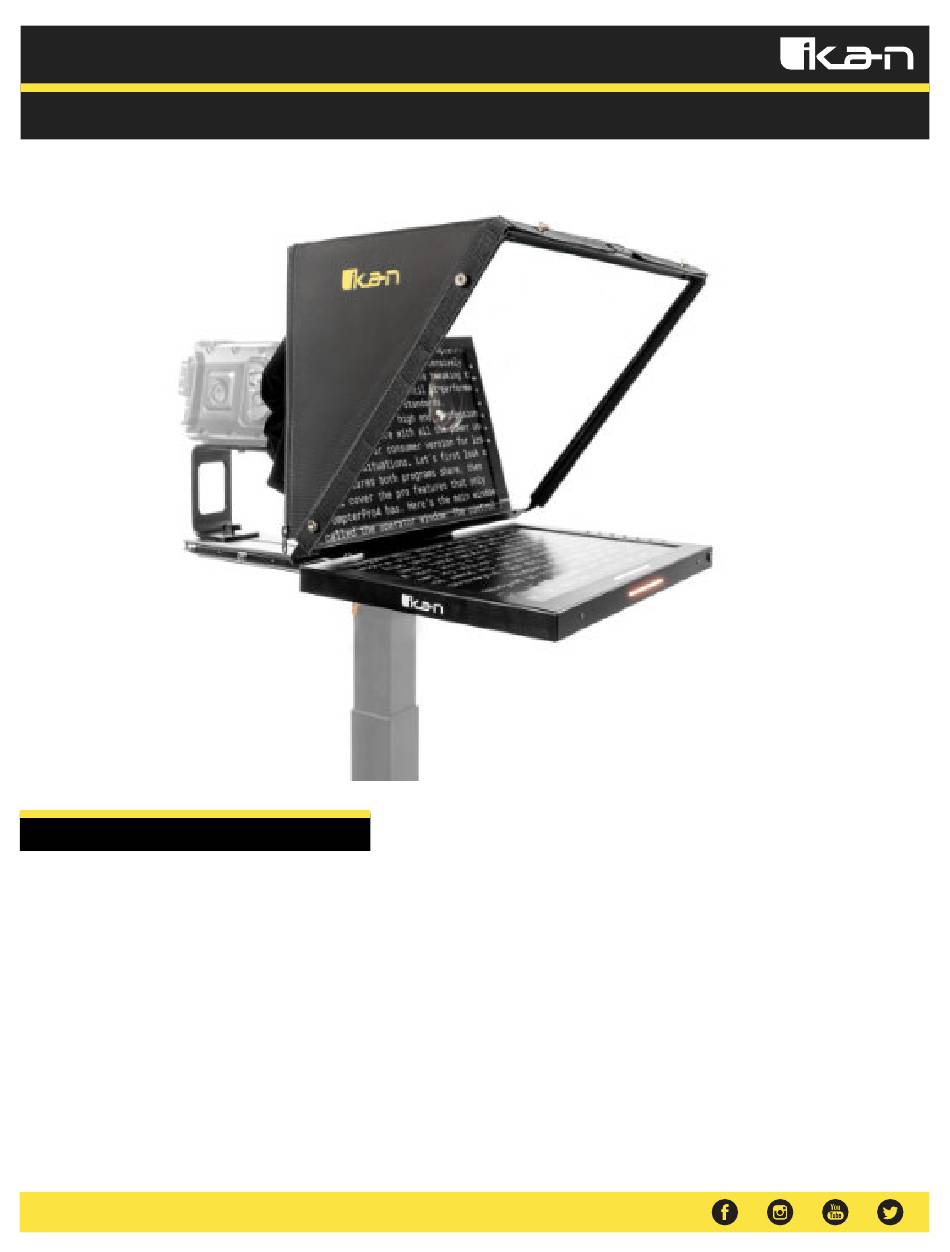

Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast
applications. The teleprompter includes a 65/35 reflective glass that makes the reflection easier to see for the
presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or
pedestal. The monitor includes SDI, HDMI, and VGA video inputs. Its high bright screen ensures clear visibility in any
lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The widescreen
monitor also features a wide viewing angle.
www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for ICAN PT419W
Summary of Contents for ICAN PT419W
- Page 1 Quick Start Guide PT419W Professional 19" High-Bright Beam Splitter Teleprompter w/ Widescreen SDI Talent Monitor OVERVIEW Ikan’s professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The teleprompter includes a 65/35 reflective glass that makes the reflection easier to see for the presenter.
-
Page 2: Widescreen Monitor
What’s Included Tall Riser DSLR/Mirrorless Riser Short Riser Widescreen Monitor Sled Base Glass Frame Holder Bracket Glass w/ Rod Clamps Hood Attachment Frame Glass Holder Hood Glass Frame Screws 15mm Rod Clamps 15mm Rods Large Riser Bracket www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com... - Page 3 Teleprompter Assembly Setup Step 1 Step 2 Place the Hood Attachment Frame over the Glass Holder. Then place the Secure the Glass Holder by fastening the knurled nuts to the screws as glass against the Glass Holder. Make sure the screws pass through the pictured below.
- Page 4 Step 5 After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor. *SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.
- Page 5 Step 8 Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The flaps of the Hood are magnetic so they will automatically attach. Step 9 To prevent light from leaking through the hood, seal both zippers down. www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 6 Step 10 Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The flaps of the Hood are magnetic so they will automatically attach. Step 11 To prevent light from leaking through the hood, seal both zippers down. www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 7 Step 14 Place the riser below your camera and fasten the 1/4-20 camera screw to the bottom of your camera to secure it to the riser plate. Step 15 Slide the threaded studs into the channel of the base. Make sure they are aligned to the spacing of the holes on the riser plate. www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 8 Step 12 If you need to use the Tall Riser Plate, you will need to use the Large Riser Bracket. Insert the Large Riser Bracket through the channel on the Tall Riser Plate The Large Riser Bracket includes a location pin for use with cameras that feature a location pin hole. If your camera does not feature a location pin, you can remove the location pin by unscrewing it.
- Page 9 Step 16 Once the threaded studs are aligned to the holes of the riser plate, put the threaded studs through the holes of the riser plate. Step 17 Fasten the screws to the threaded studs to secure the riser plate to the base. www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 10 Step 18 Mount your own tripod plate to the bottom plate by aligning the 1/4-20 and/or 3/8-16 screws and fastening them to the Sled. It is recommended that you connect your tripod plate to front of the Sled so that you can balance your teleprompter easier. Once your tripod plate is connected to the Sled, mount the tripod plate to your tripod head.
- Page 11 Step 21 To secure your teleprompter system, insert the included headless screws into the threads behind and in front of the Base. Step 22 The headless screws should be inserted to the threads as pictured below. www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
-
Page 12: Monitor Ports
Monitor Ports Monitor Menu Settings Video Config Contrast (White Level) Brightness (Black Level) Tint (Chroma Hue) Chroma (Chroma Saturation) Sharpness (Detail) RGB Setup – Manually configure RGB Return System Config Menu Duration – Set duration of how long menu stays on screen Video Ratio –... -
Page 13: Learn More
Pinout Diagram for Tally Light Red Light Green Light Contact Common Learn More More dynamic information at official website :www.ikancorp.com Support Contact email: support@ikancorp.com www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com... -
Page 14: Optional Accessories
Watch our VIDEO TUTORIAL on how to assemble PT419W Teleprompters https://ikancorp.com/pt419-tutorial-videos/ Optional Accessories PT4U-G Replacement Glass for PT419 M19W-V2 19” Talent Monitor Add On Kit for PT419 PT-PEDAL Teleprompter Foot Control Pedal PT-CONTROLLER Teleprompter Rotary Controller PT-CASE-4U Rolling Hard Case for PT419 Teleprompter... - Page 15 Foam Case To make your teleprompter more portable, we packed it in a reusable, high-quality foam. The shape and size of the foam was designed to fit into Ikan’s PT-CASE-4U **DO NOT THROW AWAY FOAM CASE** Learn More More dynamic information at official website: www.ikancorp.com Support Contact email: support@ikancorp.com CONDITIONS OF WARRANTY SERVICE...
